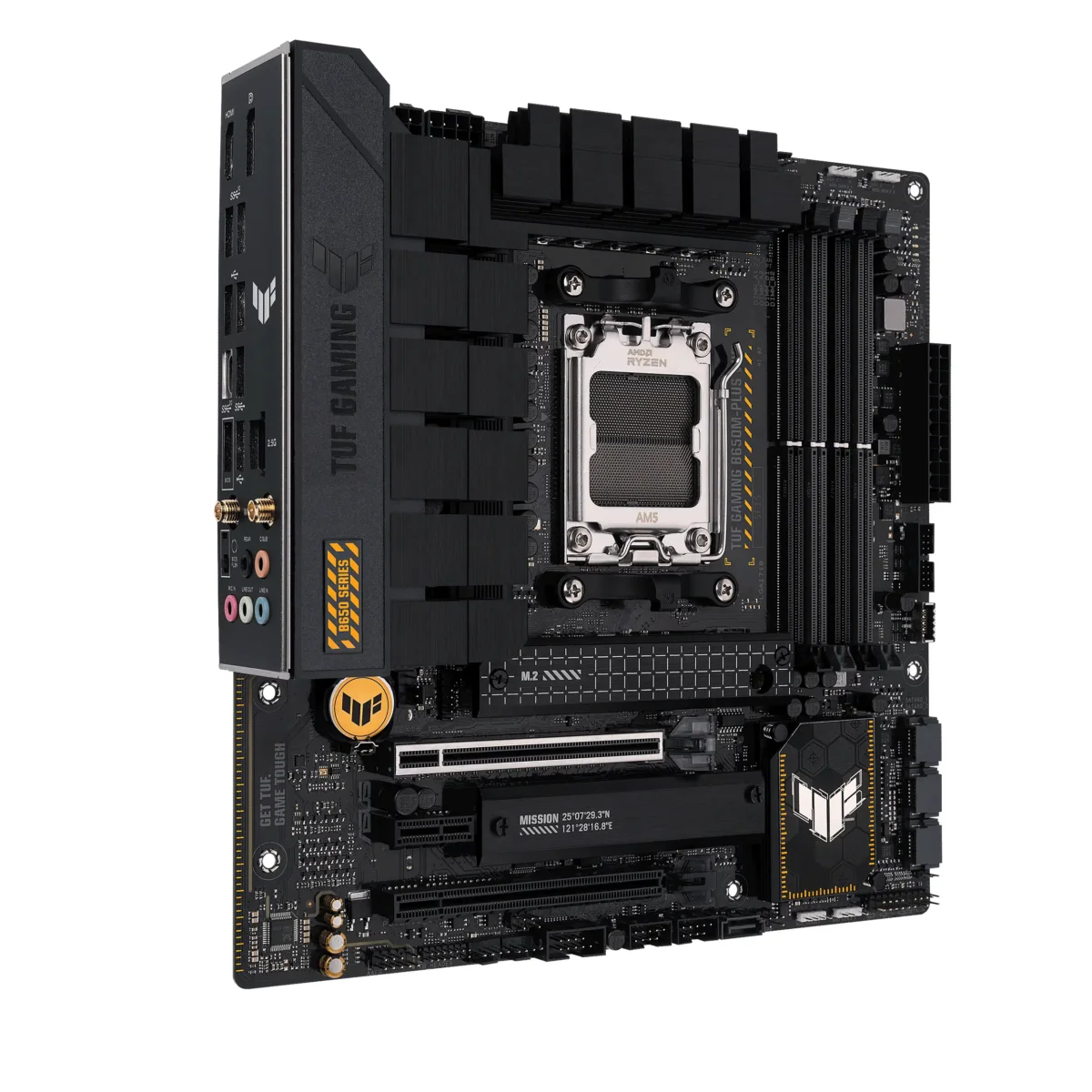

ASUS TUF GAMING B650M-PLUS WIFI, AM5, Ryzen 9000/8000/7000

The ASUS TUF GAMING B650M-PLUS WIFI offers a robust platform for AMD Ryzen™ 9000, 8000, and 7000 Series processors. Designed for reliability and performance, it boasts DDR5 memory support, next-gen PCIe 5.0 connectivity, and advanced cooling solutions. The TUF Gaming Alliance ensures compatibility with components for seamless builds, while features like Aura Sync RGB lighting add a touch of customization.

Key Features

• Powerful Performance: Built for AMD Ryzen 9000, 8000, and 7000 Series processors with DDR5 support up to 192GB at speeds of 7600+(OC).
• Advanced Connectivity: Includes PCIe 5.0 and PCIe 4.0 M.2 slots, Realtek 2.5Gb Ethernet, and Wi-Fi 6 for seamless networking.
• Comprehensive Cooling: VRM heatsinks, M.2 heatsinks, and multiple fan headers with Fan Xpert 2+ ensure optimal thermal performance.
• Enhanced Durability: Features ASUS TUF Protection, SafeSlot Core+, and Stainless-Steel Back I/O for long-term reliability.
• Versatile USB Options: Includes USB 3.2 Gen 2×2 Type-C®, USB 3.2 Gen 2, and USB 2.0 ports for modern peripherals.
• Immersive Audio: Realtek 7.1 Surround Sound with DTS Audio Processing delivers high-quality sound.

ASUS TUF GAMING B650M-PLUS WIFI Specifications

• Model: ASUS TUF GAMING B650M-PLUS WIFI
• Socket Type: AMD AM5
• Chipset: AMD B650
• Memory Support: 4 x DDR5 DIMM slots, up to 192GB, speeds up to DDR5 7600+(OC).
• Graphics: 1 x DisplayPort (8K@60Hz), 1 x HDMI (4K@60Hz).
• Expansion Slots: 1 x PCIe 4.0 x16, 1 x PCIe 4.0 x16 (x4 mode), 1 x PCIe 4.0 x1.
• Storage: 2 x M.2 slots (PCIe 5.0 and PCIe 4.0), 4 x SATA 6Gb/s ports.
• Networking: Realtek 2.5Gb Ethernet, Wi-Fi 6, Bluetooth 5.2.
• Audio: Realtek 7.1 Surround Sound, supports up to 24-bit/192kHz playback.
• USB Ports (Rear): 1 x USB 3.2 Gen 2×2 Type-C®, 2 x USB 3.2 Gen 2, 1 x USB 3.2 Gen 1, 4 x USB 2.0.
• USB Ports (Front): 1 x USB 3.2 Gen 1 Type-C®, 2 x USB 3.2 Gen 1, 4 x USB 2.0.
• Cooling Headers: 1 x CPU fan, 1 x CPU OPT fan, 1 x AIO pump, 3 x chassis fans.
• Form Factor: Micro-ATX, 24.4 cm x 24.4 cm.

Processor Compatibility

The ASUS TUF GAMING B650M-PLUS WIFI motherboard is built around the AMD AM5 socket and B650 chipset, designed for the AMD Ryzen 7000 Series (Zen 4) processors. This includes both standard and high-performance CPUs, ensuring exceptional versatility for gaming, multitasking, and professional workloads. The motherboard is engineered to support the latest DDR5 memory and PCIe 5.0 storage, making it a future-proof choice for modern PC builds.

Compatible Processors:

• AMD Ryzen 7000 Series:
  • Ryzen 5 7600, Ryzen 5 7600X – Best suited for budget and mainstream gaming builds.
  • Ryzen 7 7700, Ryzen 7 7700X – Ideal for gamers who need extra processing power for multitasking or light content creation.
  • Ryzen 9 7900, Ryzen 9 7900X, Ryzen 9 7950X – Tailored for high-end gaming, professional workloads, and heavy multitasking.
  • Ryzen 7000G Series APUs (when available) – For builds that require integrated Radeon™ Graphics.

Processor Recommendations:

• Gaming Builds: Ryzen  5 7600X – High clock speeds and power efficiency for smooth 1080p/1440p gaming.
• Performance-Oriented Systems: Ryzen 7 7700X – Combines excellent multi-core and single-core performance for multitasking and gaming.
• Workstations: Ryzen 9 7950X – With 16 cores and 32 threads, it’s perfect for professional workloads such as rendering, simulation, or video editing.

Future-Proofing:
The AM5 socket is designed with longevity in mind, ensuring compatibility with future Ryzen™ CPU generations, making it a great investment for upgrades.

Discrete Graphics Compatibility

The ASUS TUF GAMING B650M-PLUS WIFI supports powerful discrete GPUs through its PCIe 4.0 x16 slot. This high-bandwidth slot is compatible with modern and next-gen graphics cards, offering exceptional performance for gaming, creative work, and multitasking. While PCIe 5.0 is not included for GPUs, PCIe 4.0 offers more than enough bandwidth for current-generation cards.

Compatible Graphics Cards:

• Entry-Level GPUs: NVIDIA GTX 1650, AMD RX 6400 – Suitable for light gaming and general computing.
• Mid-Range GPUs: NVIDIA RTX 3060, RTX 3060 Ti, AMD RX 6600 XT – Ideal for 1440p gaming and creative tasks.
• High-End GPUs: NVIDIA RTX 3070, RTX 3080, AMD RX 6800 XT – Perfect for 4K gaming and resource-heavy applications.
• Professional GPUs: NVIDIA RTX 4000 series, AMD Radeon Pro W6000 – Designed for CAD, AI tasks, and heavy professional workloads.

Graphics Recommendations:

• Mainstream Gaming: NVIDIA RTX 3060 Ti – Excellent performance for high refresh rate 1080p or 1440p gaming, AMD RX 6600 XT – Provides great value for mid-range builds.
• High-End Builds: NVIDIA RTX 3070 – Exceptional 1440p and entry-level 4K gaming performance, AMD RX 6800 XT – A strong contender for high-resolution gaming and VR.

Onboard Graphics:
For Ryzen™ CPUs with integrated Radeon™ Graphics, such as Ryzen™ 7000G series APUs (when available), the motherboard offers HDMI 2.1 and DisplayPort 1.4 outputs, supporting resolutions of up to 4096×2160@60Hz and 3840×2160@144Hz.

Storage and Expansion

Features two M.2 slots (PCIe 5.0 and PCIe 4.0) for ultra-fast SSDs and four SATA 6Gb/s ports, supporting RAID 0, RAID 1, and RAID 10 for versatile storage configurations.

Power Requirements and Cooling

The ASUS TUF GAMING B650M-PLUS WIFI is equipped with a durable 10+2 DrMOS VRM power stage design, capable of delivering reliable and efficient power to high-performance components. Combined with robust thermal solutions, this ensures stability even during extended heavy workloads or gaming sessions.

Recommended Power Supply Wattage:

• Entry-Level Systems: 450W-550W PSU – Ideal for Ryzen™ 5 processors paired with GPUs like GTX 1650 or RX 6400.
• Mid-Range Builds: 650W PSU – Recommended for Ryzen™ 7 CPUs and GPUs like RTX 3060 or RX 6700 XT.
• High-End Systems: 750W-850W PSU – Necessary for setups using Ryzen™ 9 processors and GPUs like RTX 3080 or RX 6800 XT.

Power Supply Recommendations:

• Corsair RM650x (80 PLUS Gold) – Modular PSU offering reliability and efficiency for mid-range builds.
• Seasonic Focus GX-850 – Perfect for high-end systems, ensuring stable power delivery.

Cooling Solutions:

• Air Cooling: High-performance air coolers like Noctua NH-D15 or be quiet! Dark Rock Pro 4 are sufficient for Ryzen™ 7 and 9 processors.
• Liquid Cooling: AIO coolers such as the NZXT Kraken X63 or Corsair iCUE H150i Elite Capellix are recommended for overclocked builds and Ryzen™ 9 processors.

Case Ventilation:
Pair this motherboard with cases offering optimized airflow, such as the Cooler Master TD500 Mesh or NZXT H7 Flow, to keep temperatures under control.

With its advanced power delivery, cooling features, and compatibility with the latest AMD technologies, the ASUS TUF GAMING B650M-PLUS WIFI is an ideal choice for gaming enthusiasts and content creators aiming for long-lasting performance.

Is This Motherboard for You?

The ASUS TUF GAMING B650M-PLUS WIFI is ideal for gamers, builders, and professionals seeking a reliable, feature-rich micro-ATX motherboard. With next-gen connectivity, enhanced cooling, and rugged durability, this motherboard delivers exceptional value for a wide range of builds.
