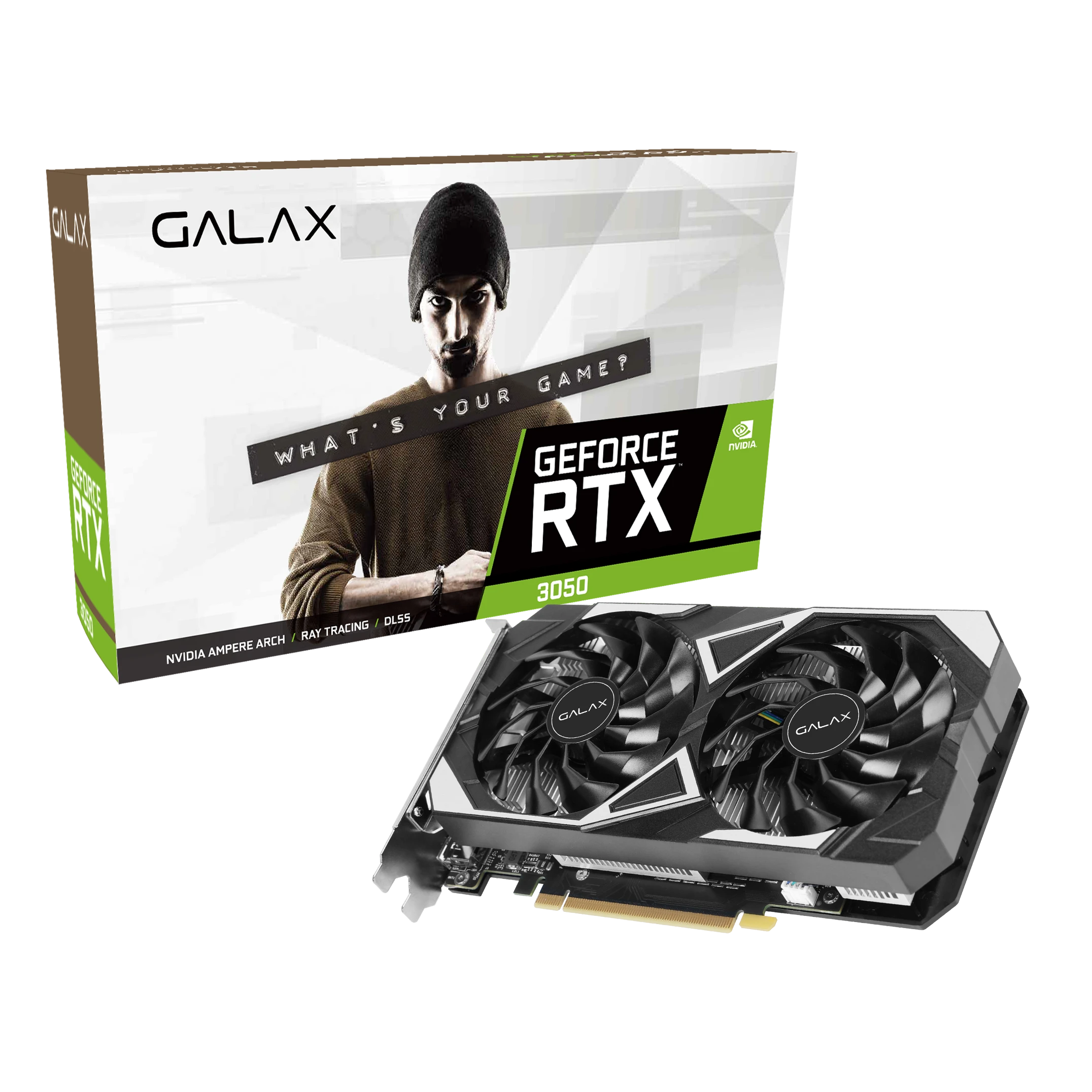

GALAX GeForce RTX 3050 6GB EX, GDDR6, 1470 MHz

The GALAX GeForce RTX 3050 6GB EX is a high-performance graphics card tailored for smooth 1080p gaming. Powered by NVIDIA’s Ampere architecture, it features 2304 CUDA cores, 6GB of GDDR6 memory, and an impressive boost clock of 1470 MHz, which can be further enhanced to 1485 MHz using the 1-Click OC feature in GALAX’s Xtreme Tuner Plus software.

With dual 92mm WINGS fans, this GPU provides optimized cooling, ensuring efficient heat dissipation for stable performance. Perfect for gaming, streaming, and content creation, the RTX 3050 EX is packed with advanced technologies, including ray tracing, DLSS, and VR-ready capabilities.

Key Features

• 6GB GDDR6 Memory: High-speed 96-bit memory interface for smooth multitasking and gameplay.
• Boost Clock Speed: Factory overclocked at 1470 MHz with optional 1485 MHz through 1-Click OC.
• NVIDIA Ampere Architecture: 2nd Gen RT Cores and 3rd Gen Tensor Cores for realistic graphics and AI-enhanced performance.
• DLSS Technology: AI-powered upscaling for stunning visuals and higher frame rates.
• Efficient Cooling: Dual 92mm WINGS fans with 11-blade design for effective heat dissipation.
• Ray Tracing Support: Real-time lighting effects for immersive gameplay.
• Display Support: HDMI 2.1, DisplayPort 1.4a, and DVI-D for high-resolution multi-monitor setups.
• Compact Design: Fits into standard mid-sized builds with a 2-slot form factor.
• 1-Click OC: Effortlessly increase performance through GALAX Xtreme Tuner Plus.

GALAX GeForce RTX 3050 6GB EX Specifications

• Model Name: GALAX GeForce RTX™ 3050 6GB EX
• Graphics Processing Unit (GPU): NVIDIA GeForce RTX™ 3050
• Core Clock Speed: Boost: 1470 MHz, 1-Click OC: 1485 MHz (with Xtreme Tuner Plus)
• CUDA Cores / Stream Processors: 2304 CUDA Cores
• Memory Size: 6GB
• Memory Type: GDDR6
• Memory Bus Width: 96-bit
• Memory Speed: 14 Gbps
• Memory Bandwidth: 168 GB/s
• Interface: PCI Express Gen 4.0
• Output Ports: 1 x DisplayPort 1.4a, 1 x HDMI 2.1, 1 x DVI-D
• Maximum Digital Resolution: 7680 x 4320
• DirectX Version Support: Microsoft DirectX® 12 Ultimate
• OpenGL Version Support: OpenGL 4.6
• Cooling System: Dual 92mm WINGS fans with idle fan stop feature
• Recommended Power Supply: 300W
• Power Connectors: 1 x 6-pin PCIe
• Power Consumption: 90W
• Dimensions (with Bracket): 8.82″ x 5.24″ x 1.73″ (224 x 133 x 44 mm)
• Dimensions (without Bracket): 8.23″ x 4.65″ x 1.63″ (209 x 118 x 41.5 mm)
• Slot Size: 2 Slot

Processor Compatibility

The GALAX GeForce RTX 3050 6GB EX is an excellent choice for gamers who want a smooth 1080p gaming experience with support for features like Ray Tracing and DLSS. To unlock its full potential, pairing it with processors that can handle its performance is key. Here are some recommended processors:

Recommended AMD Processors

• AMD Ryzen 5 5600G: A 6-core, 12-thread powerhouse with integrated graphics for a balanced gaming and multitasking experience.
  ➡️ Explore AMD Ryzen 5 5600G
• AMD Ryzen 3 3200G: A budget-friendly quad-core processor ideal for light gaming builds with the RTX™ 3050.
  ➡️ Check out AMD Ryzen 3 3200G

Recommended Intel Processors

• Intel Core i5-12400: A strong 6-core processor offering excellent performance for gaming and productivity tasks.
  ➡️ Buy Intel Core i5-12400
• Intel Core i3-10105F: A cost-effective option with 4 cores and hyper-threading, suitable for casual gaming setups.
  ➡️ Explore Intel Core i3-10105F

Motherboard Compatibility

The GALAX GeForce RTX 3050 6GB EX features PCIe 4.0 x16 support, ensuring it is compatible with a wide range of motherboards from AMD and Intel platforms. The following options provide stable performance and advanced features tailored to various budget levels:

Recommended AMD Motherboards

• MSI B550M PRO-VDH WIFI: A compact motherboard with PCIe 4.0 support, robust build quality, and onboard Wi-Fi for seamless connectivity.
  ➡️ View MSI B550M PRO-VDH WIFI
• ASRock B450 Steel Legend: A reliable and feature-packed motherboard ideal for mid-tier Ryzen processors, offering RGB lighting and extensive connectivity.
  ➡️ Check ASRock B450 Steel Legend

Recommended Intel Motherboards

• Gigabyte B660M DS3H DDR4: A highly versatile motherboard with PCIe 4.0 support, excellent build quality, and a focus on stability for Intel 12th Gen CPUs.
  ➡️ Shop Gigabyte B660M DS3H DDR4
• ASUS Prime H610M-K D4: A dependable entry-level motherboard with essential features for Intel 12th Gen processors.
  ➡️ Discover ASUS Prime H610M-K D4

Memory Compatibility

Pair this GPU with 16GB DDR4 RAM at 3200 MHz for smooth gaming and multitasking. Upgrade to 32GB DDR4 RAM for enhanced productivity and creative workloads.

Power Supply Recommendations

A reliable 300W PSU, such as the Corsair CV450 or Cooler Master MWE Bronze 450, ensures stable power delivery and future upgrade compatibility.

Is This GPU for You?

The GALAX GeForce RTX 3050 6GB EX is an excellent choice for gamers and creators looking for a budget-friendly GPU with robust performance and advanced NVIDIA features. Its dual-fan cooling, compact design, and factory overclocking make it ideal for smooth 1080p gaming and everyday tasks.

If you’re building or upgrading a mid-range gaming PC, this GPU delivers incredible value with cutting-edge technologies like ray tracing, DLSS, and VR support.

Disclaimer

The processor and motherboard recommendations provided are selected to deliver balanced performance and compatibility with the GALAX GeForce RTX 3050 6GB EX. Please verify compatibility with your specific setup and confirm product availability in your region before purchasing.
