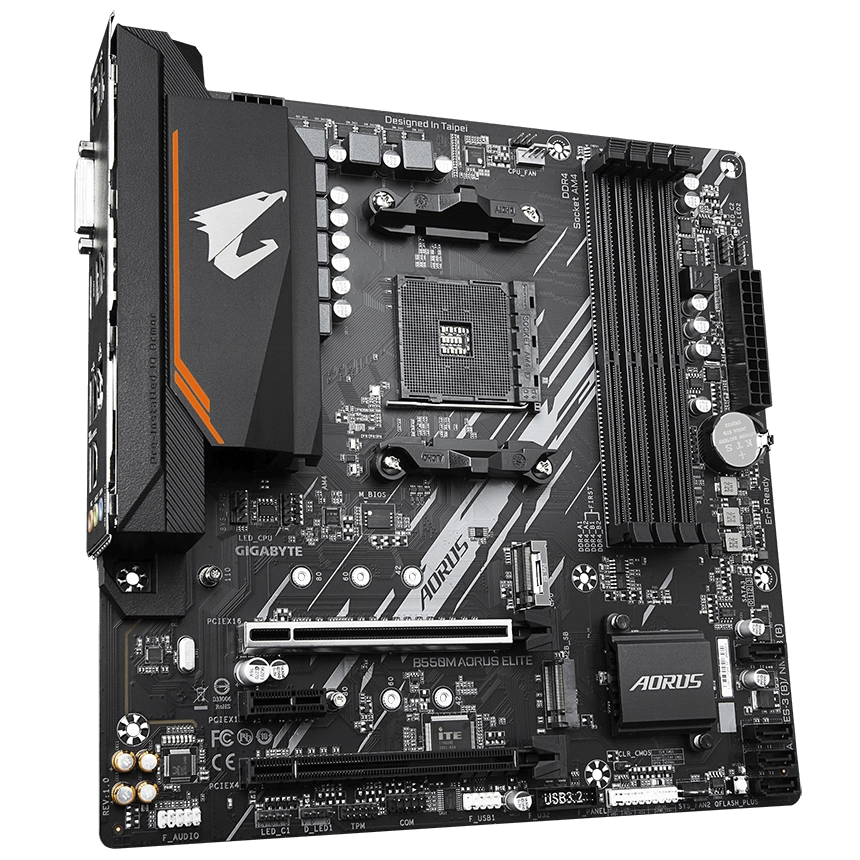

Gigabyte B550M AORUS ELITE, AM4, Ryzen 5000/4000G/3000, DDR4

The Gigabyte B550M AORUS ELITE is engineered for excellence, featuring AMD’s B550 chipset to unlock the full potential of Ryzen™ 5000 and 3000 series processors. Its durable design ensures stable operation, while its comprehensive connectivity options deliver fast data transfer and superior expansion capabilities. With support for up to 128GB of DDR4 memory, PCIe 4.0 compatibility, and high-speed M.2 storage, this motherboard is a future-ready choice for gamers, content creators, and PC enthusiasts.

Key Features

• Processor Compatibility: Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, and 3000 Series processors.
• Memory Support: Dual-channel DDR4 with speeds up to 4733MHz (OC).
• Graphics Outputs: HDMI 2.1 (4K@60Hz) and DVI-D for vibrant display support.
• Expansion Slots: PCIe 4.0/3.0 x16 and PCIe 3.0 x4 slots for GPUs and add-ons.
• Storage Interface: Dual M.2 slots (PCIe 4.0 & PCIe 3.0) and four SATA 6Gb/s ports with RAID support.
• RGB Lighting: Customizable RGB Fusion 2.0 with addressable and standard RGB headers.
• Robust Audio: Realtek® Audio CODEC with multi-channel support for immersive sound.
• Networking: Realtek® GbE LAN for fast and reliable connectivity.

Gigabyte B550M AORUS ELITE Specifications

• Brand: GIGABYTE
• Model: B550M AORUS ELITE
• Socket Type: AM4
• Chipset: AMD B550
• Processor Compatibility: AMD Ryzen 5000 Series, Ryzen 5000 G-Series, Ryzen 4000 G-Series, Ryzen 3000 Series, and Ryzen 3000 G-Series processors.
• Memory Support: 4 x DDR4 DIMM sockets, up to 128GB, DDR4.
• Graphics Support: Integrated Graphics Processor, DVI-D port (1920×1200@60 Hz), HDMI port (4096×2160@60 Hz, HDMI 2.1, HDR), maximum shared memory 16GB.
• Expansion Slots: 1 x PCI Express x16 (PCIe 4.0 x16 with Ryzen™ 5000/3000, PCIe 3.0 with others), 1 x PCIe x16 (PCIe 3.0 x4), 1 x PCIe x1 (PCIe 3.0 x1).
• Storage Interface: 1 x M.2 Socket 3 (PCIe 4.0 x4/x2 & SATA with Ryzen 5000/3000, PCIe 3.0 x4/x2 with others), 1 x M.2 Socket 3 (PCIe 3.0 x2), 4 x SATA 6Gb/s (RAID 0, 1, 10).
• USB Ports: Rear: 4 x USB 3.2 Gen 1, 4 x USB 2.0; Internal: 2 x USB 3.2 Gen 1 headers, 1 x USB 2.0 header.
• Networking: Realtek® GbE LAN (1 Gbps).
• Audio: Realtek Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel support.
• RGB and Fan Control: 2 x Addressable LED strip headers, 2 x RGB LED strip headers, all fan headers support AIO_Pump and high-performance fans (up to 2A/12V).
• BIOS: 256Mbit Flash, AMI UEFI BIOS.
• Operating System Support: Windows 11 64-bit, Windows 10 64-bit.
• Form Factor and Dimensions: Micro ATX, 24.4 cm x 24.4 cm.

Processor Compatibility

The Gigabyte B550M AORUS ELITE motherboard is built to support AMD Ryzen™ 5000 Series processors, delivering exceptional performance for gaming, content creation, and productivity tasks. Additionally, it is backward compatible with AMD Ryzen™ 4000 G-Series and 3000 Series processors, providing flexibility for users upgrading from earlier platforms. With its robust power design and efficient thermal management, the motherboard ensures reliable performance and overclocking potential for supported CPUs.

Recommended Processors:

• For Gamers: AMD Ryzen 5 5600X

  Known for its outstanding gaming performance, this 6-core, 12-thread processor utilizes PCIe 4.0 to deliver faster frame rates and superior responsiveness.

• For Creators and Multitaskers: AMD Ryzen 7 5800X

  Ideal for demanding workloads, this 8-core, 16-thread processor offers excellent performance in content creation and multitasking environments.

• For Power Users: AMD Ryzen 9 5900X

  With 12 cores and 24 threads, the Ryzen™ 9 5900X is perfect for high-performance computing tasks, including video editing, 3D rendering, and advanced simulations.

• Budget Option: AMD Ryzen 3 3100

  A cost-effective choice for basic gaming and everyday computing tasks, this 4-core processor provides solid entry-level performance.

Discrete Graphics Compatibility

This motherboard supports PCIe 4.0 and 3.0 graphics cards through its x16 slot, ensuring compatibility with the latest GPUs, including the NVIDIA RTX™ 40 Series and AMD Radeon™ RX 6000 Series. The PCIe 4.0 x16 slot provides unparalleled bandwidth for high-performance graphics cards.

Onboard Graphics

Integrated graphics are supported via HDMI 2.1 and DVI-D ports, capable of delivering resolutions up to 4K@60Hz. However, discrete GPUs are recommended for gaming and intensive tasks.

Storage and Expansion

Enjoy rapid data access with dual M.2 slots, including one PCIe 4.0 x4 (for Ryzen™ 5000/3000 CPUs). The motherboard also offers four SATA 6Gb/s connectors for additional storage, with support for RAID 0, 1, and 10.

Power Requirements and Cooling:

This motherboard requires a standard 24-pin ATX and an 8-pin ATX 12V power connection. A 500-650W power supply is recommended for builds using mid-range GPUs, while high-end builds should consider 750W or more. It features comprehensive cooling options, including fan headers supporting high-performance and AIO cooling solutions.

Is This Motherboard for You?

The Gigabyte B550M AORUS ELITE is ideal for gamers, creators, and PC enthusiasts looking for a compact yet powerful motherboard. With its advanced connectivity, excellent expandability, and durable design, it offers exceptional value for modern builds.
