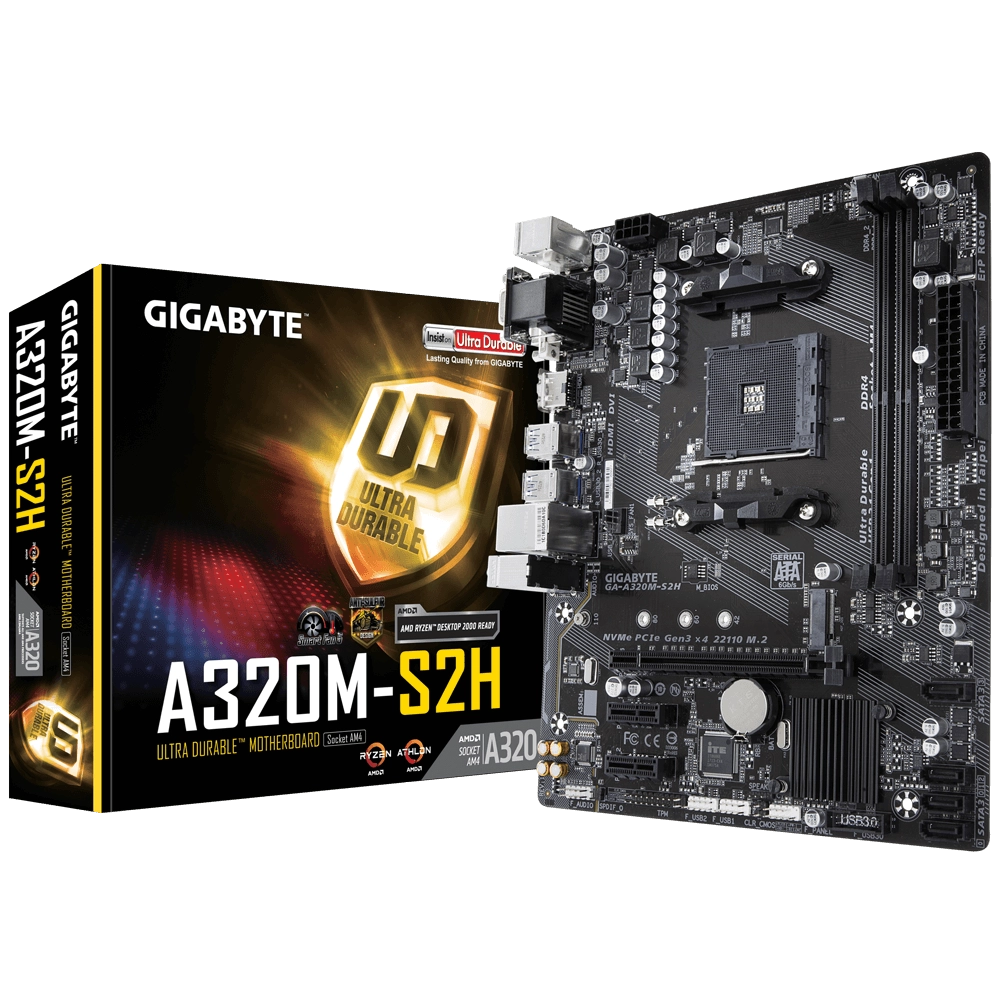

GIGABYTE GA-A320M-S2H, AM4, Support Ryzen 5000 and Earlier

The GIGABYTE GA-A320M-S2H motherboard combines affordability with reliable performance, supporting AMD’s versatile AM4 processors. It offers a practical layout, durable build quality, and key features such as M.2 storage, dual-channel DDR4 memory, and integrated graphics support.

Ideal for office workstations, light gaming rigs, or home media systems, this motherboard ensures a smooth and efficient experience.

Key Features

• Supports AMD Ryzen™, Athlon™, and 7th Gen A-Series processors.
• Dual DDR4 DIMM slots with up to 64GB capacity and 3200 MHz (OC).
• Integrated graphics support with HDMI, DVI-D, and D-Sub outputs.
• M.2 slot for high-speed PCIe and SATA SSDs.
• 4 SATA III ports with RAID 0, 1, 10 support.
• Realtek® GbE LAN for stable and fast networking.
• High-definition audio with Realtek Audio CODEC.
• Comprehensive fan control with temperature and voltage monitoring.
• Compact micro-ATX form factor for versatile case compatibility.

GIGABYTE GA-A320M-S2H Specifications

• Brand: GIGABYTE
• Model: GA-A320M-S2H
• Socket Type: AM4
• Chipset: AMD A320
• Processor Compatibility: AMD Ryzen 5000, 4000 G-Series, 3000, 2000, and 1000 series processors, Athlon with Radeon Vega Graphics, and 7th Gen A-Series/Athlon X4 processors.
• Memory Support: 2 x DDR4 DIMM slots, up to 64GB, speeds up to 3200 MHz (OC).
• Onboard Graphics: HDMI, DVI-D, and D-Sub ports with resolutions up to 4096×2160@24Hz.
• Expansion Slots: 1 x PCIe 3.0 x16, 2 x PCIe 2.0 x1.
• Storage Interface: 1 x M.2 slot (PCIe and SATA modes), 4 x SATA III ports with RAID support.
• USB Ports: Rear – 4 x USB 3.1 Gen 1, 2 x USB 2.0; Internal – 2 x USB 3.1 Gen 1 headers, 2 x USB 2.0 headers.
• Audio: Realtek® Audio CODEC with 7.1-channel support and S/PDIF Out.
• Networking: Realtek® GbE LAN chip.
• BIOS: AMI UEFI BIOS, 128Mb Flash ROM.
• Operating System Support: Windows 10 64-bit, Windows 7 64-bit (with supported CPUs).
• Form Factor and Dimensions: Micro-ATX, 24.4cm x 19.5cm.

Processor Compatibility

The GIGABYTE GA-A320M-S2H motherboard features the AM4 socket, designed to support a broad range of AMD Ryzen processors. This versatility makes it ideal for entry-level and mid-range PC builds:

Supported Processor Families:

• AMD Ryzen 3000 Series Processors (excluding Ryzen 5 3400G and Ryzen 3 3200G): Recommended: Ryzen 5 3600 for smooth multitasking and gaming.
• AMD Ryzen 2000 Series Processors: Recommended: Ryzen 5 2600 for reliable performance in gaming and productivity.
• AMD Ryzen 1000 Series Processors: Recommended: Ryzen 3 1200 for budget gaming setups.
• AMD Athlon Series Processors: Perfect for low-power, budget-oriented builds. Recommended: Athlon 3000G for basic multimedia and office tasks.

With its support for up to 65W TDP processors and excellent compatibility, the GA-A320M-S2H is a reliable choice for various applications. For gaming and multitasking builds, pairing it with a Ryzen 5 2600 or Ryzen 5 3600 delivers great results.

Memory Compatibility

The GIGABYTE GA-A320M-S2H motherboard provides robust support for DDR4 memory, ensuring efficient performance for everyday computing:

• Maximum Capacity: Supports up to 32GB of RAM with 2 DIMM slots, ideal for budget to mid-range builds.
• Supported Speeds: Native: Up to 2666 MT/s with compatible Ryzen processors, Overclocked: Speeds of up to 3200 MT/s are achievable with memory overclocking (depending on CPU).
• Memory Features: Dual-channel memory architecture boosts data transfer rates, Compatible with AMD EXPO and XMP memory profiles for easier tuning.
• Recommended Kits: For general use: Corsair Vengeance LPX DDR4 3000MHz (2x8GB), For gaming: G.Skill Ripjaws V DDR4 3200MHz (2x8GB).

This motherboard is optimized for smooth multitasking and gaming with 16GB of dual-channel memory at 3000 MHz.

Discrete Graphics Compatibility

The GIGABYTE GA-A320M-S2H comes equipped with a PCIe x16 slot, providing compatibility with a wide range of modern GPUs:

Supported Graphics Cards:

• Entry-level GPUs: NVIDIA GTX 1650 or AMD Radeon RX 6400: Great for light gaming and multimedia.
• Mid-range GPUs: NVIDIA GTX 1660 Super or AMD RX 6600: Ideal for 1080p gaming with high settings.
• High-performance GPUs: While the board can handle GPUs like the NVIDIA RTX 3060 or AMD RX 6700 XT, these might not perform optimally due to chipset limitations.

For builds without a discrete GPU, pairing the motherboard with an AMD Ryzen G-Series processor such as the Ryzen 5 3400G provides excellent integrated graphics for casual gaming and media consumption.

Onboard Graphics

Integrated graphics support includes HDMI, DVI-D, and D-Sub ports, making it a great choice for systems relying on AMD’s Radeon Vega-equipped CPUs.

Storage and Expansion

Features an M.2 slot for NVMe or SATA SSDs and 4 SATA III ports with RAID support for high-speed and flexible storage options. Expansion slots include PCIe for GPUs and other peripherals.

Power Requirements and Cooling

The GIGABYTE GA-A320M-S2H motherboard is designed to operate efficiently while providing adequate power delivery and thermal management for a range of builds:

Power Supply Recommendations

• 300W to 450W PSU: Ideal for basic builds with entry-level GPUs or integrated graphics.
• 450W to 550W PSU: Suitable for mid-range setups using GPUs like the GTX 1660 Super or RX 6600.
• 600W or higher PSU: Recommended for systems with GPUs like RTX 3060 or RX 6700 XT.
• Recommended PSU Models: Corsair CX450M for budget setups. Seasonic S12III 500W for mid-range builds, EVGA SuperNOVA 650 GA for high-performance configurations.

Is This Motherboard for You?

The GIGABYTE GA-A320M-S2H is an excellent choice for budget builders, entry-level gamers, and those seeking a reliable, cost-effective motherboard. Its support for AMD processors, ample connectivity, and compact form factor make it a versatile and dependable option.
