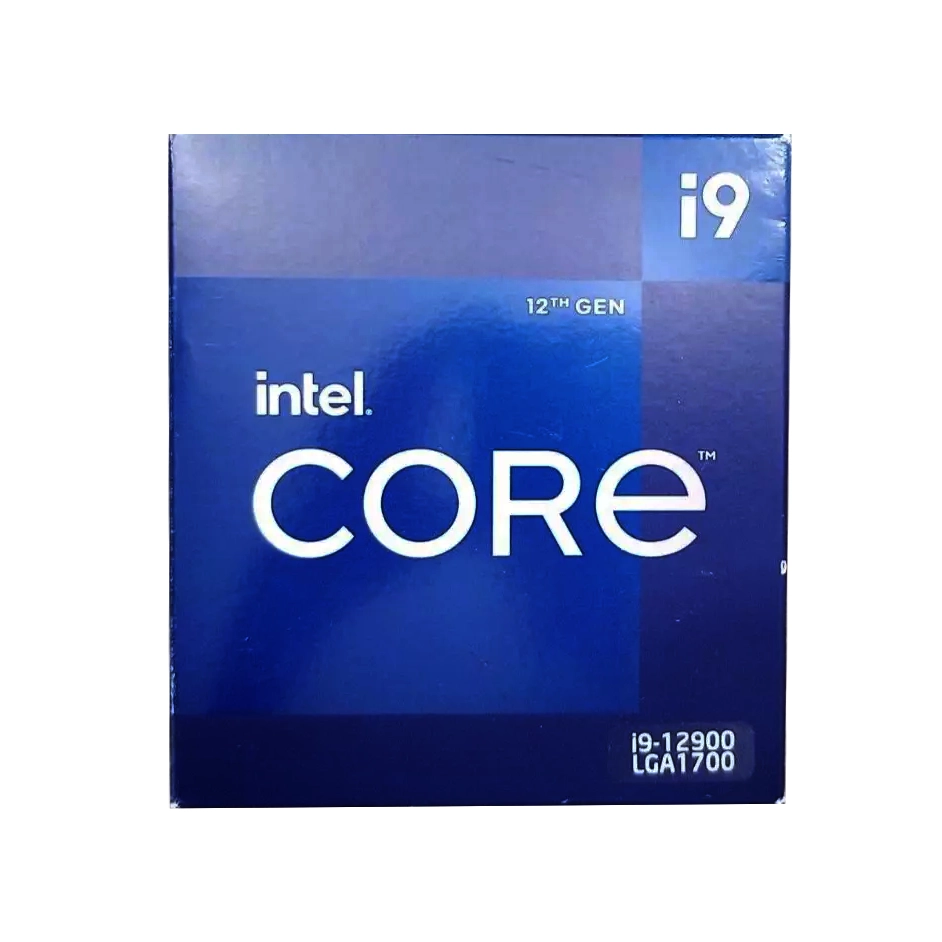

Intel Core i9-12900, LGA 1700, 16 Cores 24 Threads, 5.1 GHz, With GPU

The Intel Core i9-12900 processor, launched in January 2022, is a powerful desktop CPU designed for advanced computing tasks, gaming, and creative workloads. As part of Intel’s Alder Lake-S lineup, it introduces a revolutionary hybrid architecture combining 8 Performance Cores (P-Cores) for demanding tasks and 8 Efficiency Cores (E-Cores) for background processes. This 16-core configuration supports 24 threads with Intel Hyper-Threading, offering outstanding multitasking capabilities.

Operating at a base clock speed of 2.4 GHz and boosting up to 5.1 GHz, the Core i9-12900 is engineered for intense workloads like 4K gaming, video editing, and rendering. Equipped with Intel UHD Graphics 770, it delivers reliable performance for users without a discrete GPU, making it versatile for various applications.

Key Features

• Hybrid Core Architecture: Combines 8 P-Cores and 8 E-Cores for maximum performance and energy efficiency.
• High Clock Speeds: Turbo Boost up to 5.1 GHz for exceptional speed in demanding applications.
• Integrated Graphics: Intel UHD Graphics 770 ensures smooth performance for everyday tasks and light gaming.
• Advanced Memory Support: Compatible with both DDR4-3200 and DDR5-4800 for superior bandwidth and performance.
• PCIe Gen 5 Support: Provides ultra-fast connectivity for GPUs, storage, and other components.
• Hardware Virtualization: Optimized for virtual machine performance with Intel VT-x and VT-d technologies.
• Enhanced Cache: Includes 30 MB of L3 cache for improved data access and processing efficiency.
• Energy Efficient: Operates at a TDP of 65 W, making it suitable for a range of cooling solutions.

Intel Core i9-12900 Processor Specifications

• Brand: Intel
• Series: Core i9
• Model: i9-12900
• Cores/Threads: 16 Cores (8 P-Cores, 8 E-Cores) / 24 Threads
• Base Clock Speed: 2.4 GHz
• Max Turbo Clock Speed: Up to 5.1 GHz
• Cache: L1: 80 KB (per core), L2: 1.25 MB (per core), L3: 30 MB (shared)
• Socket Compatibility: Intel LGA 1700
• Graphics: Intel UHD Graphics 770
• Process Technology: 10 nm
• Thermal Design Power (TDP): 65 W
• Memory Support: DDR4-3200 / DDR5-4800, Dual-channel
• PCI Express Version: PCIe Gen 5, 20 Lanes
• Max Operating Temperature: 100°C
• Release Date: January 4, 2022
• Motherboard Chipsets: Z690, H670, B660, H610

Motherboard Compatibility

The Intel Core i9-12900 processor is built for the LGA 1700 socket, making it compatible with Intel 600 and 700 series chipsets, such as Z690, H670, B660, and H610. These motherboards offer support for PCIe 5.0 and PCIe 4.0, providing faster connectivity for GPUs and SSDs. For those looking to unlock the full potential of this processor, a high-end Z690 motherboard is ideal, offering enhanced overclocking capabilities, robust VRMs, and additional USB and Thunderbolt 4 ports.

Intel Core i9-12900 Motherboard Recommendations:

• MSI PRO Z690-A DDR4 – A solid choice for gamers and professionals alike with its PCIe 5.0 support and DDR4 compatibility.
• ASUS ROG Strix B660-F Gaming WiFi – A feature-packed option with advanced cooling and WiFi 6 for seamless connectivity.

When building a new system, ensure your chosen motherboard supports the processor’s power delivery requirements and BIOS updates to guarantee compatibility with the Intel Core i9-12900.

Discrete GPU Compatibility

The Intel Core i9-12900 processor  includes integrated UHD Graphics 770, which is suitable for casual computing, media playback, and light gaming. However, for gamers, content creators, or professionals working with high-performance software, a discrete GPU is highly recommended.

Intel Core i9-12900 Graphics Card Recommendations:

• NVIDIA GeForce RTX 4070 – A great match for 1440p gaming or high-end content creation, delivering excellent ray tracing and DLSS 3.0 support.
• AMD Radeon RX 7900 XT – Ideal for gamers who want to game in 4K with smooth frame rates or run GPU-intensive tasks like 3D rendering.

If your workload demands heavy graphics processing, investing in a powerful GPU will complement the Core i9-12900’s performance capabilities.

Memory Compatibility

The Intel Core i9-12900 processor supports both DDR4 and DDR5 memory, providing users with flexibility based on their budget and performance needs. DDR4 memory is capped at speeds of 3200 MT/s, while DDR5 can reach speeds of up to 5600 MT/s for even better bandwidth and lower latency.

When selecting RAM, ensure your motherboard supports the specific memory type and speed you choose. Additionally, opting for dual-channel memory configurations can maximize performance.

Power Requirements and Cooling

With a default TDP of 65W and a PL2 (Power Limit 2) of up to 202W during peak workloads, the Intel Core i9-12900 processor requires an efficient cooling solution and a robust power supply. Standard tower coolers such as the Noctua NH-D15 or liquid cooling solutions like the Corsair iCUE H150i Elite Capellix can handle this processor’s heat output during extended performance loads.

Power Supply Recommendation For Intel Core i9-12900:

To ensure stable performance, a 750W power supply is recommended for most builds featuring the Intel Core i9-12900, especially if paired with high-end GPUs. For systems with multiple components or overclocking in mind, consider an 850W or higher PSU with an 80+ Gold certification to maintain efficiency and durability.

Is This Processor for You?

The Intel Core i9-12900 processor is an excellent choice for users seeking high-end performance in productivity, gaming, and multitasking. If you’re building a workstation for video editing, 3D rendering, or other resource-intensive applications, this CPU provides exceptional single-core and multi-core performance. The inclusion of hybrid cores ensures energy efficiency without sacrificing raw power.

Gamers looking for a processor capable of handling the latest AAA titles or streaming setups will also find the i9-12900 to be a future-proof option. However, if you prefer a processor without integrated graphics and aim to save a bit, the Intel Core i9-12900F might be a better alternative. Overall, the Intel Core i9-12900 is ideal for power users who want a balance of performance, versatility, and modern features.
