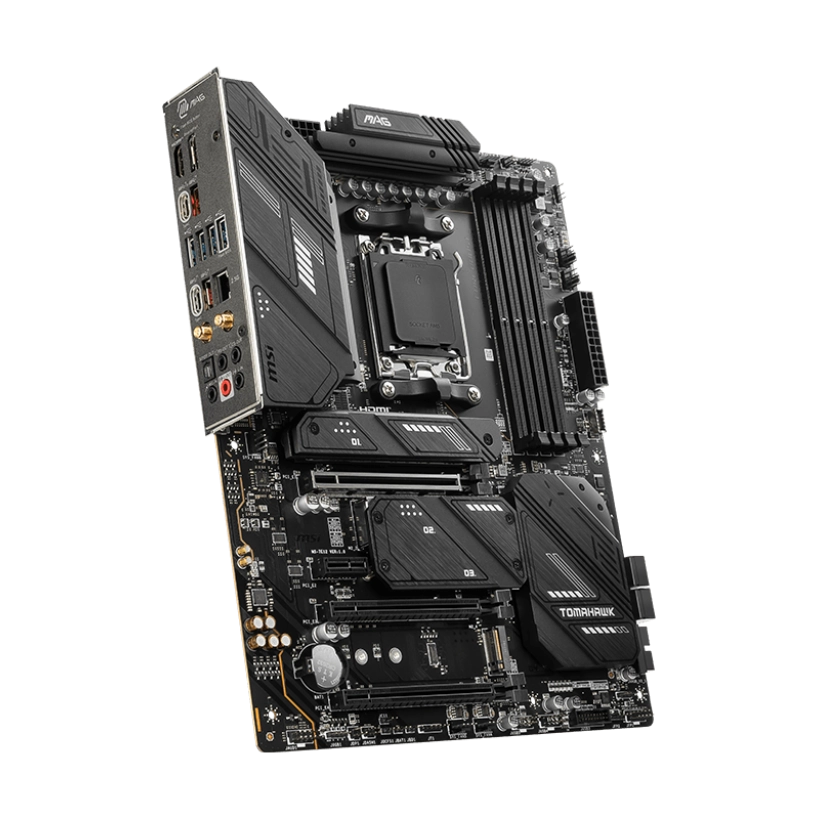

MSI MAG X670E TOMAHAWK WIFI, AM5, Ryzen 9000/8000/7000, DDR5

The MSI MAG X670E TOMAHAWK WIFI is built on the advanced AMD X670 chipset, offering compatibility with AMD Ryzen 9000/8000/7000 Series processors. Featuring an ATX form factor, it is ideal for gaming and productivity builds.

With robust memory overclocking capabilities, PCIe 5.0 expansion, and cutting-edge connectivity options, this motherboard delivers performance and reliability for demanding users.

Key Features

• Processor Compatibility – Supports AMD Ryzen 9000/8000/7000 Series desktop processors with the AM5 socket, ensuring excellent performance across gaming and productivity applications.
• Memory Support – 4x DDR5 slots, supporting up to 256GB, Overclocking speeds up to 7800+ MHz with AMD EXPO™ profiles.
• Graphics Support – 1x PCIe 5.0 x16 slot for high-performance GPUs, Type-C DisplayPort for seamless integration with modern displays.
• Storage Options – 4x M.2 slots (PCIe 5.0/4.0), supporting NVMe SSDs with up to 22110 form factor, 4x SATA 6G ports with RAID 0, 1, and 10 support for secure and scalable storage.
• Connectivity – LAN: Realtek® RTL8125BG 2.5Gbps LAN, Wi-Fi: AMD Wi-Fi 6E for ultra-fast wireless connectivity.
• Audio – Realtek® ALC1200 Codec with 7.1-channel high-definition audio and S/PDIF output for immersive sound quality.

MSI MAG X670E TOMAHAWK WIFI Full Specifications

• Brand: MSI
• Model: MAG X670E TOMAHAWK WIFI
• Socket Type: AM5
• Chipset: AMD X670
• Processor Compatibility: AMD Ryzen 9000/8000/7000 Series Desktop Processors
• Memory Support: 4x DDR5 slots, up to 256GB, speeds up to 7800+ MHz (OC)
• Graphics Support: PCIe 5.0 x16 slot, HDMI™ 2.1, DisplayPort 1.4, and Type-C DisplayPort
• Storage Interface: 4x M.2 slots, 4x SATA 6G ports, RAID 0, 1, 10 support
• USB Ports: USB 3.2 Gen 2×2 Type-C, USB 3.2 Gen 2 Type-C, USB 3.2 Gen 2 Type-A, USB 3.2 Gen 1 Type-A, USB 2.0
• Networking: Realtek RTL8125BG 2.5Gbps LAN, AMD Wi-Fi 6E, Bluetooth® 5.3
• Audio: Realtek ALC1200 Codec, 7.1-channel audio, S/PDIF output0
• BIOS: UEFI with advanced features for easy overclocking and configuration00
• Operating System Support: Windows 11 64-bit, Windows 10 64-bit
• Form Factor and Dimensions: ATX, 243.84mm x 304.8mm

Processor Compatibility

he MSI MAG X670E TOMAHAWK WIFI is built on the AM5 socket and powered by the X670E chipset, offering cutting-edge support for AMD’s Ryzen™ 7000 Series processors.

These processors, leveraging the Zen 4 architecture, deliver impressive performance with advanced features like DDR5 memory, PCIe 5.0, and AVX-512 instruction support for demanding workloads.

Compatible Processors:

• Ryzen 5 7600/7600X: Affordable 6-core processors ideal for mid-range gaming and multitasking.
• Ryzen 7 7700/7700X: 8-core CPUs delivering a balance of gaming performance and productivity, perfect for streamers and creatives.
• Ryzen 9 7900/7900X: 12-core options designed for 4K gaming, heavy multitasking, and professional-grade tasks like video editing.
• Ryzen 9 7950X/7950X3D: Flagship 16-core processors tailored for extreme computing workloads, including AI, 3D rendering, and high-resolution gaming.

Recommended CPUs:

• Budget Builds: Ryzen 5 7600 for entry-level gaming and multitasking.
• Balanced Builds: Ryzen 7 7700 for gamers and streamers needing versatile performance.
• High-End Builds: Ryzen 9 7900X for enthusiasts balancing gaming and productivity.
• Top-Tier Performance: Ryzen 9 7950X3D for unmatched gaming and professional use cases.

With BIOS updates, the motherboard is future-proofed for upcoming Ryzen™ processors, ensuring an extended lifespan for system upgrades.

Memory Compatibility

The MSI MAG X670E TOMAHAWK WIFI supports up to 128GB of DDR5 memory across four DIMM slots. Memory speeds start at 4800 MHz (JEDEC) and can reach 7800+ MHz with overclocking using AMD EXPO™ profiles.

The dual-channel architecture ensures optimized bandwidth for modern workloads, making this motherboard a strong choice for gaming and productivity.

Discrete Graphics Compatibility

This motherboard features three PCIe x16 slots, with the primary slot operating at PCIe 5.0 x16 for state-of-the-art GPU performance. The secondary and tertiary slots run at PCIe 4.0 and are suitable for expansion cards or secondary GPUs in multi-GPU setups.

PCIe Version Limitations:

• PCIe 5.0 x16: Offers double the bandwidth of PCIe 4.0, enabling future-proofing for the latest GPUs such as the NVIDIA RTX 40 series and AMD RX 7000 series.
• PCIe 4.0: Suitable for current-gen GPUs, including the NVIDIA RTX 30 series and AMD RX 6000 series, without performance bottlenecks.

Recommended GPUs:

• Entry-Level: AMD RX 6500 XT or NVIDIA GTX 1660 Super for 1080p gaming.
• Mid-Range: NVIDIA RTX 3060 Ti or AMD RX 6700 XT for 1440p gaming with high settings.
• High-End: NVIDIA RTX 4080 or AMD RX 7900 XTX for 4K gaming and professional workloads.
• Future-Ready: NVIDIA RTX 4090 or AMD RX 7900 XTX for maximum performance on PCIe 5.0.

The PCIe 5.0 slot ensures long-term compatibility with GPUs of tomorrow, making it a future-proof option for high-performance builds.

Storage and Expansion

Featuring 4x M.2 slots (including PCIe 5.0 for the fastest SSDs) and 4x SATA 6G ports, the motherboard supports versatile storage configurations. RAID 0, 1, and 10 are available for performance or redundancy.

Connectivity and Audio Features

High-speed networking is provided through Realtek® 2.5Gbps LAN and AMD Wi-Fi 6E, ensuring low latency. A plethora of USB options, including USB 3.2 Gen 2×2 Type-C, caters to modern peripherals. Realtek ALC1200 delivers rich audio, enhanced by 7.1-channel surround sound and S/PDIF output.

Power Requirements and Cooling

The MSI MAG X670E TOMAHAWK WIFI is designed with robust power delivery and cooling to handle high-performance CPUs and GPUs. It features 8+4-pin CPU power connectors for stable power delivery to even the most power-hungry Ryzen™ processors.

Recommended Power Supply Wattage:

• Mid-Range Builds (Ryzen™ 7 7700X + RTX 3060 Ti): A 750W PSU with 80 Plus Gold certification is sufficient for reliable performance.
• High-End Builds (Ryzen™ 9 7900X + RTX 4080): Opt for an 850W PSU to handle peak power demands.
• Extreme Builds (Ryzen™ 9 7950X3D + RTX 4090): A 1000W PSU is recommended for stable operation under heavy loads.

Cooling Recommendations:

CPU Cooling:

• Air Cooling: High-end air coolers like the Noctua NH-D15 provide excellent thermal performance for Ryzen™ 5 and 7 processors.
• Liquid Cooling: For Ryzen™ 9 processors, especially the 7900X and 7950X, 240mm or 360mm AIO liquid coolers such as the Corsair iCUE H150i Elite Capellix or NZXT Kraken X73 are highly recommended.
• VRM Cooling: The motherboard’s extended heatsinks and thermal pads ensure stable power delivery, even under heavy CPU loads.
• Case Cooling: Include at least three case fans (two intake, one exhaust) for optimal airflow, especially in high-performance setups.

The MSI MAG X670E TOMAHAWK WIFI ensures stability and reliability for gaming enthusiasts, content creators, and professionals building a future-proof high-performance PC.

Is This Motherboard for You?

If you demand cutting-edge performance and features for high-end gaming, productivity, or multitasking, this motherboard delivers exceptional value with its advanced chipset, versatile connectivity, and DDR5 and PCIe 5.0 support.
