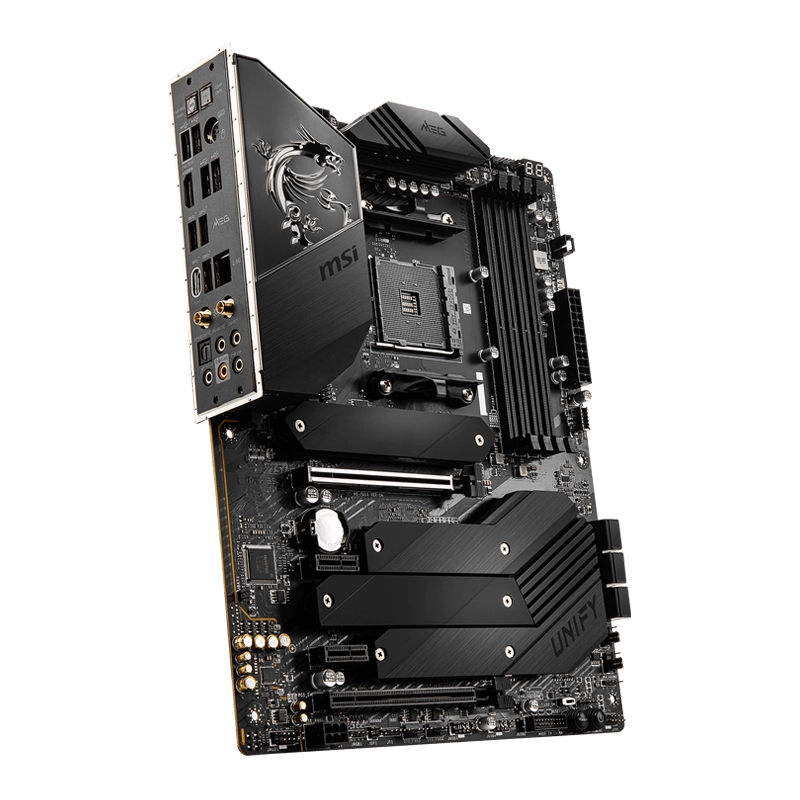

MSI MEG X570 UNIFY, AM4, Ryzen 5000/4000/3000/2000, DDR4

The MSI MEG X570 UNIFY is a high-performance ATX motherboard designed for power users, gamers, and content creators. Powered by the AMD X570 chipset, it supports AMD Ryzen™ 5000, 4000G, and 3000 Series processors, providing cutting-edge PCIe 4.0 connectivity for GPUs and storage. With advanced features such as triple M.2 slots, Wi-Fi 6E, 2.5Gbps LAN, robust cooling solutions, and customizable RGB lighting, this motherboard is built for demanding applications, overclocking, and gaming at the highest levels.

Key Features

• Processor Compatibility: AMD Ryzen™ 5000, 4000G, and 3000 Series processors.
• Memory Support: Four DDR4 slots, up to 128GB, speeds up to 5000+ MHz (OC).
• Graphics Options: Dual PCIe 4.0/3.0 x16 slots, multi-GPU support with NVIDIA SLI and AMD CrossFire.
• Storage Options: Three M.2 slots (PCIe 4.0/3.0) and four SATA 6Gb/s ports.
• Networking: Realtek 2.5Gbps LAN and Intel® Wi-Fi 6E with Bluetooth® 5.2.
• USB Connectivity: USB 3.2 Gen 2 Type-A/Type-C and multiple USB 3.2 Gen 1 ports.
• Audio: Realtek ALC1220 Codec with 7.1-channel HD audio and optical S/PDIF.

MSI MEG X570 UNIFY Specifications

• Brand: MSI
• Model: MEG X570 UNIFY
• Socket Type: AM4
• Chipset: AMD X570
• Processor Compatibility: Supports AMD Ryzen™ 5000 Series, 4000G-Series, and 3000 Series processors, Ryzen™ with Radeon™ Vega Graphics, and 2nd Gen AMD Ryzen™ processors.
• Memory Support: 4 DDR4 slots, up to 128GB, speeds up to 5000+ MHz (OC), dual-channel, ECC and non-ECC memory supported.
• Graphics Support: 2 PCIe 4.0/3.0 x16 slots (x16/x0 or x8/x8 modes), 1 PCIe 4.0/3.0 x16 slot (x4 mode), 2 PCIe 4.0/3.0 x1 slots; onboard HDMI and DisplayPort.
• Storage Interface: 3 M.2 slots (PCIe 4.0/3.0 x4 & SATA), 4 SATA 6Gb/s ports with RAID 0, 1, and 10 support.
• USB Ports: Rear: 2 USB 3.2 Gen 2 (10Gbps) Type-A ports, 1 USB 3.2 Gen 2 Type-C port, 2 USB 3.2 Gen 1 ports, 2 USB 2.0 ports; Internal: 2 USB 3.2 Gen 1 headers (4 ports), 2 USB 2.0 headers (4 ports).
• Networking: Realtek® RTL8125 2.5Gbps LAN, Intel® Wi-Fi 6E, and Bluetooth® 5.2.
• Audio: Realtek® ALC1220 Codec, 7.1-channel HD audio with S/PDIF.
• Multi-GPU Support: 2-Way NVIDIA® SLI® and 3-Way AMD CrossFire™ Technology.
• Lighting Features: 1 4-pin RGB LED connector, 2 3-pin RAINBOW LED connectors, 1 3-pin CORSAIR LED connector.
• Cooling Options: 1 CPU fan connector, 1 water-pump connector, 5 system fan connectors.
• BIOS: Flash BIOS button for easy updates.
• Operating System Support: Windows® 10 64-bit.
• Form Factor: ATX (12” x 9.6”).

Processor Compatibility

The MSI MEG X570 UNIFY supports AMD Ryzen™ 5000 Series, 3rd Gen Ryzen™, Ryzen™ 4000 G-Series, Ryzen™ with Radeon™ Vega Graphics, and 2nd Gen Ryzen™ processors. These processors utilize the AM4 socket, ensuring compatibility with a wide range of performance levels, from gaming builds to workstation-class setups. The X570 chipset enables PCIe 4.0 support when paired with 3rd Gen Ryzen™ and Ryzen™ 5000 Series CPUs, ensuring maximum bandwidth for GPUs and NVMe storage.

Compatible Processors Include:

• Ryzen™ 5000 Series: Ryzen 9 5950X, Ryzen 9 5900X, Ryzen 7 5800X, Ryzen 5 5600X (recommended for high-performance gaming and productivity).
• 3rd Gen Ryzen: Ryzen 9 3950X, Ryzen 7 3700X, Ryzen 5 3600 (a versatile option for gaming and content creation).
• Ryzen™ 4000 G-Series: Ryzen 7 4750G, Ryzen 5 4650G (ideal for builds without discrete GPUs).
• Ryzen™ 2nd Gen: Ryzen 7 2700X, Ryzen 5 2600 (entry-level builds with reliable multitasking performance).

Processor Recommendations: For optimal performance, the Ryzen 9 5950X is recommended for high-end builds, while the Ryzen 7 5800X3d provides an excellent balance of cost and capability for gaming and productivity. For budget-conscious builders, the Ryzen 5 5600X delivers impressive gaming performance.

Memory Compatibility

The motherboard supports up to 128GB of DDR4 memory across its four DIMM slots, with maximum speeds of 4800+ MHz in overclocking mode (A-XMP). For stability and performance, it supports dual-channel memory architecture and both ECC (non-ECC mode) and non-ECC unbuffered DIMMs.

This ensures compatibility with a broad range of DDR4 modules, making it suitable for gaming, multitasking, and workstation use. For optimal performance, use high-speed kits such as DDR4 3600MHz or 4000MHz, which strike a balance between latency and bandwidth.

Discrete Graphics Compatibility

The MSI MEG X570 UNIFY features three PCIe x16 slots, with the primary PCI_E1 slot running at PCIe 4.0 x16 when paired with 3rd Gen Ryzen™ or Ryzen™ 5000 Series processors. Secondary slots operate at PCIe 4.0/3.0 x8/x8 or lower, depending on your processor. For older CPUs, PCIe 3.0 bandwidth is supported, which may limit performance for the latest GPUs.

Recommended GPUs:

• For PCIe 4.0 compatibility: NVIDIA GeForce RTX 40 Series (e.g., RTX 4080, RTX 4070) or AMD Radeon RX 7000 Series (e.g., RX 7900 XTX).
• For PCIe 3.0 setups: NVIDIA GeForce RTX 30 Series (e.g., RTX 3060, RTX 3070) or AMD Radeon RX 6000 Series (e.g., RX 6700 XT).

This configuration ensures flexibility for a variety of GPU options, though using a PCIe 4.0-compatible GPU is recommended to leverage the maximum bandwidth offered by the primary slot.

Onboard Graphics

For systems utilizing processors with integrated graphics, the MSI MEG X570 UNIFY includes HDMI and DisplayPort outputs, supporting resolutions up to 4K for immersive visual experiences in productivity or entertainment setups.

Storage and Expansion

The MSI MEG X570 UNIFY offers extensive storage capabilities with three M.2 slots and four SATA 6Gb/s ports:

• M.2 Slots: Support PCIe 4.0/3.0 x4 for NVMe SSDs and SATA drives, enabling ultra-fast read and write speeds.
• SATA Ports: Connect up to four HDDs or SSDs, with RAID 0, 1, and 10 configurations for data redundancy or performance optimization.

Power Requirements and Cooling

Power Requirements

The MSI MEG X570 UNIFY features robust power delivery with a 14+2 phase VRM design, ensuring reliable performance for high-core-count CPUs. The board requires a 24-pin ATX main power connector and dual 8-pin CPU power connectors, ensuring stable power delivery even under heavy overclocking or extended workloads.

Recommended Power Supply: For a balanced build with a high-end CPU and GPU, a 750W PSU from a reputable brand like Corsair, EVGA, or Seasonic is recommended. For builds with top-tier GPUs like the RTX 4080 or RX 7900 XTX, consider an 850W or higher PSU to handle peak loads.

Cooling Requirements: The X570 chipset’s active cooling solution features a fan to maintain optimal temperatures under load. It also includes ample fan headers:

• 1x CPU fan header
• 1x water pump header
• 5x system fan headers

For optimal thermal management, pair the motherboard with an AIO liquid cooler for high-end CPUs like the Ryzen 9 5950X, or a high-performance air cooler like the Noctua NH-D15 for mid-range processors. The board’s heat sink design and fan support ensure excellent VRM and system cooling, making it ideal for overclocking enthusiasts.

Is This Motherboard for You?

The MSI MEG X570 UNIFY is the perfect choice for gamers, content creators, and overclocking enthusiasts. With cutting-edge PCIe 4.0 support, triple M.2 slots, Wi-Fi 6E, and robust cooling options, it delivers outstanding performance and reliability for the most demanding PC builds. Whether you’re gaming, streaming, or handling heavy workloads, this motherboard is designed to excel.
