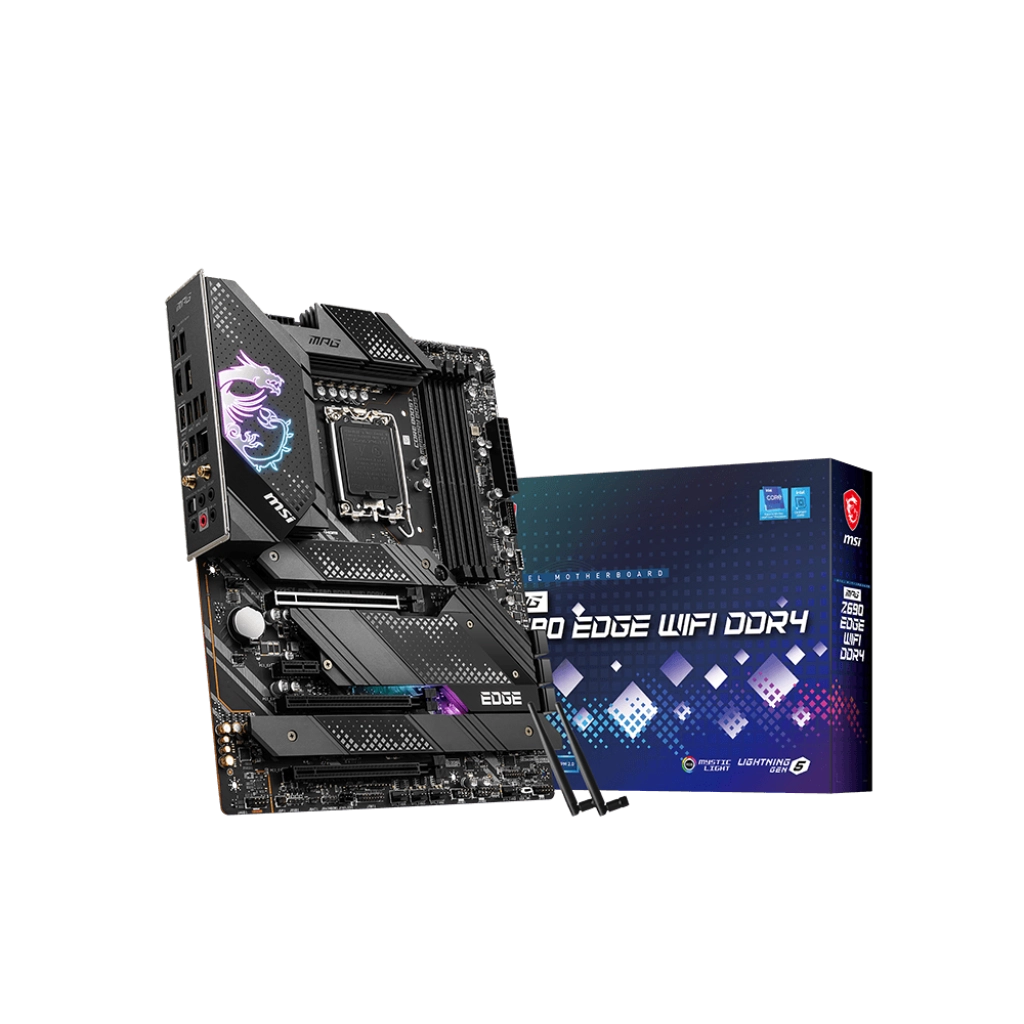

MSI MPG Z690 EDGE WIFI DDR4, LGA1700, Supports Intel 14th/13th/12th Gen

The MSI MPG Z690 EDGE WIFI DDR4 motherboard is engineered for enthusiasts seeking uncompromising performance. Powered by the Intel Z690 chipset, it supports the latest DDR4 memory with speeds up to 5333MHz (OC) and delivers next-gen bandwidth through PCIe 5.0 and Lightning USB 20G. Its quad M.2 slots with M.2 Shield FROZR ensure maximum storage performance, while the Wi-Fi 6E and 2.5G LAN provide ultra-fast, low-latency networking.

The motherboard features Audio Boost 5 for crystal-clear audio and immersive gaming, while its premium thermal design with heavy MOSFET heatsinks and high-quality thermal pads ensures stable performance under heavy workloads. The MPG Z690 EDGE WIFI DDR4 is an excellent choice for gamers, content creators, and overclocking enthusiasts.

Key Features

• Processor Compatibility: Supports Intel 14th, 13th, and 12th Gen processors with the LGA1700 socket.
• DDR4 Memory Support: Four DIMM slots, supporting up to 128GB at speeds up to 5333MHz (OC).
• Quad M.2 Slots: Four M.2 slots with PCIe 4.0/3.0 compatibility and Intel Optane Memory Ready.
• PCIe 5.0 Support: Offers one PCIe 5.0 x16 slot for next-gen GPUs with up to 128GB/s bandwidth.
• Networking: Intel Wi-Fi 6E and 2.5G LAN for fast, reliable connectivity.
• USB 3.2 Gen 2×2: A USB Type-C port with speeds up to 20Gbps for high-speed data transfers.
• Advanced Cooling: Equipped with M.2 Shield FROZR, heat pipes, and high-quality thermal pads for optimal thermal performance.
• Audio Boost 5: High-quality Realtek ALC4080 Codec with S/PDIF support for superior audio clarity.

MSI MPG Z690 EDGE WIFI DDR4  Specifications

• Brand: MSI
• Model: MPG Z690 EDGE WIFI DDR4
• Socket Type: LGA1700
• Chipset: Intel Z690
• Processor Compatibility: Intel 14th, 13th, and 12th Gen Core, Pentium Gold, and Celeron processors.
• Memory Support: DDR4, 4 DIMM slots, up to 128GB, speeds up to 5333MHz (OC).
• Graphics Support: HDMI 2.1 and DisplayPort 1.4 for integrated graphics.
• Storage Interface: 4 x M.2 slots (PCIe 4.0/3.0, some with SATA support), 6 x SATA 6Gb/s connectors with RAID 0, 1, and 10 support.
• Expansion Slots: 1 x PCIe 5.0 x16 slot (from CPU), 2 x PCIe 3.0 x4 slots (from chipset), 1 x PCIe 3.0 x1 slot (from chipset).
• USB Ports (Rear): 1 x USB 3.2 Gen 2×2 Type-C, 5 x USB 3.2 Gen 2 Type-A, 2 x USB 2.0 Type-A.
• USB Ports (Internal): 1 x USB 3.2 Gen 2 Type-C header, 1 x USB 3.2 Gen 1 header (supports 2 ports), 2 x USB 2.0 headers (supports 4 ports).
• Networking: Intel Wi-Fi 6E, 2.5G LAN.
• Audio: Realtek ALC4080 Codec, 7.1-channel HD audio with S/PDIF.
• RGB Lighting: 1 x 4-pin RGB LED header, 3 x 3-pin addressable RGB headers, EZ LED Control switch.
• Operating System Support: Windows 11 64-bit, Windows 10 64-bit.
• Form Factor: ATX (30.5 cm x 24.4 cm).

Processor Compatibility

The MSI MPG Z690 EDGE WIFI DDR4 motherboard is engineered to support a wide range of Intel processors. It features the LGA 1700 socket, compatible with:

• Intel 12th Gen Processors: Starting with the Pentium Gold and Celeron processors, perfect for basic tasks or entry-level systems.
• Intel 13th Gen Processors: Ideal for gamers and productivity enthusiasts with improved performance and efficiency.
• Intel 14th Gen (Future Compatibility): BIOS updates will ensure readiness for next-gen CPUs, making this motherboard future-proof.

Processor Recommendations for MSI MPG Z690 EDGE WIFI DDR4

• Intel Core i5-12400F: A cost-effective choice for mid-tier gaming and multitasking.
• Intel Core i7-13700K: Excellent for gamers and creators who demand top-notch performance.

Discrete GPU Compatibility

The motherboard features a PCIe 5.0 x16 slot, ensuring compatibility with the latest high-performance graphics cards. However, it’s also backward-compatible with PCIe 4.0 and 3.0 GPUs. This backward compatibility may limit the bandwidth of older GPUs, but performance remains adequate for most gaming and productivity tasks.

Compatibility Note: Older PCIe versions, such as PCIe 3.0, may experience reduced bandwidth compared to newer versions. Ensure your GPU matches the PCIe capabilities of the motherboard for optimal results.

Graphics Card Recommendations for MSI MPG Z690 EDGE WIFI DDR4

• NVIDIA RTX 4060 Ti: Perfect for high-performance 1440p gaming and creative workflows.
• AMD RX 7600 XT: A budget-friendly option for smooth 1080p and light 1440p gaming.

Memory Compatibility

The MSI MPG Z690 EDGE WIFI DDR4 motherboard supports DDR4 memory with:

• Max Capacity: Up to 128GB across 4 DIMM slots.
• Speed: Up to 5333MHz (overclocked).
  While DDR4 offers robust performance, overclocking can be limited based on the stability of your memory modules and system configuration. Intel XMP profiles make it easier to overclock compatible RAM.

Power Requirements and Cooling

This motherboard is designed to handle demanding tasks with stable power delivery and efficient cooling.

• Power Connectors: Features a 24-pin ATX main connector and dual 8-pin CPU power connectors to ensure reliable power delivery, especially for overclocked CPUs.
• Cooling Features: Includes multiple fan headers for system cooling and AIO pump headers for liquid cooling setups. VRM heatsinks and thermal pads enhance heat dissipation, keeping temperatures low during heavy workloads.

Recommended Power Supply Wattage for MSI MPG Z690 EDGE WIFI DDR4

• 650W PSU: For mid-tier builds with GPUs like RTX 4060 or RX 7600 XT.
• 850W PSU: For high-performance builds with GPUs like RTX 4080 or equivalent.

Recommended PSU Models for MSI MPG Z690 EDGE WIFI DDR4

• Corsair RM750e: High efficiency and reliability for most builds.
• EVGA SuperNOVA 850 G6: Ideal for power-hungry systems.

Storage Options and Connectivity

The MSI MPG Z690 EDGE WIFI DDR4 ensures fast and flexible storage and connectivity options:

• M.2 Slots: Equipped with 4 PCIe 4.0 M.2 slots for blazing-fast NVMe SSDs.
• SATA III Ports: Includes 6 ports for SSDs and HDDs. RAID 0, 1, 5, and 10 are supported.
• Connectivity: Features Wi-Fi 6E for ultra-fast wireless networking, 2.5Gb Ethernet, and multiple USB 3.2 Gen2 ports for superior connectivity.

This motherboard ensures seamless gaming, productivity, and future-ready performance with robust connectivity and storage flexibility.

Is This Motherboard Right for You?

The MSI MPG Z690 EDGE WIFI DDR4 motherboard is a premium choice for gamers, creators, and PC enthusiasts who demand high performance, robust connectivity, and reliable cooling.

With its support for PCIe 5.0, Wi-Fi 6E, and advanced storage options, this motherboard delivers everything you need to build a next-gen PC.
