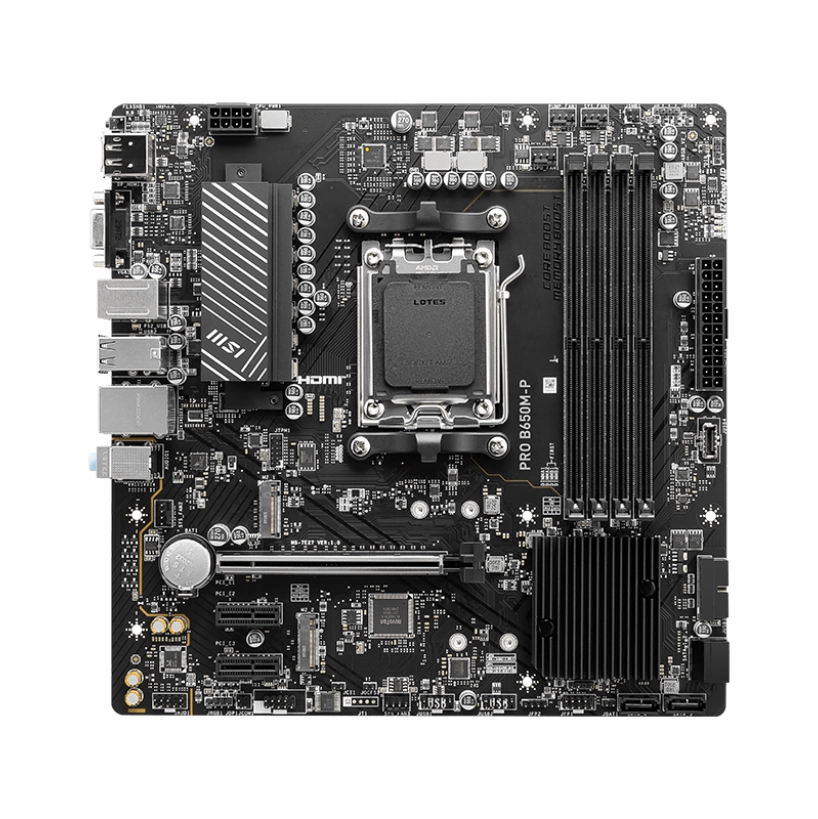

MSI PRO B650M-P, AM5, Ryzen 7000/8000/9000, DDR5

The MSI PRO B650M-P is a feature-packed Micro-ATX motherboard designed for professionals and PC enthusiasts alike. With support for AMD Ryzen 9000/7000 Series processors and DDR5 memory, it offers powerful performance for both work and play.

Enhanced connectivity options, including PCIe 4.0 slots, dual M.2 SSD support, and 2.5G LAN, ensure a seamless experience for productivity and multitasking.

Key Features

• Processor Compatibility: Supports AMD Ryzen 9000/8000/7000 Series desktop processors with AM5 socket.
• Memory Support: 4 DDR5 slots, up to 256GB, with speeds up to 7200+ MHz (OC).
• Graphics Options: HDMI 2.1 (4K@60Hz), DisplayPort 1.4 (4K@60Hz), and VGA outputs.
• Expansion Slots: PCIe 4.0 x16 slot and dual PCIe 3.0 x1 slots for versatile configurations.
• Storage Flexibility: Dual PCIe 4.0 M.2 slots and four SATA 6Gb/s ports.
• Networking: Realtek 2.5G LAN for high-speed and reliable connections.
• USB Connectivity: Includes USB 10Gbps Type-C, USB 5Gbps Type-A, and USB 2.0 ports.
• LED Features: Addressable RGB and EZ Debug LEDs for diagnostics and customization.

MSI PRO B650M-P  Specifications

• Brand: MSI
• Model: PRO B650M-P
• Socket Type: AM5
• Chipset: AMD B650
• Processor Compatibility: AMD Ryzen 9000/8000/7000 Series desktop processors.
• Memory Support: 4 DDR5 slots, up to 256GB, speeds up to 7200+ MHz (OC), dual-channel, non-ECC, un-buffered memory, AMD EXPO™.
• Graphics Support: PCIe 4.0 x16 slot; onboard HDMI 2.1 (4K@60Hz), DisplayPort 1.4 (4K@60Hz), and VGA (1920×1200@60Hz).
• Storage Interface: 2 PCIe 4.0 M.2 slots, 4 SATA 6Gb/s ports, RAID 0, 1, and 10 support.
• USB Ports: Rear: 2 USB 10Gbps Type-A, 2 USB 5Gbps Type-A, 4 USB 2.0; Internal: 2 USB 5Gbps Type-A headers (4 ports), 2 USB 2.0 headers (4 ports).
• Networking: Realtek 8125BG 2.5Gbps LAN.
• Audio: Realtek ALC897 Codec, 7.1-channel high-definition audio.
• Lighting Features: Addressable RGB connectors, EZ Debug LEDs.
• Cooling Options: 1 CPU fan connector, 1 pump fan connector, 3 system fan connectors.
• BIOS: Flash BIOS button with EZ Debug LEDs.
• Operating System Support: Windows® 11 64-bit, Windows® 10 64-bit.
• Form Factor: Micro-ATX (243.84mm x 243.84mm).

Processor Compatibility

The MSI PRO B650M-P is designed with the latest AM5 socket, offering compatibility with AMD’s Ryzen™ 7000 Series processors. Built on AMD’s Zen 4 architecture, these CPUs deliver advanced performance with increased efficiency, higher core counts, and compatibility with PCIe 5.0 and DDR5 technologies.

Compatible Processors:

• Ryzen 5 7600: A 6-core, 12-thread processor suited for gaming and general-purpose builds.
• Ryzen 7 7700: An 8-core, 16-thread CPU ideal for gaming at high resolutions and multitasking.
• Ryzen 9 7900: A 12-core, 24-thread processor optimized for demanding tasks like 4K gaming, streaming, and content creation.
• Ryzen 9 7950X: Featuring 16 cores and 32 threads, this processor is perfect for professional workloads like video rendering and large-scale data processing.

Recommended CPUs:

• For budget-friendly gaming builds, the Ryzen 5 7600 is a strong choice due to its balance of performance and cost.
• For all-around performance, the Ryzen 7 7700 offers excellent value for gaming and productivity.
• For high-end systems, the Ryzen 9 7900 provides superior multitasking and creative capabilities.

Future Compatibility: This motherboard supports future Ryzen processors with BIOS updates, ensuring long-term usability.

Memory Compatibility

The MSI PRO B650M-P supports up to 128GB of DDR5 memory through its four DIMM slots. It enables dual-channel memory configurations for enhanced performance. Memory speeds range from 4800 MHz (JEDEC standard) to overclocked speeds of up to 7200+ MHz using AMD EXPO™ profiles, simplifying memory tuning for gamers and professionals.

Memory Details:

• Dual-channel architecture for optimized performance.
• Compatible with non-ECC unbuffered DDR5 memory modules.
• Ideal configurations include 32GB DDR5 at 6000 MHz for gaming or 64GB DDR5 at 6400 MHz for content creation and multitasking.

Discrete Graphics Compatibility

The MSI PRO B650M-P features a PCIe 4.0 x16 slot, providing ample bandwidth for modern GPUs. While it lacks PCIe 5.0 for GPUs, the PCIe 4.0 interface offers sufficient performance for high-end gaming and content creation.

PCIe Version Limitation:

• PCIe 4.0 delivers up to 16 GT/s per lane, supporting powerful GPUs without bottlenecking.
• GPUs that support PCIe 5.0 (e.g., NVIDIA RTX 4090 or AMD RX 7900 XTX) are backward-compatible with PCIe 4.0 and will operate efficiently on this platform.

Recommended GPUs:

• Entry-Level Gaming: NVIDIA GTX 1660 Super or AMD RX 6500 XT for 1080p gaming.
• Mid-Range Builds: NVIDIA RTX 3060 or AMD RX 6700 XT for 1440p gaming and streaming.
• High-End Gaming: NVIDIA RTX 4070 or AMD RX 6800 XT for 4K gaming and creative tasks.
• Enthusiast Builds: NVIDIA RTX 4080 or AMD RX 7900 XT for ultra-high resolutions and professional workloads.

The PCIe 4.0 x16 slot ensures compatibility with GPUs for gaming, streaming, and rendering at competitive performance levels.

Onboard Graphics

For processors with integrated graphics, the motherboard features HDMI 2.1 (4K@60Hz), DisplayPort 1.4 (4K@60Hz), and VGA for versatile display setups.

Storage and Expansion

The MSI PRO B650M-P offers comprehensive storage options:

• M.2 Slots: Two PCIe 4.0 M.2 slots for ultra-fast NVMe SSDs.
• SATA Ports: Four SATA 6Gb/s ports supporting RAID 0, 1, and 10 configurations for enhanced data protection and speed.

Power Requirements and Cooling

The MSI PRO B650M-P is designed with a robust power delivery system to support high-performance CPUs and GPUs. It features a 24-pin ATX main power connector and an 8-pin CPU power connector, ensuring reliable power delivery for AMD Ryzen™ 7000 processors.

Recommended Power Supply Wattage:

• Mid-Range Builds (Ryzen 7 7700 + RTX 3060): A 650W PSU with 80 Plus Gold certification is sufficient.
• High-End Builds (Ryzen 9 7900 + RTX 4070): A 750W PSU is recommended for stable performance during demanding workloads.
• Extreme Builds (Ryzen 9 7950X + RTX 4080): A 1000W PSU ensures headroom for overclocking and professional use.

Cooling Requirements:

CPU Cooling:

• For Ryzen 5 7600 and Ryzen 7 7700, use high-performance air coolers like the Noctua NH-U12S or compact liquid coolers such as the Corsair iCUE H60i.
• For Ryzen 9 7900 and Ryzen 9 7950X, opt for 240mm or 280mm AIO liquid coolers like the NZXT Kraken X63 or be quiet! Pure Loop 2 FX to maintain optimal temperatures under heavy workloads.

System Cooling:

• Include at least two high-quality case fans for efficient airflow, especially in Micro-ATX cases. Use 120mm or 140mm fans to maintain low temperatures and improve system longevity.

The motherboard’s power delivery and cooling options make it an excellent choice for balanced gaming and productivity builds, ensuring performance and stability even during demanding applications.

Is This Motherboard for You?

The MSI PRO B650M-P is an ideal choice for professionals and enthusiasts who demand a reliable platform with DDR5, PCIe 4.0, and high-speed networking. Its compact Micro-ATX design is perfect for builds where space-saving is essential without sacrificing performance.
