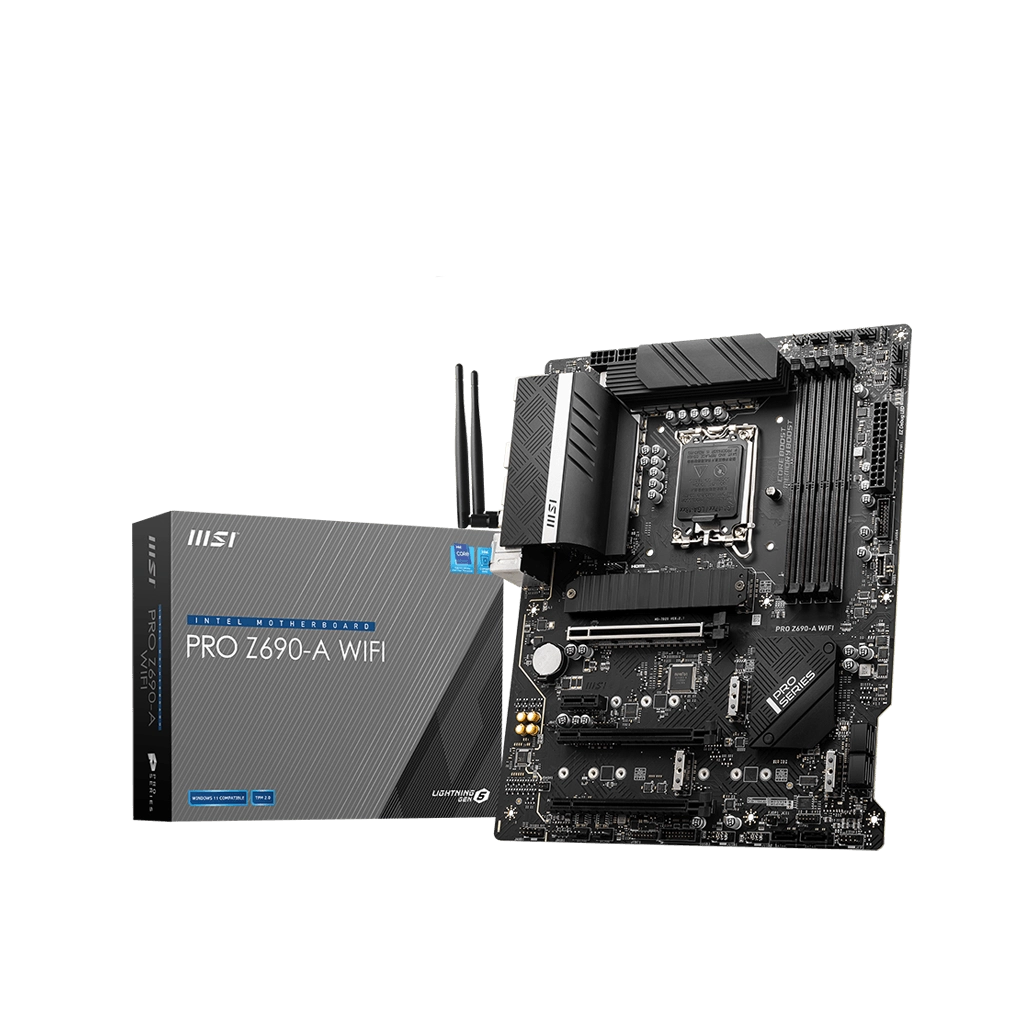

MSI PRO Z690-A WIFI DDR5, LGA1700, Supports Intel 14th/13th/12th Gen

The MSI PRO Z690-A WIFI DDR5 motherboard is engineered for professionals and enthusiasts who demand peak performance and reliability. Supporting Intel’s 14th, 13th, and 12th Gen processors, this motherboard delivers incredible power with DDR5 memory compatibility, PCIe 5.0 expansion, and Wi-Fi 6E for seamless connectivity. The advanced M.2 Shield FROZR ensures your storage remains cool under heavy loads, while the premium thermal design keeps high-performance CPUs running efficiently.

With features like Lightning USB 20G, Core Boost, and MSI’s EZ Debug LED, building and troubleshooting your system becomes effortless. Whether you’re gaming, rendering, or multitasking, this ATX motherboard is built to excel in every scenario.

Key Features

• Processor Compatibility: Intel Core 14th, 13th, and 12th Gen processors (LGA1700).
• Memory Support: 4 x DDR5 slots supporting up to 192GB, with speeds up to 6400+ MHz (OC).
• PCIe 5.0: One x16 slot for next-gen GPUs.
• Storage Options: 4 x M.2 slots (PCIe 4.0/3.0 and SATA), 6 x SATA 6Gb/s ports.
• Networking: Intel 2.5Gbps LAN and Wi-Fi 6E with Bluetooth 5.3.
• Cooling Solutions: Wavy fin design, MOSFET baseplate, and Frozr AI Cooling for optimal thermal performance.
• USB Connectivity: USB 3.2 Gen 2×2 Type-C, USB 3.2 Gen 2, USB 3.2 Gen 1, and USB 2.0 ports.
• Audio: Realtek ALC897 codec with 7.1-channel high-definition audio.

MSI PRO Z690-A WIFI DDR5 Specifications

• Brand: MSI
• Model: PRO Z690-A WIFI DDR5
• Socket Type: LGA1700
• Chipset: Intel Z690
• Processor Compatibility: Intel Core 14th, 13th, and 12th Gen, Intel Pentium Gold, and Celeron processors.
• Memory Support: 4 x DDR5 slots, up to 192GB, speeds up to 6400+ MHz (OC), supports Intel XMP 3.0 and Dual-Channel mode.
• Graphics Outputs: HDMI 2.1 (4K@60Hz), DisplayPort 1.4 (4K@60Hz).
• Expansion Slots: 1 x PCIe 5.0 x16 slot, 2 x PCIe 3.0 x4 slots, 1 x PCIe 3.0 x1 slot.
• Storage Interface: 4 x M.2 slots (PCIe 4.0 x4, PCIe 3.0 x4, SATA), 6 x SATA 6Gb/s connectors with RAID support (RAID 0, 1, 5, 10).
• Networking: Intel I225-V 2.5Gbps LAN, Intel Wi-Fi 6E (2.4GHz/5GHz/6GHz, up to 2400Mbps), Bluetooth 5.3.
• USB Ports (Rear) : 1 x USB 3.2 Gen 2×2 Type-C, 1 x USB 3.2 Gen 2 Type-A, 2 x USB 3.2 Gen 1 Type-A, 4 x USB 2.0.
• USB Ports (Internal): 1 x USB 3.2 Gen 2 Type-C header, 2 x USB 3.2 Gen 1 headers (4 ports), 2 x USB 2.0 headers (4 ports).
• Audio: Realtek ALC897 codec, 7.1-channel high-definition audio.
• Cooling Features: 1 x CPU fan header, 1 x water-pump fan header, 6 x system fan headers.
• Internal I/O Connectors: 4 x M.2 slots, 6 x SATA 6Gb/s connectors, RGB and addressable RGB LED headers.
• Back Panel I/O: 1 x USB 3.2 Gen 2×2 Type-C, 1 x USB 3.2 Gen 2 Type-A, 2 x USB 3.2 Gen 1 Type-A, 4 x USB 2.0, 1 x HDMI, 1 x DisplayPort, 1 x RJ-45 LAN port, Wi-Fi / Bluetooth antenna connectors, audio connectors (7.1-channel).
• BIOS: 256Mb Flash ROM, UEFI AMI BIOS.
• Operating System Support: Windows 11 64-bit, Windows 10 64-bit.
• Form Factor: ATX (30.5cm x 24.4cm).

Processor Compatibility

The MSI PRO Z690-A WIFI DDR5 motherboard offers robust support for a wide range of Intel processors, ensuring compatibility from lower generations to the latest.

• Intel 12th Gen Processors (Alder Lake): Fully compatible with the Intel Core i9-12900K, i7-12700K, and i5-12600K, offering powerful performance for gaming and productivity.
• Intel 13th Gen Processors (Raptor Lake): Unlock the next level of computing with the Intel Core i9-13900K and i7-13700K, optimized for demanding workloads and multitasking.
• Backward Compatibility: While focused on 12th and 13th Gen CPUs, earlier generations like the Intel 10th and 11th Gen are not supported due to socket type (LGA1700).

Processor Recommendations for MSI PRO Z690-A WIFI DDR5

• Intel Core i7-13700K: Perfect for gamers and content creators.
• Intel Core i5-13600KF: Delivers excellent performance on a budget.

Discrete GPU Compatibility

The MSI PRO Z690-A WIFI DDR5 motherboard features PCIe 5.0 support, providing twice the bandwidth of PCIe 4.0 for next-gen GPUs. This ensures compatibility with high-performance graphics cards while delivering optimal speeds.

• PCIe 5.0 Advantage: Ideal for modern GPUs like the NVIDIA RTX 4080 and AMD Radeon RX 7900 XT, ensuring top-tier gaming and rendering performance.
• Backward Compatibility with PCIe 4.0/3.0 GPUs: Older GPUs like the RTX 3060 Ti and RX 6600 XT work seamlessly but may not fully leverage PCIe 5.0 speeds. This makes the motherboard future-proof while accommodating legacy components.

Graphics Card Recommendations for MSI PRO Z690-A WIFI DDR5

• NVIDIA GeForce RTX 4070: Great for high-performance 1440p gaming.
• AMD Radeon RX 7600 XT: An affordable choice for entry-level 1080p gaming.

Memory Compatibility

The MSI PRO Z690-A WIFI DDR5 motherboard is equipped with 4 DDR5 DIMM slots, supporting up to 128GB of memory. With speeds ranging from the base 4800MHz to overclocked frequencies exceeding 6400MHz, the motherboard ensures exceptional multitasking and gaming capabilities.

• DDR5 Benefits: Improved bandwidth and power efficiency over DDR4.
• Overclocking Limitations: While Intel XMP 3.0 simplifies memory tuning, compatibility varies based on memory kits and configurations.

Power Requirements and Cooling

The MSI PRO Z690-A WIFI DDR5 motherboard is designed with efficiency and durability in mind, featuring a 14+1+1 power phase VRM setup.

• Power Connectors: Includes a 24-pin ATX main connector and dual 8-pin EPS connectors to ensure stable power delivery for high-performance CPUs.
• Cooling Headers: Six system fan headers, a dedicated water pump header, and advanced thermal solutions like the extended heatsink design ensure VRM stability even under heavy loads.
• VRM Cooling: High-quality MOSFET heatsinks keep temperatures low during overclocking, making it ideal for enthusiasts.

Power Supply Recommendations for MSI PRO Z690-A WIFI DDR5

• 750W PSU: Perfect for mid-range GPUs like the RTX 4060 Ti.
• 850W PSU: Recommended for high-performance builds with GPUs like the RTX 4080 or RX 7900 XT.

Storage Options and Connectivity

The MSI PRO Z690-A WIFI DDR5 motherboard  offers extensive storage options and fast connectivity features:

• M.2 Slots: Four M.2 slots with PCIe 4.0 and PCIe 3.0 compatibility for NVMe SSDs, ensuring rapid storage performance.
• SATA Ports: Six SATA III ports for additional SSDs or HDDs.
• Networking: Features Wi-Fi 6E for ultra-fast wireless connectivity and Intel 2.5Gb Ethernet for stable, high-speed wired connections.
• USB Ports: Rear USB options include USB 3.2 Gen 2×2 Type-C, USB 3.2 Gen 2 Type-A, and USB 3.2 Gen 1, along with internal headers for front panel connectivity.

This motherboard provides an exceptional foundation for gaming, productivity, and future upgrades.

Is This Motherboard for You?

If you’re building a high-performance system with DDR5 memory, next-gen PCIe 5.0 GPUs, and cutting-edge connectivity, the MSI PRO Z690-A WIFI DDR5 motherboard is an excellent choice. Perfect for gamers, content creators, and professionals seeking future-ready technology.
