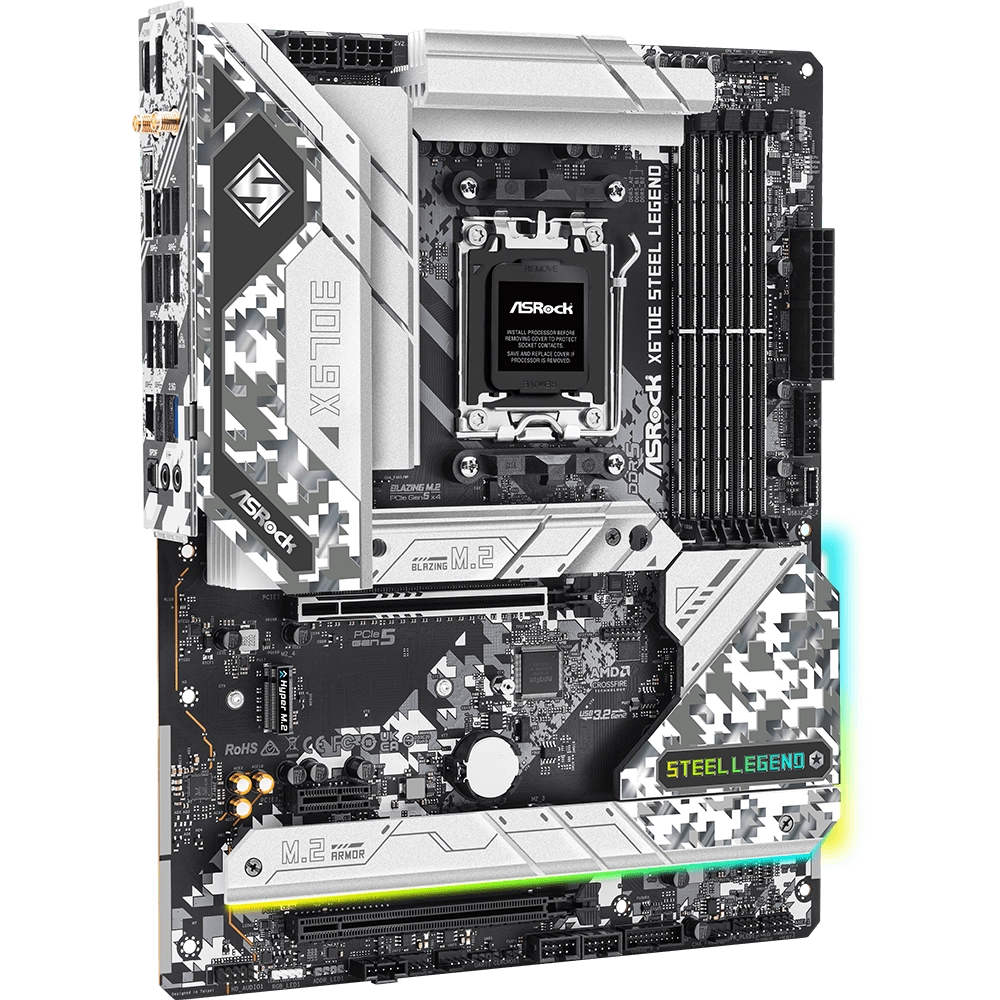

ASRock X670E Steel Legend, AM5, Ryzen 9000/8000/7000/DDR5

The ASRock X670E Steel Legend is designed to handle the demands of modern computing with support for AMD’s latest Ryzen™ processors, DDR5 memory, and PCIe Gen5 technology. Built on a foundation of rock-solid durability and packed with advanced features like Wi-Fi 6E, dual LAN, and premium audio, this motherboard is ideal for high-performance gaming setups and professional workstations.

Key Features

• Next-Gen Processor Support: Compatible with AMD Ryzen™ 7000, 8000, and 9000 Series processors for unmatched computing power.
• Blazing-Fast PCIe Gen5: Dual PCIe 5.0 support for graphics and M.2 storage delivers exceptional speed and performance.
• DDR5 Memory Ready: Supports up to 256GB of DDR5 memory with speeds of 7600+ MHz (OC).
• Rock-Solid Durability: Server-grade low-loss PCB, 16+2+1 power phase design, and Nichicon 12K Black Caps ensure long-term stability.
• Advanced Cooling Solutions: Enlarged heatsinks, M.2 coolers, and intelligent fan headers maintain system thermals under load.
• Comprehensive Connectivity: Wi-Fi 6E, 2.5Gb Ethernet, and multiple USB 3.2 Gen2x2 ports deliver high-speed networking and data transfers.
• Rich Audio Experience: Premium Realtek ALC1220 codec with Nahimic audio software for immersive sound quality.

ASRock X670E Steel Legend  Specifications

• Brand: ASRock
• Model: X670E Steel Legend
• Socket Type: AMD Socket AM5
• Chipset: AMD X670
• Processor Compatibility: AMD Ryzen 9000, 8000, and 7000 Series processors.
• Memory Support: 4 x DDR5 DIMM slots, dual-channel, up to 256GB.
• Graphics Support: Integrated AMD RDNA™ graphics, 1 x HDMI 2.1 (4K @ 120Hz, HDR, HDCP 2.3), 1 x DisplayPort 1.4 (4K @ 120Hz, HDR, HDCP 2.3).
• Audio: Realtek ALC1220 Audio Codec, 7.1-channel HD audio, Nahimic audio, impedance sensing on rear output port.
• Networking: 2.5Gb LAN (Dragon RTL8125BG), Gigabit LAN (Realtek RTL8111), Wi-Fi 6E, Bluetooth 5.2.
• Expansion Slots: 1 x PCIe 5.0 x16, 1 x PCIe 3.0 x16 (x4 mode), 1 x PCIe 3.0 x1, 1 x M.2 (Key E) slot for Wi-Fi/BT module.
• Storage Interface: 4 x M.2 slots (1 x PCIe Gen5x4, 3 x PCIe Gen4x4), 4 x SATA 6Gb/s ports, supports RAID 0, RAID 1, RAID 10 for NVMe and SATA storage devices.
• USB Ports: Rear: 1 x USB 3.2 Gen2x2 Type-C (20Gbps), 1 x USB 3.2 Gen2 Type-A (10Gbps), 6 x USB 3.2 Gen1, 4 x USB 2.0. Front: 1 x USB 3.2 Gen2 Type-C, 2 x USB 3.2 Gen1, 4 x USB 2.0.
• Cooling and Headers: 1 x CPU fan header, 1 x CPU/Water Pump header, 4 x Chassis/Water Pump headers, 1 x RGB header, 3 x Addressable Gen2 headers, supports smart fan speed control.
• Special Features: BIOS Flashback, ASRock Polychrome SYNC, Nahimic audio, ASRock Auto Driver Installer, ASRock Post Status Checker.
• Power Requirements: 24-pin ATX main power connector, 2 x 8-pin 12V power connectors.
• Operating System Support: Microsoft Windows® 11 64-bit, Windows® 10 64-bit.
• Form Factor and Dimensions: ATX, 12.0-in x 9.6-in (30.5 cm x 24.4 cm).

Processor Compatibility

The ASRock X670E Steel Legend supports AMD Socket AM5 processors from the Ryzen™ 9000, 8000, and 7000 Series families, making it an excellent choice for users seeking top-tier performance. With its AMD X670 chipset, the motherboard unlocks the potential of multi-core CPUs, ensuring exceptional speed and responsiveness for gaming, professional workloads, and multitasking.

Compatible Processors Include:

• AMD Ryzen 9 Series: Designed for heavy multitasking, gaming, and creative work, offering up to 16 cores and 32 threads.
  • Recommended: Ryzen 9 7950X for ultimate performance.
• AMD Ryzen 7 Series: Ideal for gamers and professionals who need a balance of performance and efficiency, offering up to 8 cores and 16 threads.
  • Recommended: Ryzen 7 7700X for high-speed gaming.
• AMD Ryzen 5 Series: Perfect for budget-conscious gamers and PC builders, offering up to 6 cores and 12 threads.
  • Recommended: Ryzen 5 7600 for solid performance in gaming and general use.
• AMD Ryzen G-Series Processors: Equipped with integrated AMD RDNA™ graphics, suitable for compact or budget builds without discrete GPUs.
  • Recommended: Ryzen 5 7600G for entry-level graphics needs.

The motherboard also supports overclocking with compatible AMD processors, allowing enthusiasts to push their systems to the next level.

Discrete Graphics Compatibility

The ASRock X670E Steel Legend is built with discrete graphics in mind, supporting the latest PCIe Gen5 standard for graphics cards. With one PCIe 5.0 x16 slot and additional PCIe 3.0 slots, this motherboard is optimized for high-end GPUs, ensuring compatibility with the latest graphics cards from NVIDIA and AMD.

Compatible Graphics Cards:

• NVIDIA GeForce RTX Series: Recommended: RTX 4090 for ultimate gaming and ray tracing, Mid-range option: RTX 4070 Ti for exceptional 1440p gaming.
• AMD Radeon RX Series: Recommended: Radeon RX 7900 XTX for 4K gaming and creative workloads, Mid-range option: RX 6700 XT for smooth 1440p gaming.

With support for AMD CrossFire™, this motherboard allows multi-GPU configurations for enhanced graphical performance. Gamers and creators can benefit from faster rendering, smooth gameplay, and multi-monitor setups.

Onboard Graphics

Features integrated AMD RDNA™ graphics with support for up to 4K@120Hz through HDMI and DisplayPort outputs.

Storage and Expansion

• M.2 Support: Includes four M.2 slots, one PCIe Gen5 and three PCIe Gen4, ensuring ultra-fast read/write speeds for NVMe SSDs.
• SATA Support: Four SATA 6Gb/s connectors for traditional HDDs and SSDs.
• Flexibility: Compatible with ASRock U.2 Kit for additional storage solutions.

Power Requirements and Cooling

The ASRock X670E Steel Legend is engineered to deliver stable and efficient power delivery for high-performance systems. It features dual 8-pin 12V power connectors and a 24-pin main power connector with Hi-Density Power Connectors to minimize power loss and improve durability.

Recommended Power Supply Wattage:

1. Basic Builds (With Ryzen 5 and Mid-Range GPUs): A 650W power supply is sufficient for stable operation.
2. High-Performance Builds (With Ryzen 7 or 9 and High-End GPUs): A 750W to 850W power supply ensures consistent power delivery.
3. Overclocking and Multi-GPU Setups: A 1000W power supply is recommended for optimal stability and performance.

Cooling Features:

The motherboard is equipped with robust cooling options to maintain peak performance:

• CPU/Water Pump Headers: Includes one CPU fan header and one CPU/water pump header with smart fan speed control, supporting up to 24W.
• Chassis Cooling: Four chassis/water pump fan headers support high-performance cooling solutions.
• M.2 Heatsinks: Keeps M.2 SSDs cool during sustained operations, ensuring high-speed performance.

For optimal system efficiency, pairing the motherboard with a high-quality cooling solution, such as an all-in-one (AIO) liquid cooler or a high-performance air cooler, is recommended.

Is This Motherboard for You?

The ASRock X670E Steel Legend is the ideal choice for gamers, creators, and professionals who demand high-performance computing. With support for the latest processors, robust graphics compatibility, and advanced cooling options, it ensures exceptional reliability and future-proof capabilities for any high-end build.
