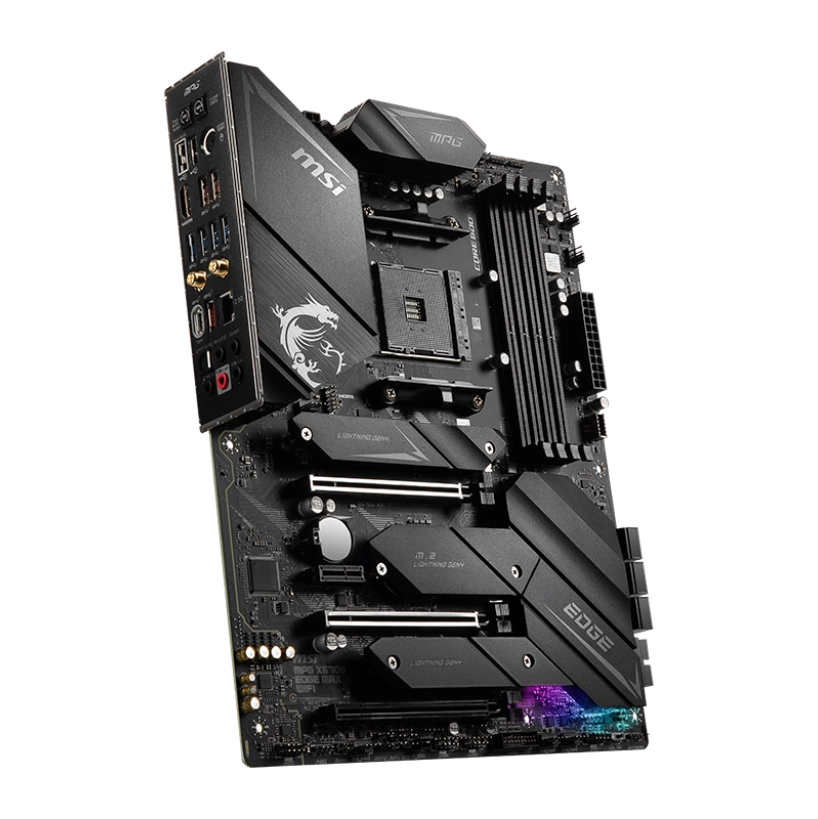

MSI MPG X570S EDGE MAX WIFI, AM4, Ryzen 5000/4000G/3000, DDR4

The MSI MPG X570S EDGE MAX WIFI is a high-end ATX motherboard tailored for gamers and creators who demand exceptional performance, connectivity, and reliability. Built on the AMD X570 chipset, it supports AMD Ryzen™ 5000, 4000G, and 3000 Series processors, leveraging PCIe 4.0 for cutting-edge GPUs and NVMe storage.

Packed with features like triple M.2 slots, Wi-Fi 6E, USB 3.2 Gen 2, and robust thermal solutions, this motherboard is designed for demanding workloads and immersive gaming.

Key Features

• Processor Compatibility: AMD Ryzen™ 5000, 4000G, and 3000 Series processors.
• Memory Support: Four DDR4 slots, up to 128GB, speeds up to 5300 MHz (OC).
• Graphics Options: PCIe 4.0/3.0 x16 slots and onboard HDMI 2.1.
• Storage Options: Triple M.2 slots (PCIe 4.0/3.0) and six SATA 6Gb/s ports.
• Networking: Realtek 2.5Gbps LAN and Intel Wi-Fi 6E with Bluetooth® 5.2.
• USB Connectivity: USB 3.2 Gen 2 Type-A/Type-C and USB 3.2 Gen 1 ports.
• Audio: Realtek ALC4080 Codec with 7.1-channel HD audio and optical S/PDIF.

MSI MPG X570S EDGE MAX WIFI Specifications

• Brand: MSI
• Model: MPG X570S EDGE MAX WIFI
• Socket Type: AM4
• Chipset: AMD X570
• Processor Compatibility: Supports AMD Ryzen™ 5000, 4000G, and 3000 Series processors, 3000G-Series, 2000 Series, and 2000G-Series desktop processors.
• Memory Support: 4 DDR4 slots, up to 128GB, speeds up to 5300 MHz (OC), dual-channel, non-ECC un-buffered memory supported.
• Graphics Support: 1 PCIe 4.0/3.0 x16 slot, 2 PCIe 4.0/3.0 x16 slots (x4 and x1 modes), 1 PCIe 3.0 x1 slot; onboard HDMI 2.1 (4K@60Hz) for integrated graphics processors.
• Storage Interface: 3 M.2 slots (PCIe 4.0/3.0 x4 & SATA), 6 SATA 6Gb/s ports with RAID 0, 1, and 10 support.
• USB Ports: Rear: 3 USB 3.2 Gen 2 (10Gbps) Type-A ports, 1 USB 3.2 Gen 2 Type-C port, 4 USB 3.2 Gen 1 ports, 2 USB 2.0 ports; Internal: 2 USB 3.2 Gen 1 headers (4 ports), 2 USB 2.0 headers (4 ports).
• Networking: Realtek® RTL8125B 2.5Gbps LAN, Intel® Wi-Fi 6E, and Bluetooth® 5.2.
• Audio: Realtek® ALC4080 Codec, 7.1-channel HD audio with optical S/PDIF.
• Multi-GPU Support: AMD CrossFire™ Technology.
• Lighting Features: 2 4-pin RGB LED connectors, 2 3-pin RAINBOW LED connectors, EZ LED Control switch.
• Cooling Options: 1 CPU fan connector, 1 water-pump fan connector, 6 system fan connectors.
• BIOS: Flash BIOS button for easy updates.
• Operating System Support: Windows® 10 64-bit.
• Form Factor: ATX (12” x 9.6”).

Processor Compatibility

The MSI MPG X570S EDGE MAX WIFI is a high-performance motherboard that supports AMD’s Ryzen™ 5000 Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series, and 2000 G-Series desktop processors using the AM4 socket.

This versatility makes it suitable for a wide range of builds, from budget gaming systems to high-performance setups for content creation. The X570 chipset enables advanced features like PCIe 4.0 for cutting-edge performance in GPUs and storage.

Processor Recommendations:

• Budget Option: AMD Ryzen 5 5600G – A cost-effective APU for entry-level gaming and productivity without requiring a discrete GPU.
• Mid-Range Option: AMD Ryzen 7 5800X – Ideal for high-refresh-rate gaming and multitasking workloads.
• High-End Option: AMD Ryzen 9 5900XT – Excellent for heavy multitasking, content creation, and gaming with maximum settings.
• Premium Option: AMD Ryzen 9 5950X – Perfect for extreme workloads like rendering and high-end gaming.

This motherboard is also forward-compatible with BIOS updates, enabling it to support future processors within the AM4 socket framework.

Memory Compatibility

The MSI MPG X570S EDGE MAX WIFI supports up to 128GB of DDR4 memory across four DIMM slots, running in dual-channel mode. Standard JEDEC speeds range from 1866 MHz to 3200 MHz, while A-XMP allows overclocking to 5100 MHz or higher with the right CPU and memory kits.

For optimal performance, memory speeds between 3200 MHz and 3600 MHz are recommended for gaming, while higher frequencies (e.g., 4000+ MHz) benefit professional workloads like 3D rendering and video editing.

Discrete Graphics Compatibility

The motherboard includes:

• PCI_E1 Slot (Primary): Supports PCIe 4.0 x16, delivering the full bandwidth of PCIe 4.0 for modern GPUs when paired with Ryzen™ 5000 or 3000 Series processors.
• PCI_E3 Slot (Secondary): Runs at PCIe 4.0 x4, suitable for secondary GPUs or expansion cards.

For processors like the Ryzen™ 2000 Series, the slots default to PCIe 3.0, reducing maximum bandwidth. This makes it crucial to pair this board with Ryzen™ 5000 or 3000 Series processors to unlock full PCIe 4.0 performance for GPUs.

Recommended GPUs for PCIe 4.0:

• NVIDIA RTX 30 Series (e.g., RTX 3070, RTX 3080, RTX 3090) for high-performance gaming and professional applications.
• AMD Radeon RX 6000 Series (e.g., RX 6700 XT, RX 6800 XT, RX 6900 XT) for exceptional performance in gaming and rendering.

Onboard Graphics

For processors with integrated graphics, the MSI MPG X570S EDGE MAX WIFI features an HDMI 2.1 port, supporting up to 4K@60Hz, ideal for multimedia setups and multi-monitor productivity.

Storage and Expansion

The motherboard provides versatile storage solutions with three M.2 slots and six SATA 6Gb/s ports:

• M.2 Slots: PCIe 4.0/3.0 x4 for ultra-fast NVMe SSDs or SATA drives.
• SATA Ports: Connect up to six HDDs or SSDs with RAID 0, 1, and 10 support for data redundancy or performance optimization.

Power Requirements and Cooling

The motherboard requires:

• 1x 24-pin ATX main power connector
• 1x 8-pin and 4-pin ATX 12V CPU power connectors for stable power delivery to the CPU.

Recommended Power Supply Wattage:

• For a mid-range build with a Ryzen  7 5800X and an RTX 3070, a 650W PSU is sufficient.
• High-performance configurations with a Ryzen 9 5900X and an RTX 3080 require a 750W-850W PSU to ensure stability, especially when overclocking.
• For extreme setups featuring a Ryzen™ 9 5950X and an RTX 3090, a 1000W PSU is recommended to handle peak loads.

Cooling Recommendations:

The motherboard’s robust VRM heatsinks and active cooling design ensure reliable operation under heavy loads. It includes multiple fan headers for optimized airflow:

• 1x CPU fan header
• 1x water pump header
• 6x system fan headers

For CPUs like the Ryzen™ 9 5900X or 5950X, consider using an advanced cooling solution, such as:

• High-performance air coolers (e.g., Noctua NH-D15)
• 240mm or 360mm AIO liquid coolers (e.g., Corsair iCUE H150i) for superior thermal management, particularly in overclocked systems.

This cooling infrastructure ensures that the MSI MPG X570S EDGE MAX WIFI remains stable and efficient, even during demanding gaming and multitasking workloads.

Is This Motherboard for You?

The MSI MPG X570S EDGE MAX WIFI is an excellent choice for gamers, streamers, and professionals. With PCIe 4.0 support, triple M.2 slots, Wi-Fi 6E, and robust cooling, it delivers outstanding performance and connectivity for high-end PC builds.

Whether you’re gaming, streaming, or creating content, this motherboard has the features you need to succeed.
