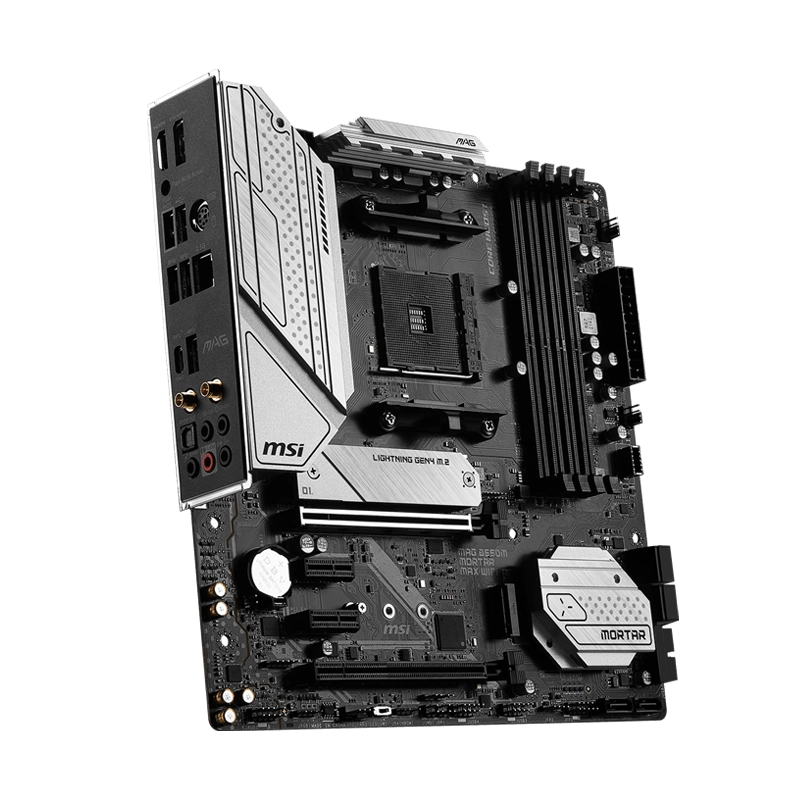

MSI MAG B550M MORTAR MAX WIFI, AM4, Ryzen 5000/4000/3000, DDR4

The MSI MAG B550M MORTAR MAX WIFI motherboard combines cutting-edge features with a compact micro-ATX form factor. Built on the AMD B550 chipset, it supports AMD Ryzen™ 5000, 4000, and 3000 Series processors, ensuring excellent performance for gaming, productivity, and content creation. With PCIe 4.0, dual M.2 slots, Wi-Fi 6E, and 2.5Gbps LAN, this motherboard delivers robust connectivity and expandability.

Key Features

• Processor Compatibility: AMD Ryzen™ 5000, 4000G, and 3000 Series processors.
• Memory Support: Four DDR4 slots, up to 128GB, speeds up to 4400+ MHz (OC).
• Graphics Options: PCIe 4.0 x16 slot and onboard HDMI 2.1 and DisplayPort for integrated graphics.
• Storage Options: Dual M.2 slots with PCIe 4.0/3.0 support and six SATA 6Gb/s ports.
• High-Speed Networking: Wi-Fi 6E, Bluetooth® 5.2, and 2.5Gbps LAN.
• Modern Connectivity: USB 3.2 Gen 2 (10Gbps) Type-A and Type-C ports.
• Immersive Audio: Realtek ALC1220P Codec with 7.1-channel HD audio and S/PDIF support.

MSI MAG B550M MORTAR MAX WIFI Specifications

• Brand: MSI
• Model: MAG B550M MORTAR MAX WIFI
• Socket Type: AM4
• Chipset: AMD B550
• Processor Compatibility: AMD Ryzen™ 5000 Series, 5000G, 4000G, and 3000 Series.
• Memory Support: 4 DDR4 slots, up to 128GB, speeds up to 4400+ MHz (OC), dual-channel.
• Graphics Support: PCIe 4.0 x16 slot; onboard HDMI 2.1 and DisplayPort 1.4.
• Storage Interface: 2 M.2 slots (PCIe 4.0/3.0), 6 SATA 6Gb/s ports, RAID 0/1/10 support.
• USB Ports: USB 3.2 Gen 2 Type-A/Type-C, USB 3.2 Gen 1, USB 2.0.
• Networking: Realtek® 2.5Gbps LAN, AMD Wi-Fi 6E, Bluetooth® 5.2.
• Audio: Realtek® ALC1220P Codec, 7.1-channel HD audio, S/PDIF.
• BIOS: Flash BIOS button for easy updates.
• Operating System Support: Windows® 11/10 64-bit.
• Form Factor: Micro-ATX (9.6” x 9.6”).

Processor Compatibility

The MSI MAG B550M MORTAR MAX WIFI supports a range of AMD processors, offering flexibility and performance for various builds:

• AMD Ryzen 5000 Series: Featuring Zen 3 architecture, these CPUs provide exceptional single-threaded and multi-threaded performance for gaming and professional workloads. Models like the Ryzen 5 5600X and Ryzen 7 5800X are ideal for high-performance gaming and multitasking.
• AMD Ryzen  4000G and 5000G Series: These processors come with integrated Radeon™ Graphics, making them perfect for systems without discrete GPUs or for small-form-factor PCs.
• AMD Ryzen 3000 Series: Offering solid multi-core performance, these processors like the Ryzen 7 3700X are great for productivity-focused systems.

With support for up to 16-core processors, this motherboard is future-proof and ready for demanding tasks such as video editing, streaming, and gaming.

Discrete Graphics Compatibility

The motherboard includes a PCIe 4.0 x16 slot, delivering double the bandwidth of PCIe 3.0. This ensures that modern GPUs can fully utilize the available bandwidth for maximum performance. A secondary PCIe 3.0 x16 slot is available, supporting x4 mode, making it suitable for additional expansion cards or multi-GPU setups with AMD CrossFire™ technology.

Key Benefits of PCIe 4.0 Support

• Gaming: Pair with GPUs like the NVIDIA RTX 3060 Ti or AMD RX 6700 XT for fluid 1440p or 4K gaming.
• Content Creation: Enables faster rendering and editing when using workstation cards like the NVIDIA RTX 3070 or AMD Radeon Pro series.
• Expandability: Supports modern GPUs, making it ideal for future upgrades.

Onboard Graphics

The motherboard also features HDMI 2.1 and DisplayPort 1.4 for integrated graphics support, allowing for resolutions up to 4K@60Hz. This is especially beneficial for systems using AMD Ryzen™ G-Series processors with Radeon™ Graphics.

Storage and Expansion

M.2 Slots and NVMe Support

The motherboard offers dual M.2 slots, providing flexibility for high-speed storage:

• M2_1 Slot: Directly linked to the CPU, supports PCIe 4.0 x4 for unparalleled storage performance, with speeds up to 64Gbps.
• M2_2 Slot: Connected to the B550 chipset, supports PCIe 3.0 x4 for additional NVMe SSDs.

Both slots are compatible with SATA drives and support 2242, 2260, and 2280 storage devices, enabling faster load times and efficient workflows.

SATA Ports and Expansion

• Six SATA 6Gb/s Ports: Perfect for bulk storage devices like HDDs or additional SSDs.
• RAID Support: Configure RAID 0 for performance, RAID 1 for redundancy, or RAID 10 for a balance of both.

Recommended Storage Options

• Primary Storage: PCIe 4.0 NVMe SSD like the Samsung 980 PRO for maximum speed.
• Secondary Storage: SATA SSDs like the Crucial MX500 for fast, reliable data storage.
• Bulk Storage: HDDs like the Seagate Barracuda for large-volume needs.

Power Requirements and Cooling

The MSI MAG B550M MORTAR MAX WIFI features a 24-pin ATX main power connector and an 8-pin ATX 12V connector, ensuring stable power delivery.

Recommended PSU Wattage

• 450W PSU: For systems with integrated graphics or low-power GPUs.
• 650W PSU: For mid-range GPUs like NVIDIA RTX 3060 or AMD RX 6600 XT.
• 750W+ PSU: For high-end GPUs like NVIDIA RTX 3070 or AMD RX 6800 XT.

Cooling Options

The motherboard includes:

• 1 CPU Fan Connector: For air or liquid cooling setups.
• 1 Water-Pump Connector: Supports AIO liquid coolers.
• 3 System Fan Connectors: For case fans to optimize airflow and maintain low temperatures.

Is This Motherboard for You?

The MSI MAG B550M MORTAR MAX WIFI is an excellent choice for gamers, content creators, and professionals seeking cutting-edge features in a compact form factor. With PCIe 4.0, Wi-Fi 6E, robust power delivery, and high-speed storage options, it’s a powerful and future-proof solution for modern PCs.
