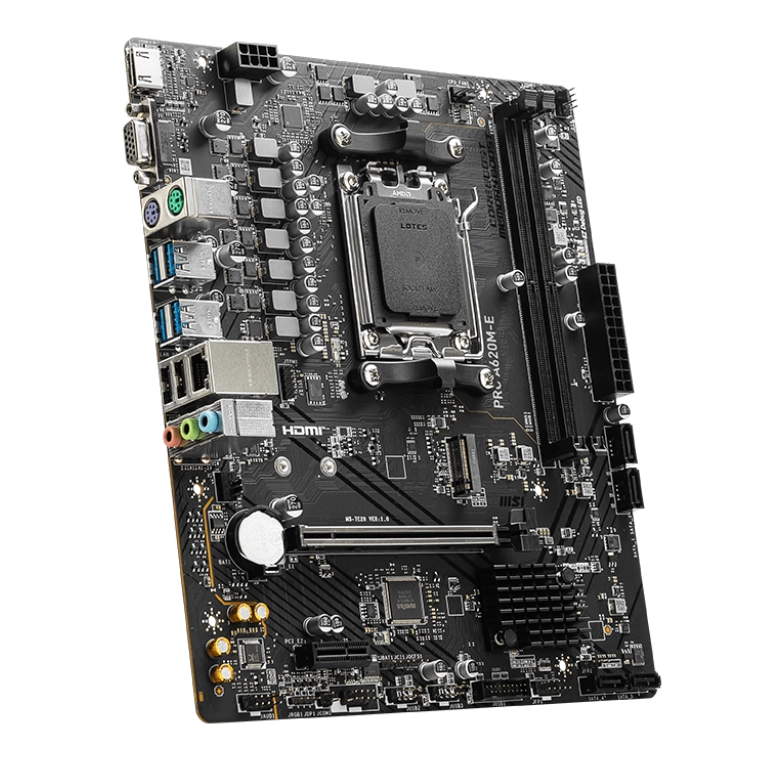

MSI PRO A620M-E, AM5, Support Ryzen 9000/7000/8000, DDR5

The MSI PRO A620M-E is an excellent entry-level motherboard that combines affordability with modern features. Built on the AM5 platform and equipped with the AMD A620 chipset, it supports the latest AMD Ryzen™ 9000, 8000, and 7000 series processors, DDR5 memory, and PCIe 4.0 GPUs.

With a compact micro-ATX form factor and a thoughtful feature set, this motherboard is designed for budget-conscious builders who want reliable performance and next-generation technology in their PC build.

Key Features

• Processor Compatibility: Designed for AMD Ryzen™ 9000, 8000, and 7000 series processors.
• Memory Support: 2x DDR5 slots, up to 128GB, with speeds of up to 6800 MHz (OC).
• Graphics Support: One PCIe 4.0 x16 slot for discrete GPUs, plus onboard HDMI 2.1 and VGA ports.
• Storage Options: One M.2 PCIe 4.0 slot and four SATA III ports for a mix of speed and capacity.
• Connectivity: USB 3.2 Gen 1, USB 2.0, HDMI 2.1, and Gigabit LAN for versatile connections.
• Audio: Realtek ALC897 codec delivers 7.1-channel high-definition audio.
• Form Factor: Micro-ATX form factor fits easily in smaller PC cases.

MSI PRO A620M-E Full Specifications

• Brand: MSI
• Model: PRO A620M-E
• Socket Type: AM5
• Chipset: AMD A620
• Processor Compatibility: AMD Ryzen™ 9000/8000/7000 Series
• Memory Support: 2x DDR5 DIMMs, up to 128GB, speeds up to 6800 MHz (OC)
• Graphics Support: 1x PCIe 4.0 x16, HDMI 2.1 (4K @ 60Hz), VGA
• Storage Interface: 4x SATA III ports, 1x PCIe 4.0 M.2 slot
• USB Ports: Rear: 4x USB 3.2 Gen 1, 2x USB 2.0 | Front: 2x USB 3.2 Gen 1, 4x USB 2.0
• Networking: Realtek RTL8111H Gigabit LAN
• Audio: Realtek ALC897 codec, 7.1-channel HD audio
• Operating System Support: Windows 11, Windows 10 64-bit
• Form Factor: Micro-ATX (211mm x 243.84mm)

Processor Compatibility

The MSI PRO A620M-E supports AMD Ryzen™ 9000, 8000, and 7000 series processors, offering a wide range of performance levels.

From entry-level CPUs like the Ryzen™ 7600 for basic computing to high-end options like the Ryzen™ 7950X for demanding workloads, this motherboard ensures reliable and scalable performance for years to come.

Memory Compatibility

This motherboard supports up to 128GB of DDR5 memory through its two DIMM slots, with speeds up to 6800 MHz via overclocking. While the two-slot configuration may limit future memory upgrades, the high capacity and speed make it a perfect choice for gamers, streamers, and everyday multitaskers.

Discrete Graphics Compatibility

The PCIe 4.0 x16 slot provides ample bandwidth for modern GPUs, ensuring excellent performance for gaming or content creation. Integrated graphics users can take advantage of the onboard HDMI 2.1 port for 4K resolution at 60Hz, while the VGA port supports older displays, making the board versatile for various setups.

Storage and Expansion

The MSI PRO A620M-E includes a PCIe 4.0 M.2 slot for ultra-fast NVMe SSDs, delivering high-speed storage performance. It also features four SATA III ports for additional SSDs or HDDs, providing flexibility for both speed and capacity. However, users requiring multiple M.2 slots may find this configuration limiting.

Connectivity and Audio Features

• Networking: Realtek RTL8111H Gigabit LAN ensures stable and fast wired internet connections.
• Audio: Realtek ALC897 codec delivers 7.1-channel high-definition audio for immersive gaming and multimedia experiences.
• Ports and Connectors:
  • Rear Panel: 4x USB 3.2 Gen 1, 2x USB 2.0, HDMI 2.1, VGA, and Gigabit LAN.
  • Front Panel: 2x USB 3.2 Gen 1 and 4x USB 2.0 headers.
  • Internal connectors include fan headers, USB headers, and RGB headers for expandability and cooling.

Power Requirements

This motherboard features a basic power delivery system, suitable for entry-level and mid-tier builds. It uses a standard 24-pin ATX connector and an 8-pin CPU power connector, providing adequate power for its supported CPUs and peripherals. However, it is not optimized for heavy overclocking or high-power setups.

Ideal User for This Motherboard

The MSI PRO A620M-E is perfect for budget-conscious builders seeking modern features without the high cost. Its compatibility with AMD Ryzen™ 9000/8000/7000 processors, DDR5 memory, and PCIe 4.0 GPUs makes it ideal for gamers, casual content creators, and home users who need reliable performance for daily tasks. With its compact micro-ATX form factor, it fits easily into smaller PC cases, making it a great choice for space-conscious builds. Whether you’re building a cost-effective gaming PC or a versatile home workstation, this motherboard delivers excellent value for the price.

Is This Motherboard for You?

If you’re looking for a compact, affordable motherboard that supports the latest AMD Ryzen™ processors and modern technologies like DDR5 and PCIe 4.0, the MSI PRO A620M-E is an excellent choice.

While it may lack advanced expansion options and Wi-Fi, it delivers reliable performance and features for entry-level and mid-tier builds, making it a solid foundation for your next PC.
