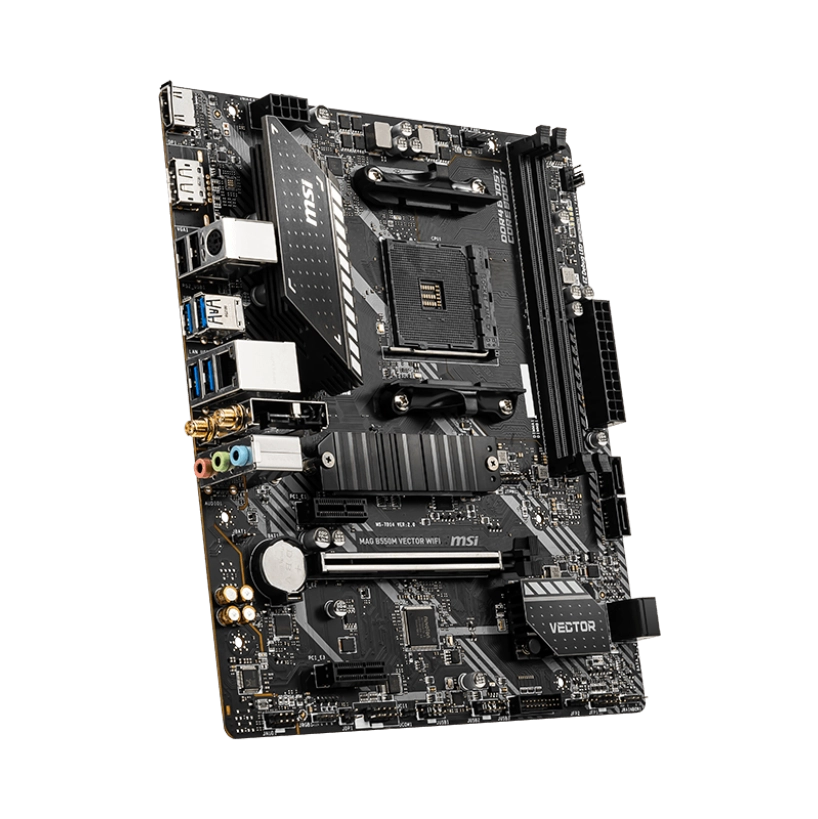

MSI MAG B550M VECTOR WIFI, AM4, Ryzen 5000/4000/3000, DDR4

The MSI MAG B550M VECTOR WIFI is a compact and reliable micro-ATX motherboard designed for high-performance builds. Powered by the AMD B550 chipset, it supports AMD Ryzen™ 5000, 4000G, and 3000 Series processors, delivering advanced PCIe 4.0 capabilities for high-speed GPUs and storage. With built-in Wi-Fi, multiple USB 3.2 Gen 1 ports, and support for dual-channel DDR4 memory, this motherboard is perfect for gamers and PC builders seeking a versatile and cost-effective solution.

Key Features

• Processor Compatibility: AMD Ryzen™ 5000, 4000G, and 3000 Series processors.
• Memory Support: Two DDR4 slots, up to 64GB, speeds up to 4600+ MHz (OC).
• Graphics Options: PCIe 4.0 x16 slot and onboard HDMI 2.1/DisplayPort for integrated graphics.
• Storage Options: One M.2 PCIe 4.0/3.0 slot and four SATA 6Gb/s ports.
• Networking: Intel® Dual Band Wireless-AC with Wi-Fi 802.11ac and Bluetooth® 4.2, plus Realtek® 1Gbps LAN.
• USB Connectivity: USB 3.2 Gen 1 Type-A and USB 2.0 ports for peripheral compatibility.
• Audio: Realtek ALC892/ALC897 Codec with 7.1-channel HD audio support.

MSI MAG B550M VECTOR WIFI Specifications

• Brand: MSI
• Model: MAG B550M VECTOR WIFI
• Socket Type: AM4
• Chipset: AMD B550
• Processor Compatibility: Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000G-Series desktop processors.
• Memory Support: 2 DDR4 slots, up to 64GB, speeds up to 4600+ MHz (OC), dual-channel, ECC and non-ECC memory supported.
• Graphics Support: 1 PCIe 4.0/3.0 x16 slot, 2 PCIe 3.0 x1 slots; onboard HDMI 2.1 (4K@60Hz) and DisplayPort 1.4 (4K@60Hz) for integrated graphics processors.
• Storage Interface: 1 M.2 slot (PCIe 4.0 x4 & SATA), 4 SATA 6Gb/s ports with RAID 0, 1, and 10 support.
• USB Ports: Rear: 4 USB 3.2 Gen 1 (5Gbps) Type-A ports, 2 USB 2.0 ports; Internal: 1 USB 3.2 Gen 1 header (2 ports), 2 USB 2.0 headers (4 ports).
• Networking: Intel® Dual Band Wireless-AC 3168 with Wi-Fi 802.11ac and Bluetooth® 4.2, Realtek® RTL8111H 1Gbps LAN.
• Audio: Realtek® ALC892/ALC897 Codec, 7.1-channel HD audio with S/PDIF support.
• Lighting Features: 1 4-pin RGB LED connector, 1 3-pin RAINBOW LED connector.
• Cooling Options: 1 CPU fan connector, 1 system fan connector.
• BIOS: Flash BIOS button for easy updates.
• Operating System Support: Windows® 10 64-bit.
• Form Factor: Micro-ATX (9.6” x 8.3”).

Processor Compatibility

The MSI MAG B550M VECTOR WIFI supports AMD Ryzen 5000 & 3000 Series desktop processors, along with AMD Ryzen™ 4000 G-Series processors. It utilizes the AM4 socket and the B550 chipset, offering PCIe 4.0 support when paired with Ryzen™ 5000 or 3000 Series CPUs. This makes it suitable for both gaming and productivity builds, providing a broad range of performance and budget options.

Compatible Processors Include:

• Ryzen 5000 Series: Ryzen 9 5950X, Ryzen 9 5900X, Ryzen 7 5800X, Ryzen 5 5600X. Ideal for high-performance gaming and productivity.
• Ryzen 3000 Series: Ryzen 9 3900X, Ryzen 7 3700X, Ryzen 5 3600. Great for versatile gaming and multitasking.
• Ryzen 4000 G-Series: Ryzen 7 4750G, Ryzen 5 4650G. Best suited for budget builds without discrete GPUs.

Processor Recommendations:

• For top-tier performance: Ryzen 9 5900X or Ryzen 7 5800X, delivering excellent gaming and multitasking power.
• For mid-range: Ryzen 5 5600X offers great gaming value with solid multi-core performance.
• For entry-level: Ryzen 5 4650G works well for general use and light gaming with integrated graphics.

Note: not compatible with Ryzen 5 3400G & Ryzen 3 3200G.

Memory Compatibility

The motherboard supports up to 128GB of DDR4 memory across four DIMM slots, with maximum speeds of 4400+ MHz in overclocking mode using A-XMP.

It features dual-channel memory architecture, ensuring faster performance in multitasking and memory-intensive applications. For the best balance of speed and compatibility, using DDR4 3200MHz or 3600MHz modules is recommended.

Discrete Graphics Compatibility

The MSI MAG B550M VECTOR WIFI offers a PCIe 4.0 x16 slot for GPUs when paired with Ryzen™ 5000 or 3000 Series CPUs. For older processors or secondary slots, PCIe 3.0 is supported, which may limit bandwidth for cutting-edge GPUs. This ensures that modern GPUs can achieve their full potential while maintaining backward compatibility with older cards.

Recommended GPUs:

• For PCIe 4.0: NVIDIA GeForce RTX 40 Series (RTX 4060, RTX 4070) or AMD Radeon RX 7000 Series (RX 7600, RX 7900 XT) for maximum performance.
• For PCIe 3.0: NVIDIA GeForce RTX 30 Series (RTX 3060, RTX 3070) or AMD Radeon RX 6000 Series (RX 6700 XT, RX 6600).

The PCIe 4.0 slot ensures optimal performance with GPUs, especially in 4K gaming or heavy rendering workloads.

Onboard Graphics

The MSI MAG B550M VECTOR WIFI includes HDMI 2.1 and DisplayPort 1.4 outputs for integrated graphics processors, supporting resolutions up to 4K@60Hz. These outputs are ideal for home entertainment systems or dual-monitor productivity setups.

Storage and Expansion

The motherboard offers versatile storage options, including one M.2 slot and four SATA 6Gb/s ports:

• M.2 Slot: PCIe 4.0 x4 for high-speed NVMe SSDs or SATA drives.
• SATA Ports: Connect up to four HDDs or SSDs with RAID 0, 1, and 10 support for performance or redundancy.

Power Requirements and Cooling

The MSI MAG B550M VECTOR WIFI requires a 24-pin ATX main power connector and an 8-pin CPU power connector to ensure stable power delivery to the motherboard and components. Its power delivery system is designed to handle Ryzen™ processors efficiently, even under overclocked conditions.

Recommended Power Supply:

• For mid-range builds with a Ryzen 5 5600X and RTX 3060, a 550W PSU is sufficient.
• For high-end setups with a Ryzen 9 5900X and RTX 4070, a 750W PSU is recommended.
• For future-proof builds with top-tier GPUs like RTX 4080, opt for an 850W PSU or higher.

Cooling Recommendations:

The motherboard includes ample headers for cooling:

• 1x CPU fan header
• 1x water-pump fan header
• 3x system fan headers

For high-performance CPUs like the Ryzen 9 5900X, a 240mm AIO liquid cooler is recommended for optimal thermal management. For mid-range processors, a high-quality air cooler like the Cooler Master Hyper 212 or similar will suffice. The robust VRM design and heat sink ensure stable operation even under heavy loads, making it ideal for gaming and productivity.

Is This Motherboard for You?

The MSI MAG B550M VECTOR WIFI is perfect for budget-conscious gamers and PC builders seeking a compact yet powerful motherboard. With PCIe 4.0 support, integrated Wi-Fi, and versatile storage options, it’s ideal for building high-performance micro-ATX systems without compromising connectivity or expandability.

Note: This motherboard is not available, this is the alternative: MSI PRO B550M-VC WIFI
