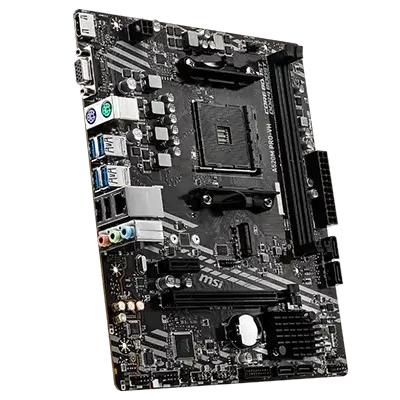

MSI A520M PRO-VH, AM4 Motherboard, Supports Ryzen 5000 Series

The MSI A520M PRO-VH is a compact Micro-ATX motherboard built on the AMD A520 chipset, delivering reliable performance at a budget-friendly price. Designed to support AMD Ryzen™ 5000, 4000G, and 3000 series processors, it is an excellent choice for building affordable PCs for casual gaming, productivity, or general home use. With dual-channel DDR4 memory support, PCIe 3.0 slots, and integrated 4K video output, this motherboard balances affordability and essential features.

Key Features

• Processor Compatibility: Supports 1st, 2nd, and 3rd Gen AMD Ryzen™ CPUs and processors with integrated Radeon™ Vega Graphics.
• Memory Support: Two DDR4 slots supporting up to 64GB of memory at speeds of up to 3200 MHz (OC).
• Graphics Options: One PCIe 3.0 x16 slot for discrete GPUs and onboard HDMI/VGA for integrated graphics.
• Storage Options: Includes one PCIe 3.0 x4/SATA M.2 slot and four SATA 6Gb/s ports with RAID support.
• Compact Design: Micro-ATX form factor with efficient power delivery and fan headers for cooling.
• Modern Connectivity: Multiple USB 3.2 Gen1 and USB 2.0 ports, Realtek® Gigabit LAN, and HD audio.

MSI A520M PRO-VH Full Specifications

• Brand: MSI
• Model: A320M PRO-VH
• Socket Type: AM4
• Chipset: AMD A320
• Processor Compatibility: Supports 1st, 2nd, and 3rd Gen AMD Ryzen™, Ryzen™ with Radeon  Vega Graphics, Athlon™ with Radeon™ Vega Graphics, A-series, and Athlon™ X4 processors.
• Memory Support: 2 DDR4 slots, up to 64GB, speeds up to 3200 MHz (OC), dual-channel.
• Graphics Support: 1 PCIe 3.0 x16 slot; onboard HDMI (4096×2160 @24Hz) and VGA (2048×1280 @60Hz) outputs.
• Storage Interface: 1 M.2 slot (PCIe 3.0 x4/SATA), 4 SATA 6Gb/s ports, RAID 0/1/10 support.
• USB Ports: 6 USB 3.2 Gen1 (4 rear, 2 internal), 6 USB 2.0 (2 rear, 4 internal).
• Networking: Realtek® 8111H Gigabit LAN.
• Audio: Realtek® ALC892/ALC897 codec, 7.1-channel HD audio.
• BIOS: UEFI with modern system support.
• Operating System Support: Windows® 10 64-bit.
• Form Factor: Micro-ATX (9.3” x 7.9”).

Processor Compatibility

The MSI A520M PRO-VH supports AMD Ryzen™ 5000, 4000G, and 3000 series processors, making it ideal for budget-conscious users. It offers stable performance for everyday tasks, casual gaming, and home use. Ryzen APUs with integrated graphics, such as the Ryzen 5 5600G, are a great match for builds without discrete GPUs. However, overclocking is not supported, ensuring a focus on reliability and cost-effectiveness.

Compatible CPUs:

• • 3rd Gen Ryzen: For multitasking and budget-friendly gaming.
  • 2nd Gen Ryzen: Excellent for everyday computing and productivity tasks.
  • 1st Gen Ryzen: Ideal for entry-level systems.

Memory Compatibility

This motherboard supports up to 64GB of DDR4 memory across two DIMM slots in dual-channel mode. With speeds up to 4600 MHz in A-XMP OC mode, it is well-suited for multitasking, casual gaming, and light productivity. A single 8GB or 16GB module is perfect for office use, while dual-channel 16GB or 32GB configurations at higher speeds enhance performance for gaming and streaming.

Discrete Graphics Compatibility

The A520M PRO-VH features a PCIe 3.0 x16 slot, providing reliable support for discrete GPUs like the GTX 1650 or RX 6500 XT. For users utilizing integrated graphics, the HDMI 2.1 port supports 4K resolution at 60Hz, and the VGA port offers compatibility with older displays. While lacking PCIe Gen 4 support, the board is perfect for mid-range and budget GPUs for smooth 1080p gaming and light creative work.

Storage and Expansion

This motherboard provides ample storage options with one M.2 PCIe 3.0 x4 slot for high-speed NVMe SSDs and four SATAIII ports for traditional SSDs or HDDs. This combination offers flexibility for boot drives, gaming libraries, and bulk storage.

Connectivity and Audio Features

• Networking: Realtek RTL8111H Gigabit LAN ensures fast and stable wired internet for gaming or streaming.
• Audio: Realtek ALC892/ALC897 codec delivers 7.1-channel HD audio for immersive sound.
• USB Ports:
  • 4x USB 3.2 Gen 1 (5Gbps) ports and 2x USB 2.0 ports on the rear panel.
  • Front panel headers include 2x USB 3.2 Gen 1 and 4x USB 2.0.
• Display Outputs: HDMI 2.1 for 4K displays and VGA for legacy compatibility.

Power Requirements

The motherboard uses a 24-pin ATX main power connector and a 4-pin ATX 12V power connector. Recommended PSU wattage:

• 400W PSU: Sufficient for systems without a discrete GPU.
• 500W PSU: For builds with mid-range GPUs like the GTX 1650.
• 600W PSU: For future-proof systems or high-performance configurations.

Cooling Options

• CPU Cooling: Compatible with air coolers like the Cooler Master Hyper 212 or AIO liquid coolers.
• Chassis Cooling: Includes one system fan connector for optimal airflow in compact cases.

Ideal User for This Motherboard

The MSI A520M PRO-VH is perfect for entry-level and budget-conscious users building compact PCs. Whether for casual gaming, office work, or general home use, its reliable performance, Ryzen™ support, and affordability make it an excellent choice.

Is This Motherboard for You?

The MSI A320M PRO-VH offers essential features for reliable performance in budget-friendly builds. With support for Ryzen™ processors, modern connectivity, and flexible storage, it’s an excellent choice for compact systems that don’t compromise on quality.
