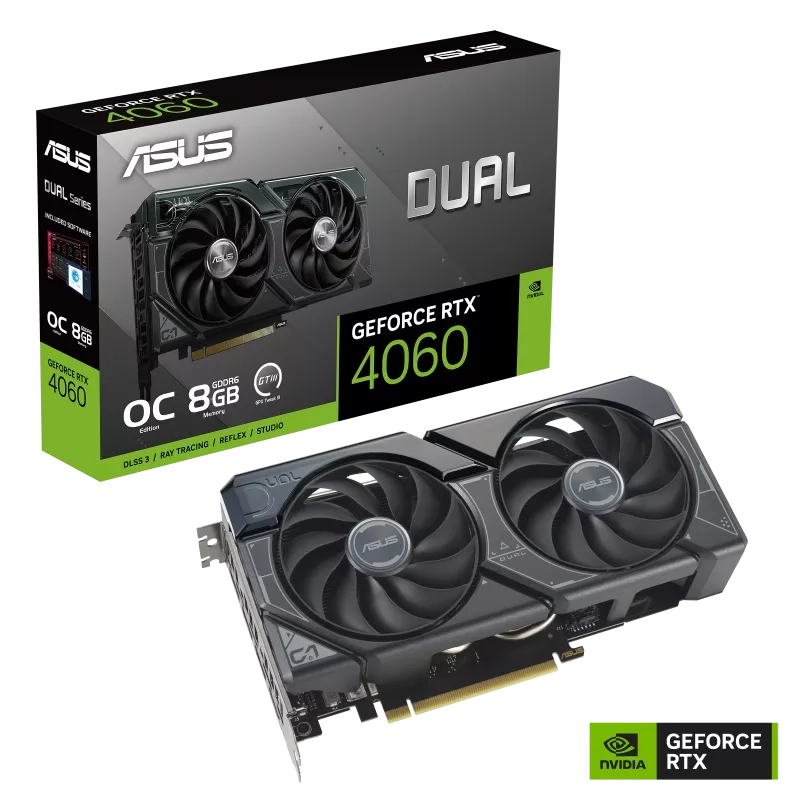

ASUS Dual GeForce RTX 4060 OC Edition, 8GB GDDR6, 2535 Mhz

The ASUS Dual GeForce RTX 4060 OC Edition 8GB GDDR6 combines cutting-edge performance with a compact design, making it perfect for gaming and content creation. Powered by NVIDIA’s Ada Lovelace architecture, it features 4th Gen Tensor Cores for AI-enhanced rendering, 3rd Gen RT Cores for superior ray tracing, and 8GB GDDR6 memory for high-speed data processing.

With an advanced Axial-tech cooling system, dual ball fan bearings, and a sleek 2.5-slot design, this GPU delivers exceptional performance and durability for a variety of builds.

Key Features

• NVIDIA Ada Lovelace architecture for up to 2x performance and efficiency.
• 4th Gen Tensor Cores enhance frame rates with DLSS 3 for smooth gaming.
• 3rd Gen RT Cores for up to 2x the ray tracing performance.
• 8GB GDDR6 memory with 128-bit interface and 17 Gbps speed.
• Boost clock speeds: 2535 MHz (OC mode) and 2505 MHz (Default mode).
• Axial-tech fan design for increased airflow and cooling efficiency.
• Dual ball fan bearings last twice as long as sleeve bearings.
• 0dB Technology ensures silent operation during low loads.
• Supports up to 4 displays with resolutions up to 7680 x 4320.
• Compact 2.5-slot design ensures compatibility with small chassis builds.

Specifications

• Brand: ASUS
• Series: Dual
• Model: DUAL-RTX4060-O8G
• Graphics Processing Unit (GPU): NVIDIA GeForce RTX 4060
• CUDA Cores / Stream Processors: 3072 CUDA Cores
• Core Clock Speed: Boost Clock: 2505 MHz (Default), 2535 MHz (OC Mode)
• Memory Size: 8GB
• Memory Type: GDDR6
• Memory Bus Width: 128-bit
• Memory Clock Speed: 17 Gbps
• Interface: PCI Express 4.0 x16
• Output Ports: 3 x DisplayPort 1.4a, 1 x HDMI 2.1a
• Maximum Digital Resolution: 7680 x 4320
• DirectX Version Support: DirectX 12 Ultimate
• OpenGL Version Support: OpenGL 4.6
• Recommended Power Supply: 550W
• Power Connectors: 1 x 8-pin PCIe
• Cooling System: Axial-tech dual-fan design with dual ball bearings and 0dB technology
• VR Ready: Yes
• Multi-GPU Support: No
• Dimensions: 8.95 x 4.85 x 1.95 inches (2.5 Slot)

Processor Compatibility

The ASUS Dual GeForce RTX 4060 OC Edition 8GB GDDR6 is designed to deliver an exceptional 1080p and 1440p gaming experience. Equipped with NVIDIA DLSS 3 and Ray Tracing, this GPU pairs well with modern processors that provide multi-threading capabilities and enhanced gaming performance.

Recommended AMD Processors

• AMD Ryzen 5 5600X: A 6-core, 12-thread CPU designed for high-performance gaming and multitasking. It ensures smooth frame rates and low latency.
  ➡️ Check AMD Ryzen 5 5600X
• AMD Ryzen 7 5700G: An 8-core, 16-thread processor that combines power and versatility, making it ideal for gaming and streaming.
  ➡️ Explore AMD Ryzen 7 5700G

Recommended Intel Processors

• Intel Core i5-13400F: A 10-core CPU offering strong single-threaded and multi-threaded performance, perfect for maximizing the capabilities of the RTX 4060.
  ➡️ View Intel Core i5-13400F
• Intel Core i3-13100: A budget-friendly 4-core processor with solid performance for 1080p gaming and everyday tasks.
  ➡️ Discover Intel Core i3-13100

Motherboard Compatibility

The ASUS Dual GeForce RTX 4060 OC Edition supports PCIe 4.0, ensuring seamless connectivity and enhanced bandwidth for gaming setups. It is compatible with a range of AMD and Intel motherboards tailored for gamers and PC enthusiasts.

Recommended AMD Motherboards

• Gigabyte B550 AORUS ELITE AX V2: A robust motherboard featuring PCIe 4.0 support, excellent VRM design, and compatibility with Ryzen processors.
  ➡️ Explore Gigabyte B550 AORUS ELITE AX V2
• MSI A520M-A PRO: A cost-effective option for AMD Ryzen CPUs, offering reliable performance and essential features for gamers.
  ➡️ View MSI A520M-A PRO

Recommended Intel Motherboards

• ASUS TUF Gaming B760-PLUS WIFI D4: A high-performance motherboard with PCIe 4.0, reinforced build quality, and robust connectivity options.
  ➡️ Check ASUS TUF Gaming B760-PLUS WIFI
• ASRock H610M-HDV/M.2: An affordable, compact motherboard optimized for Intel’s 12th and 13th Gen CPUs, ideal for budget gaming builds.
  ➡️ Discover ASRock H610M-HDV/M.2

Memory Compatibility

To maximize performance, pair this GPU with 16GB DDR4 3600 MHz RAM or DDR5 5200 MHz kits for advanced gaming and multitasking.

Power Supply Recommendations

A 550W PSU is recommended for stable performance. Reliable options include the Corsair RM550x or the Seasonic Focus GX-550, ensuring efficient power delivery.

Is This GPU for You?

The ASUS Dual GeForce RTX 4060 OC Edition 8GB GDDR6 is perfect for gamers and creators looking for compact yet powerful performance. With AI-enhanced DLSS 3, advanced ray tracing, and efficient cooling, it delivers smooth visuals and reliable performance for modern games and creative tasks.

If you’re ready to build or upgrade your PC with a next-gen GPU that balances performance, efficiency, and compatibility, the RTX™ 4060 OC Edition is an excellent choice.

Disclaimer

The processors and motherboards listed have been carefully selected for compatibility with the ASUS Dual GeForce RTX™ 4060 OC Edition. Recommendations alternate between brands to ensure fairness and provide a range of options. Always double-check compatibility and system requirements before purchasing.
