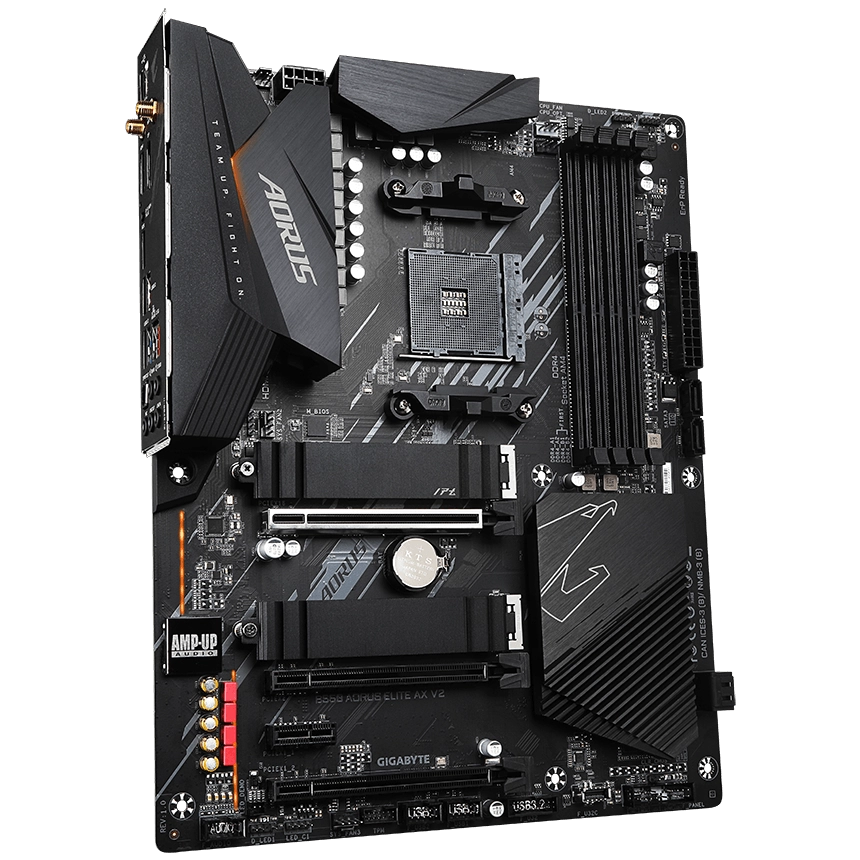

Gigabyte B550 AORUS ELITE AX V2, AM4, Ryzen 5000/4000/3000, DDR4

The Gigabyte B550 AORUS ELITE AX V2 motherboard combines advanced features and durable build quality to cater to the needs of gamers and PC enthusiasts. Supporting AMD Ryzen 5000 Series and other compatible processors, this motherboard ensures exceptional multitasking, faster data transfer rates, and efficient cooling.

With integrated Wi-Fi 6, 2.5GbE LAN, and PCIe 4.0 support, it provides seamless connectivity and future-ready performance for demanding applications.

Key Features

• Processor Compatibility: Supports AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, and 3000 Series processors.
• Memory Support: 4 DIMM slots, up to 128GB, DDR4 speeds up to 4733MHz (OC).
• Graphics Outputs: DisplayPort 1.4 and HDMI 2.1 for high-resolution, multi-display setups.
• Expansion Slots: PCIe 4.0 x16 slot, PCIe 3.0 x16 slot, and PCIe 3.0 x1 slots for add-ons.
• Storage Interface: Dual M.2 slots (PCIe 4.0 and PCIe 3.0) and four SATA 6Gb/s ports with RAID support.
• Wireless Connectivity: Intel® Wi-Fi 6 AX200 and Bluetooth 5 for faster wireless speeds.
• Networking: Realtek® 2.5GbE LAN for stable and high-speed wired connections.
• Enhanced Audio: Realtek® ALC1200 CODEC with multi-channel support and S/PDIF out.
• RGB and LED Support: Customizable RGB Fusion 2.0 with multiple LED strip headers.

Gigabyte B550 AORUS ELITE AX V2 Specifications

• Brand: GIGABYTE
• Model: B550 AORUS ELITE AX V2
• Socket Type: AM4
• Chipset: AMD B550
• Processor Compatibility: AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, and 3000 Series processors.
• Memory Support: 4 x DDR4 DIMM sockets, up to 128GB.
• Graphics Support: Integrated Graphics Processor with DisplayPort (5120×2880@60Hz, DisplayPort 1.4, HDR) and HDMI (4096×2160@60Hz, HDMI 2.1, HDR). Maximum shared memory: 16GB.
• Expansion Slots: 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x16 (x2 mode), 1 x PCIe 3.0 x1.
• Storage Interface: 2 x M.2 slots (PCIe 4.0 x4 and PCIe 3.0 x4), 4 x SATA 6Gb/s (RAID 0, 1, 10).
• USB Ports: Rear: 2 x USB 3.2 Gen 2, 3 x USB 3.2 Gen 1, 2 x USB 2.0; Internal: 1 x USB 3.2 Gen 1 Type-C, 1 x USB 3.2 Gen 1, 2 x USB 2.0 headers.
• Networking: Realtek® 2.5GbE LAN, Intel® Wi-Fi 6 AX200, Bluetooth 5.
• Audio: Realtek® ALC1200 codec, High Definition Audio, 2/4/5.1/7.1-channel, S/PDIF out.
• BIOS: 256Mbit AMI UEFI BIOS.
• RGB and Fan Control: 3 x system fan headers, 2 x addressable LED headers, RGB Fusion 2.0.
• Operating System Support: Windows 11 64-bit, Windows 10 64-bit.
• Form Factor and Dimensions: ATX, 30.5 cm x 24.4 cm.

Processor Compatibility

The Gigabyte B550 AORUS ELITE AX V2 offers outstanding support for AMD Ryzen™ processors, making it a fantastic foundation for modern PC builds. It’s compatible with a wide range of CPUs, including the powerful Ryzen 5000 Series, efficient 5000 G-Series with built-in graphics, and the reliable 4000 G-Series and 3000 Series processors. This ensures that whether you’re building a gaming rig, a workstation, or an everyday use PC, you’ll find a processor to match your needs.

For gamers, the Ryzen 5 5600X is an excellent choice. With 6 cores and 12 threads, it delivers snappy gaming performance and smooth multitasking at an affordable price. If you’re a content creator or someone running demanding software, the Ryzen 9 5900X steps up with 12 cores and 24 threads, making it ideal for 4K video editing, 3D rendering, and intense multitasking.

The Ryzen 5 4600G and Ryzen 7 5700G are great options if you need a processor with integrated graphics, eliminating the immediate need for a discrete GPU. These are perfect for light gaming or productivity tasks. For those who want cutting-edge gaming performance, the Ryzen 7 5800X3D with AMD’s innovative 3D V-Cache technology delivers exceptional frame rates and responsiveness, ideal for competitive gamers.

With its PCIe 4.0 support, the B550 AORUS ELITE AX V2 unleashes the full potential of these processors, offering faster data transfer speeds and future-ready performance when paired with the latest GPUs and storage drives. Whether you’re a gamer, a creator, or a professional user, this motherboard ensures your processor can perform at its best.

Discrete Graphics Compatibility

Equipped with a PCIe 4.0 x16 slot, this motherboard supports top-tier GPUs such as the NVIDIA RTX™ 40 Series and AMD Radeon™ RX 7000 Series. The additional PCIe 3.0 slots offer flexibility for add-on cards, making it suitable for gaming, content creation, or workstation builds.

Onboard Graphics

Integrated DisplayPort and HDMI outputs provide excellent visuals with resolutions up to 5K. While capable of handling general tasks, discrete graphics are recommended for gaming or graphic-intensive workloads.

Storage and Expansion

This motherboard features dual M.2 slots for ultra-fast NVMe SSDs, with support for PCIe 4.0 on the primary slot. Additionally, four SATA 6Gb/s ports enable flexible storage options, including RAID configurations for enhanced speed or redundancy.

Power Requirements and Cooling

The motherboard requires a standard 24-pin ATX and an 8-pin ATX 12V power connection. For a reliable build, a 650W PSU is recommended for systems with mid-range GPUs, while high-end setups with overclocking may require 850W or more. Cooling is well-supported with multiple fan headers and AIO pump compatibility.

Is This Motherboard for You?

The Gigabyte B550 AORUS ELITE AX V2 is tailored for enthusiasts seeking cutting-edge performance, robust connectivity, and extensive expansion capabilities. With Wi-Fi 6, PCIe 4.0, and a premium feature set, it’s a top choice for gaming and productivity-focused builds.
