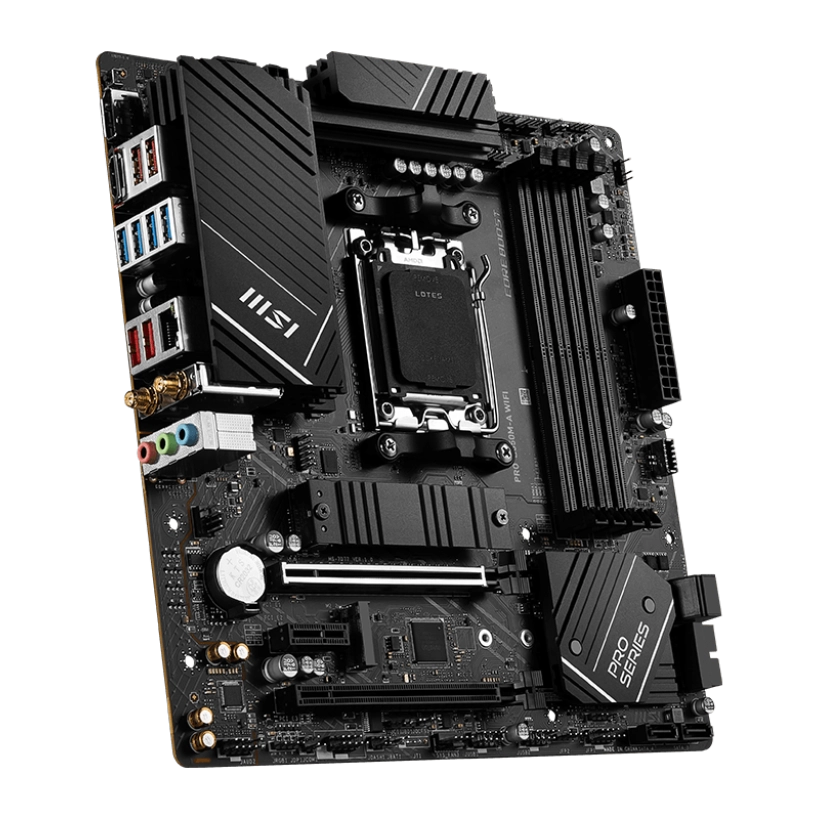

MSI PRO B650-A WIFI, AM5, Ryzen 9000/8000/7000, DDR5

The MSI PRO B650-A WIFI is a powerful AM5 motherboard built for professionals, gamers, and PC enthusiasts seeking next-generation performance. Supporting AMD Ryzen 9000, 8000, and 7000 Series processors, this ATX motherboard leverages PCIe 4.0, DDR5 RAM, and triple M.2 slots for unparalleled speed and versatility.

Equipped with Wi-Fi 6E, USB 20Gbps, and 2.5Gbps LAN, it delivers seamless connectivity for modern workflows and entertainment. Its robust thermal solutions and RGB lighting make it a reliable and visually striking choice for high-performance builds.

Key Features

• Processor Compatibility: Supports AMD Ryzen™ 9000, 8000, and 7000 Series processors.
• Memory Support: Four DDR5 slots, up to 256GB, speeds up to 7600+ MHz (OC).
• Graphics Options: Dual PCIe 4.0 x16 slots, onboard HDMI 2.1, and DisplayPort 1.4.
• Storage Options: Triple M.2 slots (PCIe 4.0) and six SATA 6Gb/s ports.
• Networking: Realtek 2.5Gbps LAN, Wi-Fi 6E, and Bluetooth® 5.3.
• USB Connectivity: USB 20Gbps Type-C, USB 10Gbps, and USB 5Gbps ports.
• Audio: Realtek ALC4080 Codec with 7.1-channel HD audio and optical S/PDIF.

MSI PRO B650-A WIFI Specifications

• Brand: MSI
• Model: PRO B650-A WIFI
• Socket Type: AM5
• Chipset: AMD B650
• Processor Compatibility: AMD Ryzen™ 9000, 8000, and 7000 Series desktop processors.
• Memory Support: 4 DDR5 slots, up to 256GB, speeds up to 7600+ MHz (OC), dual-channel, non-ECC un-buffered memory supported, AMD EXPO compatible.
• Graphics Support: 2 PCIe 4.0 x16 slots (x16/x2), 1 PCIe 3.0 x1 slot; onboard HDMI 2.1 (4K@60Hz) and DisplayPort 1.4 (8K@60Hz) for integrated graphics processors.
• Storage Interface: 3 M.2 slots (PCIe 4.0 x4), 6 SATA 6Gb/s ports with RAID 0, 1, and 10 support.
• USB Ports: Rear: 1 USB 20Gbps Type-C, 3 USB 10Gbps Type-A, 4 USB 5Gbps Type-A, 2 USB 2.0; Internal: 1 USB 10Gbps Type-C header, 2 USB 5Gbps Type-A headers (4 ports), 4 USB 2.0 headers (4 ports).
• Networking: Realtek® RTL8125B 2.5Gbps LAN, AMD Wi-Fi 6E, Bluetooth® 5.3.
• Audio: Realtek® ALC4080 Codec, 7.1-channel HD audio with optical S/PDIF.
• Multi-GPU Support: Not specified.
• Lighting Features: 2 Addressable RGB LED connectors, 2 RGB LED connectors, 4 EZ Debug LEDs.
• Cooling Options: 1 CPU fan connector, 1 pump fan connector, 6 system fan connectors.
• BIOS: Flash BIOS button for easy updates.
• Operating System Support: Windows® 11 64-bit, Windows® 10 64-bit.
• Form Factor: ATX (12” x 9.6”).

Processor Compatibility

The MSI PRO B650-A WIFI is compatible with AMD Ryzen 7000, 8000, and upcoming 9000 series desktop processors built on the Zen 4 architecture. These processors leverage DDR5 memory and PCIe 4.0/5.0 support, ensuring peak performance for gaming, productivity, and content creation tasks.

Fully Compatible Ryzen Processors:

Ryzen 9 Series: High-end processors with up to 16 cores and 32 threads for intensive multitasking, 4K gaming, and professional workloads.

• AMD Ryzen 9 7900X
• AMD Ryzen 9 7950X

Ryzen 7 Series: Balanced performance with 8 cores and 16 threads, suitable for gamers and creators alike.

• AMD Ryzen 7 7800X
• AMD Ryzen 7 7700X

Ryzen 5 Series: Affordable, power-efficient CPUs with 6 cores and 12 threads for mainstream users.

• AMD Ryzen 5 7600X

BIOS Update Requirements

Out of the box, the MSI PRO B650-A WIFI supports the Ryzen 7000 series. However, to ensure compatibility with newer processors such as the Ryzen 8000 and future 9000 series, a BIOS update may be required. MSI offers an easy-to-use BIOS flashback button that allows you to update the BIOS without installing a CPU or memory.

Processor Recommendations

To make the most of this motherboard, here are the best processor recommendations based on user needs:

High-Performance Gaming & Professional Tasks:

• AMD Ryzen 9 7950X – This 16-core powerhouse delivers unmatched performance for video editing, rendering, and high-end gaming.

Mid-Range Performance:

• AMD Ryzen 7 7700X – Perfect for gamers and creators looking for solid performance without breaking the bank.

Mainstream/Value Users:

• AMD Ryzen 5 7600X – A budget-friendly option offering great performance for everyday tasks and 1080p gaming.

Memory Compatibility

The MSI PRO B650-A WIFI supports up to 128GB of DDR5 memory across four DIMM slots. It is optimized for dual-channel mode and can handle JEDEC standard speeds starting at 4800 MHz, with overclocking support up to 7600 MHz or higher depending on the memory module and processor.

For gaming, speeds between 6000 MHz and 6400 MHz offer excellent performance, while higher frequencies benefit memory-intensive tasks like video editing and scientific simulations. The motherboard also supports AMD EXPO profiles for easy memory overclocking.

Discrete Graphics Compatibility

This motherboard offers a PCIe 4.0 x16 slot (primary GPU slot) sourced directly from the CPU, providing high bandwidth for modern GPUs. While it lacks PCIe 5.0 for graphics, PCIe 4.0 remains more than sufficient for current-generation GPUs, as most graphics cards don’t fully saturate the bandwidth offered by PCIe 4.0.

GPU Recommendations:

• Entry-Level: NVIDIA GTX 1660 SUPER or AMD RX 6600 – Ideal for 1080p gaming on medium to high settings.
• Mid-Range: NVIDIA RTX 3060 Ti or AMD RX 6700 XT – Excellent for 1440p gaming at high refresh rates.
• High-End: NVIDIA RTX 3080 or AMD RX 6800 XT – Designed for 4K gaming and professional workloads.
• Flagship: NVIDIA RTX 4090 or AMD RX 7900 XTX – Ideal for extreme gaming, VR, and high-resolution content creation.

Since PCIe 4.0 offers ample bandwidth, even high-performance GPUs like the RTX 4090 operate without any performance bottlenecks.

Onboard Graphics

For processors with integrated graphics, the PRO B650-A WIFI offers HDMI 2.1 and DisplayPort 1.4 outputs, supporting up to 8K@60Hz on DisplayPort. These outputs are perfect for multimedia setups, workstations, or multi-monitor configurations.

Storage and Expansion

The MSI PRO B650-A WIFI offers extensive storage capabilities, featuring three M.2 slots and six SATA 6Gb/s ports:

• M.2 Slots: PCIe 4.0 x4 for NVMe SSDs, supporting storage devices up to 22110 in size.
• SATA Ports: Connect up to six HDDs or SSDs, with RAID 0, 1, and 10 support for data redundancy or performance.

Power Requirements and Cooling

The MSI PRO B650-A WIFI requires:

• 1x 24-pin ATX main power connector
• 1x 8-pin ATX 12V CPU power connector
• 1x additional 4-pin ATX 12V CPU power connector, ensuring stable power delivery for high-end processors.

Recommended Power Supply Wattage:

• For builds with mid-range components (e.g., Ryzen™ 7 7700 + RTX 3060 Ti): 650W PSU.
• For high-end configurations (e.g., Ryzen™ 9 7900X + RTX 3080): 750W PSU.
• For extreme setups (e.g., Ryzen™ 9 7950X + RTX 4090): 850W-1000W PSU, especially if overclocking or using multiple peripherals.

Cooling Details:

The motherboard features a robust VRM cooling design with heatsinks to maintain thermal stability during intense workloads. It provides multiple fan headers for flexible cooling setups:

• 1x CPU fan header
• 1x water pump fan header for liquid cooling solutions.
• 4x system fan headers to support case fans for optimized airflow.

For high-performance CPUs like the Ryzen™ 9 7950X, consider a 360mm AIO liquid cooler (e.g., Corsair iCUE H150i) or a premium air cooler (e.g., Noctua NH-D15) to manage heat efficiently. Mid-range builds with Ryzen™ 5 or Ryzen™ 7 CPUs can use 240mm AIO coolers or quality air coolers like the Cooler Master Hyper 212.

The advanced cooling and power delivery design ensure smooth performance even under heavy multitasking, gaming, or overclocking scenarios.

Is This Motherboard for You?

The MSI PRO B650-A WIFI is an excellent choice for users seeking cutting-edge performance and connectivity. Whether you’re building a gaming rig, workstation, or a versatile PC, its PCIe 4.0 support, DDR5 RAM, Wi-Fi 6E, and extensive storage options make it a powerful and future-proof motherboard for modern builds.
