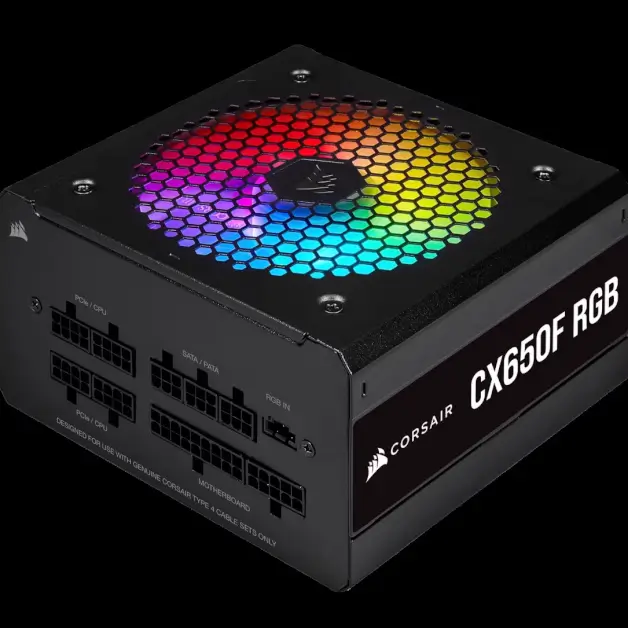

Corsair CX650F, 650 Watts, 80 PLUS Bronze, RGB Lighting

The Corsair CX650F RGB power supply combines stunning RGB lighting, fully modular cable management, and reliable 650W power delivery. With 80 PLUS Bronze certification for efficiency, a low-noise RGB fan, and versatile lighting control options, the CX650F RGB is designed to power your gaming rig while enhancing its aesthetics. Its compact form factor and advanced components ensure easy installation and dependable performance.

Key Features

• Wattage: Provides 650W of continuous power, ideal for gaming and multitasking PCs with mid-tier to high-end components.
• RGB Lighting: Features a 120mm RGB fan with 8 individually addressable LEDs for vibrant lighting.
• Lighting Control: Customize lighting via a push-button, CORSAIR iCUE software (with optional controller), or motherboard ARGB controls using the included adapter.
• Efficiency Rating: 80 PLUS Bronze certified, delivering up to 88% efficiency for reduced energy waste and heat.
• Modular Design: Fully modular cables reduce clutter and improve cable management for a clean build.
• Low Noise Operation: Equipped with an optimized low-noise fan curve for quieter performance during operation.
• Advanced Technology: Utilizes robust LLC topology with DC-DC conversion and premium 105°C-rated Japanese capacitors for long-term reliability.
• Compact Design: Measures just 140mm in length, fitting seamlessly into most modern PC cases.
• Durability: Rated for 100,000 hours MTBF and backed by a 5-year warranty for peace of mind.

Corsair CX650F RGB Power Supply Specifications

• Brand: Corsair
• Model: CX650F RGB
• Wattage: 650W continuous output
• Efficiency Certification: 80 PLUS Bronze
• Modular Type: Fully Modular
• Input Voltage: 100-240V AC
• Input Frequency Range: 47-63Hz
• PFC: Active PFC
• Fan Size and Type: 120mm, Rifle Bearing, RGB Lighting
• Protections: OVP, UVP, SCP, OPP, OTP
• Connectors:
  • Motherboard: 1 x 24-pin ATX
  • CPU/EPS: 2 x 4+4-pin EPS12V
  • PCIe: 2 x 6+2-pin PCIe
  • SATA: 7 x SATA connectors
  • Peripheral (Molex): 4 x PATA connectors
• Dimensions: 150mm x 86mm x 140mm
• MTBF: 100,000 hours at 25°C
• RGB Lighting: 8 addressable RGB LEDs on the fan, ARGB compatible
• Regulatory Certifications: CE, FCC, TÜV, cTUVus, WEEE, RoHS
• Warranty: 5 Years

Processor Compatibility

The CX650F RGB is compatible with Intel and AMD processors, including high-performance CPUs such as Intel Core i7/i9 and AMD Ryzen 7/9. Its dual EPS 4+4-pin connectors ensure reliable power delivery for demanding setups.

Graphics Card Compatibility

The Corsair CX650F RGB 650W delivers reliable performance and stunning RGB lighting, making it an excellent choice for gaming enthusiasts and PC builders. Equipped with 650W of 80 PLUS Bronze efficiency, this power supply is optimized for mid-range to high-performance graphics cards. Below are the compatible GPUs:

• Entry-level GPUs: Pair it with NVIDIA GTX 1650, GTX 1660 Super, or AMD RX 6500 XT for budget-friendly gaming setups.
• Mid-range GPUs: Ideal for NVIDIA GeForce RTX 4060, RTX 4060 Ti, and AMD Radeon RX 6600 XT for smooth 1080p or 1440p gaming performance.
• High-performance GPUs: Supports GPUs like the NVIDIA RTX 4070 and AMD RX 6700 XT for demanding gaming needs with stability and efficiency.

Motherboard Compatibility

The Corsair CX650F RGB supports a wide range of ATX, Micro-ATX, and Mini-ITX motherboards, ensuring flexibility for different PC builds. Examples of compatible motherboards include:

AMD AM4/AM5 Platform:

• MSI MAG B550M Mortar WiFi, ASUS TUF Gaming B650M-PLUS WiFi, and Gigabyte B650 AORUS Elite AX for gaming builds.

Suitable for entry-level boards like the ASUS Prime A520M-K and Gigabyte A520M DS3H.

Intel LGA 1200/1700 Platform:

• Works seamlessly with MSI MAG B660 TOMAHAWK WiFi or Gigabyte Z690 AORUS ELITE AX for high-end gaming setups.

Supports budget-friendly options like the ASUS PRIME H610M-K or Gigabyte H510M H V2.

RGB Lighting and Control

Add flair to your build with a 120mm RGB fan featuring 8 individually addressable LEDs. Choose your preferred lighting control method:

• Push-Button Control: Adjust lighting directly from the PSU.
• CORSAIR iCUE Software: Requires an optional iCUE RGB controller (sold separately).
• Motherboard ARGB Control: Use the included adapter to sync lighting with your ARGB-compatible motherboard.

Energy Efficiency

The 80 PLUS Bronze certification ensures up to 88% efficiency, reducing power waste and heat while lowering your electricity costs.

Cooling and Noise Level

The finely tuned 120mm RGB fan features a low-noise curve, delivering efficient cooling without excess noise, even under heavy loads.

Is the Corsair CX650F RGB for You?

The Corsair CX650F RGB is the perfect PSU for builders who want reliable performance and vibrant aesthetics. Its 650W power, 80 PLUS Bronze efficiency, and fully modular design make it an excellent choice for gaming or multitasking systems.

With customizable RGB lighting and a compact, low-noise design, the CX650F RGB delivers functionality and style in one sleek package.
