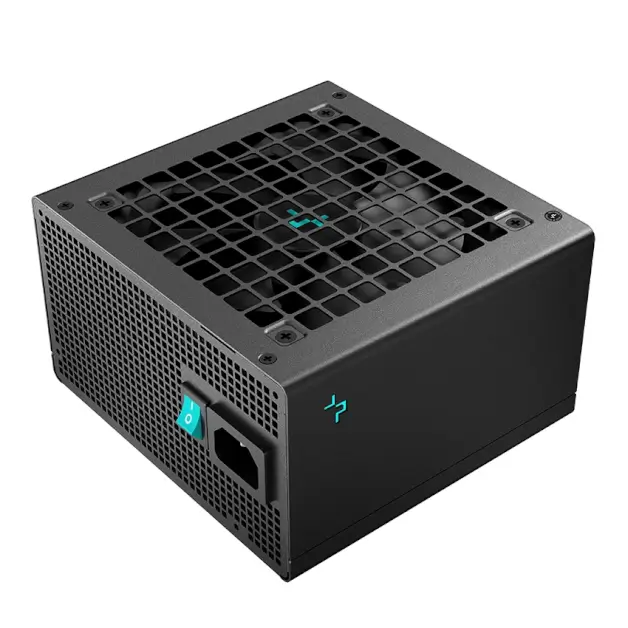

DeepCool DQ1000M-V3L, 1000 Watts, 80 PLUS Gold, Silent Operation

The DeepCool DQ1000M-V3L  power supply with 1000 watts power supply is designed to deliver exceptional performance and reliability for high-performance PCs. Certified with 80 PLUS Gold efficiency, this PSU provides over 92% energy efficiency at 50% load, ensuring reduced heat and energy waste.

Featuring a fully modular design, Japanese capacitors, advanced cooling technologies, and zero-noise operation under low loads, the DQ1000M-V3L is perfect for gamers and professionals seeking silent, efficient, and durable power solutions.

Key Features

• Wattage: 1000W continuous power, ideal for high-performance gaming PCs and workstations.
• Efficiency Rating: 80 PLUS Gold certified for greater than 92% efficiency at 50% load, reducing energy waste.
• Modular Design: Fully modular cabling for clean and organized builds with reduced clutter.
• Advanced Cooling: Features a 120mm Fluid Dynamic Bearing (FDB) fan with intelligent temperature control for quiet operation and superior cooling.
• Silent Operation: Zero RPM fan mode under low loads ensures whisper-quiet performance during idle or light tasks.
• Premium Components: Built with 105°C-rated Japanese capacitors and SiC diodes for improved reliability, lower heat generation, and extended lifespan.
• Safety Protections: Equipped with SCP, OPP, OTP, OVP, OCP, and UVP to safeguard components from power fluctuations.
• Compact Design: 140mm length for compatibility with a wide range of PC cases.
• Durability: Rated for 100,000 hours MTBF for long-lasting performance.

DeepCool DQ1000M-V3L Power Supply Specifications

• Brand: DeepCool
• Model: DQ1000M-V3L
• Wattage: 1000W continuous output
• Efficiency Certification: 80 PLUS Gold
• Modular Type: Fully Modular
• Input Voltage: 100-240V AC
• Fan Size and Type: 120mm, Fluid Dynamic Bearing (FDB)
• Topology: Active PFC + Full Bridge SRC LLC + DC to DC
• Capacitors: 105°C-rated Japanese electrolytic capacitors
• Hold-Up Time: ≥16ms at 80% load
• Power Good Signal: 100-500ms
• Protections: SCP, OPP, OTP, OVP, OCP, UVP
• Operating Temperature: 0°C to 40°C
• Dimensions: 150mm x 140mm x 86mm
• MTBF: 100,000 hours at 25°C

Processor Compatibility

The DQ1000M-V3L supports modern high-performance CPUs such as Intel Core i9 and AMD Ryzen 9. Its robust design ensures stable power delivery even under heavy workloads, making it ideal for gaming and workstation builds.

Graphics Card Compatibility

The DeepCool DQ1000M-V3L Power Supply delivers exceptional performance with its 1000W capacity and 80 PLUS Gold certification, making it ideal for powering high-end GPUs. Its single +12V rail design ensures stable and reliable power distribution, while Japanese capacitors guarantee longevity. The PSU’s fully modular cables and low-noise operation make it a perfect match for the latest graphics cards:

NVIDIA GPU

• NVIDIA GeForce RTX 4090, RTX 4080, RTX 4070 Ti, RTX 4070, and RTX 4060 Ti.
• Mid-tier GPUs like the RTX 3060 Ti and RTX 3070 are also well-supported, ensuring stable performance even during overclocking.

AMD GPU

• Radeon RX 7900 XTX, RX 7800 XT, RX 7700 XT, and RX 7600 are ideal candidates for this PSU.
• Entry-level GPUs like the Radeon RX 6600 XT and RX 6500 XT will also operate flawlessly, thanks to the PSU’s efficient power delivery.

Its compliance with modern power standards ensures compatibility with PCIe 5.0 graphics cards, including those with 12VHPWR connectors.

Motherboard Compatibility

The DeepCool DQ1000M-V3L’s ATX 12V V2.4 compliance and support for modern standby features make it compatible with a wide array of motherboards, especially for high-performance builds:

AMD Motherboards

• Fully supports X670E, B650, and X570 chipsets, such as the ASUS ROG STRIX B650E-F GAMING WIFI or Gigabyte X570S AORUS MASTER.
• Backward compatible with B550 and B450 boards like the MSI MAG B550 TOMAHAWK or ASUS TUF GAMING B450M-PRO II.

Intel Motherboards:

• Ideal for Z790, B760, and H610 chipsets, such as the MSI MAG Z790 TOMAHAWK WIFI and Gigabyte B760M AORUS ELITE AX DDR4.
• Supports earlier chipsets like Z690 and B660, including boards like the ASUS PRIME Z690-P WIFI and MSI MAG B660M MORTAR.

This PSU ensures compatibility with any gaming or workstation setup requiring high-efficiency power delivery and modern standby support.

Energy Efficiency

The 80 PLUS Gold certification guarantees efficiency of over 92% at 50% load, reducing energy consumption and heat generation while keeping operating costs low.

Cooling and Noise Level

The intelligent fan curve minimizes noise by utilizing Zero RPM Fan Mode under low loads. The 120mm FDB fan activates under higher loads, providing quiet, efficient cooling even during heavy use.

Is the DeepCool DQ1000M-V3L for You?

The DeepCool DQ1000M-V3L is an outstanding choice for high-performance PC builds requiring efficiency, durability, and silent operation. With 1000W output, 80 PLUS Gold certification, and advanced cooling technologies, it’s perfect for powering high-end gaming rigs or professional workstations. Backed by premium components and robust safety protections, this PSU delivers exceptional reliability for demanding users.
