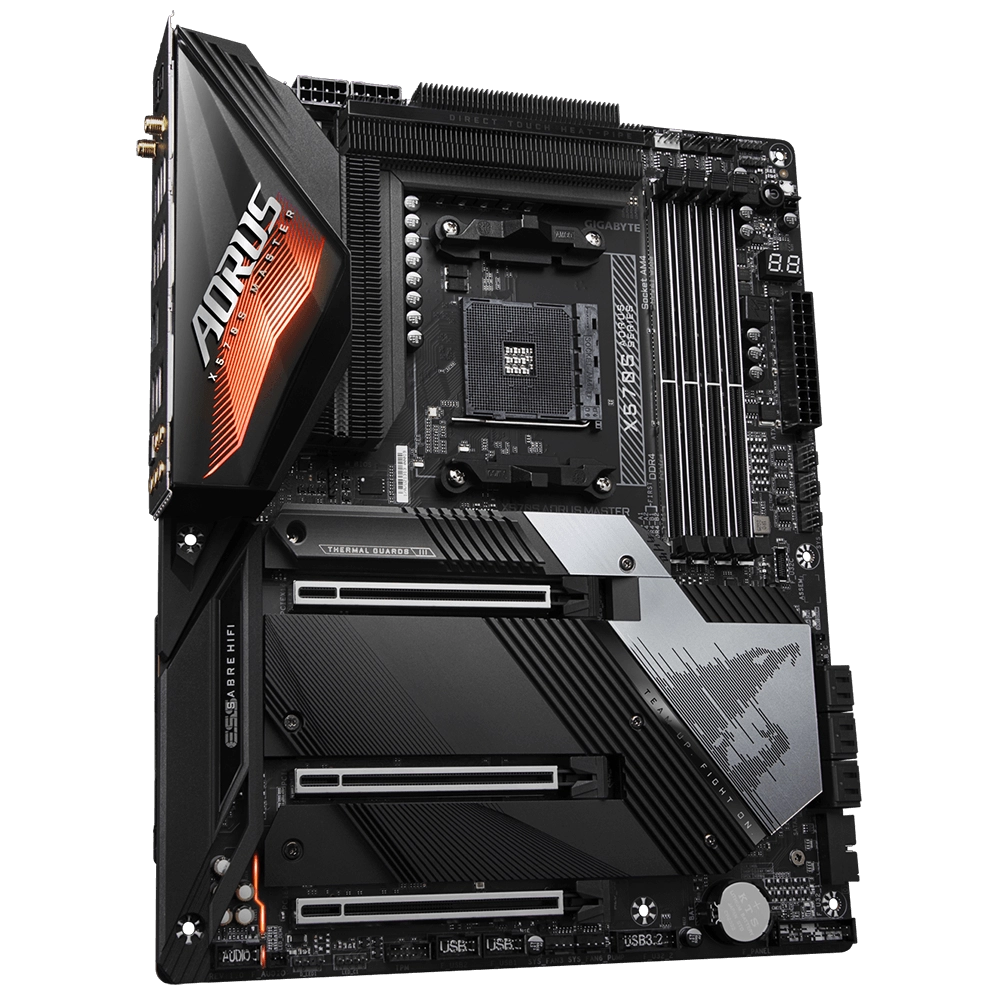

Gigabyte X570S AORUS MASTER, AM5, Ryzen 5000/4000/3000, DDR5

The Gigabyte X570S AORUS MASTER represents the pinnacle of motherboard engineering. Built for AMD Ryzen processors, this ATX motherboard supports PCIe 4.0 for next-generation GPUs and storage, high-speed networking with Intel Wi-Fi 6E, and immersive audio with DTS:X Ultra.

Whether you’re a gamer, creator, or PC enthusiast, the X570S AORUS MASTER provides exceptional performance, innovative features, and an unparalleled user experience.

Key Features

• AMD Ryzen Compatibility: Supports Ryzen 5000, 4000, 3000, and 2000 Series processors.
• Cutting-Edge PCIe 4.0: Boost performance for GPUs and SSDs with advanced PCIe 4.0 lanes.
• Comprehensive Storage Options: Four M.2 slots and six SATA 6Gb/s connectors for maximum flexibility.
• High-Speed Networking: Intel Wi-Fi 6E and 2.5GbE LAN ensure ultra-fast, stable connections.
• Advanced Cooling Design: Smart fan headers, water cooling pump support, and thermal guards.
• Premium Audio: Realtek ALC1220-VB codec, ESS SABRE9118 DAC, and DTS:X Ultra.
• Versatile Connectivity: USB 3.2 Gen 2×2, USB Type-C, and Thunderbolt™ add-in card support.
• Customizable RGB Lighting: RGB Fusion 2.0 with addressable LED strip headers.

Gigabyte X570S AORUS MASTER Specifications

• Brand: GIGABYTE
• Model: X570S AORUS MASTER
• Socket Type: AM4
• Chipset: AMD X570
• Processor Compatibility: AMD Ryzen 5000, 4000 G-Series, 3000, 3000 G-Series, 2000, and 2000 G-Series processors.
• Memory Support: 4 x DDR4 DIMM sockets, up to 128GB.
• Audio: Realtek ALC1220-VB codec, ESS SABRE9118 DAC, DTS:X® Ultra, HD audio, 2/4/5.1/7.1-channel.
• Graphics Support: Integrated GPU support via HDMI with up to 4096×2160@60Hz resolution, HDMI 2.1.
• Expansion Slots: 1 x PCIe 4.0/3.0 x16, 1 x PCIe 4.0/3.0 x8, 1 x PCIe 4.0/3.0 x4.
• Storage Interface: 4 x M.2 slots (PCIe 4.0/3.0, SATA) and 6 x SATA 6Gb/s ports, RAID 0, 1, 10.
• USB Ports: Rear: 1 x USB 3.2 Gen 2×2 Type-C, 5 x USB 3.2 Gen 2 Type-A, 2 x USB 3.2 Gen 1, 4 x USB 2.0; Internal: 1 x USB 3.2 Gen 2 Type-C, 2 x USB 3.2 Gen 1, 2 x USB 2.0.
• Networking: Intel Wi-Fi 6E, Bluetooth 5.2, Intel® 2.5GbE LAN.
• BIOS: 256Mbit AMI UEFI BIOS, Dual BIOS support.
• Cooling and RGB: 4 x system fan headers, 4 x water cooling pump headers, RGB Fusion 2.0.
• Operating System Support: Windows 11 64-bit, Windows 10 64-bit.
• Form Factor and Dimensions: ATX, 30.5 cm x 24.4 cm.

Processor Compatibility

The GIGABYTE X570S AORUS MASTER supports the AM4 socket, ensuring compatibility with a wide range of AMD Ryzen™ processors across multiple generations. Equipped with the X570S chipset, it delivers PCIe 4.0 support for exceptional performance in gaming, content creation, and professional workloads.

Compatible Processors:

• 3rd Generation Ryzen (Zen 2): Ryzen 3 3100, Ryzen 5 3600, Ryzen™ 7 3800X, Ryzen™ 9 3950X – ideal for gaming and productivity tasks.
• 4th Generation Ryzen (Zen 3): Ryzen 5 5600X, Ryzen 7 5800X, Ryzen™ 9 5900X, Ryzen™ 9 5950X – best-in-class single-core and multi-core performance for high-end gaming and rendering.
• Ryzen™ G-Series (Zen 3): Ryzen 5 5600G, Ryzen 7 5700G – for users who prefer processors with integrated Radeon™ graphics.
• 2nd Generation Ryzen (Zen+): Ryzen 5 2600, Ryzen 7 2700X – budget-friendly options for general-purpose builds.
• Athlon Processors: AMD Athlon 3000G – suitable for basic office or budget systems.

Processor Recommendations:

• Entry-Level Builds: Ryzen 5 3600 – Affordable, capable of handling gaming and light multitasking, Ryzen 5 5600G – Integrated Radeon graphics for users without discrete GPUs.
• Gaming-Oriented Builds: Ryzen 7 5800X – Delivers excellent performance for gaming at 1440p and multitasking, Ryzen 5 5600X – A great balance of cost and performance for modern gaming.
• High-End and Professional Builds: Ryzen 9 5950X – Exceptional for rendering, simulations, and workstation use with 16 cores and 32 threads, Ryzen 9 5900X – Ideal for multitasking with demanding applications and gaming.

For the latest Ryzen 5000 Series processors, a BIOS update may be required. The motherboard includes Q-Flash Plus, allowing BIOS updates without needing a CPU or RAM installation.

Discrete Graphics Compatibility

The GIGABYTE X570S AORUS MASTER is equipped with multiple PCIe 4.0 x16 slots, offering unparalleled bandwidth for modern GPUs. This makes it a top-tier choice for gaming, video editing, 3D rendering, and AI applications.

Compatible Graphics Cards:

• Entry-Level GPUs: NVIDIA GeForce GTX 1660 Super, AMD Radeon RX 6600.
• Mid-Range GPUs: NVIDIA GeForce RTX 3060 Ti, AMD Radeon RX 6700 XT.
• High-End GPUs: NVIDIA GeForce RTX 3080, AMD Radeon RX 6900 XT.
• Professional GPUs: NVIDIA Quadro RTX A4000, AMD Radeon Pro W6600 – tailored for CAD, 3D modeling, and AI workloads.

Graphics Recommendations:

• Budget Builds: AMD Radeon RX 6600 – Efficient and cost-effective for 1080p gaming, NVIDIA GTX 1660 Super – Handles casual gaming and light productivity.
• Gaming and Content Creation: NVIDIA RTX 3060 Ti – Optimized for 1440p gaming and ray tracing, AMD RX 6700 XT – Excels at 1440p gaming with VR support.
• 4K Gaming and Advanced Workloads: NVIDIA RTX 3080 – Ultimate performance for 4K gaming and heavy workloads, AMD RX 6900 XT – Incredible VRAM capacity for intensive tasks.
• Professional Workloads: NVIDIA RTX A4000 – Excellent for CAD and 3D modeling applications.

Onboard Graphics

For users leveraging Ryzen G-Series processors, the motherboard’s HDMI 2.1 and DisplayPort 1.4 outputs enable integrated Radeon graphics with support for resolutions up to 4096×2160@60Hz. This is ideal for dual-display productivity setups or basic multimedia tasks.

Storage and Expansion

This motherboard offers four M.2 slots with PCIe 4.0/3.0 and six SATA 6Gb/s connectors, enabling high-speed storage configurations. Support for RAID 0, 1, and 10 adds data redundancy and performance boosts.

Power Requirements and Cooling

The GIGABYTE X570S AORUS MASTER is engineered with a robust 14+2 phase digital VRM design and extended fin heatsinks, ensuring stable power delivery for high-performance builds. Its fanless chipset design reduces noise and improves thermal efficiency, catering to gamers and creators alike.

Recommended Power Supply Wattage:

• Basic Systems: 450W-550W PSU – For builds using integrated graphics or entry-level GPUs like the RX 6600.
• Mid-Tier Builds: 650W-750W PSU – Ideal for systems with GPUs like RTX 3060 Ti or RX 6700 XT, providing headroom for future upgrades.
• High-End Builds: 850W-1000W PSU – Required for high-performance GPUs like RTX 3080 or RX 6900 XT, especially in overclocked configurations.
• Workstation Builds: 1000W+ PSU – Recommended for multi-GPU configurations or setups with power-intensive components.

Cooling Recommendations:

• Air Cooling: For non-overclocked systems, high-quality air coolers like the Noctua NH-D15 or be quiet! Dark Rock Pro 4 are excellent choices.
• Liquid Cooling: Overclocked or high-performance builds benefit from AIO coolers such as the Corsair iCUE H150i Elite Capellix or custom loop solutions for optimal thermal performance.
• VRM Cooling: The board’s large heatsinks and thermal pads ensure efficient VRM cooling under heavy loads, but additional case fans can further enhance airflow.

Is This Motherboard for You?

The Gigabyte X570S AORUS MASTER is designed for gamers, creators, and power users who demand cutting-edge features and top-tier performance. With its support for Ryzen processors, PCIe 4.0, advanced connectivity, and premium audio, it’s the perfect choice for high-performance PC builds.

Note: Not available online in Ph Market. Check your local retailer.
