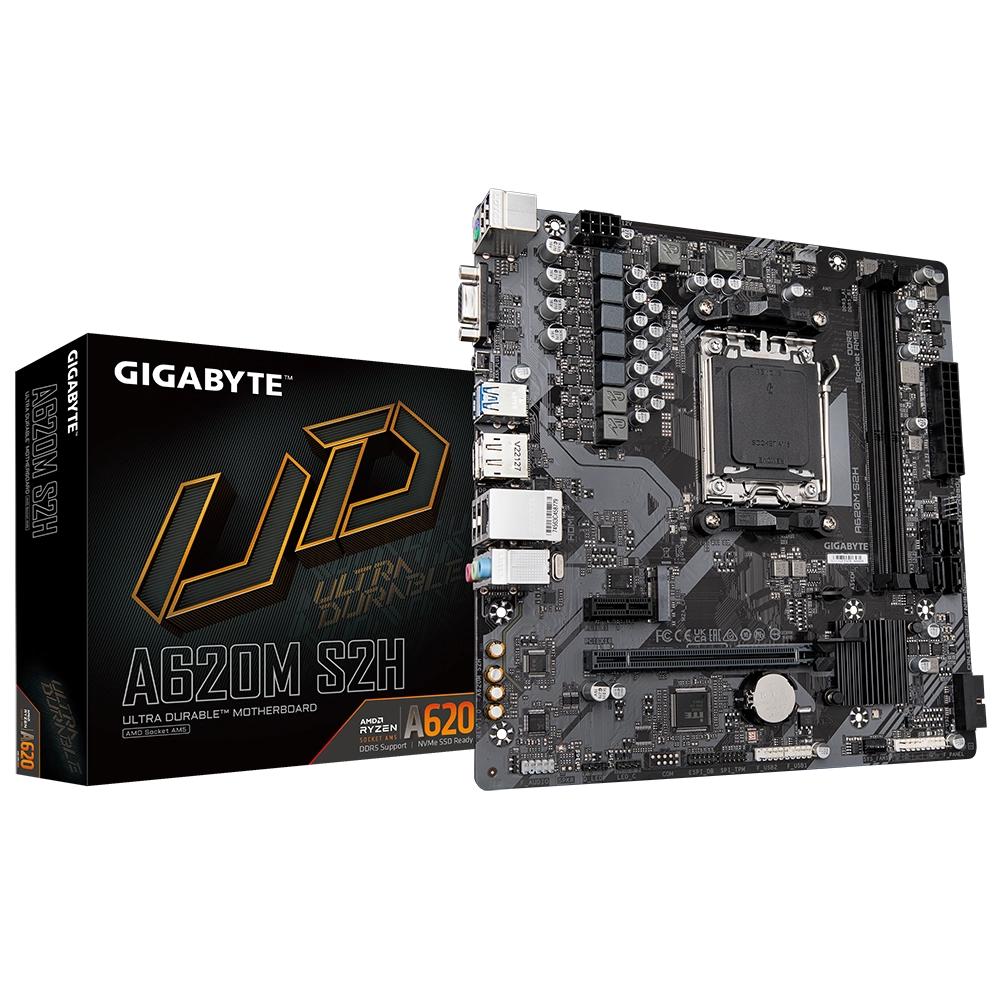

GIGABYTE A620M S2H, AM5, Ryzen 7000/8000/9000, DDR5

The GIGABYTE A620M S2H is engineered to deliver exceptional performance and versatility in a micro-ATX form factor. Powered by the AMD A620 chipset, it supports the latest Ryzen 7000, 8000, and 9000 Series processors. Its robust design includes DDR5 memory support, PCIe 4.0 compatibility, and integrated graphics capabilities, making it an excellent choice for compact yet high-performing builds.

Key Features

• Next-Gen Processor Support: Built for AMD Ryzen 7000, 8000, and 9000 Series processors.
• High-Speed Memory Compatibility: Dual-channel DDR5 support up to 6400 MT/s (OC).
• Enhanced Graphics Options: Supports up to 3 displays simultaneously with DisplayPort, HDMI, and D-Sub.
• Efficient Storage Solutions: Includes PCIe 4.0 M.2 slot and 4 SATA 6Gb/s ports.
• Compact Durability: Micro-ATX design with integrated cooling and robust power delivery.
• Smart Features: Q-Flash Plus for seamless BIOS updates and GIGABYTE Control Center for system management.

GIGABYTE A620M S2H Motherboard Specifications

• Brand: GIGABYTE
• Model: A620M S2H
• Socket Type: AMD Socket AM5
• Chipset: AMD A620
• Processor Compatibility: AMD Ryzen  7000, 8000, and 9000 Series Processors
• Memory Support: 2 x DDR5 DIMM slots, dual-channel, up to 128GB, supports DDR5 6400(OC) / 6200(OC) / 6000(OC).
• Graphics Support: Integrated graphics with DisplayPort 1.4 (4K @ 144Hz), HDMI 2.1 (4K @ 60Hz), D-Sub (1920×1200 @ 60Hz).
• Audio: Realtek HD Audio Codec, 7.1-channel support.
• Networking: Realtek GbE LAN (1Gbps).
• Expansion Slots: 1 x PCIe 4.0 x16 (for GPUs or NVMe SSDs), 1 x PCIe 3.0 x1.
• Storage Interface: 1 x PCIe 4.0 M.2 slot, 4 x SATA 6Gb/s ports.
• USB Ports: Rear: 2 x USB 3.2 Gen 1, 4 x USB 2.0. Front: 1 x USB 3.2 Gen 1 header, 2 x USB 2.0 headers.
• Cooling Support: 1 x CPU fan header, 2 x system fan headers, water cooling support.
• Power Connectors: 24-pin ATX main power, 8-pin ATX 12V power.
• Special Features: Q-Flash, Q-Flash Plus, GIGABYTE Control Center.
• Operating System Support: Windows 11 64-bit, Windows® 10 64-bit.
• Form Factor: Micro-ATX, 23.0cm x 22.5cm.

Processor Compatibility

The GIGABYTE A620M S2H supports AMD Ryzen 7000, 8000, and 9000 Series processors, leveraging the latest AMD AM5 platform for optimal performance. This includes advanced multitasking, gaming, and content creation capabilities.
Recommended Processors:

• Ryzen 9 7950X: For top-tier gaming and productivity performance.
• Ryzen 7 7700X: A balanced option for gaming and professional workloads.
• Ryzen 5 7600: An efficient choice for budget gaming and daily computing.

Discrete Graphics Compatibility

With a PCIe 4.0 x16 slot, the motherboard supports the latest discrete GPUs for high-performance gaming and professional tasks.
Recommended Graphics Cards:

• NVIDIA RTX 4070: Perfect for 1440p and 4K gaming.
• AMD Radeon RX 7700 XT: Optimized for high-quality graphics in demanding games and applications.

Storage and Expansion

The motherboard features a PCIe 4.0 M.2 slot for ultra-fast SSDs and 4 SATA 6Gb/s ports for traditional storage devices. It supports RAID 0, 1, and 10 configurations for both NVMe and SATA storage solutions.

Power Requirements and Cooling

A 550W power supply is recommended for basic setups, while higher-end builds with overclocking or discrete GPUs may require a 650W or 750W PSU. The motherboard includes multiple fan headers and water cooling support, ensuring efficient thermal management for long-lasting performance.

Is This Motherboard for You?

If you’re seeking an affordable yet powerful motherboard for compact PC builds, the GIGABYTE A620M S2H is a smart choice. Its support for the latest AMD Ryzen processors, DDR5 memory, and PCIe 4.0 connectivity make it ideal for gaming, work, and everyday computing.
