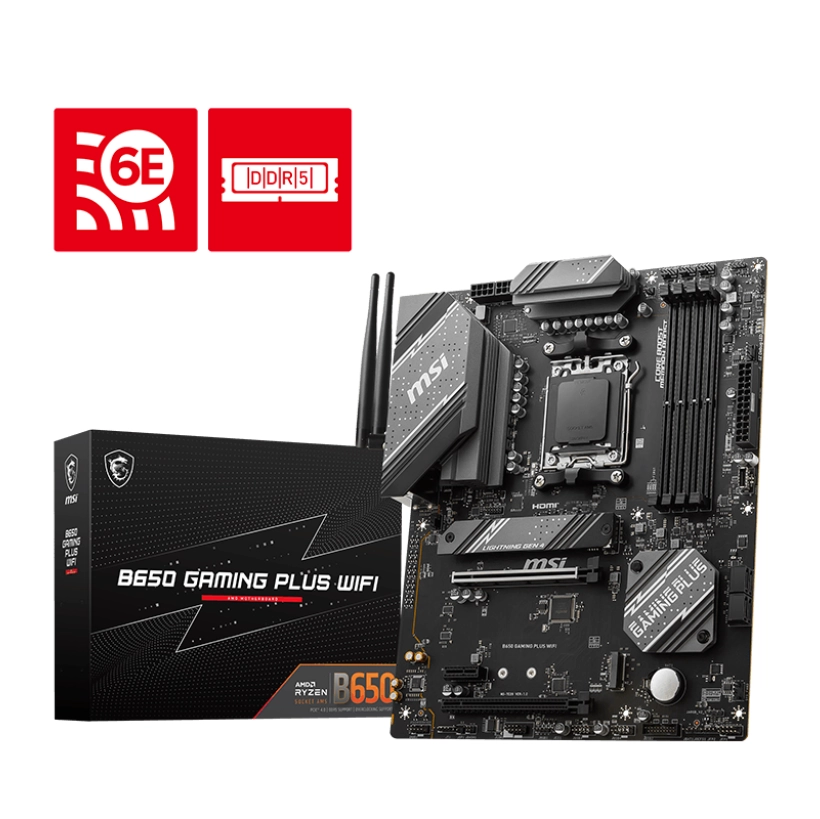

MSI B650 GAMING PLUS WIFI, AM5, Ryzen 9000/8000/7000, DDR5

The MSI B650 GAMING PLUS WIFI is a premium ATX motherboard designed for gamers and creators looking for cutting-edge performance and connectivity. Powered by the AMD B650 chipset, it supports the latest AMD Ryzen™ 9000, 8000, and 7000 Series processors.

With features like DDR5 memory support, PCIe 4.0 compatibility, dual M.2 slots, USB 20Gbps, Wi-Fi 6E, and 2.5Gbps LAN, this motherboard offers unmatched speed and reliability for high-end gaming and multitasking.

Key Features

• Processor Compatibility: AMD Ryzen™ 9000, 8000, and 7000 Series processors.
• Memory Support: Four DDR5 slots, up to 256GB, speeds up to 7200+ MHz (OC).
• Graphics Options: Dual PCIe 4.0 x16 slots and onboard HDMI 2.1 and DisplayPort 1.4.
• Storage Options: Dual M.2 slots (PCIe 4.0) and four SATA 6Gb/s ports.
• Networking: Realtek 2.5Gbps LAN, Wi-Fi 6E, and Bluetooth® 5.3.
• USB Connectivity: USB 20Gbps Type-C, USB 10Gbps, and USB 5Gbps ports.
• Audio: Realtek ALC897 Codec with 7.1-channel HD audio.

MSI B650 GAMING PLUS WIFI Specifications

• Brand: MSI
• Model: B650 GAMING PLUS WIFI
• Socket Type: AM5
• Chipset: AMD B650
• Processor Compatibility: AMD Ryzen 9000, 8000, and 7000 Series desktop processors.
• Memory Support: 4 DDR5 slots, up to 256GB, speeds up to 7200+ MHz (OC), dual-channel, non-ECC un-buffered memory supported, AMD EXPO compatible.
• Graphics Support: 2 PCIe 4.0 x16 slots (x16/x4 or x8/x4 modes), 1 PCIe 3.0 x1 slot; onboard HDMI 2.1 (4K@60Hz) and DisplayPort 1.4 (4K@60Hz) for integrated graphics processors.
• Storage Interface: 2 M.2 slots (PCIe 4.0 x4), 4 SATA 6Gb/s ports with RAID 0, 1, and 10 support.
• USB Ports: Rear: 1 USB 20Gbps Type-C, 3 USB 10Gbps Type-A, 4 USB 5Gbps Type-A, 4 USB 2.0; Internal: 1 USB 10Gbps Type-C header, 2 USB 5Gbps Type-A headers (4 ports), 4 USB 2.0 headers (4 ports).
• Networking: Realtek® 8125BG 2.5Gbps LAN, Wi-Fi 6E, Bluetooth® 5.3.
• Audio: Realtek® ALC897 Codec, 7.1-channel HD audio.
• Multi-GPU Support: AMD Multi-GPU support.
• Lighting Features: 2 Addressable RGB LED connectors, 2 RGB LED connectors, EZ Debug LEDs.
• Cooling Options: 1 CPU fan connector, 1 pump fan connector, 4 system fan connectors.
• BIOS: Flash BIOS button for easy updates.
• Operating System Support: Windows 11 64-bit, Windows 10 64-bit.
• Form Factor: ATX (12” x 9.6”).

Processor Compatibility

The MSI B650 GAMING PLUS WIFI is built for AMD’s AM5 socket, supporting the latest Ryzen™ 7000 Series desktop processors. These CPUs, based on the Zen 4 architecture, leverage the advanced 6nm process for superior power efficiency and performance.

The motherboard is also optimized to handle processors with higher core counts, making it suitable for various builds ranging from gaming to productivity.

Compatible Processors:

• Entry-Level: Ryzen 5 7600 – A capable 6-core, 12-thread CPU for gaming and multitasking on a budget.
• Mid-Range: Ryzen 7 7700 – A balanced 8-core, 16-thread option perfect for high-refresh-rate gaming and moderate productivity.
• High-End: Ryzen 9 7900X – A 12-core, 24-thread powerhouse for video editing, rendering, and demanding games at 4K.
• Extreme: Ryzen 9 7950X – With 16 cores and 32 threads, it’s an ideal choice for professionals working on 3D rendering, simulations, and multitasking workloads.

AMD’s commitment to the AM5 socket ensures potential support for future CPU releases via BIOS updates, giving users an upgrade path.

Memory Compatibility

The MSI B650 GAMING PLUS WIFI supports DDR5 memory across four DIMM slots with a maximum capacity of 128GB. It is optimized for dual-channel mode, offering baseline speeds of 4800 MHz (JEDEC) with overclocking capabilities reaching up to 7200 MHz or higher depending on the memory module and processor.

AMD EXPO™ profiles enable easy memory overclocking for performance boosts.
For most gaming and productivity builds, memory speeds between 6000 MHz and 6400 MHz provide an excellent balance of stability and performance.

Discrete Graphics Compatibility

The motherboard features a PCIe 4.0 x16 slot, which offers high bandwidth for modern GPUs. While PCIe 5.0 isn’t available for graphics cards, the PCIe 4.0 interface is more than sufficient to handle current-generation GPUs, as most do not fully utilize PCIe 4.0’s bandwidth. This slot ensures compatibility with all GPUs on the market today and provides future-proofing for years.

GPU Recommendations:

• Entry-Level: NVIDIA GTX 1660 SUPER or AMD RX 6600 – Ideal for 1080p gaming.
• Mid-Range: NVIDIA RTX 3060 Ti or AMD RX 6700 XT – Best for 1440p gaming at high settings.
• High-End: NVIDIA RTX 3080 or AMD RX 6800 XT – Excellent for 4K gaming and high-refresh-rate displays.
• Flagship: NVIDIA RTX 4090 or AMD RX 7900 XTX – Exceptional performance for enthusiasts and professional workloads like 3D rendering and AI processing.

The PCIe 4.0 limitation does not impact the performance of even high-end GPUs like the RTX 4090, as they cannot yet saturate PCIe 4.0 bandwidth.

Onboard Graphics

For processors with integrated graphics, the MSI B650 GAMING PLUS WIFI includes HDMI 2.1 and DisplayPort 1.4 outputs, supporting resolutions up to 4K@60Hz. This feature is ideal for productivity setups and multimedia applications.

Storage and Expansion

The motherboard offers versatile storage options with dual M.2 slots and four SATA 6Gb/s ports:

• M.2 Slots: PCIe 4.0 x4 for NVMe SSDs, supporting storage devices up to 22110 in size.
• SATA Ports: Connect up to four HDDs or SSDs, with RAID 0, 1, and 10 support for data redundancy or performance.

Power Requirements and Cooling

Power Requirements:

The motherboard requires:

• 1x 24-pin ATX main power connector
• 1x 8-pin ATX 12V CPU power connector
• 1x additional 4-pin ATX 12V CPU power connector for stable power delivery to high-performance processors like the Ryzen™ 9 7950X.

Recommended Power Supply Wattage:

• Mid-Range Build (e.g., Ryzen 7 7700 + RTX 3060 Ti): A 650W PSU with 80 Plus Gold certification.
• High-End Build (e.g., Ryzen 9 7900X + RTX 3080): A 750W PSU is recommended.
• Extreme Build (e.g., Ryzen 9 7950X + RTX 4090): An 850W-1000W PSU is required, especially for overclocked systems or additional peripherals.

Cooling Recommendations:

The MSI B650 GAMING PLUS WIFI includes robust VRM cooling with large heatsinks to manage power delivery thermals. It also provides multiple fan headers for enhanced airflow:

• 1x CPU fan header
• 1x pump fan header for liquid cooling solutions
• 4x system fan headers for additional case fans.

For processors like the Ryzen™ 9 7950X, a 360mm AIO liquid cooler (e.g., Corsair iCUE H150i or NZXT Kraken Z73) is ideal to maintain stable temperatures during heavy workloads.
Mid-range CPUs like the Ryzen™ 7 7700 work well with a 240mm AIO liquid cooler or premium air coolers such as the Noctua NH-D15.

This motherboard’s cooling design ensures sustained performance even during overclocking or intensive gaming, making it a reliable option for high-performance builds.

Is This Motherboard for You?

The MSI B650 GAMING PLUS WIFI is perfect for gamers, streamers, and professionals seeking a powerful and future-proof motherboard. With its support for DDR5, PCIe 4.0, Wi-Fi 6E, and dual M.2 slots, it offers exceptional performance, connectivity, and reliability for demanding applications. Whether you’re gaming, streaming, or multitasking, this motherboard is built to deliver.
