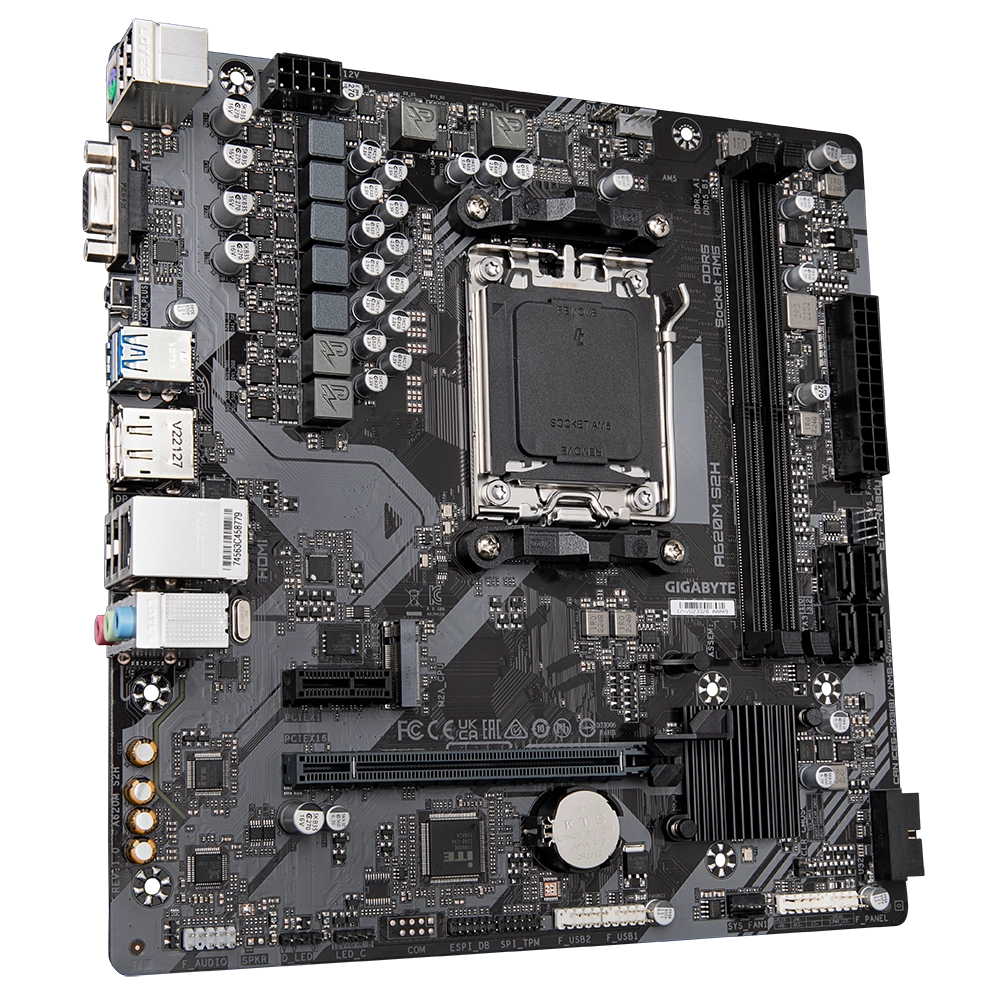

GIGABYTE A620M S2H, AM5 Motherboard For Ryzen 7000, DDR5

The GIGABYTE A620M S2H combines affordability with essential features, powered by the AMD A620 chipset. Designed for compact builds, it supports AMD Ryzen 7000/8000/9000 Series processors, DDR5 memory, and PCIe 4.0 for reliable performance.

Key Features

• Processor Compatibility: AMD Ryzen 7000/8000/9000 Series processors with AM5 socket.
• Memory Support: 2 x DDR5 DIMM slots, up to 128 GB, with speeds up to 6400 MT/s (OC).
• Graphics Support: PCIe 4.0 x16 slot, onboard D-Sub, HDMI, and DisplayPort outputs for integrated graphics.
• Storage Options: 1 x PCIe 4.0 M.2 slot, 4 x SATA III ports, RAID capabilities.
• Connectivity: USB 3.2 Gen 1, multiple USB 2.0 ports, Realtek® GbE LAN.
• Audio: High-definition Realtek® audio with 7.1-channel support.

GIGABYTE A620M S2H Specifications

• Brand: GIGABYTE
• Model: A620M S2H
• Socket Type: AMD Socket AM5
• Chipset: AMD A620
• Processor Compatibility: AMD Ryzen 7000/8000/9000 Series Processors
• Memory Support: 2 x DDR5 DIMM slots, up to 128 GB, 6400 MT/s (OC)
• Graphics Support: PCIe 4.0 x16 slot; D-Sub (1920×1200@60 Hz), HDMI 2.1 (4096×2160@60 Hz), DisplayPort 1.4 (3840×2160@144 Hz)
• Storage Interface: 1 x PCIe 4.0 M.2 slot, 4 x SATA III ports, RAID 0/1/10 support
• USB Ports: USB 3.2 Gen 1, USB 2.0, and internal USB headers for legacy and modern peripherals
• Networking: Realtek GbE LAN (1 Gbps)
• Audio: Realtek Audio CODEC, 7.1-channel support
• BIOS: 256 Mbit flash, UEFI BIOS with Q-Flash Plus
• Operating System Support: Windows 11 64-bit, Windows 10 64-bit
• Form Factor and Dimensions: Micro-ATX, 23.0cm x 22.5cm

Processor Compatibility

The GIGABYTE A620M S2H motherboard is designed for the AMD AM5 socket, supporting the Ryzen™ 7000 series processors based on AMD’s cutting-edge Zen 4 architecture. This compatibility ensures access to the latest technologies, including DDR5 memory and PCIe 4.0 lanes for efficient storage and graphics performance. As part of the entry-level A620 chipset, this motherboard delivers exceptional value for general use and light gaming without compromising on modern features.

While the A620 chipset is optimized for budget-conscious users, it still supports the high efficiency and performance of the Ryzen 7000 processors, making it a versatile choice for everyday computing and moderate gaming builds.

Recommended Processors

• AMD Ryzen 5 7600: A 6-core, 12-thread processor that delivers excellent performance for gaming, streaming, and multitasking. Its lower power draw makes it ideal for builds with modest cooling requirements.
• AMD Ryzen 7 7700: An 8-core, 16-thread CPU that offers great performance for productivity tasks and advanced gaming. Its higher core count is perfect for users seeking extra multitasking capabilities.

Memory Compatibility

Equipped with 2 DDR5 DIMM slots, the motherboard supports up to 128 GB of memory at speeds up to 6400 MT/s (OC). This ensures smooth multitasking and efficient performance for both productivity tasks and casual gaming.

Discrete Graphics Compatibility

The PCIe 4.0 x16 slot allows compatibility with modern GPUs for enhanced graphics performance. For systems without discrete GPUs, the integrated D-Sub, HDMI, and DisplayPort outputs provide options for up to three simultaneous displays.

Storage and Expansion

The motherboard features one PCIe 4.0 M.2 slot for high-speed SSDs, ideal for boot drives, and four SATA III ports for additional storage. RAID support (0/1/10) is available for data redundancy and performance optimization.

Connectivity and Audio Features

With multiple USB 3.2 Gen 1 and USB 2.0 ports, the A620M S2H ensures broad connectivity for peripherals and legacy devices. Realtek® GbE LAN delivers reliable networking, while the 7.1-channel audio support enhances multimedia experiences.

Power Requirements and Cooling

This motherboard includes an 8-pin ATX 12V connector and multiple fan headers for efficient cooling. Designed for stable performance, it is ideal for systems with basic to mid-range power demands, requiring a 450W to 550W PSU.

Is This Motherboard for You?

The GIGABYTE A620M S2H is an excellent choice for users seeking a compact and affordable AM5 motherboard for daily use. With support for the latest AMD Ryzen™ processors, DDR5 memory, and versatile connectivity, it is perfect for entry-level builds focusing on productivity and light gaming.
