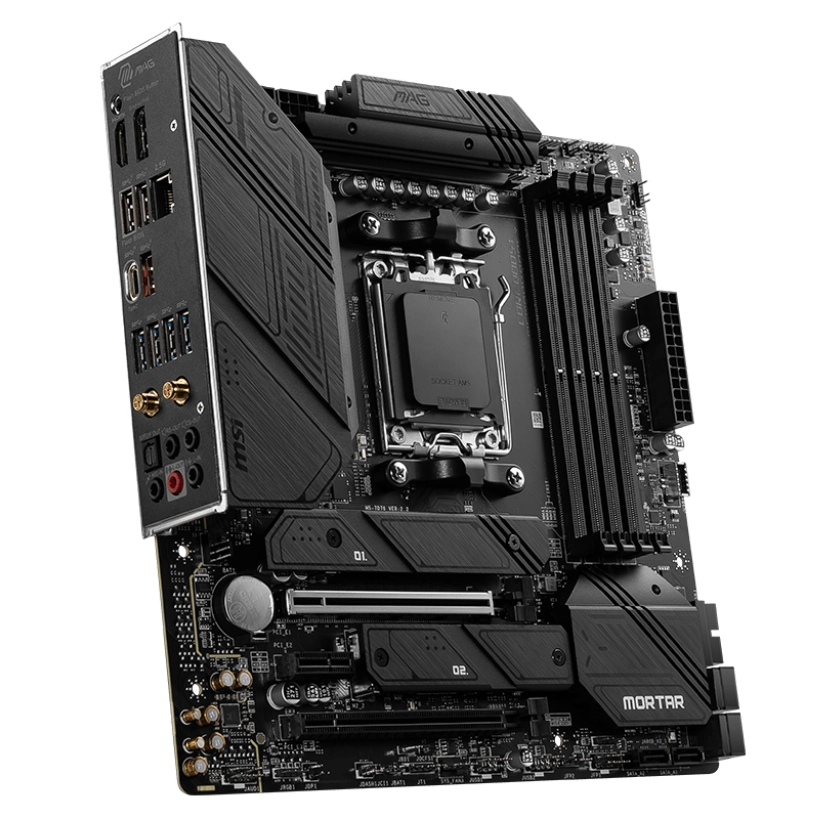

MSI MAG B650M MORTAR WIFI, AM5, Ryzen 7000/8000/9000, DDR5

The MSI MAG B650M MORTAR WIFI is a micro-ATX motherboard engineered for gamers and professionals requiring high performance in a compact form. Equipped with AMD Ryzen 9000, 8000, and 7000 Series CPU support, DDR5 memory compatibility, PCIe 4.0, and dual M.2 slots, it’s designed to deliver cutting-edge speed and efficiency.

With Wi-Fi 6E, USB 20Gbps, and enhanced audio, this motherboard is an ideal choice for demanding gaming and productivity tasks.

Key Features

• Processor Compatibility: AMD Ryzen™ 9000, 8000, and 7000 Series processors.
• Memory Support: Four DDR5 slots, up to 256GB, speeds up to 7600+ MHz (OC).
• Graphics Options: Dual PCIe slots and onboard HDMI 2.1 and DisplayPort 1.4.
• Storage Options: Dual M.2 slots (PCIe 4.0) and six SATA 6Gb/s ports.
• Networking: Realtek 2.5Gbps LAN, Wi-Fi 6E, and Bluetooth® 5.3.
• USB Connectivity: USB 20Gbps Type-C, USB 10Gbps, USB 5Gbps, and USB 2.0 ports.
• Audio: Realtek ALC4080 Codec with 7.1-channel HD audio and S/PDIF output.

Full Specifications

• Brand: MSI
• Model: MAG B650M MORTAR WIFI
• Socket Type: AM5
• Chipset: AMD B650
• Processor Compatibility: AMD Ryzen 9000, 8000, and 7000 Series desktop processors.
• Memory Support: 4 DDR5 slots, up to 256GB, speeds up to 7600+ MHz (OC), dual-channel, non-ECC un-buffered memory supported, AMD EXPO compatible.
• Graphics Support: PCIe 4.0 x16 slot, PCIe 3.0 x1 slot; onboard HDMI 2.1 (4K@60Hz) and DisplayPort 1.4 (8K@60Hz) for integrated graphics processors.
• Storage Interface: 2 M.2 slots (PCIe 4.0 x4), 6 SATA 6Gb/s ports with RAID 0, 1, and 10 support.
• USB Ports: Rear: 1 USB 20Gbps Type-C, 3 USB 10Gbps Type-A, 4 USB 5Gbps Type-A; Internal: 1 USB 10Gbps Type-C header, 2 USB 5Gbps Type-A headers (4 ports), 4 USB 2.0 headers (4 ports).
• Networking: Realtek RTL8125B 2.5Gbps LAN, Wi-Fi 6E, Bluetooth 5.3.
• Audio: Realtek ALC4080 Codec, 7.1-channel HD audio, S/PDIF output.
• Multi-GPU Support: AMD Multi-GPU support.
• Lighting Features: 2 Addressable RGB LED connectors, 2 RGB LED connectors, EZ Debug LEDs.
• Cooling Options: 1 CPU fan connector, 1 pump fan connector, 3 system fan connectors.
• BIOS: Flash BIOS button for seamless updates.
• Operating System Support: Windows 11 64-bit, Windows 10 64-bit.
• Form Factor: Micro-ATX (9.6” x 9.6”).

Processor Compatibility

The MSI MAG B650M MORTAR WIFI is built for the AM5 socket, supporting AMD’s cutting-edge Ryzen 7000 Series desktop processors. These processors, based on the advanced Zen 4 architecture, deliver exceptional performance across gaming, productivity, and content creation applications. The motherboard is compatible with a variety of processors, ensuring flexibility for different build scenarios:

Compatible Processors:

• Entry-Level: Ryzen 5 7600 – A budget-friendly 6-core, 12-thread processor for gaming at 1080p and multitasking.
• Mid-Range: Ryzen 7 7700 – An 8-core, 16-thread powerhouse perfect for 1440p gaming and content creation.
• High-End: Ryzen 9 7900 – With 12 cores and 24 threads, this CPU excels in gaming, streaming, and heavy workloads.
• Extreme Performance: Ryzen 9 7950X – A flagship 16-core, 32-thread CPU designed for intense multitasking, simulations, and rendering.

The AM5 platform ensures future-proof compatibility with BIOS updates for upcoming Ryzen™ processors, offering extended support for next-generation CPUs.

Memory Compatibility

The MSI MAG B650M MORTAR WIFI supports the latest DDR5 memory technology with two DIMM slots, enabling up to 128GB of RAM. Optimized for dual-channel operation, this motherboard provides baseline speeds of 4800 MHz (JEDEC) with overclocking potential reaching 7600 MHz and beyond using AMD EXPO™ profiles.

Memory speeds between 6000 MHz and 6400 MHz are recommended for most gaming and productivity tasks, offering an excellent balance between performance and stability.

Discrete Graphics Compatibility

The motherboard features a PCIe 4.0 x16 slot, offering compatibility with a wide range of discrete GPUs. Although PCIe 5.0 slots are absent, current GPUs do not fully utilize PCIe 4.0 bandwidth, ensuring no bottleneck for performance in gaming or professional tasks. This motherboard is an excellent choice for users aiming for modern graphics cards with peak efficiency.

PCIe Version Limitations:

• The PCIe 4.0 x16 slot provides double the bandwidth of PCIe 3.0, which is more than sufficient for today’s GPUs.
• PCIe 5.0 GPUs, such as the NVIDIA RTX 40 Series and AMD RX 7000 Series, are fully backward compatible with PCIe 4.0, with minimal performance loss compared to PCIe 5.0 in real-world applications.

Recommended GPUs:

• Entry-Level: AMD RX 6600 or NVIDIA GTX 1660 SUPER for smooth 1080p gaming.
• Mid-Range: NVIDIA RTX 3060 Ti or AMD RX 6700 XT for high-performance 1440p gaming.
• High-End: NVIDIA RTX 3080 or AMD RX 6800 XT for demanding 4K gaming and professional workloads.
• Flagship: NVIDIA RTX 4090 or AMD RX 7900 XTX for extreme 4K gaming, VR, and AI workloads.

Onboard Graphics

For processors with integrated graphics, the onboard HDMI 2.1 and DisplayPort 1.4 outputs enable resolutions of up to 8K@60Hz, offering sharp visuals for productivity and media consumption.

Storage and Expansion

The MSI MAG B650M MORTAR WIFI supports versatile storage configurations:

• M.2 Slots: Dual PCIe 4.0 x4 slots for ultra-fast NVMe SSDs.
• SATA Ports: Six SATA 6Gb/s ports for HDDs or SSDs, with RAID 0, 1, and 10 support.

Power Requirements and Cooling

The MSI MAG B650M MORTAR WIFI ensures stable power delivery through an 8+4 pin ATX power connector setup, supporting the power-hungry nature of Ryzen™ 7000 Series CPUs. This robust power design accommodates overclocking and provides consistent performance under load.

Recommended Power Supply Wattage:

• Mid-Range Build (Ryzen™ 7 7700 + RTX 3060 Ti): A 650W PSU with 80 Plus Gold certification is sufficient.
• High-End Build (Ryzen™ 9 7900 + RTX 3080): A 750W PSU is recommended for stable operation.
• Extreme Build (Ryzen™ 9 7950X + RTX 4090): An 850W to 1000W PSU is necessary for high power demands.

Cooling Requirements:

The motherboard features a premium VRM heatsink design and multiple fan headers to ensure efficient thermal management during prolonged workloads.

• 1x CPU fan header for standard air coolers or AIO pump connection.
• 1x pump fan header supporting liquid cooling systems.
• 3x system fan headers for case airflow optimization.

For high-performance CPUs such as the Ryzen™ 9 7950X, a 240mm or 360mm AIO liquid cooler is strongly recommended (e.g., Corsair iCUE H150i or NZXT Kraken Z73). For mid-range CPUs like the Ryzen™ 5 7600, premium air coolers such as the Noctua NH-U12S Redux or the be quiet! Dark Rock 4 are sufficient. Efficient cooling ensures CPU performance consistency and component longevity.

Is This Motherboard for You?

The MSI MAG B650M MORTAR WIFI is a top-tier choice for compact gaming or professional systems. Its DDR5 support, PCIe 4.0, Wi-Fi 6E, and dual M.2 slots ensure exceptional performance and future-proof reliability. Whether gaming, streaming, or multitasking, this motherboard delivers.
