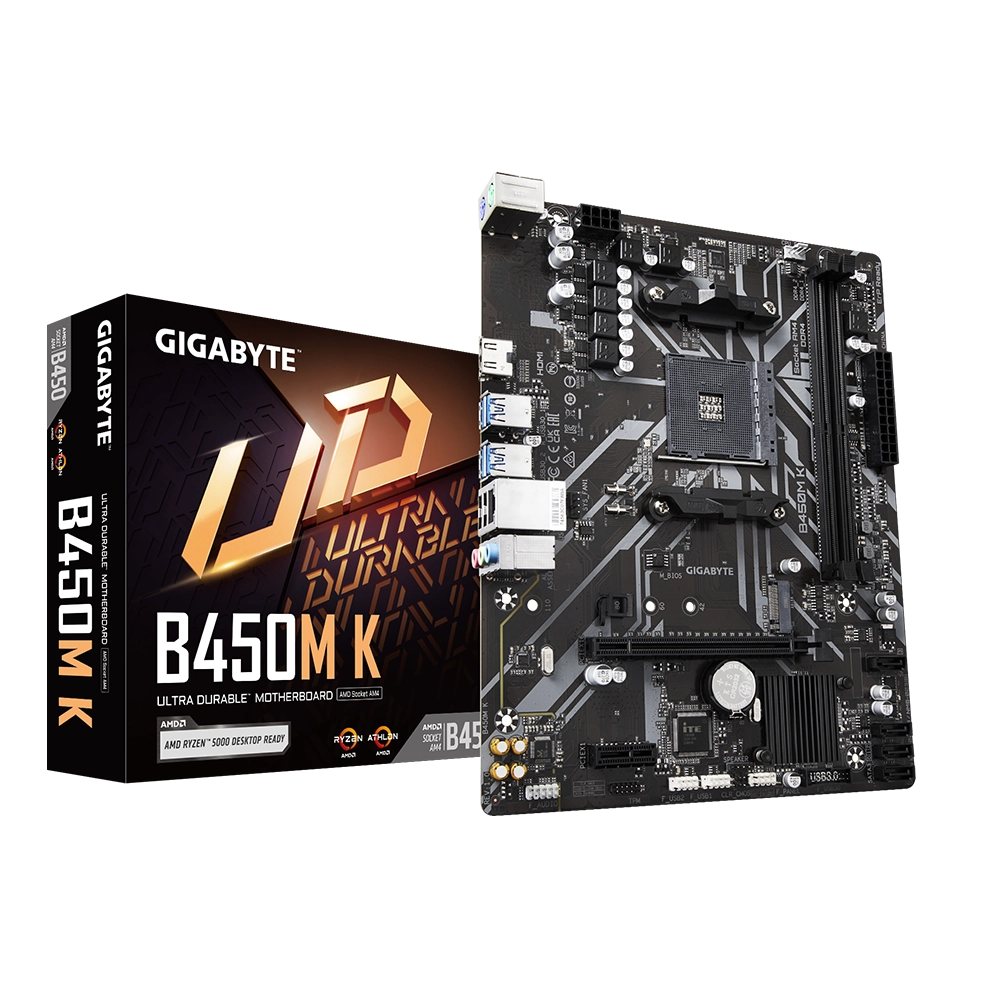

GIGABYTE B450M K For AM4 Ryzen 5000 and Earlier, DDR4

The GIGABYTE B450M K is engineered to deliver stability, performance, and affordability for AMD Ryzen-based systems. Featuring PCIe 3.0 expansion, HDMI 2.0 output, support for DDR4 memory up to 3600 MHz (OC), and advanced storage options, it is tailored for entry-level to mid-tier users seeking reliable computing power in a compact Micro ATX form factor.

Key Features

• AMD Socket AM4: Supports Ryzen 5000, 4000, 3000, 2000, and 1000 Series processors.
• Memory support: Dual-channel DDR4, up to 64GB, speeds up to 3600 MHz (OC).
• Integrated graphics: HDMI 2.0 port supporting up to 4K resolution.
• Storage options: 1 x M.2 slot (PCIe 3.0 x4/SATA) and 4 x SATA 6Gb/s ports with RAID support.
• USB connectivity: 4 x USB 3.2 Gen 1 ports on the rear, with additional USB headers for expansion.
• LAN: Realtek GbE LAN for reliable networking performance.
• Audio: High-definition sound with 7.1-channel audio support.
• Compact form factor: Micro ATX size suitable for a variety of builds.

GIGABYTE B450M K Specifications

• Brand: GIGABYTE
• Model: B450M K
• Socket Type: AM4
• Chipset: AMD B450
• Processor Compatibility: AMD Ryzen 5000, 4000, 3000, 2000, and 1000 Series processors, including G-Series with Radeon Graphics.
• Memory Support: 2 x DDR4 DIMM slots, up to 64GB, speeds up to 3600 MHz (OC).
• Onboard Graphics: 1 x HDMI 2.0 port (4K@60Hz).
• Expansion Slots: 1 x PCIe 3.0 x16, 1 x PCIe 2.0 x1.
• Storage Interface: 1 x M.2 slot (PCIe 3.0 x4/SATA), 4 x SATA 6Gb/s ports with RAID support (0, 1, 10).
• USB Ports: Rear – 4 x USB 3.2 Gen 1, 2 x USB 2.0; Internal – 1 x USB 3.2 Gen 1 header, 2 x USB 2.0 headers.
• Audio: Realtek® Audio CODEC with 7.1-channel support.
• Networking: Realtek® GbE LAN.
• BIOS: AMI UEFI BIOS, 128Mb Flash ROM.
• Operating System Support: Windows 11/10/7 64-bit.
• Form Factor and Dimensions: Micro ATX, 24.4cm x 19.5cm.

Processor Compatibility

The B450M K supports AMD AM4 processors, including the Ryzen™ 5000 Series, 4000 G-Series, and 3000 processors, as well as earlier 2000 and 1000 Series CPUs.

This makes it suitable for entry-level to high-performance builds. Recommended options include the Ryzen 3 3200G for budget setups, Ryzen 5 5600X for mid-range gaming, and Ryzen  7 5800X for power users.

Discrete Graphics Compatibility

With a PCIe 3.0 x16 slot, this motherboard supports a wide range of modern GPUs, such as the NVIDIA RTX 3060 or AMD RX 6600 XT, for seamless gaming and content creation. It’s also backward-compatible with older graphics cards, ensuring flexible upgrade options.

Onboard Graphics

Integrated graphics are supported with Ryzen™ APUs featuring Radeon™ Vega Graphics. The HDMI port delivers crisp visuals up to 4K resolution, making it suitable for multi-purpose or office setups without a discrete GPU.

Storage and Expansion

The motherboard offers flexible storage options with 1 M.2 slot supporting PCIe 3.0 x4 or SATA SSDs and 4 SATA 6Gb/s ports for additional drives. Its PCIe slots include 1 PCIe 3.0 x16 for GPUs and 1 PCIe 2.0 x1 for peripherals.

Power Requirements and Cooling

The board includes a 24-pin ATX power connector and an 8-pin CPU power connector for stable power delivery. For a basic setup, a 400W PSU suffices. Gaming systems with a dedicated GPU require a 500-650W PSU, while high-performance builds with power-hungry GPUs like the RTX 3080 need at least a 750W PSU.

The board features headers for CPU and system fans, supporting efficient air or liquid cooling solutions.

Is This Motherboard for You?

The GIGABYTE B450M K is an excellent choice for those seeking an affordable yet feature-rich motherboard for gaming or productivity. Its wide compatibility with AMD Ryzen™ CPUs, support for high-speed storage, and expandable options make it a great foundation for versatile builds.
