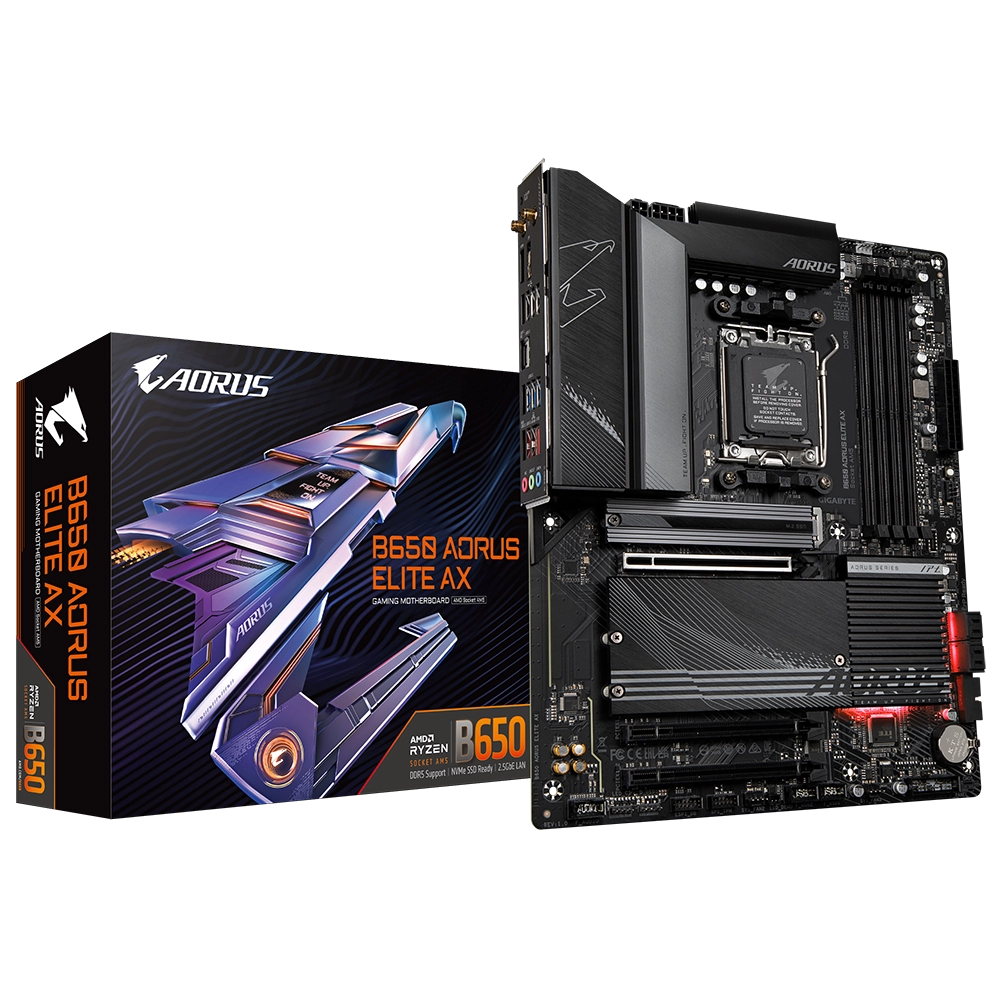

GIGABYTE B650 AORUS ELITE AX V2, AM5, Ryzen 9000/8000/7000, DDR5

Designed for AMD Ryzen 7000, 8000, and 9000 Series processors, the GIGABYTE B650 AORUS ELITE AX V2 features a robust B650 chipset, DDR5 support, PCIe 5.0 storage, and advanced networking capabilities. It’s an ideal choice for gamers and creators looking to build a high-performance ATX system.

Key Features

• Processor Compatibility: AMD Ryzen 7000, 8000, and 9000 Series processors, leveraging AMD Socket AM5.
• Memory Support: 4 x DDR5 DIMM slots, supporting up to 256 GB with speeds up to 8000 MT/s (OC).
• Graphics Support: PCIe 4.0 x16 slot for GPUs and onboard video outputs including HDMI and DisplayPort.
• Storage Options: Three M.2 PCIe slots (PCIe 5.0/4.0) and four SATA III ports with RAID support.
• Connectivity: Integrated Wi-Fi 6E, Realtek® 2.5GbE LAN, and multiple USB ports, including USB-C.
• Audio: High-definition Realtek® audio with 7.1-channel surround sound.

GIGABYTE B650 AORUS ELITE AX V2 Specifications

• Brand: GIGABYTE
• Model: B650 AORUS ELITE AX V2
• Socket Type: AMD Socket AM5
• Chipset: AMD B650
• Processor Compatibility: AMD Ryzen™ 7000, 8000, and 9000 Series Processors
• Memory Support: 4 x DDR5 DIMM slots, up to 256 GB, 8000 MT/s (OC)
• Graphics Support: PCIe 4.0 x16 slot; HDMI 2.1 (4096×2160@60 Hz), DisplayPort 1.4 (3840×2160@144 Hz)
• Storage Interface: 3 x M.2 PCIe slots (PCIe 5.0/4.0), 4 x SATA III ports, RAID 0/1/10 support
• USB Ports: USB Type-C 3.2 Gen 2×2, USB 3.2 Gen 2 Type-A, USB 3.2 Gen 1, USB 2.0
• Networking: Realtek® 2.5GbE LAN, Wi-Fi 6E, Bluetooth 5.3
• Audio: Realtek® Audio CODEC, 7.1-channel support
• BIOS: 256 Mbit flash, UEFI BIOS with Q-Flash Plus
• Operating System Support: Windows 11 64-bit, Windows 10 64-bit
• Form Factor and Dimensions: ATX, 30.5cm x 24.4cm

Processor Compatibility

This motherboard is optimized for AMD Ryzen™ 7000, 8000, and 9000 Series processors, utilizing the AM5 socket for unmatched performance in gaming, streaming, and content creation. With BIOS updates, it ensures forward compatibility with future processor releases.

Memory Compatibility

The B650 AORUS ELITE AX V2 supports up to 256 GB of DDR5 RAM through four DIMM slots. Capable of reaching speeds of up to 8000 MT/s (OC), this motherboard is designed for memory-intensive tasks, including gaming, 3D rendering, and multitasking.

Discrete Graphics Compatibility

The GIGABYTE B650 AORUS ELITE AX V2 motherboard, equipped with the AM5 socket and B650 chipset, offers compatibility with AMD’s cutting-edge Ryzen™ 7000 series processors, including the Ryzen™ 9, Ryzen™ 7, Ryzen™ 5, and Ryzen™ 3 models. Designed to fully leverage the performance of the Zen 4 architecture, this motherboard supports features like PCIe 5.0 for storage and high-speed DDR5 memory.

The B650 chipset provides a balance of performance and value, supporting modern connectivity options such as USB-C 3.2 Gen 2×2, Wi-Fi 6E, and robust VRMs for sustained power delivery, ensuring smooth and stable operation with high-performance CPUs.

Recommended Processors

• AMD Ryzen 9 7900X: A 12-core, 24-thread powerhouse, ideal for gamers and creators requiring exceptional multitasking performance. With support for PCIe 5.0 and DDR5 memory, it’s a perfect match for this motherboard.
• AMD Ryzen 5 7600: A 6-core, 12-thread processor delivering impressive performance for mainstream gaming and productivity. Its efficiency and power balance make it a cost-effective choice for mid-range builds.

Storage and Expansion

This motherboard includes three M.2 slots (PCIe 5.0 and PCIe 4.0) for NVMe SSDs, ensuring ultra-fast storage performance. Four SATA III ports with RAID support allow for additional bulk storage options, catering to diverse needs.

Connectivity and Audio Features

Featuring Wi-Fi 6E and Realtek® 2.5GbE LAN, the B650 AORUS ELITE AX V2 ensures fast, reliable networking. A range of USB ports, including USB Type-C and multiple USB 3.2 Gen 1/2 ports, offers extensive peripheral compatibility. High-definition audio, powered by Realtek®, provides immersive sound quality.

Power Requirements and Cooling

The motherboard features an 8-pin and 4-pin ATX 12V power connector for stable power delivery. Multiple fan headers, water pump support, and customizable RGB lighting ensure efficient thermal management and aesthetic flexibility. A 700W PSU is recommended for optimal performance.

Is This Motherboard for You?

The GIGABYTE B650 AORUS ELITE AX V2 is the perfect choice for gamers, creators, and PC enthusiasts seeking a feature-rich ATX motherboard with advanced connectivity, powerful performance, and future-ready support.
