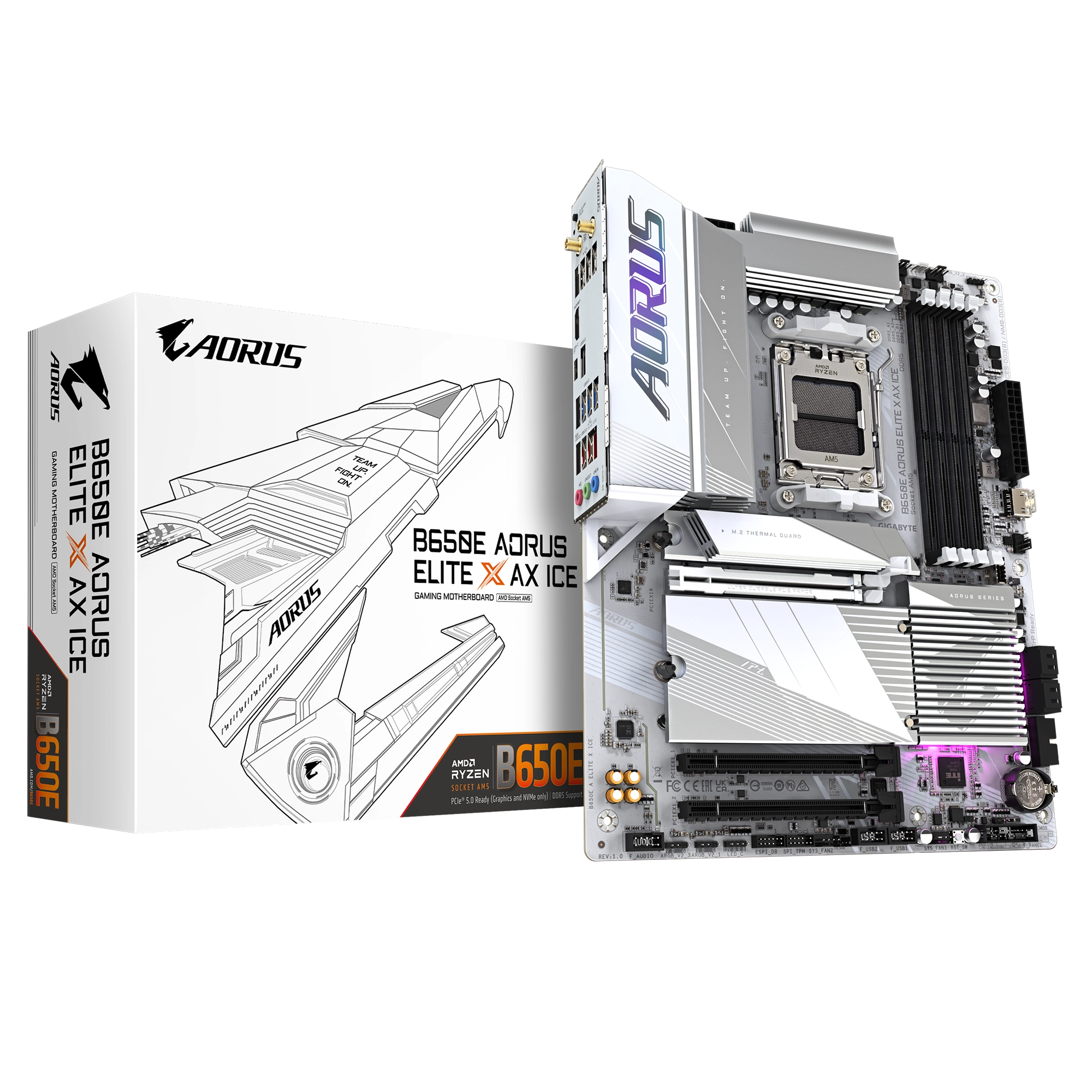

GIGABYTE B650E AORUS ELITE X AX ICE, AM5, Ryzen 9000/8000/7000

The GIGABYTE B650E AORUS ELITE X AX ICE is engineered to deliver cutting-edge performance with AMD’s latest Ryzen™ processors. Featuring DDR5 memory compatibility, PCIe 5.0 storage, enhanced audio, and ultra-fast networking, this ATX motherboard is perfect for high-end gaming and professional use.

Key Features

• Processor Compatibility: Supports AMD Ryzen 7000, 8000, and 9000 Series processors for exceptional multi-core performance.
• Memory Support: Equipped with 4 DDR5 DIMM slots, supporting up to 256 GB at speeds of up to 8000 MT/s.
• Graphics Support: Offers PCIe 5.0 x16 slot for powerful GPUs and onboard video outputs like HDMI and USB Type-C with DisplayPort support.
• Storage Options: Three M.2 PCIe slots (PCIe 5.0/4.0) and four SATA ports for diverse storage configurations.
• Connectivity: Integrated Wi-Fi 6E, Realtek® 2.5GbE LAN, multiple USB ports including USB4 via Ryzen™ 8000 Series.
• Audio: Realtek® high-definition audio with 7.1-channel surround support.

GIGABYTE B650E AORUS ELITE X AX ICE  Specifications

• Brand: GIGABYTE
• Model: B650E AORUS ELITE X AX ICE
• Socket Type: AMD Socket AM5
• Chipset: AMD B650E
• Processor Compatibility: AMD Ryzen 7000, 8000, and 9000 Series Processors
• Memory Support: 4 x DDR5 DIMM slots, up to 256 GB, 8000 MT/s (OC)
• Graphics Support: PCIe 5.0 x16 slot; HDMI 2.1 (4096×2160@60 Hz), USB Type-C with DisplayPort 1.4 (3840×2160@144 Hz)
• Storage Interface: 3 x M.2 PCIe 5.0/4.0 slots, 4 x SATA III ports, RAID 0/1/10 support
• USB Ports: USB Type-C 3.2 Gen 2×2, USB 3.2 Gen 2 Type-A, USB 3.2 Gen 1, USB 2.0
• Networking: Realtek® 2.5GbE LAN, Wi-Fi 6E, Bluetooth 5.3
• Audio: Realtek® High Definition Audio, 7.1-channel support
• BIOS: 256 Mbit flash, UEFI BIOS with Q-Flash Plus
• Operating System Support: Windows 11 64-bit, Windows 10 64-bit
• Form Factor and Dimensions: ATX, 30.5cm x 24.4cm

Processor Compatibility

The GIGABYTE B650E AORUS ELITE X AX ICE motherboard is built around the advanced AMD B650E chipset, utilizing the AM5 socket to support AMD Ryzen™ 7000 series processors. These processors, based on AMD’s Zen 4 architecture, deliver unmatched performance for gaming, streaming, multitasking, and professional workloads. The AM5 platform ensures compatibility with next-generation hardware thanks to support for DDR5 memory and PCIe 5.0 for both storage and graphics.

The motherboard is future-ready, providing upgrade potential for upcoming Ryzen CPUs while offering robust performance for existing AMD Ryzen 7000 processors. Its enhanced power delivery and cooling systems ensure stable performance, even for demanding workloads.

Recommended Processors

• AMD Ryzen 9 7950X: A 16-core, 32-thread powerhouse designed for heavy multitasking, rendering, and high-end gaming. This processor is the ultimate choice for creators and enthusiasts seeking maximum performance.
• AMD Ryzen 5 7600X: Featuring 6 cores and 12 threads, this CPU is perfect for gamers and professionals who want top-tier performance at a more accessible price point.

With the GIGABYTE B650E AORUS ELITE X AX ICE, these processors unlock advanced capabilities such as overclocking, high-bandwidth DDR5 RAM, and lightning-fast PCIe 5.0 storage and graphics, making it a perfect platform for high-performance builds.

Memory Compatibility

With four DDR5 DIMM slots, the B650E AORUS ELITE X AX ICE supports up to 256 GB of RAM. Its support for speeds up to 8000 MT/s ensures smooth multitasking and performance for intensive applications like 3D rendering and AAA gaming.

Discrete Graphics Compatibility

The PCIe 5.0 x16 slot enables compatibility with high-end GPUs, delivering exceptional gaming and visual performance. For systems with integrated Radeon™ graphics, onboard HDMI and USB Type-C with DisplayPort ensure support for multi-monitor setups.

Storage and Expansion

Three M.2 slots (one PCIe 5.0 and two PCIe 4.0) and four SATA ports provide versatile storage options. With support for RAID 0, 1, and 10 configurations, the motherboard caters to speed-focused and redundancy-driven storage needs.

Connectivity and Audio Features

The B650E AORUS ELITE X AX ICE includes Wi-Fi 6E for low-latency wireless networking, 2.5GbE LAN for fast wired connections, and USB4 capability with Ryzen™ 8000 Series processors. Its Realtek® audio codec ensures rich, immersive sound for gaming and media consumption.

Power Requirements and Cooling

Featuring an 8-pin and 4-pin ATX 12V power connector, this motherboard ensures stable operation under heavy loads. Multiple fan headers, water pump support, and RGB LED headers provide comprehensive cooling and customization options. A minimum 650W power supply is recommended for optimal system performance.

Is This Motherboard for You?

The GIGABYTE B650E AORUS ELITE X AX ICE is ideal for gamers, creators, and professionals seeking high-end performance and connectivity. With advanced features and future-ready support, it provides excellent value for premium PC builds.
