GIGABYTE B660M DS3H, LGA1700, Supports Intel 14th/13th/12th Gen

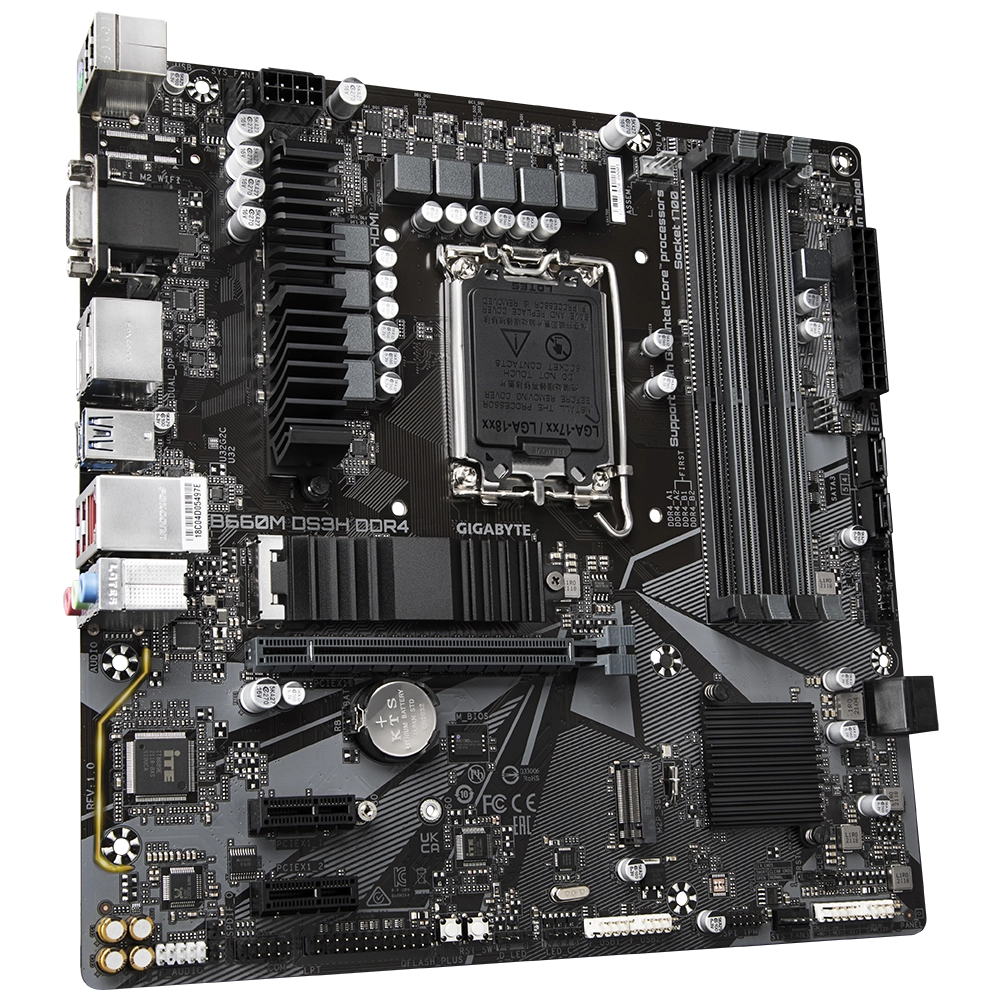

The GIGABYTE B660M DS3H motherboard is a feature-packed micro-ATX board designed to provide reliable performance for high-demand workloads and gaming. Powered by the Intel B660 chipset, it supports Intel’s 14th, 13th, and 12th Gen Core processors, including Pentium Gold and Celeron. With dual PCIe 4.0 x4 M.2 slots for high-speed NVMe SSDs, four DDR4 DIMM slots supporting up to 128GB of memory, and a PCIe 4.0 x16 slot for GPUs, this motherboard offers the flexibility and performance you need.

The 6+2+1 Hybrid Digital VRM with MOS heatsink ensures stable power delivery even under heavy workloads, while 2.5GbE LAN and USB 3.2 Gen 2 Type-C provide fast and versatile connectivity. Additionally, Smart Fan 6 ensures efficient cooling with hybrid fan headers and customizable profiles. RGB Fusion 2.0 enables customizable lighting for a visually appealing build.

Key Features

• Processor Compatibility: Supports Intel 14th, 13th, and 12th Gen Core, Pentium Gold, and Celeron processors.
• Memory Support: 4 DDR4 DIMM slots supporting up to 128GB at speeds up to 5333MT/s (OC).
• Dual PCIe 4.0 M.2 Slots: Offers ultra-fast storage performance with thermal guards for optimal SSD cooling.
• Fast Networking: Realtek 2.5GbE LAN with bandwidth management for stable and fast connectivity.
• Comprehensive Cooling: Smart Fan 6 with multiple temperature sensors and hybrid fan headers for effective cooling.
• Durable Design: 6+2+1 Hybrid Digital VRM with MOS heatsink for reliable power delivery.
• Enhanced Audio: Realtek Audio CODEC with Noise Guard and high-quality capacitors for immersive sound.
• Customizable RGB Lighting: RGB Fusion 2.0 with support for addressable LED and RGB LED strips.
• DIY-Friendly Features: Q-Flash Plus for BIOS updates without CPU, memory, or GPU installation.

GIGABYTE B660M DS3H Specifications

• Brand: GIGABYTE
• Model: B660M DS3H
• Socket Type: LGA1700
• Chipset: Intel B660
• Processor Compatibility: Intel 14th, 13th, and 12th Gen Core, Pentium Gold, and Celeron processors
• Memory Support: 4 x DDR4 DIMM slots, up to 128GB, speeds up to 5333MT/s (OC)
• Graphics Support: Integrated Graphics via 1 x HDMI 2.1 (4K@60Hz), 1 x DisplayPort 1.2 (4K@60Hz), 1 x D-Sub port (1920×1200@60Hz)
• Expansion Slots: 1 x PCIe 4.0 x16 slot, 2 x PCIe 3.0 x1 slots
• Storage Interface: 2 x PCIe 4.0 M.2 slots with thermal guards, 4 x SATA 6Gb/s connectors (RAID 0, 1, 5, 10 support)
• Networking: Realtek 2.5GbE LAN
• Audio: Realtek Audio CODEC, 7.1-channel HD Audio with Noise Guard and high-quality audio capacitors
• USB Ports: Rear: 1 x USB 3.2 Gen 2 Type-C®, 3 x USB 3.2 Gen 1, 2 x USB 2.0; Internal: 1 x USB 3.2 Gen 1 header (2 ports), 2 x USB 2.0 headers (4 ports)
• Cooling: 1 x CPU fan header, 3 x system fan headers, Smart Fan 6 technology
• Internal I/O Connectors: 2 x M.2 slots, 4 x SATA 6Gb/s connectors, USB headers, RGB and addressable LED headers
• Back Panel I/O: 1 x HDMI 2.1, 2 x DisplayPorts, 1 x D-Sub, 1 x USB 3.2 Gen 2 Type-C®, 3 x USB 3.2 Gen 1, 2 x USB 2.0, 1 x RJ-45 LAN port, 3 x audio jacks, 1 x PS/2 keyboard/mouse port
• BIOS: 256Mb Flash ROM, UEFI AMI BIOS
• Form Factor: Micro-ATX (24.4cm x 24.4cm)
• Operating System Support: Windows 11 64-bit, Windows 10 64-bit

Processor Compatibility

The GIGABYTE B660M DS3H motherboard supports Intel processors ranging from the 12th to 13th Gen, offering a balance of affordability and performance. Designed with the LGA1700 socket, this motherboard is optimized for Intel’s Alder Lake and Raptor Lake CPUs, delivering excellent multitasking and gaming capabilities.

It is also compatible with lower-tier processors such as Intel Pentium® Gold and Celeron®, ensuring flexibility for budget builds.

Recommended Processors for GIGABYTE B660M DS3H

• Intel Core i5-12400F: A cost-effective choice for gaming and productivity, offering 6 cores and 12 threads.
• Intel Core i7-13700: Perfect for high-performance tasks and gaming, with excellent multi-threading performance.

Discrete GPU Compatibility

The GIGABYTE B660M DS3H motherboard features a PCIe 4.0 x16 slot for discrete GPUs, ensuring compatibility with modern graphics cards. However, it does not support PCIe 5.0, so next-gen GPUs requiring that bandwidth may not achieve full potential. Despite this, most current GPUs perform optimally with PCIe 4.0, ensuring excellent gaming and rendering performance.

Recommended GPU for GIGABYTE B660M DS3H

• NVIDIA GeForce RTX 3060: Ideal for 1080p and 1440p gaming, delivering smooth visuals and ray tracing support.
• AMD Radeon RX 6700 XT: A great option for high-refresh gaming and content creation, leveraging PCIe 4.0 for optimal performance.

Memory Compatibility

The GIGABYTE B660M DS3H motherboard supports DDR4 memory across four DIMM slots, with a maximum capacity of 128GB. It supports speeds up to 3200MHz (JEDEC) natively, with overclocking capabilities extending to 5333MHz when using Intel XMP profiles.

However, the lack of DDR5 support means that users are limited to DDR4 performance tiers. While this is more cost-effective, enthusiasts looking for future-proofing might consider motherboards with DDR5 support.

Power Requirements and Cooling

The GIGABYTE B660M DS3H motherboard is equipped with a 24-pin ATX main power connector and an 8-pin CPU power connector, ensuring stable power delivery to the processor and components. The motherboard’s VRM design supports mid-tier processors and moderate overclocking but may not be suitable for heavy overclocking of high-end CPUs.

Cooling headers include:

• 1x 4-pin CPU fan header for cooling the processor.
• 2x 4-pin system fan headers for case airflow optimization.
• 1x water pump header, enabling compatibility with AIO liquid coolers.

Recommended Power Supply Units for GIGABYTE B660M DS3H

• Corsair CX650F (650W): Perfect for mid-range builds with discrete GPUs like the RTX 3060.
• Seasonic Focus GX-750 (750W): Ensures stable performance for higher-power setups with GPUs like the RX 6700 XT.

Storage Options and Connectivity

The GIGABYTE B660M DS3H motherboard offers versatile storage options, including:

• 2x M.2 slots supporting PCIe 4.0 NVMe SSDs for ultra-fast storage.
• 4x SATA III ports for HDDs or SATA SSDs, ideal for bulk storage or legacy drives.

Connectivity options include USB 3.2 Gen 1 and Gen 2 ports for high-speed data transfer, as well as HDMI and DisplayPort for integrated graphics, making it a reliable option for a variety of use cases.

Is This Motherboard for You?

The GIGABYTE B660M DS3H is ideal for gamers, creators, and PC enthusiasts looking for a reliable, feature-rich motherboard. With its support for PCIe 4.0, dual M.2 slots, 2.5GbE LAN, and robust power delivery, it offers excellent value for modern PC builds.
