650W PSU with 80 PLUS Bronze efficiency, Japanese capacitors, flat cables, and quiet 120mm hydraulic bearing fan. Reliable, efficient power for mid to high-end gaming systems.
Product Description

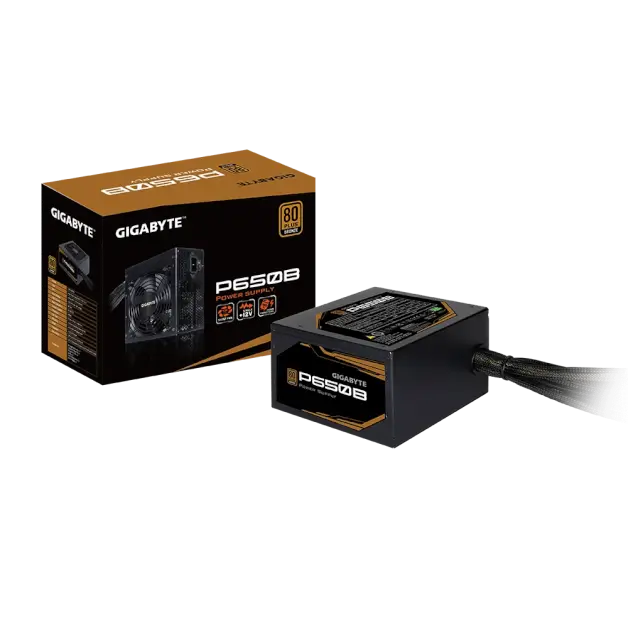

The Gigabyte P650B power supply delivers dependable performance and efficiency for gaming and productivity systems. Certified with 80 PLUS Bronze, it ensures up to 85% efficiency at typical loads, reducing energy waste and heat.
Featuring a single +12V rail for stable power, 100% Japanese capacitors for durability, and a 120mm hydraulic bearing fan for quiet cooling, the P650B is an ideal choice for mid to high-end builds. Equipped with multiple safety protections, it ensures reliable operation for your critical components.
Key Features
- Wattage: 650W continuous power for gaming PCs and workstations.
- Efficiency Rating: 80 PLUS Bronze certified for up to 85% efficiency under typical loads.
- Premium Components: Built with 100% Japanese capacitors for enhanced stability and longevity.
- Cooling System: Quiet 120mm hydraulic bearing fan ensures optimal cooling with low noise.
- Single +12V Rail: Provides stable and consistent power, ideal for overclocking and high-performance hardware.
- Flat Cables: Simplifies cable management and improves airflow for cleaner builds.
- Safety Protections: Features OPP, UVP, OVP, SCP, and OCP to safeguard your components.
- Durability: Rated for >100,000 hours MTBF, ensuring long-lasting performance.
Gigabyte P650B Power Supply Specifications
- Brand: Gigabyte
- Model: P650B
- Wattage: 650W continuous output
- Efficiency Certification: 80 PLUS Bronze
- Form Factor: ATX 12V V2.31
- Input Voltage: 100-240V AC (full range)
- Input Frequency Range: 50-60Hz
- PFC: Active PFC (>0.9 typical)
- Fan Size and Type: 120mm Hydraulic Bearing (HYB) fan
- Hold-Up Time: >16ms at 80% load
- Protections: OPP, UVP, OVP, SCP, OCP
- Regulatory Certifications: CE, CCC, BSMI, KCC, EAC, UL, TUV, RCM, FCC, PSE
- Cable Type: Flat black cables
- Connectors:
- Motherboard: 1 x 24-pin ATX (20+4)
- CPU/EPS: 1 x 4+4-pin EPS12V
- PCIe: 4 x 6+2-pin PCIe
- SATA: 6 x SATA connectors
- Peripheral (Molex): 3 x 4-pin Molex
- Floppy: 1 x Floppy connector
- Dimensions: 150mm x 140mm x 86mm
- MTBF: >100,000 hours
- Warranty: 3 Years (region-dependent)
Processor Compatibility
The P650B is compatible with modern Intel and AMD CPUs, supporting multi-core processors like Intel Core i7/i9 and AMD Ryzen 7/9 for gaming and professional builds.
Graphics Card Compatibility
The Gigabyte P650B Power Supply delivers 650W of reliable power, making it an excellent choice for mid-range to high-performance GPUs. Its single +12V rail design ensures stable output, ideal for power-hungry GPUs. Here are some compatible graphics cards from the provided list:
NVIDIA GeForce RTX Series
- MSI RTX 4070 Ventus 2X 12G OC
- ASUS Dual GeForce RTX 4060 Ti OC
- Gigabyte GeForce RTX 3060 WINDFORCE OC 12GB
AMD Radeon RX Series
For users planning a gaming or creative build, the P650B supports GPUs requiring up to 250W TDP, providing enough headroom for peak performance.
Motherboard Compatibility
The Gigabyte P650B is compliant with Intel ATX 12V v2.31, ensuring broad compatibility with modern motherboards. Here are some excellent pairings:
AMD Socket AM4
Intel LGA1700
- MSI PRO B660M-A WIFI
- ASUS PRIME Z690-A
- Gigabyte Z790 AORUS ELITE AX
Its all-black flat cables enhance airflow and ease cable management, a great feature for clean PC builds.
Energy Efficiency
The 80 PLUS Bronze certification guarantees up to 85% efficiency under typical loads, reducing electricity costs and minimizing heat output.
Cooling and Noise Level
The 120mm hydraulic bearing fan provides efficient cooling while operating quietly. The fan speed dynamically adjusts based on power demand, ensuring a balance between performance and noise.
Is the Gigabyte P650B for You?
The Gigabyte P650B is an excellent choice for mid to high-end gaming or productivity builds. With 650W output, 80 PLUS Bronze efficiency, Japanese capacitors, and robust protections, it offers reliable and efficient power.
Whether you’re building a powerful gaming rig or a professional workstation, the P650B delivers stable, quiet, and durable performance.
