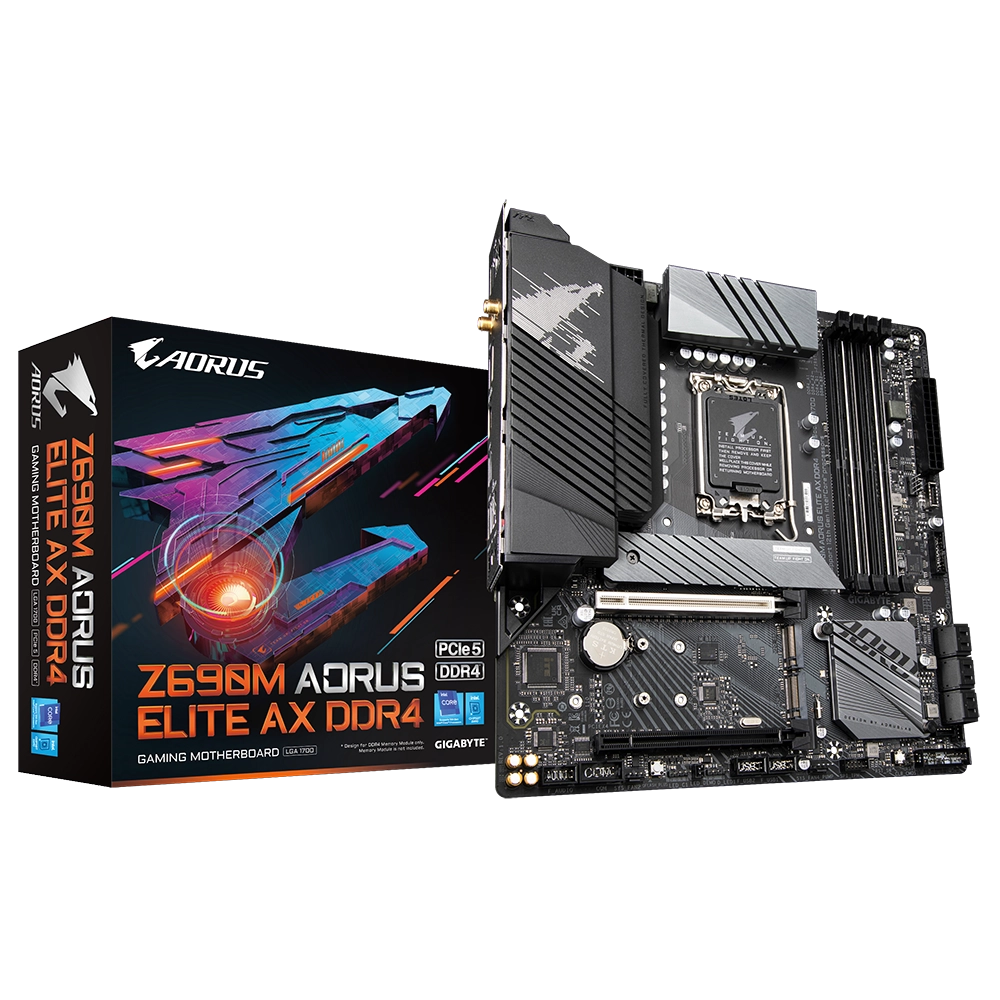

GIGABYTE Z690M AORUS ELITE AX, Supports Intel 14th/13th/12th Gen

Experience high performance in a compact form factor with the GIGABYTE Z690M AORUS ELITE AX motherboard. Designed for Intel’s latest processors, this micro-ATX motherboard delivers cutting-edge features like PCIe 5.0 support, DDR4 memory overclocking up to 5333 MT/s, and Intel WiFi 6 for blazing-fast connectivity.

Equipped with a Direct 12+1+2 Phases Digital VRM Design with 60A power stages and Tantalum Polymer Capacitors, the motherboard ensures efficient power delivery and reliability under heavy workloads. For storage, it supports three PCIe 4.0 M.2 slots with thermal guards and six SATA 6Gb/s ports, giving you versatile options for high-speed storage.

The Smart Fan 6 technology keeps your system cool with hybrid fan headers and advanced fan controls, while RGB Fusion 2.0 provides stunning, customizable lighting options. With a pre-installed I/O shield and Q-Flash Plus, the motherboard is also incredibly easy to set up and maintain.

Key Features

• Processor Compatibility: Supports Intel 14th, 13th, and 12th Gen Core, Pentium Gold, and Celeron processors.
• Memory Support: Dual-channel DDR4, up to 5333 MT/s (OC), with a maximum capacity of 128GB.
• PCIe 5.0 Support: One PCIe 5.0 x16 slot for next-gen GPUs.
• Storage: Three PCIe 4.0 M.2 slots and six SATA 6Gb/s connectors with RAID support.
• Networking: Intel WiFi 6 for high-speed wireless connectivity and Intel 2.5GbE LAN for ultra-low latency.
• Cooling: Fully covered thermal design with high-coverage MOSFET heatsinks and Smart Fan 6 technology.
• USB Connectivity: Rear USB 3.2 Gen 2×2 Type-C® port and internal USB Type-C® header for modern devices.
• RGB Lighting: RGB Fusion 2.0 with support for addressable and RGB LED strips.

GIGABYTE Z690M AORUS ELITE AX Specifications

• Brand: GIGABYTE
• Model: Z690M AORUS ELITE AX
• Socket Type: LGA1700
• Chipset: Intel Z690 Express Chipset
• Processor Compatibility: Intel 14th, 13th, and 12th Gen Core, Pentium Gold, and Celeron processors.
• Memory Support: 4 x DDR4 DIMM slots, up to 128GB, speeds up to 5333 MT/s (OC).
• Graphics Support: 1 x HDMI (4096×2160@60Hz), 1 x DisplayPort (4096×2304@60Hz).
• Expansion Slots: 1 x PCIe 5.0 x16 slot, 1 x PCIe 4.0 x4 slot.
• Storage Interface: 3 x PCIe 4.0 M.2 slots, 6 x SATA 6Gb/s connectors with RAID support (RAID 0, 1, 5, 10).
• Networking: Intel WiFi 6 (802.11ax) and Intel 2.5GbE LAN.
• Audio: Realtek Audio CODEC with high-definition audio and S/PDIF Out.
• USB Ports: Rear – 1 x USB 3.2 Gen 2×2 Type-C, 1 x USB 3.2 Gen 2 Type-A, 4 x USB 3.2 Gen 1, 4 x USB 2.0. Front – 1 x USB 3.2 Gen 2 Type-C, 1 x USB 3.2 Gen 1 header (2 ports), 2 x USB 2.0 headers (4 ports).
• Cooling Features: 1 x CPU fan header, 1 x water cooling CPU fan header, 3 x system fan headers.
• Internal I/O Connectors: 3 x M.2 connectors, 6 x SATA 6Gb/s connectors, RGB and addressable RGB LED headers.
• Back Panel I/O: 1 x USB 3.2 Gen 2×2 Type-C, 1 x USB 3.2 Gen 2 Type-A, 4 x USB 3.2 Gen 1, 4 x USB 2.0, 1 x HDMI, 1 x DisplayPort, 1 x RJ-45, 2 x SMA antenna connectors, 1 x optical S/PDIF Out connector, 2 x audio jacks.
• BIOS: 256Mb Flash ROM, UEFI AMI BIOS.
• Operating System Support: Windows 11 64-bit, Windows 10 64-bit.
• Form Factor: Micro-ATX (24.4cm x 24.4cm).

Processor Recommendations

The GIGABYTE Z690M AORUS ELITE AX motherboard is built on the Intel Z690 chipset, supporting a wide range of Intel processors, starting from the 12th Gen up to the 13th Gen and beyond with BIOS updates. Its LGA 1700 socket ensures compatibility with the latest CPUs, delivering power and performance for gamers, creators, and professionals alike.

The motherboard supports:

• Intel 12th Gen Processors: Ideal for budget-conscious users building an efficient desktop.
• Intel 13th Gen Processors: Optimal for high-performance tasks, with greater core counts and improved efficiency.

Processor Recommendations for GIGABYTE Z690M AORUS ELITE AX

• Intel Core i5-12600K: A perfect balance for gamers and multitaskers.
• Intel Core i7-13700F: Advanced performance for creators and heavy multitaskers.

Discrete GPU Compatibility

The PCIe 5.0 x16 slot on this motherboard ensures future-proof graphics card compatibility, delivering double the bandwidth of PCIe 4.0 for unparalleled performance. However, it is backward compatible with PCIe 4.0 and PCIe 3.0 GPUs.

If you’re using older graphics cards, note that you won’t leverage the full bandwidth of PCIe 5.0, but compatibility is guaranteed.

Recommended GPUs for GIGABYTE Z690M AORUS ELITE AX

• NVIDIA GeForce RTX 4060 Ti: A great choice for 1440p gaming and creative workloads.
• AMD Radeon RX 7900 XT: Ideal for 4K gaming and demanding applications.

Memory Compatibility

The Z690M AORUS ELITE AX supports DDR4 memory with up to 128GB capacity across 4 DIMM slots. It supports Intel XMP profiles for easy memory overclocking, achieving speeds up to DDR4-5333+ MHz (OC) depending on the memory module.

However, note that higher speeds are achievable only with carefully selected RAM and optimal configurations.

Power Requirements and Cooling

The motherboard is equipped with robust power delivery and advanced cooling features to handle demanding workloads:

Power Connectors:

• 8-pin ATX 12V power connector ensures a stable power supply to the CPU, even under heavy loads.
• 24-pin main power connector provides overall stability for the system.

Cooling Solutions:

• VRM heatsinks with enhanced surface area keep temperatures under control during overclocking.
• Multiple hybrid fan headers allow fine-tuned cooling, with support for high-performance air or liquid cooling.

Recommended Power Supply for GIGABYTE Z690M AORUS ELITE AX

• 650W PSU: For mid-range builds using GPUs like the RTX 4060 Ti.
• 850W PSU: For high-performance setups with GPUs like the RX 7900 XT or if you plan on overclocking.

Storage Options and Connectivity

The Z690M AORUS ELITE AX offers versatile storage and connectivity options:

• M.2 Slots: Includes 3 PCIe 4.0 M.2 slots for blazing-fast NVMe SSDs, ensuring quicker boot times and reduced load times.
• SATA Ports: Features 4 SATA III ports, accommodating legacy drives or additional storage.
• Connectivity: Equipped with Wi-Fi 6E, 2.5Gb Ethernet, and a rich selection of USB ports, including USB 3.2 Gen 2×2 Type-C, for seamless data transfers.

Is This Motherboard Right for You?

The GIGABYTE Z690M AORUS ELITE AX motherboard is perfect for gamers, creators, and PC enthusiasts who need high performance in a compact form factor. Its advanced features, including PCIe 5.0, triple M.2 slots, and WiFi 6, ensure a future-proof build.

Whether you’re upgrading an existing PC or building a new system, this motherboard offers exceptional value and versatility.
