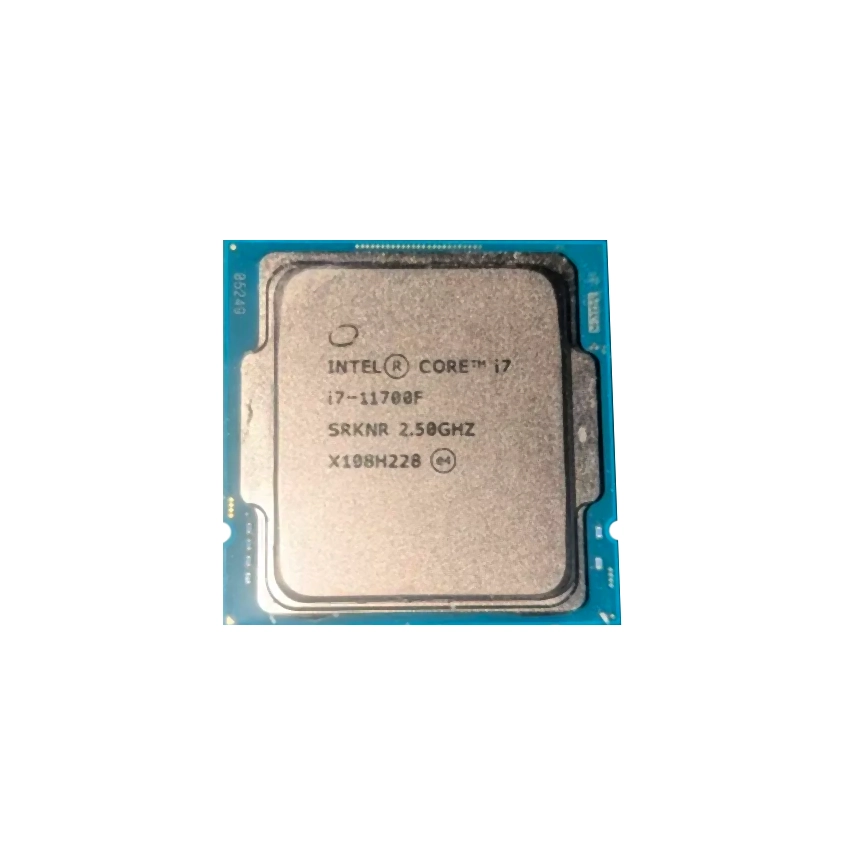

Intel Core i7-11700F, LGA 1200, 8 Cores 16 Threads, 4.9 GHz

The Intel Core i7-11700F processor is a high-performance desktop processor from the Rocket Lake-S lineup. Built for gamers, creators, and professionals, it boasts 8 cores and 16 threads for exceptional multitasking and high-speed processing. With a base clock speed of 2.5 GHz and the ability to turbo boost up to 4.9 GHz, the Core i7-11700F delivers seamless performance in demanding applications, from gaming to content creation.

Although it lacks integrated graphics, this processor shines when paired with a discrete GPU, making it a powerhouse for gaming rigs and workstation builds. With PCIe Gen 4 support, DDR4-3200 compatibility, and advanced AVX-512 instruction sets, the Core i7-11700F is ready to tackle modern computing challenges.

Key Features

• High-Performance Multitasking: 8 cores and 16 threads ensure effortless handling of intensive tasks and multitasking.
• Turbo Boost Technology: Reach up to 4.9 GHz for peak performance during demanding workloads.
• Discrete Graphics Required: Designed for use with a dedicated GPU for superior graphics performance.
• Memory Compatibility: Supports dual-channel DDR4 memory with speeds up to 3200 MT/s.
• PCIe Gen 4 Connectivity: Delivers faster data transfers for GPUs and NVMe SSDs.
• Efficient Energy Use: Operates with a TDP of 65 W, making it power-efficient yet powerful.
• Advanced Instructions: Features AVX-512 and AVX2 for enhanced performance in complex computations.

Intel Core i7-11700F Processor Specifications

• Brand: Intel
• Series: Core i7
• Model: i7-11700F
• Cores/Threads: 8 Cores / 16 Threads
• Base Clock Speed: 2.5 GHz
• Max Boost Clock Speed: Up to 4.9 GHz
• Cache: L1 Cache: 80 KB (per core), L2 Cache: 512 KB (per core), L3 Cache: 16 MB (shared)
• Socket Compatibility: Intel LGA 1200
• Graphics: Not Included (requires discrete GPU)
• Process Technology: 14 nm
• Thermal Design Power (TDP): 65 W
• Memory Support: DDR4-3200, Dual-channel
• PCI Express Version: PCIe Gen 4, 20 Lanes
• Max Operating Temperature: 100°C
• Release Date: March 16, 2021
• Motherboard Chipsets: H510, B560, H570, Q570, W580, Z590, Q470, H470, W480, Z490

Motherboard Compatibility

The Intel Core i7-11700F Processor uses the Intel Socket 1200 and is compatible with motherboards that feature the 400-series and 500-series chipsets, such as Z590, B560, H510, H570, and Z490.

For optimal performance and access to advanced features like PCIe Gen 4 support, it is recommended to pair the processor with a Z590 motherboard, which enables better performance tuning and faster communication with other components.

Motherboard Recommendation

• ASUS ROG Strix Z590-E Gaming WiFi: A high-end option with advanced features like WiFi 6, PCIe 4.0, and AI overclocking.
• MSI MAG B560 Tomahawk: A solid mid-range board offering reliable performance and essential features like USB 3.2 Gen 2 and robust VRM cooling.

Ensure the BIOS on older motherboards, such as the Z490 or H470, is updated to support the 11th Gen Rocket Lake processors like the Core i7-11700F.

Discrete GPU Compatibility

Since the Intel Core i7-11700F lacks integrated graphics, a discrete graphics card is required for any visual output or gaming setup. This processor pairs well with a range of GPUs depending on your intended use case:

• For budget gaming or casual workloads, consider the NVIDIA GeForce GTX 1660 Super or the AMD Radeon RX 6500 XT.
• For enthusiast gaming or content creation, the NVIDIA GeForce RTX 3060 Ti or the AMD Radeon RX 6700 XT are excellent choices for 1080p to 1440p gaming.
• For high-end 4K gaming, the NVIDIA RTX 3080 or AMD RX 7900 XT will maximize the processor’s capabilities.

Memory Compatibility

The Core i7-11700F processor supports dual-channel DDR4 memory with speeds up to 3200 MT/s natively. With the appropriate motherboard and memory modules, you can overclock to achieve even higher speeds, enabling improved system responsiveness and gaming performance.

Power Requirements and Cooling

The Intel Core i7-11700F has a TDP (Thermal Design Power) of 65W under normal operating conditions. However, the power draw may increase significantly under heavy workloads due to Intel’s Turbo Boost Technology, which can push the clock speed up to 4.9 GHz. For this reason:

• Pair this processor with a power supply rated at 500W to 650W, especially if using a mid-tier GPU like the RTX 3060 or RX 6700 XT.
• For high-end GPUs like the RTX 3080, consider a 750W PSU from a reputable brand such as EVGA, Corsair, or Seasonic.

In terms of cooling, while the Core i7-11700F comes with a stock cooler, it is advisable to use a third-party air cooler or an AIO liquid cooler for better thermal management, particularly during extended gaming or heavy workloads.

Recommended options include the Cooler Master Hyper 212 Black Edition (air) or the NZXT Kraken X53 (AIO).

Is This Processor for You?

The Intel Core i7-11700F Processor is an excellent choice for gamers, streamers, and professionals who need a reliable CPU for multi-threaded tasks and gaming at high settings. Its locked multiplier means it is not geared toward overclocking enthusiasts, but it still delivers great performance in its class.

Pair it with a discrete GPU for seamless gaming or content creation, and ensure compatibility with your chosen motherboard and power supply. If you need integrated graphics for a non-gaming setup, consider alternatives like the Core i7-11700 (non-F variant).
