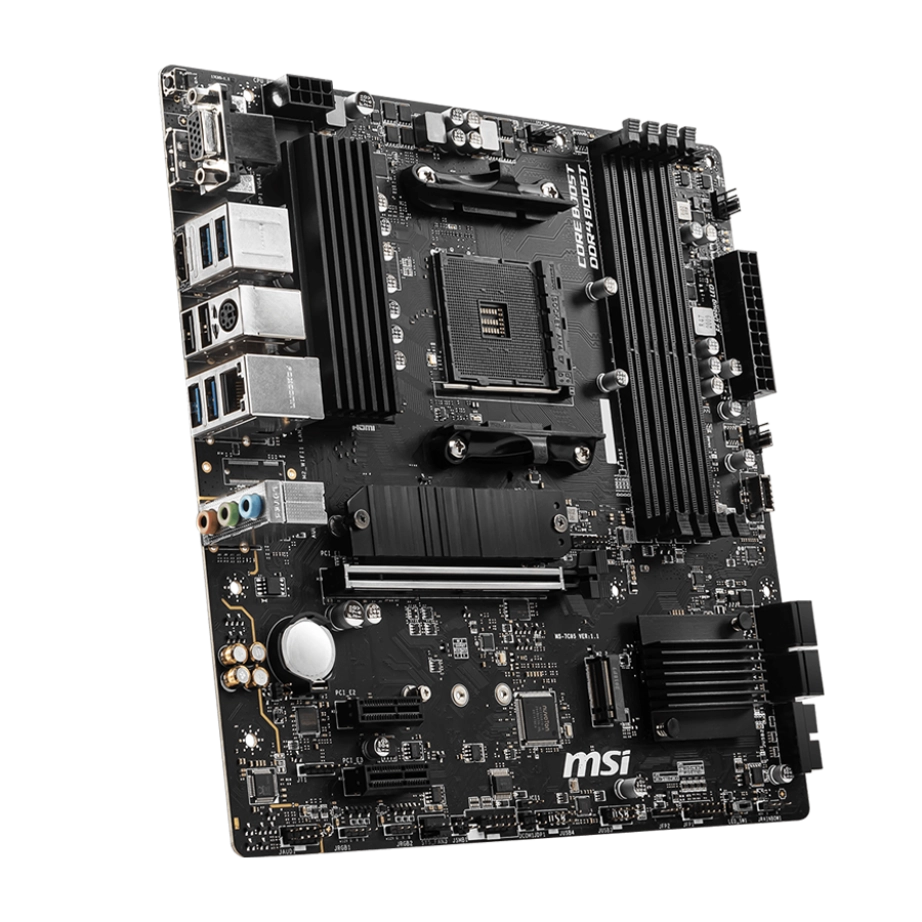

MSI B550M PRO-VDH – AM4 Motherboard For Ryzen 5000

The MSI B550M PRO-VDH is a compact and efficient motherboard equipped with the AMD B550 chipset, designed to support AMD Ryzen 5000, 3000, and 4000 G-Series processors. This Micro-ATX motherboard delivers dependable performance for productivity and entry-level gaming.

With dual M.2 slots, PCIe 4.0 support, and versatile connectivity options, it’s tailored for budget-conscious users seeking reliability and functionality.

Key Features

• Processor Compatibility: Supports AMD Ryzen 5000, 3000, and Ryzen 4000 G-Series processors.
• Memory Support: 4x DDR4 slots, up to 128GB, speeds up to DDR4-4400 MHz (A-XMP OC).
• Graphics Support: PCIe 4.0 x16 slot; onboard VGA, DisplayPort, and HDMI™ 2.1 up to 4K 60Hz.
• Storage Options: Dual M.2 slots and 4x SATA 6Gb/s ports with RAID support.
• Connectivity: USB 3.2 Gen 1 Type-C, USB 3.2 Gen 1 Type-A, USB 2.0 ports.
• Audio: Realtek ALC892/ALC897 Codec, 7.1-channel HD audio.
• Networking: Realtek® 8111HN Gigabit LAN.
• Form Factor: Micro-ATX for compact builds.

MSI B550M PRO-VDH  Specifications

• Brand: MSI
• Model: B550M PRO-VDH
• Socket Type: AM4
• Chipset: AMD B550
• Processor Compatibility: AMD Ryzen 5000 & 3000 Series desktop processors (excluding Ryzen 5 3400G & Ryzen 3 3200G) and Ryzen 4000 G-Series processors
• Memory Support: 4x DDR4 slots, up to 128GB, speeds up to DDR4-4400 MHz (A-XMP OC)
• Graphics Support: PCIe 4.0 x16 slot; VGA, DisplayPort (4K 60Hz), HDMI™ 2.1 (4K 60Hz)
• Storage Interface: 2x M.2 slots (PCIe 4.0/3.0 x4), 4x SATA 6Gb/s ports, RAID 0, 1, and 10 support
• USB Ports: USB 3.2 Gen 1 Type-C, USB 3.2 Gen 1 Type-A, USB 2.0 (rear and internal headers)
• Networking: Realtek® 8111HN Gigabit LAN
• Audio: Realtek ALC892/ALC897 Codec, 7.1-channel HD audio
• BIOS: UEFI BIOS with Flash BIOS Button
• Operating System Support: Windows 11 64-bit, Windows® 10 64-bit
• Form Factor and Dimensions: Micro-ATX, 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)

Processor Compatibility

The MSI B550M PRO-VDH supports AMD Ryzen™ 5000, 4000 G-Series, and 3000 Series desktop processors, leveraging the AM4 socket and B550 chipset for enhanced performance and functionality.

It excludes compatibility with the older Ryzen 5 3400G and Ryzen™ 3 3200G processors, which belong to the previous Zen+ architecture. The board is optimized for gaming, multitasking, and productivity builds, offering seamless integration with AMD’s high-performing CPUs.

Compatible Processors:

• Ryzen 5000 Series: Includes flagship models like the Ryzen 9 5900X (12 cores, 24 threads) and the Ryzen 5 5600X (6 cores, 12 threads) for excellent single-threaded and multi-threaded performance.
• Ryzen 4000 G-Series: Processors such as the Ryzen 7 4700G and Ryzen 5 4600G provide integrated graphics, making them ideal for entry-level builds without a dedicated GPU.
• Ryzen 3000 Series: Popular models like the Ryzen 7 3700X and Ryzen 5 3600 offer solid performance for gaming and general workloads.

Processor Recommendations:

• Budget-Friendly: Ryzen 5 5600G (6 cores) for affordable gaming and productivity without a discrete GPU.
• Mid-Range: Ryzen 7 5800XT (8 cores) for gaming and multitasking with future-proof capabilities.
• High-End: Ryzen 9 5900X (12 cores) for content creators, streamers, and gamers seeking top-tier performance.

With BIOS updates, this motherboard ensures compatibility with newer Ryzen™ CPUs, making it a future-proof investment for users aiming for performance upgrades.

Memory Compatibility

The MSI B550M PRO-VDH supports up to 128GB of DDR4 RAM across four DIMM slots, with speeds ranging from 1866 MHz to 2933 MHz in standard mode. Overclocking via A-XMP OC Mode allows memory speeds up to 4400+ MHz, enhancing performance for demanding applications like gaming and video editing. Its dual-channel architecture ensures optimized bandwidth for multitasking and heavy workloads. Additionally, it supports both ECC (non-ECC mode) and non-ECC unbuffered memory, offering flexibility for professional and casual users.

Discrete Graphics Compatibility

The motherboard includes a PCIe 4.0/3.0 x16 slot, delivering optimal GPU performance when paired with Ryzen™ 5000 processors. With Ryzen™ 3000 CPUs, the slot operates at PCIe 3.0 speeds, which slightly reduces the bandwidth for modern GPUs but remains sufficient for most gaming and professional tasks.

PCIe Version Limitations:

• PCIe 4.0: Operates at full speed with Ryzen™ 5000 processors, unlocking maximum GPU potential for the latest graphics cards.
• PCIe 3.0: Active with Ryzen™ 3000 processors, reducing throughput but still supporting high-performance GPUs effectively.

Recommended GPUs:

• Entry-Level: AMD RX 6500 XT or NVIDIA GTX 1660 for 1080p gaming at medium to high settings.
• Mid-Range: NVIDIA RTX 3060 or AMD RX 6700 XT for 1440p gaming at high settings and ray tracing capabilities.
• High-End: NVIDIA RTX 4070 Ti or AMD RX 7900 XT for 4K gaming and professional rendering.

The motherboard also includes onboard graphics outputs (HDMI, DisplayPort, and VGA) for builds using Ryzen™ G-Series processors with integrated graphics, enabling flexible options for entry-level systems.

Storage and Expansion

Dual M.2 slots (PCIe 4.0/3.0 x4) and 4x SATA 6Gb/s ports offer flexible storage solutions. RAID support (0, 1, and 10) adds versatility for both performance and data protection.

Connectivity and Audio Features

The motherboard includes USB 3.2 Gen 1 Type-C, USB 3.2 Gen 1 Type-A, and USB 2.0 ports, ensuring compatibility with modern peripherals. The 7.1-channel HD audio, powered by Realtek®, delivers immersive sound quality.

Power Requirements and Cooling

The MSI B550M PRO-VDH is equipped with a robust power delivery system, featuring an 8-pin ATX 12V connector that provides stable power to the CPU, supporting high-performance Ryzen™ processors under load. Proper power supply selection and cooling systems are critical for maintaining reliability and efficiency.

Recommended Power Supply Wattage:

• Basic Build (Ryzen™ 5 5600G + GTX 1650): A 500W PSU is sufficient.
• Mid-Tier Build (Ryzen™ 7 5800X + RTX 3060 Ti): Opt for a 650W PSU with an 80 Plus Gold certification.
• High-End Build (Ryzen™ 9 5900X + RX 6900 XT): A 750W to 850W PSU is recommended to handle peak power loads.

Cooling Recommendations:

CPU Cooling:

• Air Cooling: For mid-range CPUs like the Ryzen™ 5 5600X, use air coolers such as the Cooler Master Hyper 212. For high-performance CPUs like the Ryzen™ 9 5900X, consider advanced options like the Noctua NH-D15.
• Liquid Cooling: For overclocked systems or intensive workloads, a 240mm or 280mm AIO liquid cooler like the Corsair H100i provides superior thermal management.

Case Cooling:

• Ensure proper airflow with at least three case fans (two intake, one exhaust) to maintain optimal system temperatures.

The motherboard features multiple fan headers, including a dedicated water-pump header, enabling compatibility with both air and liquid cooling solutions. This ensures flexibility for quiet operation or high-performance thermal management.

Is This Motherboard for You?

If you’re looking for an affordable and compact motherboard with PCIe 4.0, dual M.2 slots, and extensive connectivity, the MSI B550M PRO-VDH is a reliable option for entry-level and productivity-focused builds.
