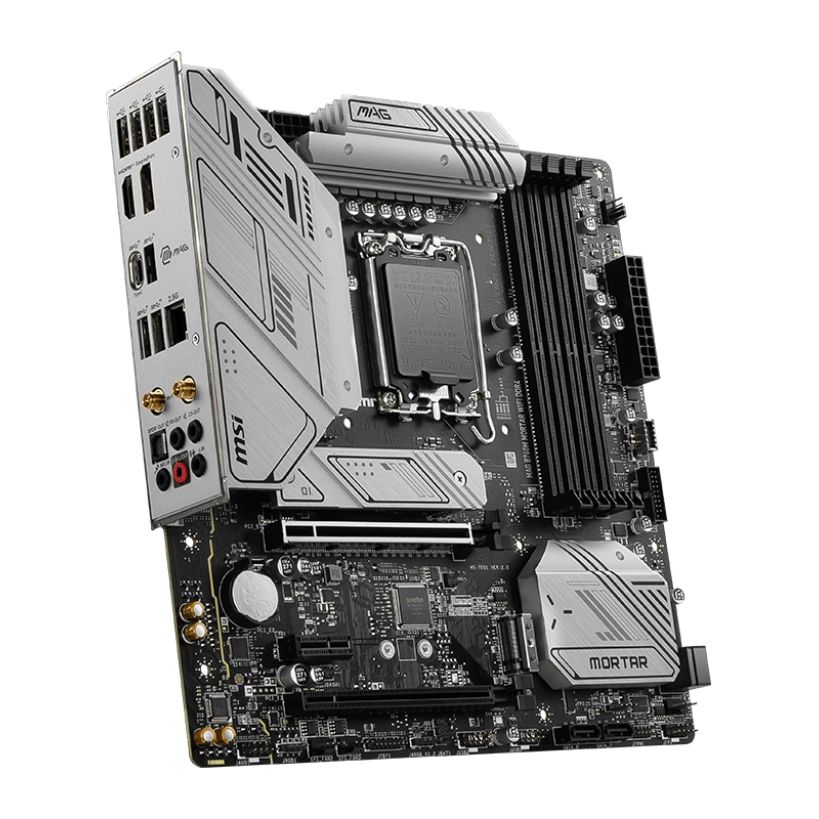

MSI MAG B760M MORTAR WIFI DDR4, LGA1700, Intel 14th/13th/12th Gen

The MSI MAG B760M MORTAR WIFI ddr4 motherboard is a high-performance micro-ATX motherboard designed to handle demanding workloads with ease. Built on the Intel B760 chipset, it supports 14th, 13th, and 12th Gen Intel Core, Pentium Gold, and Celeron processors, ensuring compatibility with the latest CPUs.

Equipped with DDR4 memory support for speeds up to 5333MHz (OC) and PCIe 5.0 x16 slots, the motherboard is perfect for gaming and content creation. Dual PCIe 4.0 M.2 slots and M.2 Shield FROZR provide ultra-fast storage and thermal protection for SSDs. High-speed networking is enabled by Wi-Fi 6E and 2.5G LAN, ensuring seamless online gaming and fast data transfers.

With features like Lightning USB 20G, Audio Boost, and robust cooling solutions, the MSI MAG B760M MORTAR WIFI is a top choice for building a reliable and feature-packed PC.

Key Features

• Supports Intel 14th/13th/12th Gen Core, Pentium Gold, and Celeron processors.
• DDR4 memory compatibility with up to 128GB and speeds up to 5333MHz (OC).
• PCIe 5.0 x16 slot for next-gen GPUs with unmatched bandwidth.
• Dual PCIe 4.0 M.2 slots with M.2 Shield FROZR for ultra-fast and stable storage.
• Wi-Fi 6E and 2.5G LAN deliver high-speed, reliable networking.
• Lightning USB 20G (USB 3.2 Gen 2×2) Type-C for ultra-fast data transfer at 20Gbps.
• 6-layer PCB with 2oz copper ensures durability and better thermal performance.
• EZ Debug LED simplifies troubleshooting for seamless setup.
• Compact mATX form factor, ideal for gaming and productivity builds.

MSI MAG B760M MORTAR WIFI Specifications

• Brand: MSI
• Model: MAG B760M MORTAR WIFI
• Socket: LGA1700
• Chipset: Intel B760
• Memory Support: DDR4, up to 5333MHz (OC), 4 DIMM slots, maximum 128GB
• Graphics Outputs: 1x HDMI 2.1 (4K@60Hz), 1x DisplayPort 1.4 (4K@60Hz)
• Expansion Slots: 1 PCIe 5.0 x16 (from CPU), 1 PCIe 4.0 x4 (from chipset), 1 PCIe 3.0 x1 (from chipset)
• Storage: 2 PCIe 4.0 M.2 slots (up to 2280), 4 SATA 6Gb/s ports
• Networking: Realtek RTL8125BG 2.5G LAN, Intel Wi-Fi 6E, Bluetooth 5.3
• Audio: Realtek ALC897 Codec, 7.1-channel high-definition audio, supports S/PDIF out
• USB Ports (Rear): 4x USB 2.0, 3x USB 10Gbps Type-A, 1x USB 20Gbps Type-C
• USB Ports (Front): 4x USB 2.0, 2x USB 5Gbps Type-A, 1x USB 10Gbps Type-C
• Cooling: 1 CPU fan header, 1 pump fan header, 4 system fan headers
• Power Requirements: 24-pin ATX power connector, 8-pin + 4-pin CPU power connectors
• Operating System Support: Windows 11 64-bit, Windows 10 64-bit
• Form Factor: micro-ATX (243.84mm x 243.84mm)

Processor Compatibility

The MSI MAG B760M MORTAR WIFI DDR4 features an LGA1700 socket, making it compatible with Intel processors from the 12th Gen Alder Lake to the 13th Gen Raptor Lake series. This motherboard is an excellent choice for gamers and professionals seeking performance and stability with mid-tier to high-end processors.

Recommended Processors for MSI MAG B760M MORTAR WIFI

• Intel Core i5-13400: A cost-effective option offering excellent multitasking and gaming performance.
• Intel Core i7-13700KF: Ideal for enthusiasts needing robust performance for demanding workloads like gaming or content creation.

Discrete GPU Compatibility

Equipped with a PCIe 5.0 x16 slot, the motherboard ensures high-speed communication with the latest graphics cards. While PCIe 5.0 provides unmatched bandwidth for the newest GPUs, the board also supports older PCIe 4.0 or 3.0 GPUs with backward compatibility, though at reduced bandwidth.

Recommended GPU for MSI MAG B760M MORTAR WIFI

• NVIDIA GeForce RTX 4060 Ti: Excellent for 1080p and 1440p gaming while remaining power-efficient.
• AMD Radeon RX 6800 XT: Ideal for high-resolution gaming and rendering tasks, fully utilizing PCIe 4.0 speeds.

Memory Compatibility

This motherboard supports DDR4 memory, with speeds up to 5333MHz (OC) and a maximum capacity of 128GB across 4 DIMM slots. It operates in dual-channel mode and supports Intel XMP 3.0, allowing for easy memory overclocking and performance tuning.

Overclock Limitation: Overclocking memory above the rated speed may depend on the CPU’s memory controller and the quality of the memory kit. Ensure adequate system cooling for stable operation.

Power Requirements and Cooling

The MSI MAG B760M MORTAR WIFI DDR4 is powered by:

• 1x 24-pin ATX power connector
• 1x 8-pin EPS CPU power connector
• 1x 4-pin EPS CPU power connector

For cooling, the motherboard features:

• 1 CPU fan header: Supports air and liquid cooling solutions for the CPU.
• 1 pump fan header: Specifically for liquid cooling pumps.
• 4 system fan headers: Ensures optimal airflow throughout your case.

VRM Cooling: With extended heatsinks and high-quality thermal pads, the board ensures VRM cooling even under heavy overclocking loads, making it reliable for demanding applications.

Recommended Power Supply for for MSI MAG B760M MORTAR WIFI

• 650W 80+ Gold PSU: Sufficient for setups using mid-tier GPUs like the RTX 4060 or RX 6650 XT.
• 750W 80+ Gold PSU: Recommended for configurations with high-end GPUs like the RTX 4070 Ti or RX 6800 XT.

With the MSI MAG B760M MORTAR WIFI DDR4, build your next PC with confidence, knowing it delivers the perfect balance of performance, cooling, and compatibility!

Storage and Expansion

The MSI MAG B760M MORTAR WIFI DDR4 motherboard features:

• 2 PCIe 4.0 M.2 slots for ultra-fast NVMe SSDs.
• 4 SATA 6Gb/s connectors for traditional storage drives.
• RAID support for M.2 and SATA drives with configurations for RAID 0, 1, 5, and 10.

The M.2 Shield FROZR ensures consistent SSD performance by preventing thermal throttling.

Is This Motherboard for You?

The MSI MAG B760M MORTAR WIFI is an excellent choice for gamers, creators, and professionals looking for a feature-rich motherboard in a compact mATX form factor.

With support for DDR4 memory, PCIe 5.0, Wi-Fi 6E, and advanced cooling, this motherboard is ideal for building a powerful and durable PC.
