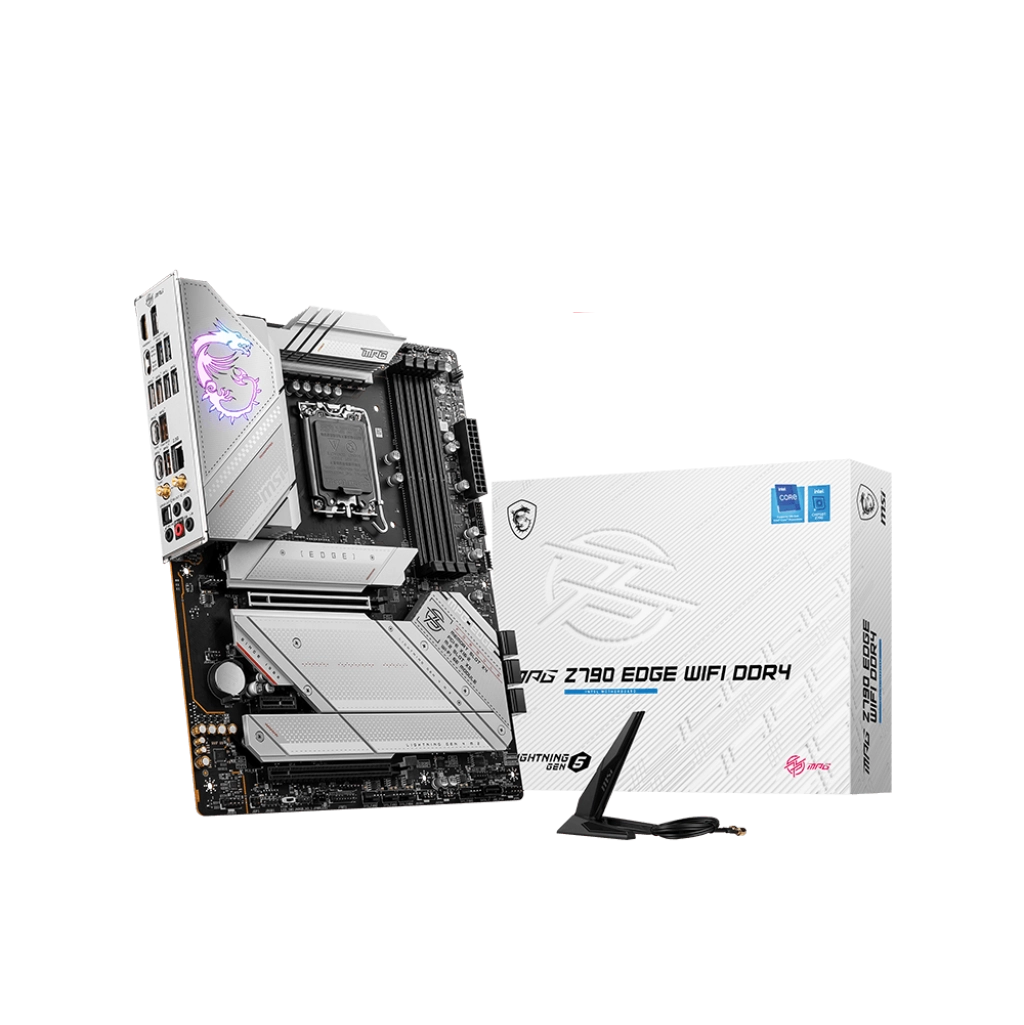

MSI MPG Z790 EDGE WIFI, LGA1700, Intel 14th/13th/12th Gen, DDR4

The MSI MPG Z790 EDGE WIFI DDR4 motherboard is built to provide exceptional performance and features for gaming, productivity, and creativity. Powered by the Intel Z790 chipset, it supports Intel 14th, 13th, and 12th Gen processors, delivering robust power and multitasking capabilities.

With DDR4 memory support up to 5333MHz (OC) and 256GB, the motherboard offers excellent memory stability and speed for high-end applications. The PCIe 5.0 x16 slot ensures compatibility with the latest GPUs, while five PCIe 4.0 M.2 slots and 7 SATA ports deliver versatile and high-speed storage options. Its M.2 Shield FROZR keeps SSDs cool, preventing throttling for consistent performance.

Networking is powered by Intel 2.5G LAN and Wi-Fi 6E, offering ultra-fast connections. The Lightning USB 20G (USB 3.2 Gen 2×2 Type-C) provides 20Gbps speeds, perfect for fast data transfers. Designed with durability and efficiency in mind, the 7W/mK thermal pads, Audio Boost 5, and Core Boost technology ensure this motherboard delivers a premium computing experience.

Key Features

• Supports Intel® 14th/13th/12th Gen Core™, Pentium® Gold, and Celeron® processors.
• DDR4 memory support with speeds up to 5333MHz (OC) and capacities up to 256GB.
• PCIe 5.0 x16 slot for next-gen GPUs with 128GB/s bandwidth.
• Five PCIe 4.0 M.2 slots with M.2 Shield FROZR for high-speed storage and thermal protection.
• Wi-Fi 6E and Intel® 2.5G LAN for fast and stable networking.
• Lightning USB 20G (USB 3.2 Gen 2×2 Type-C) for ultra-fast 20Gbps data transfers.
• Premium thermal design with onboard heatsinks, heat pipes, and 7W/mK thermal pads.
• Audio Boost 5 with Realtek® ALC4080 codec for immersive, high-quality sound.
• Screwless M.2 Shield FROZR for easy installation and better thermal performance.
• 4x EZ Debug LEDs and Flash BIOS button simplify troubleshooting and BIOS updates.

MSI MPG Z790 EDGE WIFI  Specifications

• Brand: MSI
• Model: MPG Z790 EDGE WIFI DDR4
• Socket: LGA 1700
• Chipset: Intel Z790
• Memory Support: DDR4, up to 5333MHz (OC), 4 DIMM slots, maximum 256GB, dual-channel mode, non-ECC, un-buffered memory, Intel XMP 3.0 support for easy memory overclocking
• Graphics Outputs: 1x HDMI 2.1 (4K@60Hz), 1x DisplayPort 1.4 (8K@60Hz)
• Expansion Slots: 1 PCIe 5.0 x16 slot (from CPU), 1 PCIe 4.0 x4 slot (from chipset), 1 PCIe 3.0 x1 slot (from chipset)
• Storage: 5 PCIe 4.0 M.2 slots (up to 22110), 7 SATA 6Gb/s ports, RAID support for M.2 NVMe and SATA storage devices (RAID 0, 1, 5, and 10)
• Networking: Intel 2.5Gbps LAN, Intel Wi-Fi 6E (M.2 Key-E module), Bluetooth 5.3
• Audio: Realtek ALC4080 Codec, 7.1-channel high-definition USB audio, supports up to 32-bit/384kHz playback on the front panel
• USB Ports (Rear): 4x USB 5Gbps Type-A, 4x USB 10Gbps Type-A, 1x USB 10Gbps Type-C, 1x USB 20Gbps Type-C
• USB Ports (Front): 4x USB 2.0, 2x USB 5Gbps Type-A, 1x USB 10Gbps Type-C
• Cooling: 1 CPU fan header, 1 pump fan header, 6 system fan headers
• Power Requirements: 24-pin ATX power connector, 8-pin + 4-pin CPU power connectors
• Operating System Support: Windows 11 64-bit, Windows 10 64-bit
• Form Factor: ATX (243.84mm x 304.8mm)

Processor Compatibility

The MSI MPG Z790 EDGE WIFI DDR4 Motherboard is compatible with 12th Gen Alder Lake, 13th Gen Raptor Lake, and 14th Gen Intel Core processors, providing excellent performance and versatility for gaming and productivity setups.

Supported Intel Generations

• 12th Gen (Alder Lake): Great for budget builds and everyday computing.
• 13th Gen (Raptor Lake): Ideal for gamers and professionals needing higher performance.
• 14th Gen: The latest generation for maximum future-proofing and efficiency.

Processor Recommendations

• Intel Core i5-13600KF: Excellent for gaming and multitasking at a budget-friendly price.
• Intel Core i9-12900KF: Perfect for power users needing high-core performance for demanding workloads.
• Intel Core i7-14700K: Outstanding for high-end builds with gaming and productivity in mind.

Choose the processor that best matches your needs and unleash the full potential of this motherboard!

Discrete GPU Compatibility

The motherboard includes a PCIe 5.0 x16 slot, providing ultra-high bandwidth for modern GPUs. Backward compatibility with PCIe 4.0 and 3.0 ensures older GPUs are supported, though their performance may not fully leverage PCIe 5.0’s potential.

PCIe Compatibility Insights

• PCIe 5.0 GPUs: Offers unmatched performance and future-proofing.
• PCIe 4.0 GPUs: Fully supported, though at slightly reduced bandwidth.
• PCIe 3.0 GPUs: Compatible but may experience bottlenecks in graphics-intensive workloads.

Graphics Card Recommendations for MSI MPG Z790 EDGE WIFI

• NVIDIA GeForce RTX 4070: Great for 1440p gaming with ray tracing support.
• AMD Radeon RX 6900 XT: Excellent for 4K gaming with competitive pricing.
• NVIDIA GeForce RTX 4090: For enthusiasts seeking the ultimate 4K gaming and productivity performance.

Upgrade to one of these GPUs and enjoy cutting-edge visuals and buttery-smooth gameplay!

Memory Compatibility

The MSI MPG Z790 EDGE WIFI DDR4 Motherboard supports DDR4 memory, delivering a balance of performance and affordability. It’s designed for users who prioritize compatibility with existing DDR4 memory kits while enjoying top-tier performance.

Key Memory Features

• Four DDR4 DIMM Slots: Supports up to 128GB total capacity.
• Supported Speeds: Native speeds of 3200 MHz, with overclocking up to 5333+ MHz (O.C.).
• Dual-Channel Architecture: Maximizes bandwidth for smoother multitasking.
• Intel XMP 3.0 Support: Simplifies memory overclocking with pre-configured profiles.

Note: Overclocking stability depends on memory quality and thermal management.

Power Requirements and Cooling

The MSI MPG Z790 EDGE WIFI DDR4 Motherboard is equipped with advanced power connectors and cooling solutions to handle high-performance CPUs and GPUs efficiently.

Power Connectors

• 24-Pin ATX Power Connector: Supplies power to the motherboard.
• 8+4-Pin EPS CPU Power Connectors: Ensures reliable power delivery for high-end processors, even during overclocking.

Cooling and Fan Headers

• 1x CPU Fan Header: Compatible with air or AIO coolers.
• 1x Pump Fan Header: For liquid cooling solutions.
• 6x System Fan Headers: Fully configurable for efficient airflow.
• VRM Cooling: Features premium heatsinks and thermal pads to keep VRMs cool under heavy loads.

Power Supply Recommendations for MSI MPG Z790 EDGE WIFI

• 750W PSU: Sufficient for builds with GPUs like the RTX 4070.
• 850W PSU: Recommended for mid-to-high-end builds with GPUs like the RX 6800 XT.
• 1000W PSU: Ideal for systems with extreme GPUs like the RTX 4090 and power-hungry CPUs.

Invest in a reliable PSU and cooling setup to ensure peak performance and system longevity!

Is This Motherboard for You?

The MSI MPG Z790 EDGE WIFI DDR4 is a premium motherboard designed for gamers, creators, and PC enthusiasts who need exceptional performance and features.

With DDR4 support, PCIe 5.0, Wi-Fi 6E, and an innovative thermal design, this motherboard is an ideal choice for high-performance builds.
