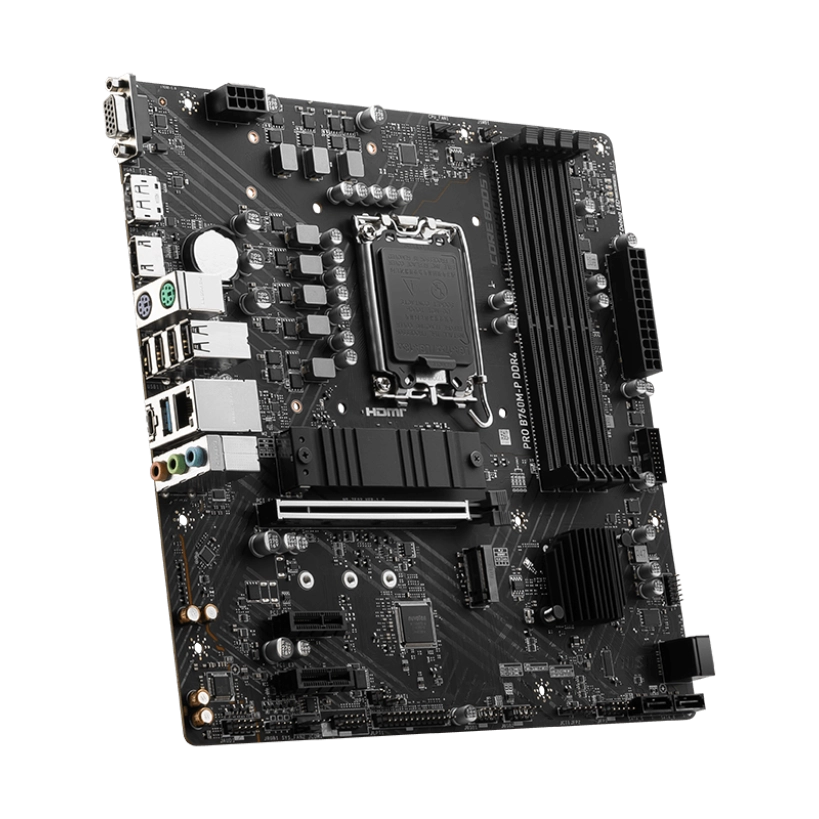

MSI PRO B760M-P, LGA1700, Intel 14th/13th/12th Gen Support, DDR4

The MSI PRO B760M-P motherboard is a reliable and compact micro-ATX motherboard designed to provide robust performance for both professionals and gamers. With support for 14th, 13th, and 12th Gen Intel Core, Pentium Gold, and Celeron processors, this board is an excellent foundation for powerful PCs.

Equipped with Lightning Gen4 PCIe and M.2 slots, the PRO B760M-P ensures faster storage and data transfer speeds. The board also features Memory Boost technology and supports up to 128GB of DDR4 RAM, ensuring stable performance for multitasking or demanding applications. Frozr AI Cooling intelligently adjusts system fans for efficient thermal management, while EZ Debug LED simplifies troubleshooting.

With its rich connectivity options, including USB 3.2 Gen 2 Type-C, HDMI, and DisplayPort, the MSI PRO B760M-P offers everything you need to build a modern and efficient PC.

Key Features

• Supports Intel 14th/13th/12th Gen Core, Pentium Gold, and Celeron processors.
• DDR4 memory compatibility, up to 128GB, with speeds up to 4800MHz (OC).
• Lightning Gen4 PCIe and dual M.2 slots for faster storage solutions.
• USB 3.2 Gen 2 Type-C provides 10Gbps speeds for high-speed data transfer.
• EZ Debug LED makes troubleshooting simple and hassle-free.
• Core Boost ensures stable power delivery for multi-core CPUs.
• Frozr AI Cooling automatically adjusts fan speeds based on CPU and GPU temperatures.
• Audio Boost delivers high-definition audio for an immersive sound experience.
• Compact micro-ATX design ideal for space-saving builds.

MSI PRO B760M-P Motherboard  Specifications

• Brand: MSI
• Model: PRO B760M-P
• Socket: LGA1700
• Chipset: Intel B760
• Memory Support: DDR4, up to 4800MHz (OC), 4 DIMM slots, max 128GB
• Graphics Outputs: HDMI 1.4 (4K@30Hz), DisplayPort 1.4 (4K@60Hz), VGA (2048×1536@50Hz)
• Expansion Slots: 1 PCIe 4.0 x16, 2 PCIe 4.0 x1
• Storage: 2 PCIe 4.0 M.2 slots, 4 SATA 6Gb/s ports
• Networking: Realtek RTL8111H Gigabit LAN
• Audio: Realtek ALC897 Codec, 7.1-channel HD audio
• USB Ports: 4 USB 2.0 (rear), 4 USB 2.0 (front), 1 USB 5Gbps Type-A (rear), 2 USB 5Gbps Type-A (front), 1 USB 10Gbps Type-C (rear)
• Cooling: Frozr AI Cooling, 1 CPU fan header, 2 system fan headers
• Power Requirements: 24-pin ATX power connector, 8-pin CPU power connector
• Form Factor: micro-ATX (243.84mm x 243.84mm)
• Operating System Support: Windows 11 64-bit, Windows 10 64-bit

Processor Compatibility

The MSI PRO B760M-P motherboard supports Intel® 14th/13th/12th Gen processors, offering exceptional performance for everyday tasks, gaming, and productivity. Core Boost technology ensures reliable and stable power delivery, making it ideal for high-performance CPUs.

Recommended Processors

• For Gamers: Intel Core  i5-13600K – Great for smooth gaming and multitasking.
• For Creators: Intel Core i7-13700K – Perfect for demanding applications like video editing.
• For Budget Builds: Intel Core i3-12100 – Affordable and efficient for daily computing needs.

Memory Compatibility

The MSI PRO B760M-P motherboard supports DDR4 memory with speeds up to 4800MHz (OC) and capacities up to 128GB.

With 4 DIMM slots and dual-channel mode, this board provides ample flexibility for multitasking and system upgrades. XMP support ensures easy memory overclocking.

Discrete Graphics Compatibility

The PCIe 4.0 x16 slot is designed for high-performance GPUs, making this motherboard compatible with:

• NVIDIA RTX 40 Series GPUs (e.g., RTX 4060, RTX 4070).
• AMD Radeon RX 6000 Series GPUs (e.g., RX 6600, RX 6700 XT).

For budget-friendly setups, pairing this board with NVIDIA GTX 1650 or AMD RX 6500 XT offers excellent performance.

Storage and Expansion

The MSI PRO B760M-P  motherboard includes:

• 2 M.2 PCIe 4.0 x4 slots for high-speed SSDs.
• 4 SATA 6Gb/s connectors for traditional storage solutions.
• RAID support for both M.2 and SATA drives, with configurations for RAID 0, 1, 5, and 10.

With Lightning Gen4 M.2 technology, this motherboard ensures blazing-fast data transfer speeds of up to 64Gbps.

Power Requirements and Cooling

The MSI PRO B760M-P motherboard requires:

• 24-pin ATX power connector for the board.
• 8-pin CPU power connector for stable power delivery to the processor.

Frozr AI Cooling dynamically adjusts fan speeds based on CPU and GPU temperatures to ensure efficient cooling. Additional cooling features include:

• 1 CPU fan header.
• 2 system fan headers.

Is This Motherboard for You?

The MSI PRO B760M-P motherboard is ideal for professionals, gamers, and home users looking for a reliable and efficient micro-ATX motherboard.

With DDR4 support, dual M.2 slots, PCIe 4.0, and a wide range of connectivity options, it provides excellent value for both work and play. Its compact size makes it perfect for space-saving PC builds without sacrificing performance.
