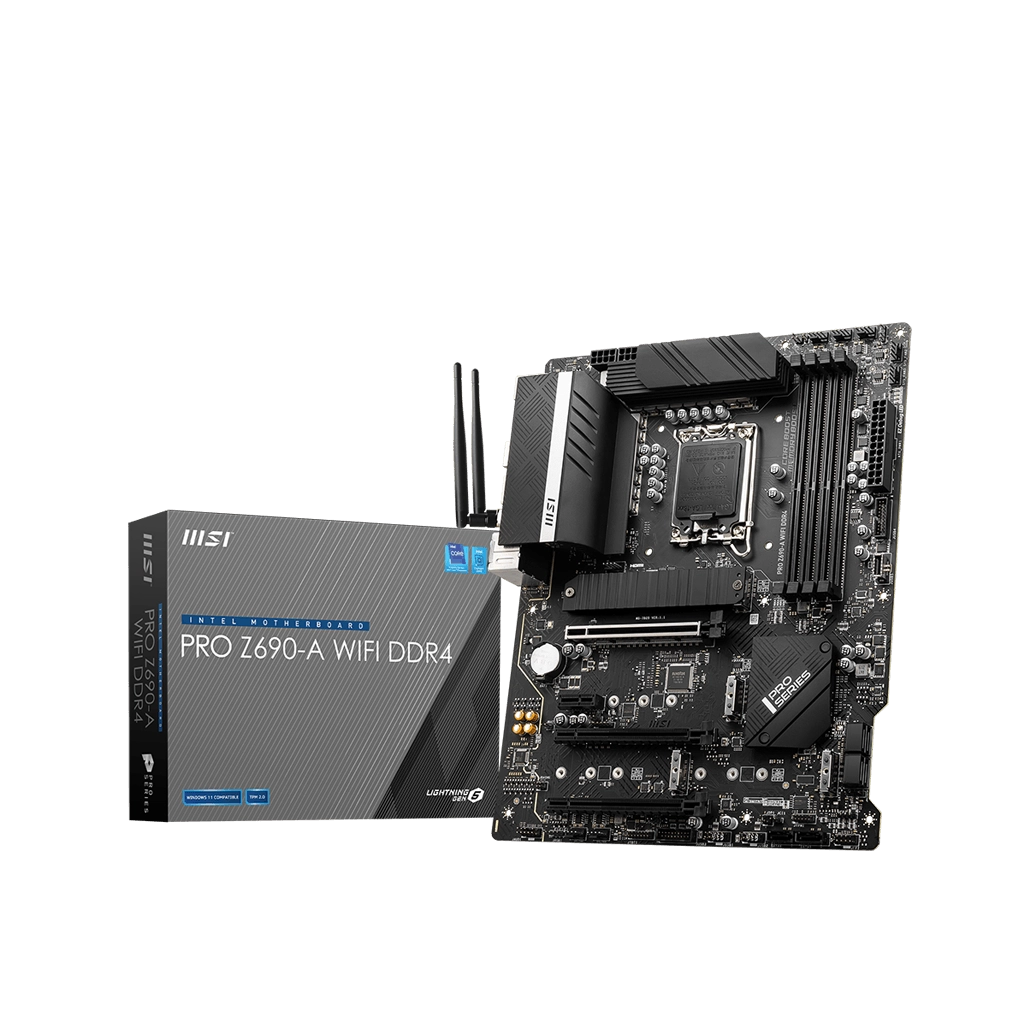

MSI PRO Z690-A WIFI DDR4, LGA1700, Supports Intel 14th/13th/12th Gen

The MSI PRO Z690-A WIFI DDR4 motherboard is built to deliver cutting-edge performance for demanding workloads, gaming, and content creation. Featuring Intel’s Z690 chipset, it supports the latest 14th, 13th, and 12th Gen processors with an LGA1700 socket. With PCIe 5.0 support, Lightning USB 20G, and Wi-Fi 6, this motherboard ensures lightning-fast data transfer and stable wireless connections.

Its advanced thermal solutions, including extended heatsinks and M.2 Shield FROZR, guarantee optimal cooling for high-performance components. With support for DDR4 memory up to 5333+ MHz and multiple expansion slots, the MSI PRO Z690-A WIFI provides unmatched flexibility and future-proofing for modern PC builds.

Key Features

• Processor Compatibility: Supports Intel 14th, 13th, and 12th Gen Core, Pentium Gold, and Celeron processors (LGA1700 socket).
• Memory Support: 4x DDR4 memory slots supporting up to 128GB, with overclocking speeds up to 5333+ MHz.
• Connectivity: Equipped with Wi-Fi 6 and 2.5Gbps LAN for fast and reliable network performance.
• Storage Options: Features 4x M.2 slots (with PCIe 4.0 support) and 6x SATA 6Gb/s ports with RAID capabilities.
• Graphics Support: Onboard HDMI 2.1 and DisplayPort 1.4 for up to 4K@60Hz resolution (requires a processor with integrated graphics).
• USB Ports: Includes USB 3.2 Gen 2×2 Type-C, USB 3.2 Gen 2, and USB 3.2 Gen 1 ports for high-speed connections.
• Thermal Solution: M.2 Shield FROZR and extended PWM heatsinks for efficient cooling.
• Audio: Realtek ALC897 7.1-Channel High Definition Audio for immersive sound.
• Multi-GPU Support: Compatible with AMD CrossFire technology.

MSI PRO Z690-A WIFI DDR4 Specifications

• Brand: MSI
• Model: PRO Z690-A WIFI
• Socket Type: LGA1700
• Chipset: Intel Z690
• Processor Compatibility: Intel Core 14th, 13th, and 12th Gen processors, Intel Pentium Gold, and Celeron processors.
• Memory Support: 4 x DDR4 DIMM slots, up to 128GB, speeds up to 5333MHz (OC).
• Graphics Outputs: HDMI 2.1 (4K@60Hz), DisplayPort 1.4 (4K@60Hz).
• Expansion Slots: 3 PCIe x16 slots (PCIe 5.0 x16, PCIe 3.0 x4/x1), 1 PCIe 3.0 x1 slot.
• Storage Interface: 4 M.2 slots (PCIe 4.0 x4, PCIe 3.0 x4, SATA) and 6 SATA 6Gb/s ports (RAID 0, 1, 5, 10).
• USB Ports (Rear): 1 USB 3.2 Gen 2×2 Type-C, 1 USB 3.2 Gen 2 Type-A, 2 USB 3.2 Gen 1 Type-A, 4 USB 2.0.
• USB Ports (Internal): 1 USB 3.2 Gen 2 Type-C header, 2 USB 3.2 Gen 1 headers (4 ports), 2 USB 2.0 headers (4 ports).
• Networking: Intel I225-V 2.5Gbps LAN and Intel Wi-Fi 6 with Bluetooth 5.2.
• Audio: Realtek ALC897 codec, 7.1-channel HD audio.
• Cooling Features: 1 CPU fan header, 1 water pump header, 6 system fan headers, Frozr AI Cooling.
• Operating System Support: Windows 11 64-bit, Windows 10 64-bit.
• Form Factor: ATX (30.5 cm x 24.4 cm).

Processor Compatibility

The MSI PRO Z690-A WIFI DDR4 motherboard is designed with the LGA1700 socket, offering robust compatibility with multiple generations of Intel processors, making it future-proof and flexible for various use cases. It supports:

• Intel 12th Gen “Alder Lake” processors, which introduced the hybrid core architecture, delivering a mix of performance and efficiency cores for outstanding multitasking and gaming performance.
• Intel 13th Gen “Raptor Lake” processors, offering higher clock speeds and improved core counts for enhanced performance in demanding applications.
• Potential support for Intel 14th Gen processors (subject to BIOS updates).

The motherboard’s Core Boost Technology ensures stable power delivery for high-core-count processors, making it an excellent choice for gaming, streaming, or workstation setups.

Processor Recommendations for MSI PRO Z690-A WIFI DDR4

• Intel Core i5-13600KF: Ideal for mid-tier gaming and multitasking with 14 cores and excellent single-threaded performance.
• Intel Core i9-13900K: A high-performance option for demanding workloads, gaming, and content creation with superior multi-core performance.

Discrete GPU Compatibility

The MSI PRO Z690-A WIFI DDR4 motherboard features PCIe 5.0 x16 slots, the latest standard in PCIe technology, offering double the bandwidth of PCIe 4.0. This ensures optimal performance with the latest high-end GPUs, making it future-ready for the next generation of graphics cards.

However, it remains backward-compatible with PCIe 4.0 and PCIe 3.0 GPUs, meaning users can leverage their existing graphics cards without any issues. Note that older GPUs using PCIe 3.0 won’t fully utilize the bandwidth of PCIe 5.0 but will still perform reliably.

GPU Recommendations for MSI PRO Z690-A WIFI DDR4

• NVIDIA GeForce RTX 4080: Perfect for 4K gaming and rendering tasks with ray tracing capabilities and DLSS 3 support.
• AMD Radeon RX 7700 XT: A cost-effective choice for smooth 1440p gaming and excellent power efficiency.

Memory Compatibility

The MSI PRO Z690-A WIFI DDR4 motherboard supports DDR5 memory with speeds up to 6400MHz (overclocked), making it an excellent option for users looking to maximize performance in gaming or productivity. With a dual-channel architecture and support for Intel XMP 3.0, memory overclocking is simple and effective.

The motherboard has four DIMM slots, allowing for a total capacity of 128GB, which is ideal for multitasking-heavy environments, rendering workflows, and future upgrades. Overclocking performance may vary depending on the memory kit used and the processor.

Power Requirements and Cooling

The MSI PRO Z690-A WIFI DDR4 motherboard is equipped with an 8+8-pin CPU power connector, ensuring stable and sufficient power delivery for high-performance Intel processors, even under heavy loads or overclocking scenarios. The robust VRM heatsinks and M.2 Shield Frozr cooling solutions keep the motherboard’s power delivery components and SSDs at optimal temperatures, preventing thermal throttling.

The board features multiple fan headers, including:

• Dedicated AIO pump headers for liquid cooling setups.
• Frozr AI Cooling technology that automatically adjusts fan speeds based on CPU and GPU temperatures.

PSU Recommendations for MSI PRO Z690-A WIFI DDR4

• 750W PSU: Best suited for mid-tier builds with GPUs like the RTX 4070 or RX 7700 XT.
• 850W PSU: Recommended for high-end builds with GPUs like the RTX 4080 or overclocked processors.

Storage Options and Connectivity

The MSI PRO Z690-A WIFI DDR4 motherboard  offers extensive storage and connectivity options, catering to both gamers and productivity enthusiasts:

• Four PCIe 4.0 M.2 slots, delivering lightning-fast speeds for NVMe SSDs, ensuring quick boot times and seamless application performance.
• Six SATA III ports for SSDs or HDDs, enabling large storage setups or RAID configurations for redundancy and speed.

Connectivity features include:

• Wi-Fi 6E for ultra-fast wireless networking with lower latency, ideal for gaming and streaming.
• 2.5Gbps Ethernet for reliable and high-speed wired connections.
• USB 3.2 Gen 2×2 Type-C for high-speed data transfers and compatibility with modern peripherals.

This motherboard is tailored for users seeking a balance of performance, connectivity, and future-proofing.

Is This Motherboard for You?

The MSI PRO Z690-A WIFI is ideal for gamers, content creators, and PC enthusiasts seeking a feature-packed, future-ready motherboard. With PCIe 5.0, Wi-Fi 6, and exceptional thermal solutions, it ensures reliable performance for demanding applications and next-gen gaming.

Whether you’re building a high-performance workstation or a gaming rig, this motherboard is a top choice.
