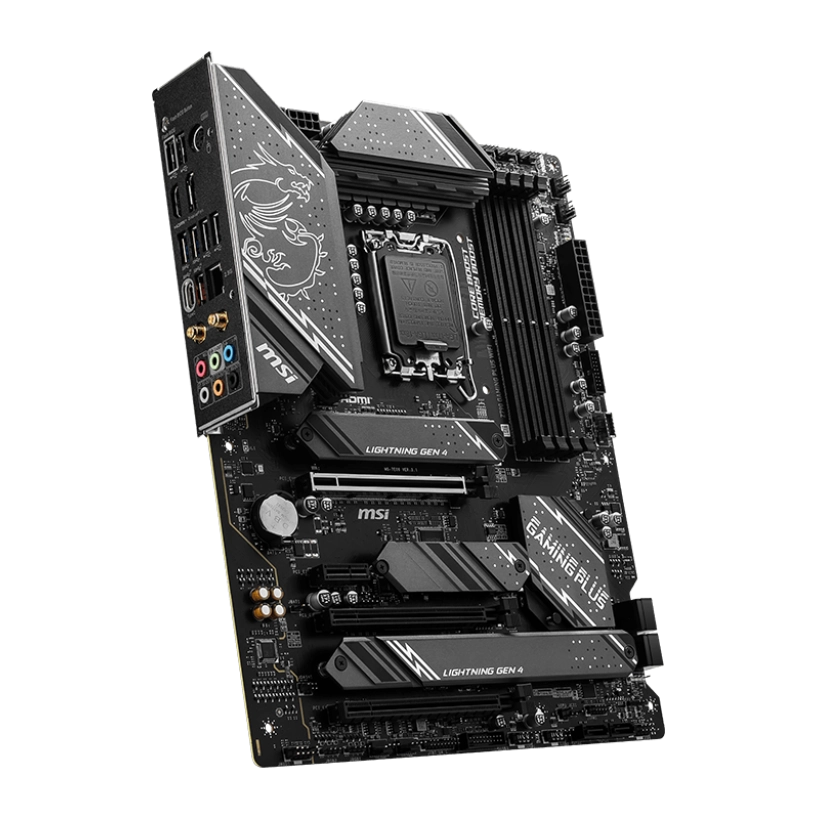

MSI Z790 GAMING PLUS WIFI, LGA1700, Intel 14th/13th/12th Gen, DDR5

The MSI Z790 GAMING PLUS WIFI motherboard is engineered to deliver exceptional power and connectivity for modern gaming and productivity. Built on the Intel® Z790 chipset, it supports Intel® 14th, 13th, and 12th Gen processors, enabling unmatched multitasking and performance for any high-demand workload.

With DDR5 memory support and speeds up to 7200MHz (OC), the Z790 GAMING PLUS WIFI ensures faster load times, smooth gameplay, and efficient multitasking. Featuring PCIe 5.0 x16 support, the motherboard is ready for the latest GPUs, while quadruple PCIe 4.0 M.2 slots offer high-speed storage options with M.2 Shield FROZR to keep SSDs cool and performing optimally. Connectivity is future-proof with Wi-Fi 6E, Intel 2.5G LAN, and Lightning USB 20G (USB 3.2 Gen 2×2 Type-C), providing high-speed networking and ultra-fast file transfers.

With robust cooling solutions, durable components, and user-friendly features like EZ Debug LED and a Flash BIOS button, the MSI Z790 GAMING PLUS WIFI is built for powerful and reliable PC builds.

Key Features

• Supports Intel 14th/13th/12th Gen Core, Pentium Gold, and Celeron processors.
• DDR5 memory compatibility with up to 256GB and speeds up to 7200MHz (OC).
• PCIe 5.0 x16 slot offers unmatched GPU bandwidth for next-gen gaming and rendering.
• Quadruple PCIe 4.0 M.2 slots with M.2 Shield FROZR for high-speed storage and thermal stability.
• Wi-Fi 6E and Intel 2.5G LAN provide fast and reliable networking.
• Lightning USB 20G (USB 3.2 Gen 2×2 Type-C) delivers 20Gbps data transfer speeds.
• 6-layer PCB with 2oz thickened copper improves durability and thermal performance.
• Audio Boost delivers studio-grade sound for immersive gaming experiences.
• EZ Debug LED simplifies troubleshooting, while Flash BIOS Button ensures easy BIOS updates.
• ATX form factor, perfect for gaming and professional builds.

MSI Z790 GAMING PLUS WIFI  Specifications

• Brand: MSI
• Model: Z790 GAMING PLUS WIFI
• Socket: LGA1700
• Chipset: Intel Z790
• Memory Support: DDR5, up to 7200MHz (OC), 4 DIMM slots, maximum 256GB
• Graphics Outputs: 1x HDMI 2.1 (4K@60Hz), 1x DisplayPort 1.4 (4K@60Hz)
• Expansion Slots: 1 PCIe 5.0 x16 (from CPU), 1 PCIe 4.0 x4 (from chipset), 2 PCIe 3.0 x1 (from chipset)
• Storage: 4 PCIe 4.0 M.2 slots (up to 22110), 6 SATA 6Gb/s ports, RAID support for M.2 NVMe and SATA devices (RAID 0, 1, 5, and 10)
• Networking: Intel 2.5G LAN, Intel Wi-Fi 6E, Bluetooth 5.3
• Audio: Realtek ALC897 Codec, 7.1-channel high-definition audio
• USB Ports (Rear): 4x USB 2.0, 2x USB 5Gbps Type-A, 1x USB 10Gbps Type-A, 1x USB 20Gbps Type-C
• USB Ports (Front): 4x USB 2.0, 2x USB 5Gbps Type-A, 1x USB 10Gbps Type-C
• Cooling: 1 CPU fan header, 1 pump fan header, 6 system fan headers
• Power Requirements: 24-pin ATX power connector, 8-pin + 4-pin CPU power connectors
• Operating System Support: Windows 11 64-bit, Windows 10 64-bit
• Form Factor: ATX (243.84mm x 304.8mm)

Processor Compatibility

The MSI Z790 GAMING PLUS WIFI Motherboard is built with an LGA1700 socket, ensuring compatibility with Intel processors from the 12th Gen Alder Lake series to the latest 14th Gen Raptor Lake Refresh processors. Its robust power design ensures smooth performance even with high-core count CPUs, making it ideal for gamers and productivity users.

Recommended Processors for MSI Z790 GAMING PLUS WIFI

• Intel Core i5-13600K: A balanced choice for gaming and multitasking at an affordable price. Perfect for mid-range setups.
• Intel Core i7-14700K: A top-tier processor for enthusiasts who need superior performance for gaming and creative workloads.

Discrete GPU Compatibility

The motherboard features a PCIe 5.0 x16 slot, offering up to 128GB/s bandwidth, ensuring compatibility with the latest GPUs. This advanced PCIe version delivers double the bandwidth of PCIe 4.0, providing faster communication between the GPU and CPU, which translates into better gaming and rendering performance.

However, GPUs using older PCIe versions (like PCIe 3.0) are also supported but will operate at reduced bandwidth, potentially limiting performance in certain tasks.

Recommended GPUs for MSI Z790 GAMING PLUS WIFI

• NVIDIA GeForce RTX 4070 Ti: Perfect for high-fidelity 1440p gaming and 4K video editing. Maximize the PCIe 5.0 potential.
• AMD Radeon RX 7900 XT: Great for ultra-high-definition gaming and productivity with PCIe 4.0 backward compatibility.

Memory Compatibility

This motherboard supports DDR5 memory with speeds of up to 7200MHz (OC), offering exceptional bandwidth and latency improvements over DDR4. It includes 4 DIMM slots, supporting up to 256GB of non-ECC, un-buffered memory. With Intel XMP 3.0 support, you can easily overclock compatible memory kits to unleash their maximum performance.

Overclock Limitation:

Overclocking beyond the rated speed depends on memory quality and the CPU’s memory controller. For stable overclocking, ensure proper cooling for both the CPU and memory modules.

Power Requirements and Cooling

The MSI Z790 GAMING PLUS WIFI is equipped with a 24-pin ATX power connector and 8-pin + 4-pin CPU power connectors to ensure stable power delivery, even under heavy loads. It also features a well-thought-out cooling solution, including:

• 1 CPU fan header: For your processor’s cooling needs.
• 1 pump fan header: Perfect for liquid cooling setups.
• 6 system fan headers: Keep your entire rig cool during intense gaming sessions.

VRM Cooling:

The motherboard includes extended heatsinks over the VRMs and an optimized circuit design to maintain low temperatures, even when overclocking high-core count CPUs.

Recommended Power Supply for MSI Z790 GAMING PLUS WIFI

• 750W Gold PSU: Ideal for setups with mid-range GPUs like the RTX 4060 or RX 6700 XT.
• 850W Gold PSU: Recommended for systems using higher-end GPUs like the RTX 4080 or RX 7900 XT.

Upgrade your gaming rig with the MSI Z790 GAMING PLUS WIFI and enjoy peak performance and stability!

Storage and Expansion

The MSI Z790 GAMING PLUS WIFI features:

• 4 PCIe 4.0 M.2 slots for ultra-fast NVMe SSDs, supporting devices up to 22110 form factor.
• 6 SATA 6Gb/s connectors for traditional storage solutions.
• RAID support for M.2 and SATA drives with configurations for RAID 0, 1, 5, and 10.

The M.2 Shield FROZR ensures SSDs remain cool during high-performance tasks, preventing thermal throttling.

Is This Motherboard for You?

The MSI Z790 GAMING PLUS WIFI is ideal for gamers, creators, and professionals seeking top-tier features in a reliable ATX motherboard.

With DDR5 support, PCIe 5.0, Wi-Fi 6E, and quadruple M.2 slots, this motherboard is built to deliver powerful performance for high-end PC builds.
