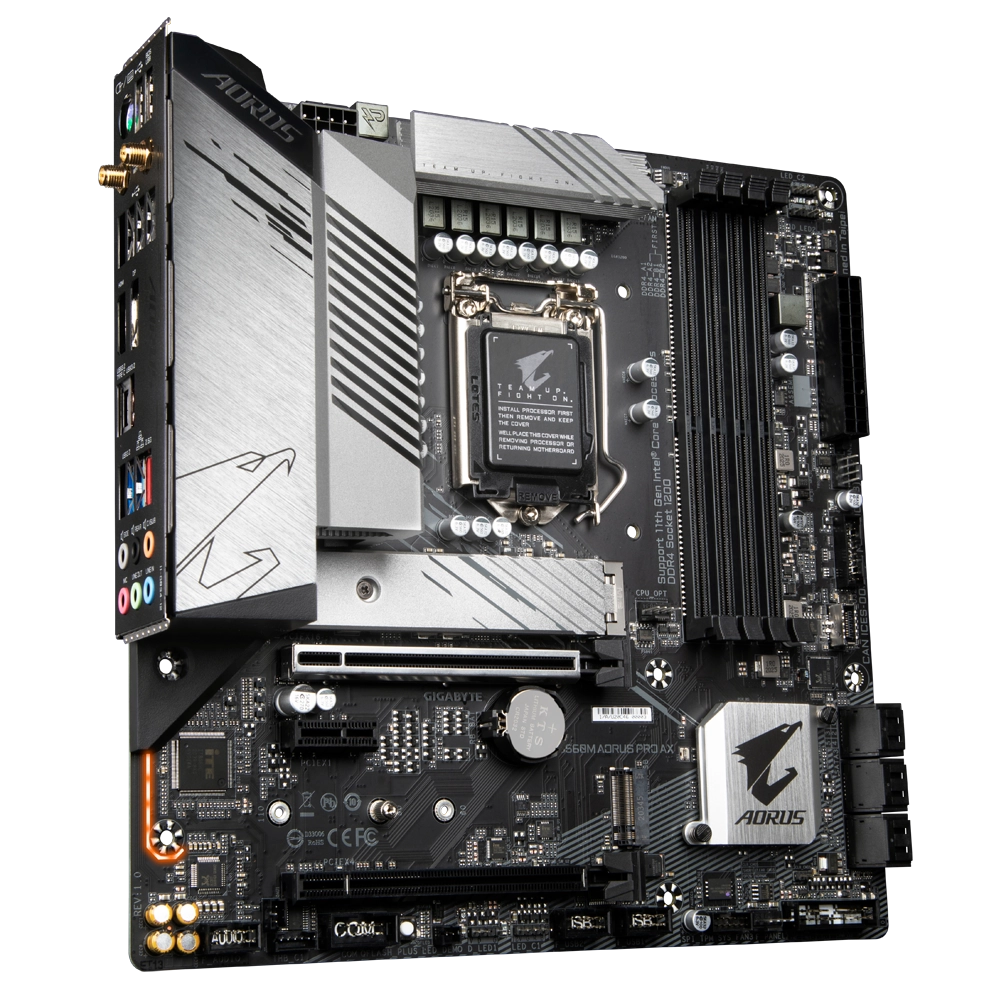

Gigabyte B560M AORUS PRO AX, LGA1200, Supports Intel 11th and 10th Gen

Experience cutting-edge technology with the Gigabyte B560M AORUS PRO AX motherboard,  a feature-packed micro-ATX motherboard for demanding users. Designed for 11th and 10th Gen Intel Core processors, it supports PCIe 4.0 (with 11th Gen CPUs), dual-channel DDR4 memory up to 128GB, and blazing-fast storage with dual M.2 slots and six SATA ports.

With Intel WiFi 6 and 2.5GbE LAN, this motherboard delivers ultra-fast connectivity for gaming, streaming, and productivity. Its 12+1 power phase VRM with 50A DrMOS ensures stable power delivery for high-performance CPUs, while Smart Fan 6 keeps your system cool with advanced cooling controls. Enhanced with RGB Fusion 2.0, USB 3.2 Gen2x2, and pre-installed I/O shield, this motherboard offers a complete solution for modern PC builds.

Key Features

• Processor Compatibility: Supports 11th and 10th Gen Intel Core, Pentium, and Celeron processors.
• Memory Support: Four DDR4 DIMM slots with speeds up to 4800MHz (OC) and up to 128GB capacity.
• PCIe 4.0 Ready: PCIe 4.0 x16 slot ensures compatibility with the latest GPUs for gaming and rendering (with 11th Gen CPUs).
• Storage Interface: Dual ultra-fast NVMe M.2 slots with PCIe 4.0/3.0 support and six SATA 6Gb/s connectors with RAID support.
• Networking: Intel 2.5GbE LAN and Intel WiFi 6 with Bluetooth 5.1 for high-speed wired and wireless connectivity.
• USB Connectivity: Features USB 3.2 Gen2x2 Type-C, USB 3.2 Gen2, USB 3.2 Gen1, and USB 2.0 ports for versatile device compatibility.
• Robust Power Design: 12+1 digital VRM phases with 50A DrMOS and fully covered thermal heatsinks for stable overclocking and cooling.
• Advanced Cooling: Smart Fan 6 with multiple temperature sensors, hybrid fan headers, and support for water cooling.
• Durable Design: Pre-installed I/O shield, Ultra Durable components, and RGB Fusion 2.0 for enhanced aesthetics and reliability.

Gigabyte B560M AORUS PRO AX Specifications

• Brand: Gigabyte
• Model: B560M AORUS PRO AX
• Socket Type: LGA1200
• Chipset: Intel B560
• Processor Compatibility: 11th and 10th Gen Intel Core, Pentium, and Celeron processors
• Memory Support: 4 x DDR4 DIMM slots, up to 128GB, speeds up to 4800MHz (OC) for 11th Gen and 2933MHz for 10th Gen CPUs
• Graphics Support: PCIe 4.0/3.0 x16 slot (11th Gen for PCIe 4.0), 1 x PCIe 3.0 x4 slot, 1 x PCIe 3.0 x1 slot
• Storage Interface: 1 x M.2 PCIe 4.0 x4 slot (11th Gen CPUs only), 1 x M.2 PCIe 3.0 x4 slot, 6 x SATA 6Gb/s connectors
• Networking: Intel 2.5GbE LAN, Intel WiFi 6 AX200, Bluetooth 5.1
• Audio: Realtek HD Audio, 7.1-channel support with audio software configuration
• USB Ports: Rear: 1 x USB 3.2 Gen2x2 (Type-C), 1 x USB 3.2 Gen2 (Type-A), 2 x USB 3.2 Gen1, 6 x USB 2.0; Internal: 1 x USB 3.2 Gen1 header (2 ports), 2 x USB 2.0 headers (4 ports), 1 x USB Type-C header (USB 3.2 Gen1)
• Cooling: 1 x CPU fan header, 1 x water cooling CPU fan header, 3 x system fan headers, Smart Fan 6 technology with fan stop functionality
• RGB Lighting: RGB Fusion 2.0 with 2 addressable LED strip headers and 2 RGB LED strip headers
• Internal I/O Connectors: 24-pin ATX main power connector, 8-pin ATX 12V power connector, 6 SATA 6Gb/s connectors, 2 M.2 connectors, USB headers, Thunderbolt add-in card connectors
• Back Panel I/O: 1 x HDMI, 1 x DisplayPort, 1 x USB 3.2 Gen2x2 (Type-C), 1 x USB 3.2 Gen2 (Type-A), 2 x USB 3.2 Gen1, 6 x USB 2.0, 1 x RJ-45 LAN port, 2 x SMA antenna connectors, 6 x audio jacks, 1 x PS/2 keyboard/mouse port
• BIOS: 256Mb Flash ROM, AMI UEFI BIOS
• Operating System Support: Windows 10 64-bit
• Form Factor: Micro-ATX (24.4cm x 24.4cm)

Processor Compatibility

The Gigabyte B560M AORUS PRO AX motherboard is equipped with the Intel LGA1200 socket, making it compatible with a wide range of processors. It supports Intel® 10th Gen processors such as the Pentium Gold and Core i3, as well as Intel 11th Gen processors including the high-performance Core i9.

Processor Recommendations for Gigabyte B560M AORUS PRO AX

• Intel Core i3-10105F: A budget-friendly quad-core processor, ideal for entry-level gaming or office systems.
• Intel Core i7-11700K: An 8-core powerhouse for gaming, multitasking, and productivity tasks.

With its B560 chipset, this motherboard also provides access to unlocked memory overclocking for 11th Gen processors, enhancing system performance.

Discrete GPU Compatibility

The Gigabyte B560M AORUS PRO AX motherboard features a PCIe 4.0 x16 slot, offering full compatibility with the latest graphics cards when paired with an 11th Gen Intel processor. For 10th Gen processors, the slot operates at PCIe 3.0 speeds, which may slightly limit the performance of PCIe 4.0 GPUs. However, this difference is negligible for most gaming and professional workloads, ensuring versatility and compatibility with a wide range of GPUs.

Graphics Card Recommendations for Gigabyte B560M AORUS PRO AX

• NVIDIA GeForce RTX 3060: A mid-range GPU perfect for 1080p and 1440p gaming.
• AMD Radeon RX 6700 XT: A great choice for high-refresh-rate 1440p gaming and content creation.

Memory Compatibility

The motherboard supports DDR4 memory with four DIMM slots, allowing for a maximum capacity of 128GB. It is compatible with speeds up to 2933MHz on 10th Gen processors and up to 3200MHz on 11th Gen processors, with additional overclocking headroom for 11th Gen CPUs via Intel XMP profiles.

While the B560 chipset enables memory overclocking, users should ensure that their chosen memory kit is on Gigabyte’s QVL (Qualified Vendor List) for optimal performance and stability.

Power Requirements and Cooling

The Gigabyte B560M AORUS PRO AX motherboard  includes the following power and cooling features:

• Power Connectors: A 24-pin ATX main power connector and an 8-pin ATX 12V CPU power connector ensure stable power delivery, even during demanding workloads.
• Cooling Headers: Features multiple fan headers, including a 4-pin CPU fan header, a water pump header, and two 4-pin system fan headers, providing robust thermal management for both the CPU and the VRM.

The motherboard’s VRM cooling includes extended heatsinks for improved heat dissipation, ensuring consistent performance during long gaming sessions or intensive tasks.

Power Supply Recommendations for Gigabyte B560M AORUS PRO AX

• 550W PSU: Ideal for mid-tier builds with GPUs like the RTX 3060 or RX 6700 XT.
• 750W PSU: Recommended for high-performance setups with overclocked CPUs or GPUs like the RTX 3070.

Storage Options and Connectivity

The Gigabyte B560M AORUS PRO AX motherboard offers a variety of storage and connectivity features:

• M.2 Slots: Two PCIe 4.0/3.0 M.2 slots provide ultra-fast storage speeds for NVMe SSDs, reducing boot and load times.
• SATA Ports: Four SATA 6Gb/s ports offer compatibility with traditional SSDs and HDDs for additional storage capacity.
• USB Ports: Includes USB 3.2 Gen 2×2, USB 3.2 Gen 1, and USB 2.0 ports for versatile connectivity options.
• Networking: Features Intel Wi-Fi 6 AX201 for ultra-fast wireless connectivity and a Realtek 2.5Gb Ethernet port for reliable wired connections.

Is This Motherboard for You?

The Gigabyte B560M AORUS PRO AX motherboard is ideal for gamers, content creators, and PC enthusiasts looking for a compact, feature-rich motherboard with robust performance. With PCIe 4.0, WiFi 6, dual M.2 slots, and advanced cooling, this motherboard is a great choice for high-performance builds.
