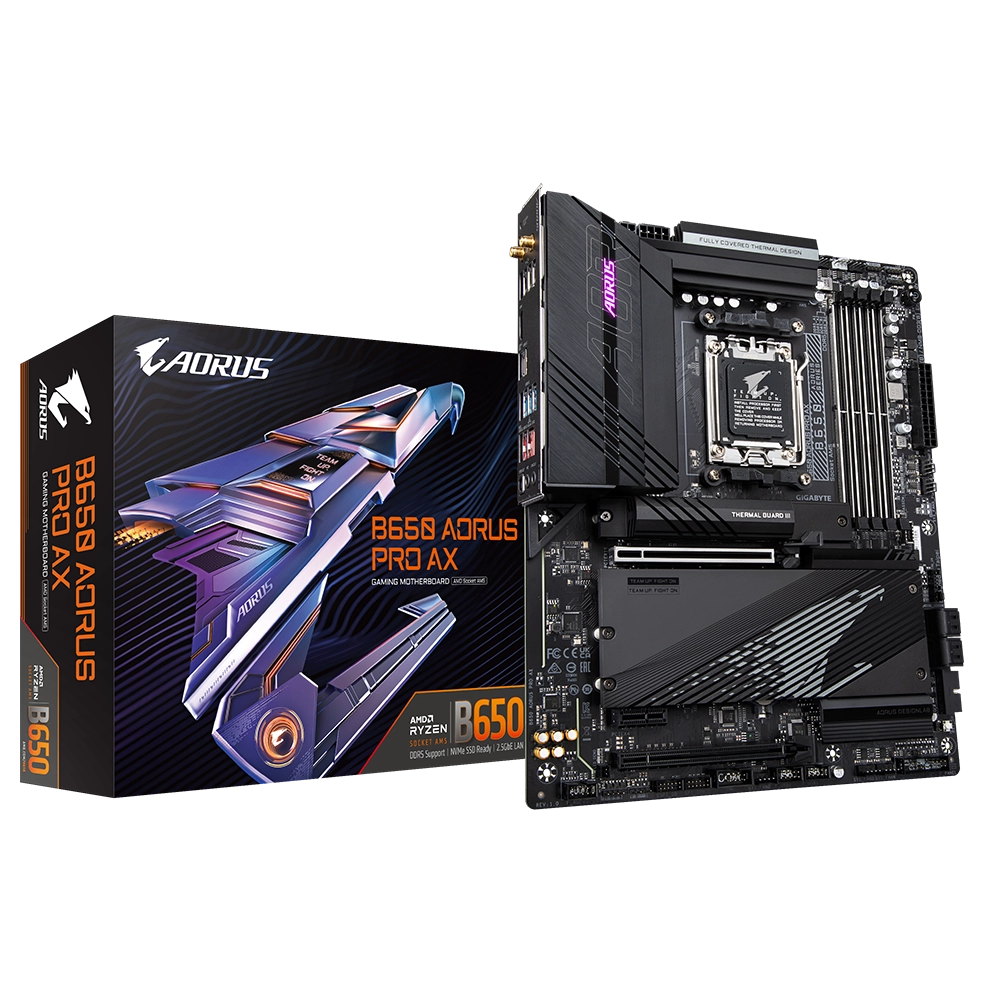

GIGABYTE B650 AORUS PRO AX, AM5, Ryzen 9000/8000/7000, DDR5

The GIGABYTE B650 AORUS PRO AX is engineered to meet the needs of gamers and professionals alike. Equipped with next-gen technologies such as DDR5 memory, PCIe 5.0 for ultra-fast storage and graphics, and advanced cooling support, this motherboard ensures peak performance for demanding applications.

Key Features

• Socket AM5 Compatibility: Optimized for AMD Ryzen™ 7000, 8000, and 9000 Series processors.
• DDR5 Memory Support: Four DIMM slots supporting up to 256GB with speeds up to DDR5 8000 MT/s (OC).
• PCIe 5.0 Ready: Enhanced performance for storage and GPUs.
• Integrated Wi-Fi 6E and Bluetooth 5.3: Cutting-edge connectivity for seamless networking.
• High-Quality Audio: Realtek ALC1220-VB codec with S/PDIF Out.
• Advanced Cooling Features: Multiple fan and water pump headers with RGB lighting support.

GIGABYTE B650 AORUS PRO AX Specifications

• Brand: GIGABYTE
• Model: B650 AORUS PRO AX
• Socket Type: AMD Socket AM5
• Chipset: AMD B650
• Processor Compatibility: AMD Ryzen 7000, 8000, and 9000 Series processors
• Memory Support: 4 x DDR5 DIMM slots, Dual channel, Up to 256GB, Speed support up to DDR5 8000 MT/s (OC)
• Onboard Graphics: 1 x HDMI 2.1 port supporting up to 4096×2160@60 Hz (CPU dependent)
• Audio: Realtek ALC1220-VB codec, High Definition Audio, 2/4/5.1/7.1-channel, S/PDIF Out
• Networking: Intel 2.5GbE LAN, Wi-Fi 6E (PCB Rev. 1.0: AMD Wi-Fi 6E RZ616; PCB Rev. 1.1: Intel Wi-Fi 6E AX210), Bluetooth 5.3
• Expansion Slots: 1 x PCIe 4.0 x16 slot (CPU), 1 x PCIe 4.0 x4 slot, 1 x PCIe 3.0 x1 slot
• Storage Interface: 3 x M.2 connectors supporting PCIe 5.0 and PCIe 4.0 SSDs, 4 x SATA 6Gb/s connectors, RAID 0, RAID 1, RAID 10 support for NVMe and SATA storage
• USB Ports: Rear panel includes 1 x USB Type-C (USB 3.2 Gen 2), 3 x USB 3.2 Gen 2 Type-A, 4 x USB 3.2 Gen 1, 4 x USB 2.0; internal headers include 1 x USB Type-C (USB 3.2 Gen 2×2), 2 x USB 3.2 Gen 1, 4 x USB 2.0
• Cooling and Power Connectors: 1 x CPU fan header, 1 x water cooling CPU fan header, 4 x system fan headers, 2 x system fan/water cooling pump headers, 2 x addressable RGB LED strip headers, 2 x RGB LED strip headers, 1 x CPU cooler LED strip/RGB LED strip header, 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 1 x 4-pin ATX 12V power connector
• Back Panel Connectors: 1 x Q-Flash Plus button, 2 x SMA antenna connectors, 4 x USB 2.0 ports, 1 x HDMI port, 3 x USB 3.2 Gen 2 Type-A ports, 1 x USB Type-C® (USB 3.2 Gen 1), 4 x USB 3.2 Gen 1 ports, 1 x RJ-45 port, 2 x audio jacks, 1 x optical S/PDIF Out connector
• Form Factor: ATX, 30.5cm x 24.4cm

Processor Compatibility

The GIGABYTE B650 AORUS PRO AX supports AMD Ryzen™ 7000, 8000, and 9000 Series processors, offering unparalleled performance for gaming, multitasking, and content creation.

Recommended Processors:

• AMD Ryzen 9 7950X: Exceptional for professional-grade multitasking and rendering.
• AMD Ryzen 7 7800X3D: Outstanding gaming performance with 3D V-Cache technology.
• AMD Ryzen 5 7600: Ideal for budget-conscious builds without compromising performance.

Discrete Graphics Compatibility

The PCIe 4.0 x16 slot is designed to accommodate the latest GPUs, ensuring top-tier gaming and productivity performance.

Recommended GPUs:

• NVIDIA GeForce RTX 4080: Exceptional 4K gaming and AI performance.
• AMD Radeon RX 7900 XT: Perfect for gaming and professional workloads.

Storage and Expansion

Enjoy unparalleled flexibility with three M.2 slots (supporting PCIe 5.0 and PCIe 4.0 SSDs) and four SATA 6Gb/s connectors, providing ample options for high-speed storage solutions.

Power Requirements and Cooling

For optimal performance, pair the motherboard with a power supply of at least 850W, especially when using a high-end GPU and CPU. The advanced thermal design includes multiple fan headers and robust RGB lighting support, ensuring cool and efficient operation.

Is This Motherboard for You?

If you’re a gamer, content creator, or PC enthusiast seeking premium features, outstanding connectivity, and reliable performance, the GIGABYTE B650 AORUS PRO AX is a top-tier choice for your next build.
