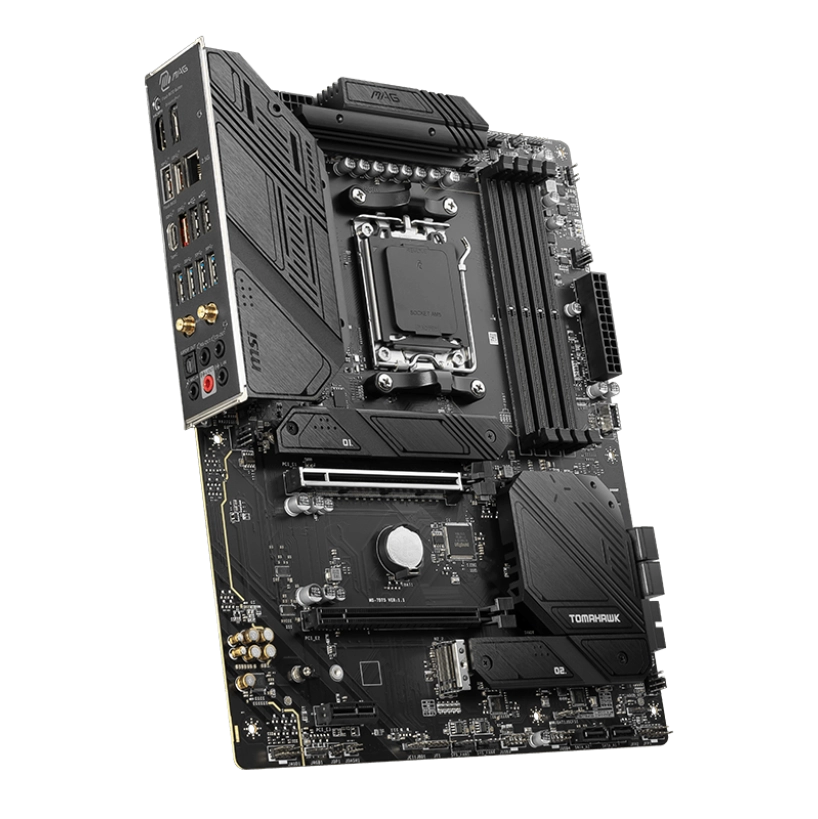

MSI MAG B650 TOMAHAWK WIFI, AM5, AMD Ryzen 7000/8000/9000, DDR5

The MSI MAG B650 TOMAHAWK WIFI is a high-performance ATX motherboard tailored for gamers, creators, and PC enthusiasts. Built on the AMD B650 chipset with an AM5 socket, it supports AMD Ryzen™ 7000, 8000, and 9000 series processors, making it future-proof for next-gen computing.

With DDR5 memory, PCIe 4.0, advanced cooling, and Wi-Fi 6E, this motherboard delivers exceptional performance for demanding workloads, including 4K gaming, rendering, and multitasking.

Key Features

• Processor Compatibility: Supports AMD Ryzen™ 7000, 8000, and 9000 series processors.
• Memory Support: 4x DDR5 DIMM slots, up to 256GB, overclocked speeds up to 7200MHz.
• Graphics Support: 2x PCIe x16 slots (1x PCIe 4.0 x16, 1x PCIe 4.0 x2), onboard HDMI 2.1 and DisplayPort 1.4.
• Storage Options: 3x PCIe 4.0 x4 M.2 slots, 6x SATA 6G ports for SSDs and HDDs.
• Connectivity: Wi-Fi 6E, Bluetooth 5.3, Realtek 2.5G LAN, USB 3.2 Gen 2×2 (20Gbps) Type-C.
• Audio: Realtek ALC4080 codec with 7.1-channel HD audio.
• Form Factor: Standard ATX for versatile builds.

MSI MAG B650 TOMAHAWK WIFI Full Specifications

• Brand: MSI
• Model: MAG B650 TOMAHAWK WIFI
• Socket Type: AM5
• Chipset: AMD B650
• Processor Compatibility: AMD Ryzen™ 7000, 8000, and 9000 series
• Memory Support: 4x DDR5 DIMMs, up to 256GB, speeds up to 7200MHz (OC)
• Graphics Support: 2x PCIe x16 (1x PCIe 4.0 x16, 1x PCIe 4.0 x2), HDMI 2.1, DisplayPort 1.4
• Storage Interface: 3x PCIe 4.0 x4 M.2 slots, 6x SATA 6G ports
• USB Ports: Rear: 1x USB 3.2 Gen 2×2 Type-C (20Gbps), multiple USB 3.2 Gen 2 (10Gbps) and Gen 1 (5Gbps) ports, Front: USB headers for additional connectivity
• Networking: Realtek 2.5G LAN, Wi-Fi 6E, Bluetooth 5.3
• Audio: Realtek ALC4080 codec, 7.1-channel HD audio
• Operating System Support: Windows 10/11 64-bit
• Form Factor: ATX (243.84mm x 304.8mm)

Processor Compatibility

The MSI MAG B650 TOMAHAWK WIFI supports AMD Ryzen 7000, 8000, and 9000 series processors, leveraging the power of the AM5 socket for superior performance. This makes it perfect for high-end gaming, 4K video editing, and demanding multitasking workloads.

It is designed for enthusiasts who need a motherboard that’s ready for next-gen computing.

Memory Compatibility

With 4 DDR5 DIMM slots, this motherboard supports up to 256GB of RAM with speeds up to 7200MHz through AMD EXPO. Its high memory bandwidth ensures smooth performance for multitasking, gaming, and rendering.

The easy-to-use overclocking profile allows users to optimize their setup for maximum performance.

Discrete Graphics Compatibility

The MSI MAG B650 TOMAHAWK WIFI features 2 PCIe x16 slots, with the primary slot supporting PCIe 4.0 x16 for high-performance GPUs. This ensures compatibility with top-tier graphics cards like the NVIDIA RTX 4080 and AMD RX 7900 XT, making it ideal for 1440p and 4K gaming.

For users relying on integrated graphics, HDMI 2.1 and DisplayPort 1.4 outputs support resolutions up to 8K @ 60Hz.

Storage and Expansion

The motherboard includes 3 PCIe 4.0 x4 M.2 slots, providing ultra-fast storage speeds for NVMe SSDs. It also offers 6 SATA 6G ports for traditional SSDs and HDDs, giving users flexibility for both speed and storage capacity.

This combination is ideal for gamers with large game libraries or content creators needing vast storage for projects.

Connectivity and Audio Features

• Networking: Realtek 2.5G LAN ensures stable wired connections, while Wi-Fi 6E provides low-latency, high-speed wireless connectivity. Bluetooth 5.3 enables seamless pairing with peripherals.
• Audio: The Realtek ALC4080 codec delivers premium 7.1-channel HD audio, ensuring immersive sound for gaming and media.
• USB Ports: USB 3.2 Gen 2×2 Type-C (20Gbps) for ultra-fast file transfers, Multiple USB 3.2 Gen 2 (10Gbps) and Gen 1 (5Gbps) ports for versatile device connectivity.
• Display Outputs: HDMI 2.1 for 4K displays and DisplayPort 1.4 for 8K monitors.

Power and Cooling

This motherboard features an advanced VRM design and premium heatsinks, ensuring consistent power delivery for stable performance during heavy workloads. It includes multiple fan headers (6 system, 1 CPU, and 1 pump) for superior cooling, even in demanding setups.

Power Supply Recommendations

• Integrated Graphics Builds: A 500W PSU (e.g., Corsair CV550) is sufficient.
• Discrete Graphics Builds:
  • For GPUs like the RTX 4060 Ti, use a 650W PSU (e.g., Seasonic Focus GX-650).
  • For high-end GPUs like the RTX 4080, opt for an 850W PSU (e.g., Corsair RM850x).

Ideal User for This Motherboard

The MSI MAG B650 TOMAHAWK WIFI is designed for gamers, creators, and power users who demand high performance and cutting-edge features. Whether you’re building a 4K gaming rig or a productivity workstation, this motherboard offers the connectivity, power, and stability you need.

Is This Motherboard for You?

If you’re looking for a high-performance motherboard with support for the latest Ryzen™ processors, DDR5, PCIe 4.0, and Wi-Fi 6E, the MSI MAG B650 TOMAHAWK WIFI is an outstanding choice.

It combines exceptional performance with advanced features, making it ideal for gaming, multitasking, and productivity.
