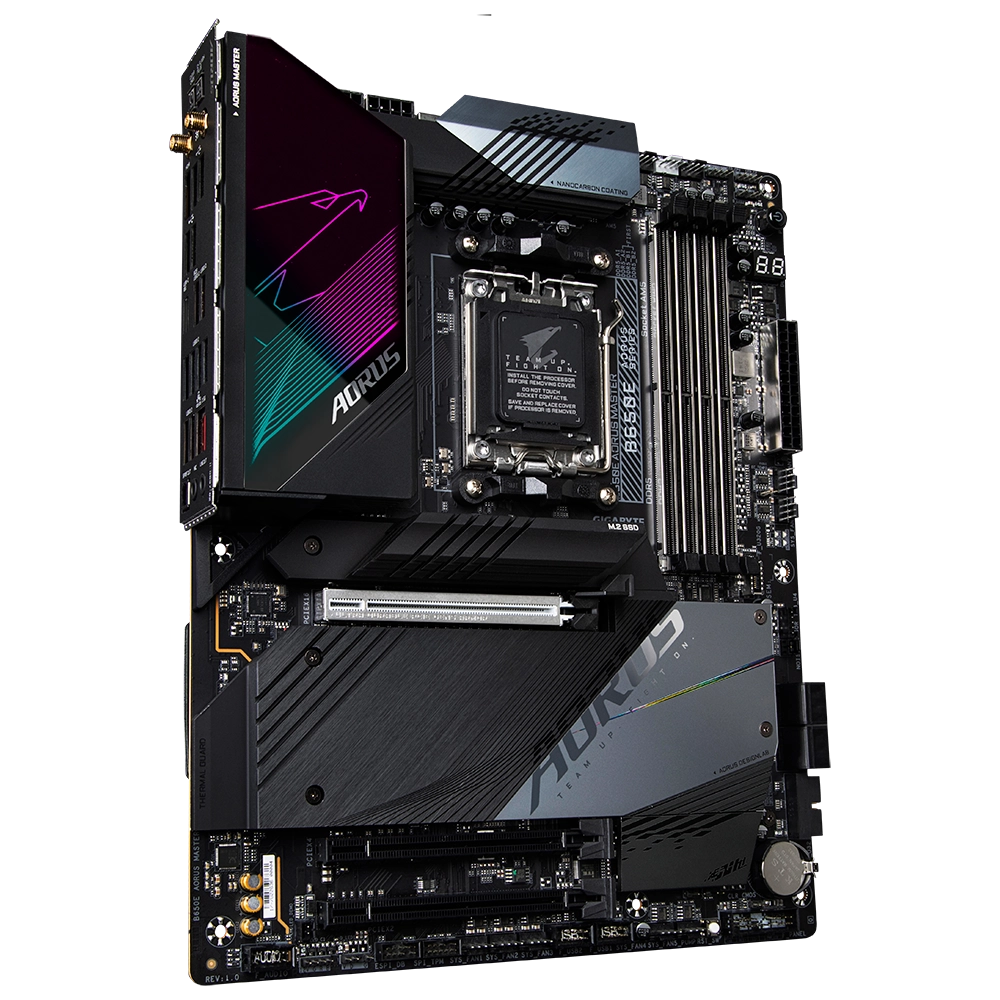

GIGABYTE B650E AORUS MASTER, AM5, Ryzen 7000/8000/9000, DDR5

Designed for enthusiasts, gamers, and creators, the GIGABYTE B650E AORUS MASTER offers state-of-the-art technologies for the latest AMD processors. With PCIe 5.0 for GPUs and SSDs, DDR5 memory compatibility, advanced thermal design, and robust connectivity options, it delivers the performance and flexibility needed for high-end computing.

Key Features

• AMD Socket AM5: Supports AMD Ryzen™ 7000, 8000, and 9000 Series processors.
• DDR5 Compatibility: 4 x DIMM slots for up to 256GB of DDR5 memory with speeds up to 8000 MT/s (OC).
• Next-Gen Storage: Four M.2 slots with PCIe 5.0 and PCIe 4.0 support.
• Fast Networking: Intel® 2.5GbE LAN and AMD Wi-Fi 6E with Bluetooth 5.2.
• Immersive Audio: Realtek ALC1220-VB codec with ESS ES9118 DAC and DTS:X® Ultra.
• Extensive USB Options: Includes USB Type-C®, USB 3.2 Gen 2×2, and USB 3.2 Gen 2 ports.
• Robust Cooling: Supports advanced thermal solutions with multiple fan headers and RGB options.

GIGABYTE B650E AORUS MASTER Specifications

• Brand: GIGABYTE
• Model: B650E AORUS MASTER
• Socket Type: AMD Socket AM5
• Chipset: AMD B650
• Processor Compatibility: AMD Ryzen 7000, 8000, and 9000 Series processors
• Memory Support: 4 x DDR5 DIMM slots, Dual channel, Up to 256GB, Speed support up to DDR5 8000 MT/s (OC)
• Onboard Graphics: 1 x HDMI 2.1 port supporting up to 7680×4320@60 Hz (CPU dependent)
• Audio: Realtek ALC1220-VB codec, ESS ES9118 DAC chip, DTS:X® Ultra, High Definition Audio, S/PDIF Out
• Networking: Intel® 2.5GbE LAN, AMD Wi-Fi 6E RZ616, Bluetooth 5.2
• Expansion Slots: 1 x PCIe 5.0 x16 slot, 1 x PCIe 4.0 x4 slot, 1 x PCIe 4.0 x2 slot
• Storage Interface: 4 x M.2 connectors supporting PCIe 5.0 and PCIe 4.0 SSDs, 4 x SATA 6Gb/s connectors, RAID 0, RAID 1, RAID 10 support for NVMe and SATA storage
• USB Ports: Rear panel includes 1 x USB Type-C® (USB 3.2 Gen 2), 2 x USB 3.2 Gen 2 Type-A, 4 x USB 3.2 Gen 1, 4 x USB 2.0; internal headers include 1 x USB Type-C® (USB 3.2 Gen 2×2), 2 x USB 3.2 Gen 1, 4 x USB 2.0
• Cooling and Power Connectors: 1 x CPU fan header, 1 x CPU fan/water cooling pump header, 4 x system fan headers, 4 x system fan/water cooling pump headers, 2 x addressable RGB LED strip headers, 2 x RGB LED strip headers, 24-pin ATX main power connector, 2 x 8-pin ATX 12V power connectors
• Back Panel Connectors: 1 x HDMI 2.1 port, 2 x SMA antenna connectors, 1 x USB Type-C® port, 4 x USB 3.2 Gen 2 Type-A ports, 4 x USB 3.2 Gen 1 ports, 4 x USB 2.0 ports, 1 x RJ-45 port, 1 x optical S/PDIF Out connector, 2 x audio jacks, 1 x Q-Flash Plus button, 1 x Clear CMOS button
• Form Factor: ATX, 30.5cm x 24.4cm

Processor Compatibility

The GIGABYTE B650E AORUS MASTER supports AMD Ryzen™ 7000, 8000, and 9000 Series processors. Designed to deliver superior performance in gaming and multitasking, it pairs well with high-core count CPUs for both work and play.

Recommended Processors:

• AMD Ryzen 9 7950X for unmatched multi-core performance.
• AMD Ryzen 7 7700X for gamers and professionals seeking optimal performance.
• AMD Ryzen 5 7600 for a budget-friendly yet powerful option.

Discrete Graphics Compatibility

The PCIe 5.0 x 16 slot provides cutting-edge performance for the latest GPUs, ensuring seamless gaming and professional tasks.

Recommended GPUs:

• NVIDIA GeForce RTX 4090 for ultimate 4K gaming and rendering.
• AMD Radeon RX 7900 XT for excellent gaming and content creation.

Storage and Expansion

With four M.2 slots, including PCIe 5.0 compatibility, and four SATA connectors, this motherboard offers high-speed and versatile storage options for enthusiasts and professionals.

Power Requirements and Cooling

The motherboard requires a PSU of at least 850W for high-performance builds, especially with a top-tier GPU and CPU. Advanced cooling options include support for multiple fans, water pumps, and RGB headers to keep your system cool and visually appealing.

Is This Motherboard for You?

The GIGABYTE B650E AORUS MASTER is ideal for gamers, creators, and enthusiasts who demand cutting-edge features and top-notch performance. Its premium design, robust build, and advanced connectivity make it a reliable choice for high-end systems.
