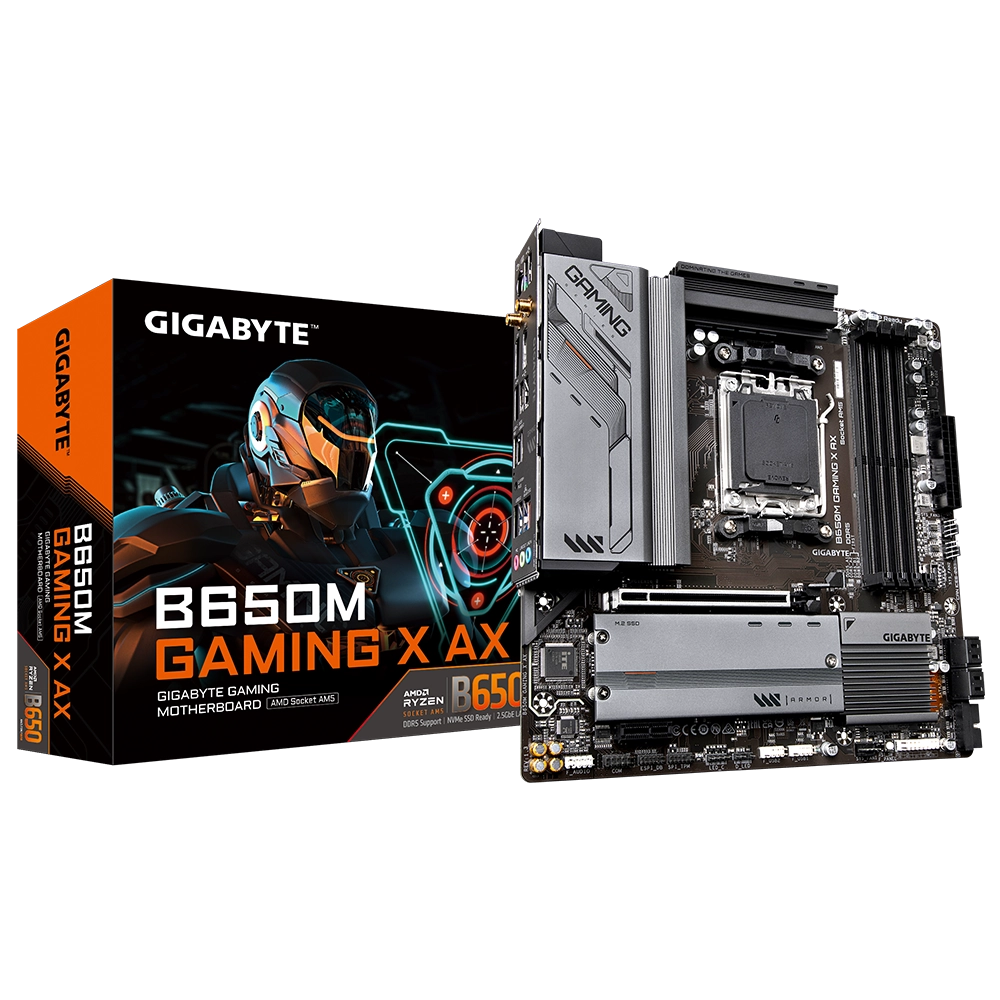

GIGABYTE B650M GAMING X AX, AM5, Ryzen 9000/8000/7000, DDR5

The GIGABYTE B650M GAMING X AX motherboard, powered by the AMD B650 chipset, supports the latest AMD Ryzen™ processors. With its compact micro-ATX form factor, it is ideal for powerful gaming builds and professional-grade workstations.

Advanced features like DDR5 memory support, integrated Wi-Fi 6E, and high-speed PCIe 4.0 make this motherboard a reliable and future-ready choice.

Key Features

• Processor Compatibility: Supports AMD Ryzen 7000, 8000, and 9000 Series processors, unlocking high-performance computing for gaming and multitasking.
• Memory Support: Four DDR5 DIMM slots provide up to 256 GB capacity with speeds reaching 8000 MT/s for optimal gaming and productivity.
• Graphics Support: Includes a PCIe 4.0 x16 slot for high-end GPUs, plus dual DisplayPort and HDMI outputs for integrated graphics.
• Storage Options: Features two M.2 slots with PCIe 4.0 support and four SATA III ports for versatile storage configurations, including RAID.
• Connectivity: Offers Wi-Fi 6E, 2.5GbE LAN, multiple USB 3.2 and Type-C ports, ensuring seamless connectivity for all your devices.
• Audio: Realtek® high-definition audio with support for 7.1-channel surround sound for an immersive multimedia experience.

GIGABYTE B650M GAMING X AX Specifications

• Brand: GIGABYTE
• Model: B650M GAMING X AX
• Socket Type: AMD Socket AM5
• Chipset: AMD B650
• Processor Compatibility: Supports AMD Ryzen 7000, 8000, and 9000 Series Processors
• Memory Support: 4 x DDR5 DIMM slots, up to 256 GB, 8000 MT/s (OC)
• Graphics Support: PCIe 4.0 x16 slot; 2 x Display Ports (3840×2160@144 Hz), 1 x HDMI (4096×2160@60 Hz)
• Storage Interface: 2 x M.2 PCIe 4.0 slots, 4 x SATA III ports, RAID 0/1/10 support
• USB Ports: 1 x USB Type-C (USB 3.2 Gen 2), 1 x USB 3.2 Gen 2 Type-A, 4 x USB 3.2 Gen 1, 8 x USB 2.0
• Networking: Realtek 2.5GbE LAN; Realtek Wi-Fi 6E; Bluetooth 5.3
• Audio: Realtek High Definition Audio, 7.1-channel support, S/PDIF Out
• BIOS: 256 Mbit flash, UEFI BIOS with Q-Flash Plus
• Operating System Support: Windows 11 64-bit, Windows 10 64-bit
• Form Factor and Dimensions: Micro ATX, 24.4cm x 24.4cm

Processor Compatibility

The GIGABYTE B650M GAMING X AX motherboard, equipped with the AM5 socket and AMD B650 chipset, supports the cutting-edge AMD Ryzen™ 7000 series processors. These processors are based on the innovative Zen 4 architecture, which delivers superior performance, enhanced power efficiency, and support for DDR5 memory.

The motherboard’s AM5 socket ensures compatibility with current and future Ryzen™ processors, allowing for upgrades as AMD expands the AM5 platform. Designed to handle multi-core processors, it is ideal for gaming, content creation, and productivity tasks.

Recommended Processors

• AMD Ryzen 5 7600X: A mid-tier choice with 6 cores and 12 threads, excellent for gaming and multitasking, with a boost clock up to 5.3 GHz.
• AMD Ryzen 7 7700X: Offering 8 cores and 16 threads, this processor is well-suited for gaming and creative workloads, featuring a boost clock up to 5.4 GHz.
• AMD Ryzen 9 7900X: A high-end processor with 12 cores and 24 threads, delivering top-tier performance for enthusiasts and professionals.

Memory Compatibility

The B650M GAMING X AX supports up to 256 GB of DDR5 memory across four DIMM slots. Speeds of up to 8000 MT/s are achievable with overclocking (OC), making it an excellent choice for multitasking-heavy workflows and competitive gaming.

Discrete Graphics Compatibility

The PCIe 4.0 x16 slot is designed to support high-performance GPUs, enabling stunning visuals and seamless gameplay. Dual DisplayPorts and HDMI provide flexibility for setups with integrated Radeon™ Graphics or multi-monitor configurations without a discrete GPU.

Storage and Expansion

Equipped with two PCIe 4.0 M.2 slots and four SATA III ports, the motherboard supports ultra-fast storage solutions. RAID 0, 1, and 10 configurations offer versatility for gamers and professionals seeking speed or redundancy in storage.

Connectivity and Audio Features

With Realtek® 2.5GbE LAN, Wi-Fi 6E, and Bluetooth 5.3, this motherboard ensures high-speed networking and peripheral connectivity. Multiple USB 3.2 ports, including Type-C, accommodate modern and legacy devices. Realtek® high-definition audio with 7.1-channel support enhances multimedia experiences.

Power Requirements and Cooling

The motherboard includes an 8-pin and 24-pin ATX power connector to ensure stable performance. Multiple fan headers, including CPU, system, and water pump headers, enable efficient cooling for high-performance setups. A recommended 650W power supply provides optimal power for gaming builds.

Is This Motherboard for You?

The GIGABYTE B650M GAMING X AX is perfect for gamers and creators seeking a compact, feature-rich motherboard. With robust connectivity, advanced storage options, and excellent power delivery, this motherboard offers exceptional value for high-performance PC builds.
