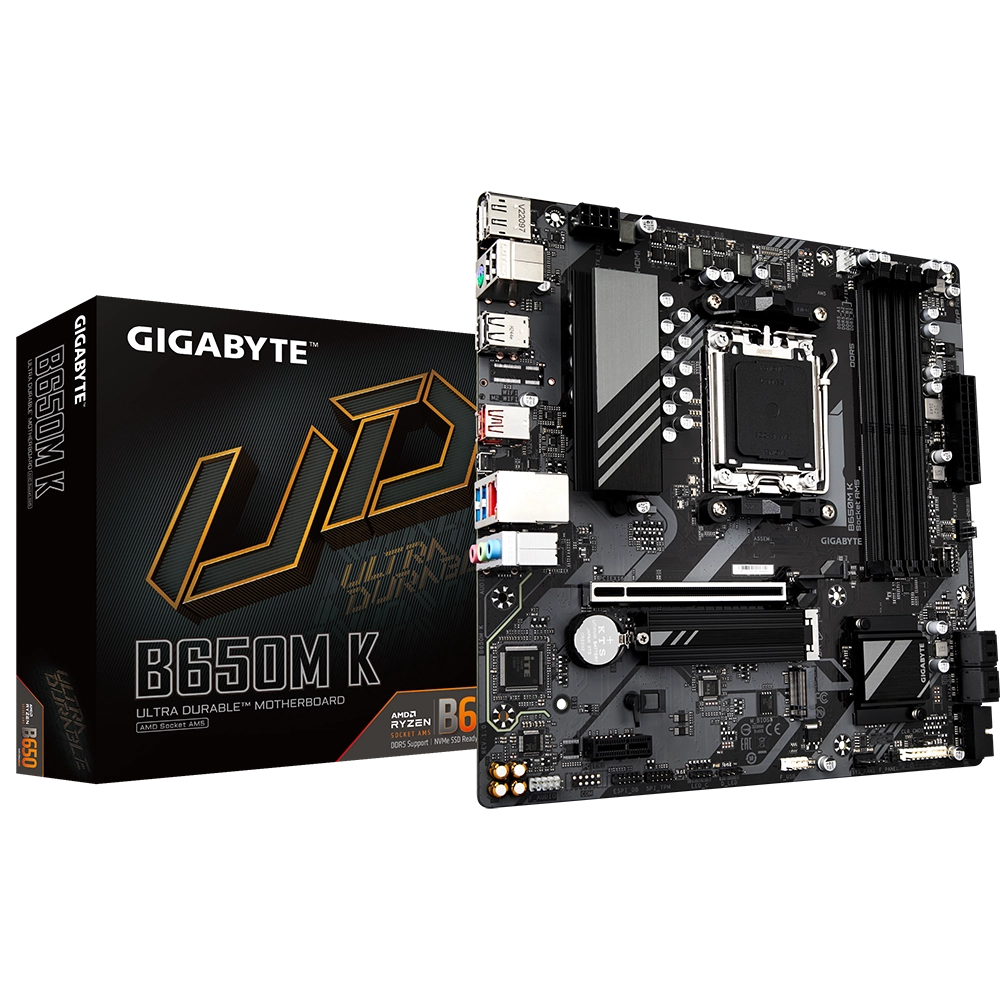

GIGABYTE B650M K, AM5, Ryzen 9000/8000/7000, DDR5

Built around the AMD B650 chipset, the GIGABYTE B650M K is a versatile micro-ATX motherboard supporting the latest AMD Ryzen™ processors. Featuring DDR5 compatibility, PCIe 4.0 slots, and USB 3.2 connectivity, it’s ideal for budget-conscious users seeking a solid foundation for gaming or productivity systems.

Key Features

• Processor Compatibility: AMD Ryzen™ 7000, 8000, and 9000 Series processors with Socket AM5 support.
• Memory Support: 4 x DDR5 DIMM slots, up to 256 GB, with speeds up to 8000 MT/s (OC).
• Graphics Support: PCIe 4.0 x16 slot for discrete GPUs, onboard HDMI and DisplayPort for integrated graphics.
• Storage Options: Dual M.2 PCIe 4.0 slots and four SATA III ports with RAID support.
• Connectivity: USB 3.2 Gen 2 Type-C, multiple USB 3.2 Gen 1 ports, and Realtek® 2.5GbE LAN.
• Audio: High-definition Realtek® audio with 7.1-channel surround sound.

GIGABYTE B650M K Specifications

• Brand: GIGABYTE
• Model: B650M K
• Socket Type: AMD Socket AM5
• Chipset: AMD B650
• Processor Compatibility: AMD Ryzen 7000, 8000, and 9000 Series Processors
• Memory Support: 4 x DDR5 DIMM slots, up to 256 GB, 8000 MT/s (OC)
• Graphics Support: PCIe 4.0 x16 slot; HDMI 2.1 (4096×2160@60 Hz), DisplayPort 1.4 (3840×2160@144 Hz)
• Storage Interface: 2 x M.2 PCIe 4.0 slots, 4 x SATA III ports, RAID 0/1/10 support
• USB Ports: USB Type-C 3.2 Gen 2, USB 3.2 Gen 2 Type-A, USB 3.2 Gen 1, USB 2.0
• Networking: Realtek 2.5GbE LAN
• Audio: Realtek Audio CODEC, 7.1-channel support
• BIOS: 256 Mbit flash, UEFI BIOS with Q-Flash Plus
• Operating System Support: Windows 11 64-bit, Windows 10 64-bit
• Form Factor and Dimensions: Micro-ATX, 24.4cm x 24.4cm

Processor Compatibility

The GIGABYTE B650M K motherboard, featuring the AM5 socket and B650 chipset, is designed to support AMD’s cutting-edge Ryzen™ 7000 Series processors, built on the Zen 4 architecture. This includes support for Ryzen™ 9, Ryzen™ 7, Ryzen™ 5, and Ryzen™ 3 CPUs, offering flexibility for high-performance tasks, gaming, and everyday computing. With its robust power delivery and PCIe 4.0 support, the motherboard is optimized for exceptional processor performance and advanced connectivity.

Recommended Processors

• AMD Ryzen 9 7900X: A 12-core, 24-thread processor with a boost clock of up to 5.6 GHz, making it an excellent choice for gamers and content creators who demand top-tier performance and efficiency.
• AMD Ryzen 7 7700: An 8-core, 16-thread CPU delivering outstanding multitasking capabilities, ideal for gaming and workstation applications with balanced performance and power consumption.
• AMD Ryzen 5 7600: A 6-core, 12-thread processor that offers excellent value for gaming and productivity tasks, making it a great choice for mid-range builds.

Memory Compatibility

Equipped with four DDR5 slots, the GIGABYTE B650M K supports up to 256 GB of RAM, with speeds reaching 8000 MT/s (OC). This makes it ideal for memory-intensive applications such as gaming, multimedia editing, and everyday multitasking.

Discrete Graphics Compatibility

With a PCIe 4.0 x16 slot, this motherboard ensures compatibility with high-performance graphics cards. Integrated HDMI and DisplayPort options provide flexibility for builds using Ryzen™ processors with onboard graphics, supporting up to three displays simultaneously.

Storage and Expansion

The dual M.2 slots (PCIe 4.0) offer blazing-fast storage performance, while the four SATA III ports provide additional space for bulk storage. RAID configurations (0/1/10) are supported, catering to diverse storage needs.

Connectivity and Audio Features

This motherboard offers USB 3.2 Gen 2 Type-C and USB 3.2 Gen 1 ports for modern peripherals. The Realtek® 2.5GbE LAN ensures stable networking, while the 7.1-channel high-definition audio enhances immersive gaming and multimedia experiences.

Power Requirements and Cooling

The GIGABYTE B650M K features an 8-pin ATX 12V power connector and robust VRM design for stable performance. It includes multiple fan headers and RGB support for effective cooling and system customization. A 600W PSU is recommended for optimal performance.

Is This Motherboard for You?

The GIGABYTE B650M K is an excellent choice for users seeking a reliable, budget-friendly micro-ATX motherboard with DDR5 support, advanced connectivity, and robust performance for gaming or productivity.
