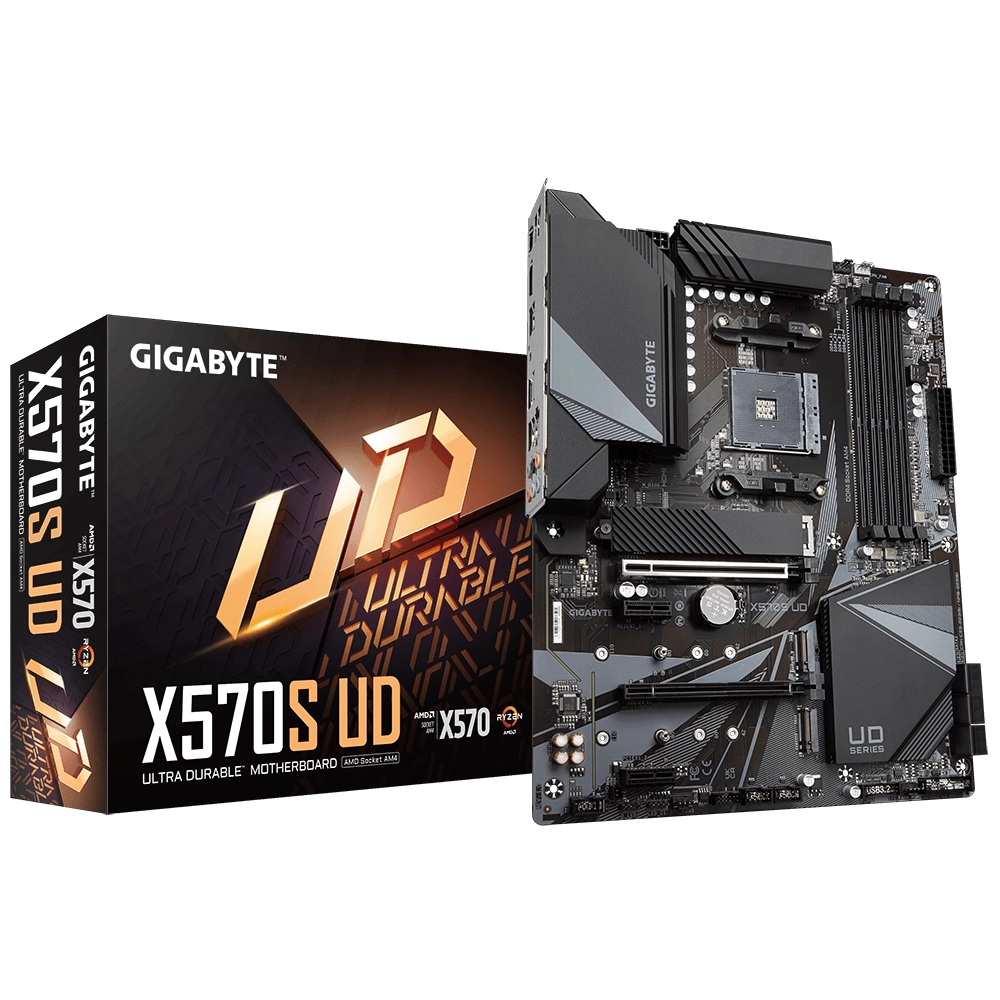

Gigabyte X570S UD – AM4 Motherboard For Ryzen 5000 and Earlier

Experience outstanding performance with the Gigabyte X570S UD, a powerhouse ATX motherboard that redefines reliability and innovation. Designed for AMD Ryzen 5000, 4000, and 3000 Series processors, this board delivers enhanced performance with cutting-edge technologies like PCIe 4.0, dual Type-C® USB support, and robust thermal solutions. Whether you’re gaming, creating, or multitasking, the X570S UD provides the ideal foundation for your build.

Key Features

• Optimized for Ryzen: Supports AMD Ryzen™ 5000, 4000, and 3000 Series processors.
• PCIe 4.0 Support: Provides enhanced bandwidth for GPUs and SSDs.
• Comprehensive Storage Options: Triple M.2 connectors and six SATA 6Gb/s ports.
• High-Speed Networking: Realtek 2.5GbE LAN for ultra-fast and stable connections.
• Enhanced Cooling: Multiple fan headers and support for water cooling.
• Immersive Audio: High-definition audio with Realtek® codec for crystal-clear sound.
• Next-Gen USB Connectivity: Includes USB 3.2 Gen 2 Type-C® and Type-A ports.
• RGB Fusion Ready: Personalize your build with customizable RGB lighting.

Gigabyte X570S UD Specifications

• Brand: GIGABYTE
• Model: X570S UD
• Socket Type: AM4
• Chipset: AMD X570
• Processor Compatibility: AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series, 2000 G-Series processors.
• Memory Support: 4 x DDR4 DIMM sockets, up to 128GB.
• Graphics Support: 1 x HDMI port, resolution up to 4096×2160@60Hz, HDMI 2.1, HDR support.
• Expansion Slots: 1 x PCIe 4.0/3.0 x16, 1 x PCIe 4.0/3.0 x2, 2 x PCIe 4.0/3.0 x1.
• Storage Interface: 3 x M.2 connectors (PCIe 4.0/3.0, SATA) and 6 x SATA 6Gb/s ports, RAID 0, 1, 10 support.
• USB Ports: Rear: 1 x USB 3.2 Gen 2 Type-C, 1 x USB 3.2 Gen 2 Type-A, 4 x USB 3.2 Gen 1, 2 x USB 2.0/1.1; Internal: 1 x USB 3.2 Gen 2 Type-C, 1 x USB 3.2 Gen 1, 2 x USB 2.0/1.1.
• Networking: Realtek 2.5GbE LAN.
• Audio: Realtek  High Definition Audio codec, 2/4/5.1/7.1-channel.
• BIOS: 256Mbit AMI UEFI BIOS.
• Cooling and RGB: 3 x system fan headers, 1 x water cooling pump header, RGB Fusion 2.0.
• Operating System Support: Windows 11 64-bit, Windows 10 64-bit.
• Form Factor and Dimensions: ATX, 30.5 cm x 24.4 cm.

Processor Compatibility

The GIGABYTE X570S UD supports the AMD AM4 socket, making it compatible with a wide range of AMD Ryzen™ processors, from 2nd Generation Ryzen™ (Zen+) to the powerful 3rd and 4th Generation Ryzen™ (Zen 2 and Zen 3) series. With the X570S chipset, the motherboard offers full PCIe 4.0 support, ensuring excellent performance for gaming, content creation, and multitasking applications.

Compatible Processors:

• 2nd Generation Ryzen (Zen+): Ryzen 5 2600, Ryzen 7 2700X – affordable options for entry-level and mid-tier builds.
• 3rd Generation Ryzen (Zen 2): Ryzen 5 3600, Ryzen 7 3800X, Ryzen 9 3950X – excellent for gaming, streaming, and heavy workloads.
• 4th Generation Ryzen (Zen 3): Ryzen 5 5600X, Ryzen 7 5800X, Ryzen 9 5950X – outstanding single-core and multi-core performance for demanding applications.
• Ryzen™ G-Series Processors (Zen 3): Ryzen 5 5600G, Ryzen 7 5700G – great for builds without a discrete GPU, thanks to integrated Radeon graphics.

Processor Recommendations:

• Entry-Level Builds: Ryzen 5 3600 – Delivers solid performance at an affordable price for gaming and everyday tasks, Ryzen 5 5600G – Integrated graphics capability makes it perfect for budget gaming or office builds.
• Gaming and Streaming Builds: Ryzen 5 5600X – A fantastic choice for gamers seeking excellent frame rates and multitasking capabilities, Ryzen 7 5800X – Superior performance for gaming at higher resolutions and content creation.
• High-End Builds: Ryzen 9 5950X – Ideal for professional workstations requiring massive multi-core performance for 3D rendering and simulations, Ryzen 9 5900X – A balanced option for gaming and productivity tasks.

BIOS Updates:
A BIOS update may be required for compatibility with the latest Ryzen™ 5000 Series processors. Utilize the motherboard’s Q-Flash Plus feature to update the BIOS easily, even without a CPU or memory installed.

Discrete Graphics Compatibility

The GIGABYTE X570S UD is equipped with a PCIe 4.0 x16 slot, offering unparalleled bandwidth for modern discrete GPUs. Whether you are building a gaming rig, a workstation, or a hybrid system, the motherboard provides the necessary support for high-performance graphics cards.

Compatible Graphics Cards:

• Entry-Level GPUs: NVIDIA GTX 1660 Super, AMD Radeon RX 6500 XT – perfect for budget-conscious gamers.
• Mid-Range GPUs: NVIDIA RTX 3060, AMD Radeon RX 6700 XT – suitable for 1440p gaming and light rendering tasks.
• High-End GPUs: NVIDIA RTX 3080, AMD Radeon RX 6800 XT – delivers 4K gaming and high-performance workloads.
• Professional GPUs: NVIDIA Quadro RTX A2000, AMD Radeon Pro W6600 – optimized for CAD, 3D modeling, and professional content creation.

Graphics Recommendations:

• Budget Gaming Builds: AMD Radeon RX 6500 XT – Offers excellent 1080p performance at a low cost, NVIDIA GTX 1660 Super – Reliable for esports gaming and streaming.
• Gaming and Productivity: NVIDIA RTX 3060 Ti – An excellent mid-range option for gamers and creators, AMD RX 6700 XT – Delivers smooth 1440p gaming and VR experiences.
• 4K Gaming and Workstation Builds: NVIDIA RTX 3080 – A powerhouse for 4K gaming and high-fidelity rendering, AMD RX 6800 XT – Exceptional for creative workloads and 4K visuals.
• Professional Use: NVIDIA Quadro RTX A2000 – Ideal for engineering and professional design tasks.

Onboard Graphics

For processors with integrated Radeon graphics (like the Ryzen™ 5 5600G), the motherboard provides an HDMI 2.1 port, supporting resolutions up to 4096×2160@60Hz, making it suitable for multi-display setups or media consumption without a dedicated GPU.

Storage and Expansion

The motherboard boasts an impressive array of storage options, including three M.2 connectors supporting PCIe 4.0 and PCIe 3.0 SSDs, and six SATA 6Gb/s connectors for HDDs and SSDs. RAID 0, 1, and 10 configurations enhance speed and redundancy.

Power Requirements and Cooling

The GIGABYTE X570S UD is built with a durable 12+2 phase digital VRM design, ensuring stable power delivery to high-performance components. Its passive chipset cooling and heatsinks provide optimal thermal performance, maintaining system stability even under heavy workloads.

Recommended Power Supply Wattage:

• Basic Builds: 450W-550W PSU – Suitable for systems using Ryzen™ G-Series processors or entry-level GPUs.
• Mid-Tier Builds: 650W PSU – Ideal for builds featuring GPUs like the RTX 3060 or RX 6700 XT.
• High-End Gaming Systems: 750W-850W PSU – Recommended for GPUs such as RTX 3080 or RX 6800 XT, providing headroom for overclocking.
• Workstation Builds: 1000W+ PSU – Required for multi-GPU setups or configurations with power-intensive hardware like Ryzen™ 9 processors.

Cooling Recommendations:

• Air Cooling: High-quality air coolers like the Noctua NH-U12S or be quiet! Pure Rock 2 are sufficient for most systems.
• Liquid Cooling: Overclocking enthusiasts or high-performance users may benefit from AIO coolers such as the Corsair iCUE H100i Elite Capellix or custom water-cooling solutions.
• Case Airflow: Ensure proper case ventilation with intake and exhaust fans to maximize the passive cooling capabilities of the X570S chipset design.

With robust VRM capabilities, ample cooling options, and versatile compatibility, the GIGABYTE X570S UD is an excellent choice for gaming enthusiasts, creators, and professionals seeking a high-performance and reliable AM4 motherboard.

Is This Motherboard for You?

If you’re seeking a durable and feature-rich ATX motherboard with advanced connectivity, high-speed storage, and support for the latest AMD Ryzen™ processors, the Gigabyte X570S UD is an excellent choice. Ideal for gamers, creators, and professionals, it delivers top-notch performance and reliability for all your computing needs.

Note: Product not available online in Ph. Check local retailer.
