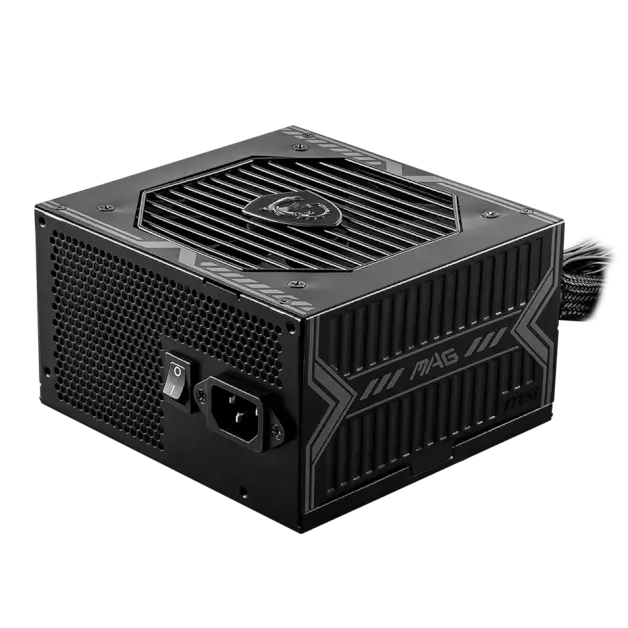

MSI MAG A650BN, 650W, 80 PLUS Bronze, Quiet 120mm Fan

The MSI MAG A650BN power supply is an excellent entry-level option for gamers and PC builders. Certified with 80 PLUS Bronze, it delivers up to 85% efficiency, reducing energy consumption and heat generation. Its DC-to-DC circuit design ensures stable voltage output, while the single +12V rail delivers reliable power for your components.

Featuring industrial-grade protections, a 120mm low-noise fan, and a durable design, the MAG A650BN provides safe and efficient power for gaming and productivity systems.

Key Features

• Wattage: 650W continuous output, ideal for entry-level to mid-range gaming and productivity builds.
• Efficiency Rating: 80 PLUS Bronze certified, providing up to 85% efficiency at typical loads.
• Cooling System: Quiet 120mm sleeve bearing fan for effective heat dissipation and reduced noise.
• DC-to-DC Design: Ensures stable voltage output, improving overall system reliability.
• Industrial-Grade Protection: Equipped with OVP, OCP, OPP, OTP, and SCP to safeguard components.
• Compact Design: Standard ATX dimensions for compatibility with most cases.
• Durability: Backed by a 5-year limited warranty for long-term reliable operation.

MSI MAG A650BN Power Supply Specifications

• Brand: MSI
• Model: MAG A650BN
• Wattage: 650W continuous output
• Efficiency Certification: 80 PLUS Bronze
• Form Factor: ATX
• Input Voltage: 100-240V AC (full range)
• Input Frequency Range: 50-60Hz
• PFC: Active PFC
• Fan Size and Type: 120mm sleeve bearing fan
• Circuit Design: DC-to-DC design for stable power delivery
• Protections: OVP, OCP, OPP, OTP, SCP
• Connectors:
  • Motherboard: 1 x 24-pin ATX (20+4)
  • CPU/EPS: 1 x 4+4-pin EPS12V
  • PCIe: 2 x 6+2-pin PCIe
  • SATA: 5 x SATA connectors
  • Peripheral (Molex): 2 x 4-pin Molex
  • Floppy: 1 x Floppy connector
• Dimensions: 150mm x 140mm x 86mm
• Warranty: 5 Years

Processor Compatibility

The MSI MAG A650BN is compatible with modern multi-core processors, supporting Intel Core i5/i7 and AMD Ryzen 5/7, making it suitable for entry-level to mid-range gaming and productivity systems.

Graphics Card Compatibility

The MSI MAG A650BN provides a stable and efficient 650W power output, ideal for mid-range to high-performance GPUs. This PSU supports graphics cards requiring an 8-pin PCIe connector and is compatible with various models from NVIDIA and AMD:

• NVIDIA GeForce RTX Series: MSI GeForce RTX 4060 Ventus 2X Black 8G OC, GIGABYTE GeForce RTX 4070 GAMING OC 12GB, and ASUS TUF Gaming GeForce RTX 4080 16GB GDDR6X OC Edition.
• AMD Radeon RX Series: SAPPHIRE Radeon RX 6600 PULSE GAMING 8GB, MSI Radeon RX 6900 XT GAMING X TRIO 16G, and GIGABYTE Radeon RX 7700 XT PULSE GAMING OC 12GB.
• Legacy Cards: Zotac Gaming GeForce RTX 3060 Twin Edge (12GB) and ASUS Dual GeForce GTX 1650 OC Edition (4GB).

Whether you’re upgrading to handle AAA titles or building a budget-friendly gaming rig, this PSU offers the reliability and connections needed to power your setup.

Motherboard Compatibility

The MSI MAG A650BN is compatible with a wide range of motherboards, making it versatile for both Intel and AMD builds:

• AMD Platforms: ASUS TUF Gaming B650M-PLUS WIFI, MSI MAG B550M Mortar WIFI, and Gigabyte X670 AORUS ELITE AX for Ryzen systems.
• Intel Platforms: ASUS PRIME Z790-P WIFI DDR4, MSI PRO Z690-A WIFI DDR5, and Gigabyte B760 GAMING X AX DDR4.

Its 24-pin ATX connector and dual 8-pin EPS connectors ensure robust power delivery for CPUs across platforms.

Energy Efficiency

The 80 PLUS Bronze certification ensures up to 85% efficiency under typical loads, reducing energy consumption and heat generation for cost-effective and eco-friendly operation.

Cooling and Noise Level

The 120mm low-noise sleeve bearing fan adjusts speed dynamically based on load and temperature, providing effective cooling while maintaining a quiet system.

Is the MSI MAG A650BN for You?

The MSI MAG A650BN is a reliable and budget-friendly PSU for gamers and PC builders starting their DIY journey. With 650W output, 80 PLUS Bronze efficiency, and industrial-grade protections, it provides stable and efficient power for entry-level and mid-range builds.

Its quiet fan, durable design, and 5-year warranty make it a dependable choice for gaming and productivity systems.
