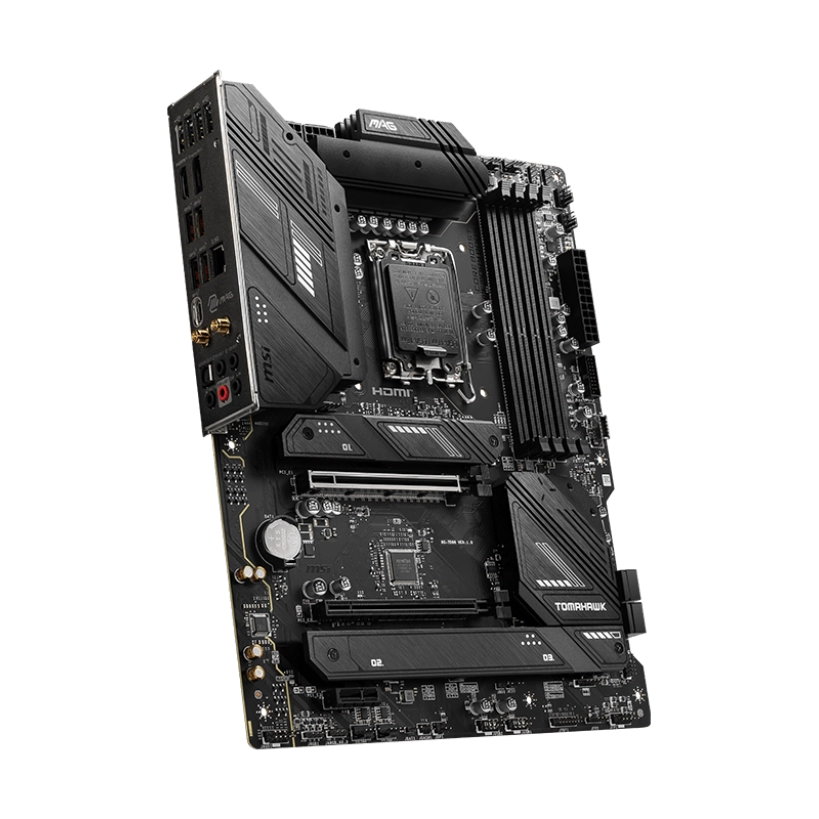

MSI MAG B760 TOMAHAWK WIFI DDR4, LGA1700, Intel 14th/13th/12th Gen

The MSI MAG B760 TOMAHAWK WIFI DDR4 is built for powerful performance with support for Intel® 14th, 13th, and 12th Gen processors. With DDR4 memory compatibility and speeds up to 5333MHz (OC), it provides reliable, fast, and efficient operation.

Featuring PCIe 5.0 x16 support, it ensures compatibility with next-gen GPUs, while triple PCIe 4.0 M.2 slots and M.2 Shield FROZR deliver blazing-fast storage and optimal SSD cooling. Wi-Fi 6E and 2.5G LAN provide top-tier network connectivity, while Lightning USB 20G (USB 3.2 Gen 2×2 Type-C) offers ultra-fast data transfer speeds.

Whether you’re a gamer or a creator, the MSI MAG B760 TOMAHAWK WIFI DDR4 provides all the tools you need for a smooth and high-performance PC experience.

Key Features

• Supports Intel 14th/13th/12th Gen Core, Pentium Gold, and Celeron® processors.
• DDR4 memory compatibility with up to 128GB and speeds up to 5333MHz (OC).
• PCIe 5.0 x16 slot delivers next-gen GPU bandwidth for gaming and rendering.
• Triple PCIe 4.0 M.2 slots with M.2 Shield FROZR for ultra-fast storage and thermal management.
• Wi-Fi 6E and 2.5G LAN ensure high-speed and reliable networking.
• Lightning USB 20G (USB 3.2 Gen 2×2 Type-C) for ultra-fast 20Gbps data transfer.
• 6-layer PCB with 2oz copper enhances durability and system stability.
• EZ Debug LED simplifies troubleshooting during system setup.
• Audio Boost delivers studio-grade audio quality.
• Full-sized ATX form factor, perfect for high-performance PC builds.

MSI MAG B760 TOMAHAWK WIFI DDR4 Specifications

• Brand: MSI
• Model: MAG B760 TOMAHAWK WIFI DDR4
• Socket: LGA 1700
• Chipset: Intel B760
• Memory Support: DDR4, up to 5333MHz (OC), 4 DIMM slots, max 128GB
• Graphics Outputs: 1x HDMI 2.1 (4K@60Hz), 1x DisplayPort 1.4 (8K@60Hz)
• Expansion Slots: 1 PCIe 5.0 x16 (from CPU), 1 PCIe 4.0 x4 (from chipset), 1 PCIe 3.0 x1 (from chipset)
• Storage: 3 PCIe 4.0 M.2 slots (up to 22110), 4 SATA 6Gb/s ports
• Networking: Realtek® RTL8125BG 2.5G LAN, Intel® Wi-Fi 6E, Bluetooth 5.3
• Audio: Realtek® ALC897 Codec, 7.1-channel high-definition audio, supports S/PDIF out
• USB Ports: Rear: 4x USB 2.0, 4x USB 10Gbps Type-A, 1x USB 20Gbps Type-C, Front: 4x USB 2.0, 2x USB 5Gbps Type-A, 1x USB 10Gbps Type-C
• Cooling: 1 CPU fan header, 1 pump fan header, 5 system fan headers
• Power Requirements: 24-pin ATX power connector, 8-pin + 4-pin CPU power connectors
• Operating System Support: Windows 11 64-bit, Windows 10 64-bit
• Form Factor: ATX (243.84mm x 304.8mm)

Processor Compatibility

The MSI MAG B760 TOMAHAWK WIFI DDR4 Motherboard supports a wide range of Intel processors, offering compatibility across multiple generations for users of various performance needs.

Supported Intel Generations

• 12th Generation Intel Core Processors (Alder Lake): Entry-level to high-performance processors for diverse workloads.
• 13th Generation Intel Core Processors (Raptor Lake): Enhanced processing power with improved multi-threading for gamers and multitaskers.
• 14th Generation Intel Core Processors: Cutting-edge architecture for demanding applications and next-gen performance.

Processor Recommendations for MSI MAG B760 TOMAHAWK WIFI

• Intel Core i3-12100: A budget-friendly choice, perfect for basic productivity tasks and light gaming.
• Intel Core i5-13600K: Ideal for gaming and multitasking with its performance and efficiency cores.
• Intel Core i9-13900KF: A powerhouse processor for gamers and creators needing exceptional multi-core performance.

Ready to build your dream PC? Pair the MSI MAG B760 TOMAHAWK WIFI DDR4 with a compatible processor today!

Discrete GPU Compatibility

The MSI MAG B760 TOMAHAWK WIFI DDR4 Motherboard features PCIe 4.0 support, delivering high bandwidth for modern graphics cards. While PCIe 5.0 GPUs are backward compatible with PCIe 4.0, they will operate at PCIe 4.0 speeds, which is sufficient for most users.

PCIe Compatibility Considerations

• PCIe 4.0 GPUs: Fully optimized, delivering exceptional performance for high-refresh-rate gaming and content creation.
• PCIe 5.0 GPUs: Backward compatible but limited to PCIe 4.0 speeds.
• PCIe 3.0 GPUs: Compatible but may bottleneck newer high-end GPUs, reducing their performance potential.

Graphics Card Recommendations for MSI MAG B760 TOMAHAWK WIFI

• NVIDIA GeForce GTX 1660 Super: A reliable choice for 1080p gaming on a budget.
• AMD Radeon RX 7600: Great for 1080p to 1440p gaming with high efficiency and performance.
• NVIDIA GeForce RTX 4070: Perfect for 1440p gaming and light 4K workloads, offering advanced ray tracing and AI features.

Upgrade your graphics today—pair your MSI motherboard with a powerful GPU for breathtaking visuals!

Memory Compatibility

The MSI MAG B760 TOMAHAWK WIFI DDR4 Motherboard provides excellent memory compatibility, supporting DDR4 memory modules for users who want reliable performance at a reasonable cost.

Key Memory Features

• Four DDR4 DIMM slots: Supports up to 128GB of total memory capacity.
• Supported Speeds: Up to DDR4 5333 MHz (OC) for overclocking enthusiasts.
• Dual-Channel Memory Architecture: Boosts data transfer speeds and overall system performance.
• Intel XMP 3.0 Support: Simplifies memory overclocking, ensuring stable and optimized performance.

Overclocking Limitation: Stability and performance may vary based on memory quality and motherboard cooling during extreme overclocking.

Power Requirements and Cooling

The MSI MAG B760 TOMAHAWK WIFI DDR4 Motherboard is equipped with reliable power connectors and advanced cooling features to maintain system stability during intensive workloads.

Power Connectors

• 24-Pin ATX Main Power Connector: Powers the motherboard and ensures stable operation.
• 8+4-Pin EPS CPU Power Connectors: Delivers sufficient power for high-performance processors and overclocking.

Cooling and Fan Headers

• 1x CPU Fan Header: Supports air or liquid CPU cooling.
• 1x Pump Fan Header: Designed for AIO or custom water cooling systems.
• 5x System Fan Headers: Keeps the entire system cool with optimized airflow.
• VRM Cooling: High-quality heatsinks dissipate heat efficiently, ensuring stable performance during overclocking.

Power Supply Recommendations for MSI MAG B760 TOMAHAWK WIFI

• 550W PSU: Suitable for basic builds with GPUs like the GTX 1660 Super.
• 750W PSU: Ideal for mid-range GPUs like the AMD RX 7600 or RTX 4070.
• 850W PSU: Recommended for high-end GPUs, providing enough power for overclocked systems and upgrades.

Don’t compromise on power—choose a reliable PSU and keep your system cool with advanced cooling solutions!

Is This Motherboard for You?

The MSI MAG B760 TOMAHAWK WIFI DDR4 is an excellent choice for gamers, creators, and professionals who demand cutting-edge features and reliable performance.

With DDR4 support, PCIe 5.0, Wi-Fi 6E, and triple M.2 slots, this motherboard is perfect for high-performance gaming rigs or productivity-focused builds.
