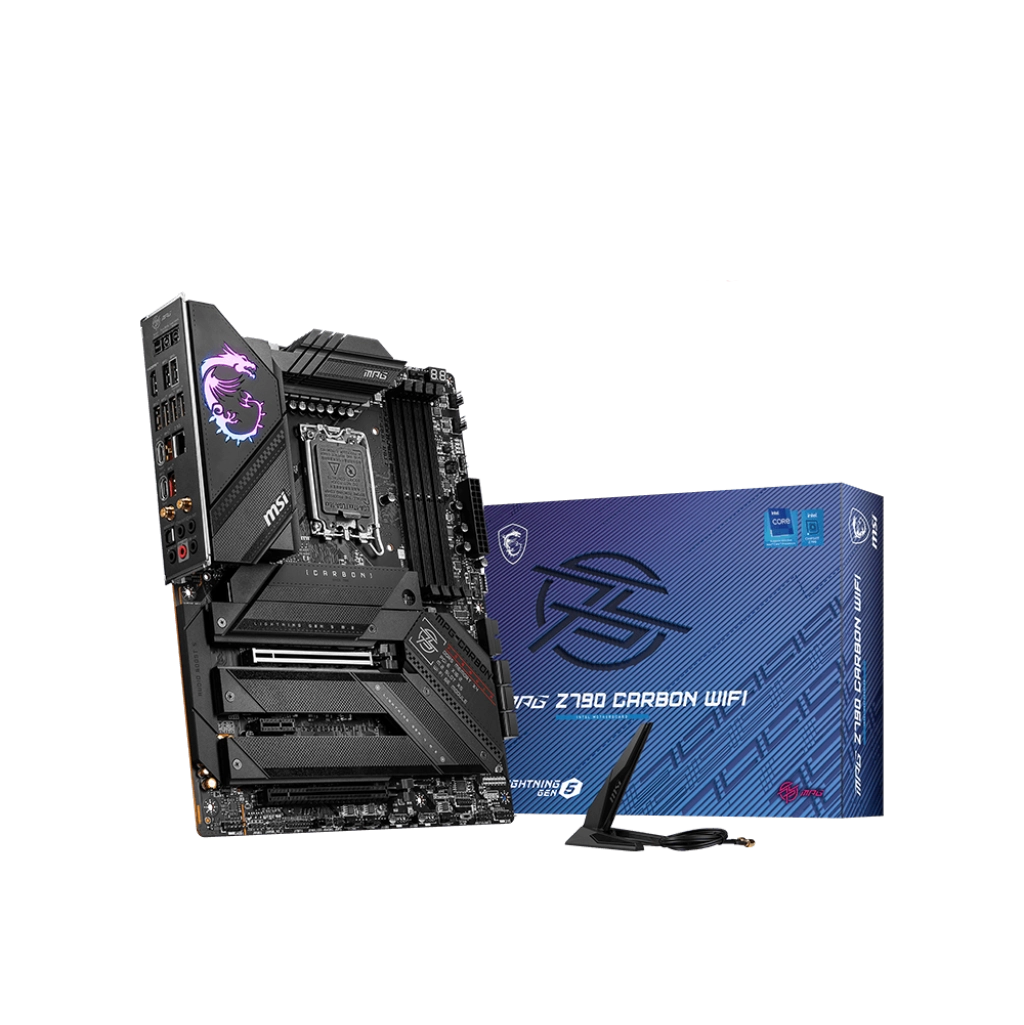

MSI MPG Z790 CARBON WIFI, LGA1700, Intel 14th/13th/12th Gen, DDR5

The MSI MPG Z790 CARBON WIFI DDR5 delivers cutting-edge performance with its DDR5 memory support, PCIe 5.0 slots, and Intel Z790 chipset. It is designed to meet the demands of gamers, creators, and professionals alike.

With five M.2 slots, including one PCIe 5.0-ready slot for next-gen SSDs, and six SATA ports, you can enjoy unparalleled storage expandability. The Wi-Fi 6E and Intel 2.5Gbps LAN provide ultra-fast networking for smooth gaming and data transfers, while the Lightning USB 20G ensures blazing-fast connection speeds.

Its premium thermal design, featuring M.2 Shield Frozr and MOSFET heatsinks, ensures optimal performance even under heavy workloads. Enhanced Audio Boost 5 technology delivers immersive sound for gaming and entertainment.

If you’re seeking a motherboard that pairs sleek aesthetics with uncompromising performance, the MSI MPG Z790 CARBON WIFI DDR5 is the perfect choice.

Key Features

• DDR5 memory support for higher bandwidth and faster multitasking.
• PCIe 5.0 x16 slot for next-gen GPUs and unparalleled graphics performance.
• Wi-Fi 6E and 2.5Gbps LAN for lightning-fast connectivity.
• Five M.2 slots with one PCIe 5.0-ready for blazing-fast NVMe SSD storage.
• Audio Boost 5 technology for studio-grade sound clarity.
• Lightning USB 20G (USB 3.2 Gen 2×2) for ultra-fast data transfers.
• M.2 Shield Frozr for enhanced SSD cooling and performance stability.

MSI MPG Z790 CARBON WIFI Specifications

• Brand: MSI
• Model: MPG Z790 CARBON WIFI DDR5
• Socket: LGA 1700
• Chipset: Intel Z790
• Memory Support: DDR5 (up to 7800+ MHz OC), 4 DIMM slots, max 256GB
• Graphics Outputs: HDMI 2.1 (4K@60Hz), DisplayPort 1.4 (4K@60Hz)
• Expansion Slots: 2 PCIe x16 (1 PCIe 5.0 x16, 1 PCIe 3.0 x4), 1 PCIe 4.0 x1
• Storage: 5x M.2 (1 PCIe 5.0 x4, 4 PCIe 4.0 x4/SATA), 6x SATA 6Gb/s
• RAID: RAID 0, RAID 1, RAID 5, RAID 10 for SATA and M.2 NVMe storage
• Networking: Intel 2.5Gbps LAN, Intel® Wi-Fi 6E
• Bluetooth: Bluetooth 5.3
• Audio: Realtek ALC4080 Codec, 7.1-channel USB HD audio, supports up to 32-bit/384kHz playback on front panel
• USB Ports (Rear): 2 USB 5Gbps Type-A, 6 USB 10Gbps Type-A, 1 USB 10Gbps Type-C, 1 USB 20Gbps Type-C
• USB Ports (Front): 4 USB 2.0, 2 USB 5Gbps Type-A, 1 USB 20Gbps Type-C
• Cooling: 1 CPU fan header, 1 pump fan header, 5 system fan headers
• Power Requirements: 24-pin ATX power connector, 2x 8-pin CPU power connectors
• Operating System Support: Windows 11 64-bit, Windows 10 64-bit
• Form Factor: ATX (243.84mm x 304.8mm)

Processor Compatibility

The MSI MPG Z790 CARBON WIFI DDR5 Motherboard is engineered to support Intel’s 12th Gen (Alder Lake), 13th Gen (Raptor Lake), and 14th Gen processors, delivering exceptional performance for gaming, streaming, and productivity.

Supported Intel Generations

• 12th Gen (Alder Lake): Entry-level to high-performance processors for all-around use.
• 13th Gen (Raptor Lake): Optimized for demanding multitasking and gaming.
• 14th Gen: Cutting-edge performance for future-proofing your system.

Processor Recommendations for MSI MPG Z790 CARBON WIFI

• Intel Core i5-12600K: Ideal for gaming and entry-level content creation.
• Intel Core i7-13700KF: A balanced choice for high-performance gaming and multitasking.
• Intel Core i9-14900K: For enthusiasts looking to maximize every ounce of power and speed.

Pair the Z790 CARBON WIFI with your preferred Intel processor to unleash its full potential!

Discrete GPU Compatibility

The MSI MPG Z790 CARBON WIFI DDR5 features PCIe 5.0 x16 slots, delivering ultra-fast speeds for next-gen GPUs. The motherboard is backward compatible with PCIe 4.0 and PCIe 3.0, ensuring flexibility for various GPUs but with reduced bandwidth for older cards.

PCIe Compatibility Insights

• PCIe 5.0 GPUs: Unleashes maximum bandwidth for unparalleled gaming and rendering performance.
• PCIe 4.0 GPUs: Fully supported with slightly reduced data transfer speeds.
• PCIe 3.0 GPUs: Compatible but may bottleneck in modern AAA gaming and productivity workloads.

Graphics Card Recommendations for MSI MPG Z790 CARBON WIFI

• NVIDIA GeForce RTX 4070 Ti: Offers excellent 1440p performance with ray tracing capabilities.
• AMD Radeon RX 7900 XT: A robust choice for 4K gaming with exceptional visuals.
• NVIDIA GeForce RTX 4090: The ultimate choice for high-end gaming, 3D rendering, and AI workloads.

Upgrade to a powerful GPU and experience stunning visuals and smooth gameplay!

Memory Compatibility

The MSI MPG Z790 CARBON WIFI DDR5 motherboard leverages the latest DDR5 technology, providing higher speeds and better efficiency compared to DDR4.

Key Memory Features

• Four DDR5 DIMM Slots: Supports up to 192GB of memory capacity for future-proof setups.
• Supported Speeds: Native support for 4800 MHz with overclocking up to 7600+ MHz (O.C.).
• Dual-Channel Mode: Ensures maximum memory bandwidth for intensive multitasking.
• Intel XMP 3.0 Support: Seamless overclocking with pre-configured profiles for stability.

Note: Overclocking to extreme speeds may require advanced cooling solutions to maintain system stability.

Power Requirements and Cooling

The MSI MPG Z790 CARBON WIFI DDR5 Motherboard is built with robust power connectors and efficient cooling to handle high-end components, ensuring stable and reliable performance.

Power Connectors

• 24-Pin ATX Power Connector: Main power delivery for the motherboard.
• 2x 8-Pin EPS CPU Power Connectors: Provides stable power for overclocking and high-performance CPUs.

Cooling and Fan Headers

• 1x CPU Fan Header: Compatible with premium air and liquid coolers.
• 1x Pump Fan Header: Dedicated for AIO and custom liquid cooling systems.
• 6x System Fan Headers: Supports additional fans for optimized airflow.
• VRM Cooling: High-quality heatsinks with heat-pipes and thermal pads ensure the VRM stays cool even during extreme loads.

Power Supply Recommendations for MSI MPG Z790 CARBON WIFI

• 750W PSU: Ideal for mid-range GPUs like the RTX 4070 Ti.
• 850W PSU: Recommended for high-performance GPUs like the RX 7900 XT.
• 1000W PSU or Higher: Essential for ultra-high-end builds with GPUs like the RTX 4090.

Invest in a robust PSU and efficient cooling to maintain peak performance and reliability in demanding workloads!

Is This Motherboard for You?

If you demand premium features, exceptional performance, and the ability to handle the latest hardware, the MSI MPG Z790 CARBON WIFI DDR5 is the perfect foundation for your gaming or productivity build.
