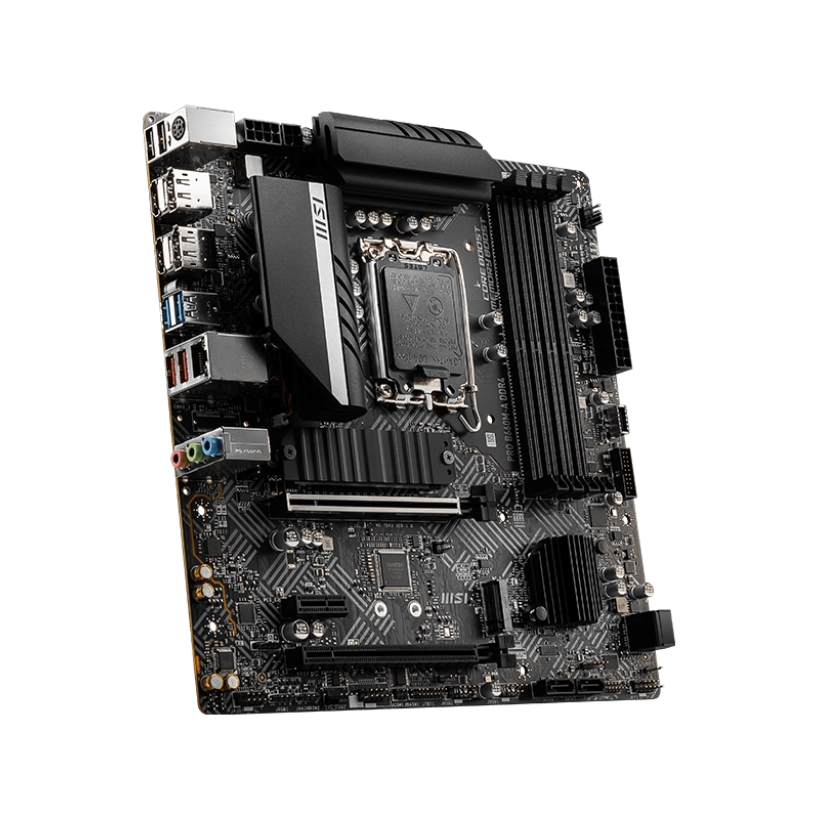

MSI PRO B760M-A WIFI, DDR4, LGA1700, Intel 14th/13th/12th Gen Support

The MSI PRO B760M-A WIFI DDR4 motherboard is built to deliver superior performance in a compact micro-ATX form factor. Designed for Intel 14th, 13th, and 12th Gen processors, it combines advanced features like Wi-Fi 6E, 2.5G LAN, dual M.2 PCIe Gen4 slots, and DDR4 memory support for smooth multitasking, productivity, and gaming.

Equipped with MSI’s M.2 Shield FROZR for SSD protection, Core Boost for optimized CPU power delivery, and Frozr AI Cooling for efficient thermal management, this board is engineered to perform under heavy workloads. The board also includes EZ Debug LED for quick troubleshooting and Memory Boost to enhance memory stability and compatibility.

With its high-speed connectivity options, such as USB 3.2 Gen 2 (10Gbps) and Wi-Fi 6E, the MSI PRO B760M-A WIFI is ideal for modern PC builds requiring speed, reliability, and flexibility.

Key Features

• Supports Intel 14th/13th/12th Gen Core, Pentium® Gold, and Celeron® processors.
• DDR4 memory support, up to 128GB, with speeds up to 5333MHz (OC).
• Lightning Gen4 PCIe and dual M.2 slots for ultra-fast storage solutions.
• Wi-Fi 6E delivers speeds up to 2.4Gbps for seamless wireless performance.
• 2.5G LAN ensures a premium wired network experience.
• M.2 Shield FROZR prevents SSD throttling and improves stability.
• USB 3.2 Gen 2 Type-A ports for faster data transfer up to 10Gbps.
• EZ Debug LED simplifies troubleshooting during system setup.
• Frozr AI Cooling adjusts fan speeds dynamically for optimal temperatures.
• Compact micro-ATX form factor perfect for space-saving PC builds.

MSI PRO B760M-A WIFI DDR4 Motherboard  Specifications

• Brand: MSI
• Model: PRO B760M-A WIFI
• Socket: LGA 1700
• Chipset: Intel B760
• Memory Support: DDR4, up to 5333MHz (OC), 4 DIMM slots, max 128GB
• Graphics Outputs: 2x HDMI 2.1 (4K@60Hz), 2x DisplayPort 1.4 (4K@60Hz)
• Expansion Slots: 2 PCIe 4.0 x16, 1 PCIe 3.0 x1
• Storage: 2 PCIe 4.0 M.2 slots, 4 SATA 6Gb/s ports
• Networking: Realtek® RTL8125BG 2.5G LAN, Intel® Wi-Fi 6E, Bluetooth 5.3
• Audio: Realtek® ALC897 Codec, 7.1-channel HD audio
• USB Ports: Rear: 2x USB 2.0, 2x USB 5Gbps Type-A, 2x USB 10Gbps Type-A; Front: 4x USB 5Gbps Type-A, 1x USB 5Gbps Type-C, 4x USB 2.0
• Cooling: 1 CPU fan header, 1 pump fan header, 2 system fan headers
• Power Requirements: 24-pin ATX power connector, 8-pin + 4-pin CPU power connectors
• Operating System Support: Windows 11 64-bit, Windows 10 64-bit
• Form Factor: micro-ATX (243.84mm x 243.84mm)

Processor Compatibility

The MSI PRO B760M-A WIFI DDR4 motherboard  is optimized for Intel 14th, 13th, and 12th Gen processors, providing excellent performance for gaming, content creation, and multitasking.

The Core Boost technology ensures stable power delivery, making it capable of handling high-core-count CPUs.

Recommended Processors

• For Gamers: Intel Core i5-13600K – Balanced performance for gaming and streaming.
• For Creators: Intel Core i7-13700K – Perfect for intensive workloads like video editing.
• For Budget Builds: Intel Core i3-12100F – Affordable and efficient for daily computing.

Memory Compatibility

This motherboard supports DDR4 memory with speeds up to 5333MHz (OC) and capacities up to 128GB. With 4 DIMM slots and dual-channel mode, users can build systems with high memory capacity and performance. XMP support allows for easy overclocking of memory modules.

Discrete Graphics Compatibility

The PCIe 4.0 x16 slot ensures compatibility with the latest GPUs, offering the bandwidth required for high-performance gaming and rendering. Recommended GPUs include:

• NVIDIA RTX 40 Series GPUs (e.g., RTX 4070, RTX 4060).
• AMD Radeon RX 6000 Series GPUs (e.g., RX 6700 XT, RX 6600 XT).

For budget builds, GPUs like the NVIDIA GTX 1650 or AMD RX 6500 XT pair well with this motherboard.

Storage and Expansion

The MSI PRO B760M-A WIFI DDR4 motherboard includes:

• 2 PCIe 4.0 M.2 slots for high-speed NVMe SSDs.
• 4 SATA 6Gb/s connectors for traditional SSDs or HDDs.
• RAID support for both M.2 and SATA drives with configurations for RAID 0, 1, 5, and 10.

The M.2 Shield FROZR helps keep SSDs cool and prevents performance drops due to thermal throttling.

Power Requirements and Cooling

The motherboard requires:

• 24-pin ATX power connector for the board.
• 8-pin + 4-pin CPU power connectors for stable power delivery to the processor.

Additional cooling features include:

• 1 CPU fan header.
• 1 pump fan header.
• 2 system fan headers.

The Frozr AI Cooling technology dynamically adjusts fan speeds based on CPU and GPU temperatures for optimal performance and noise reduction.

Is This Motherboard for You?

The MSI PRO B760M-A WIFI DDR4 motherboard is an excellent choice for gamers, content creators, and professionals seeking a feature-rich motherboard with high-speed connectivity and reliable performance.

With support for Wi-Fi 6E, 2.5G LAN, PCIe 4.0, and DDR4 memory, this board is perfect for modern multitasking PC builds. Its compact size makes it ideal for small to mid-sized builds without sacrificing performance.
